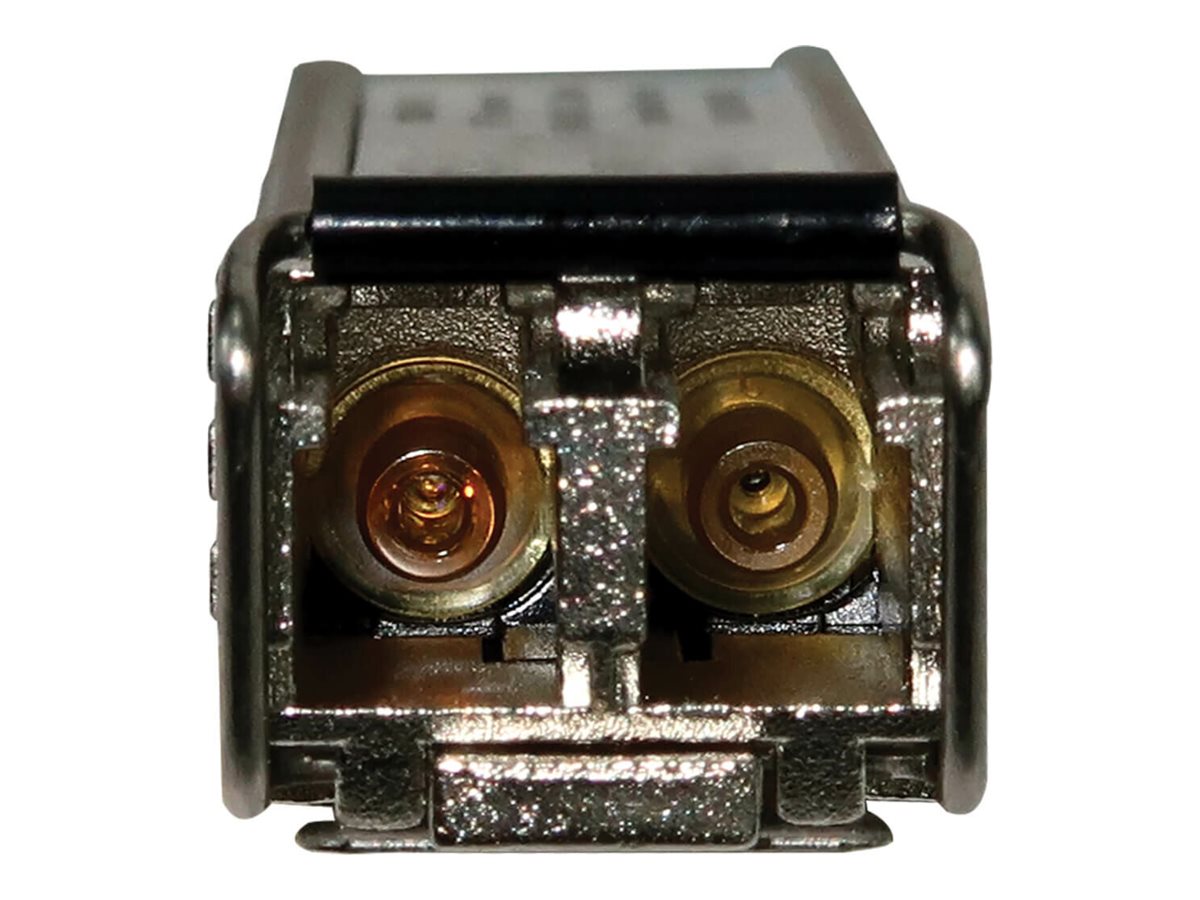

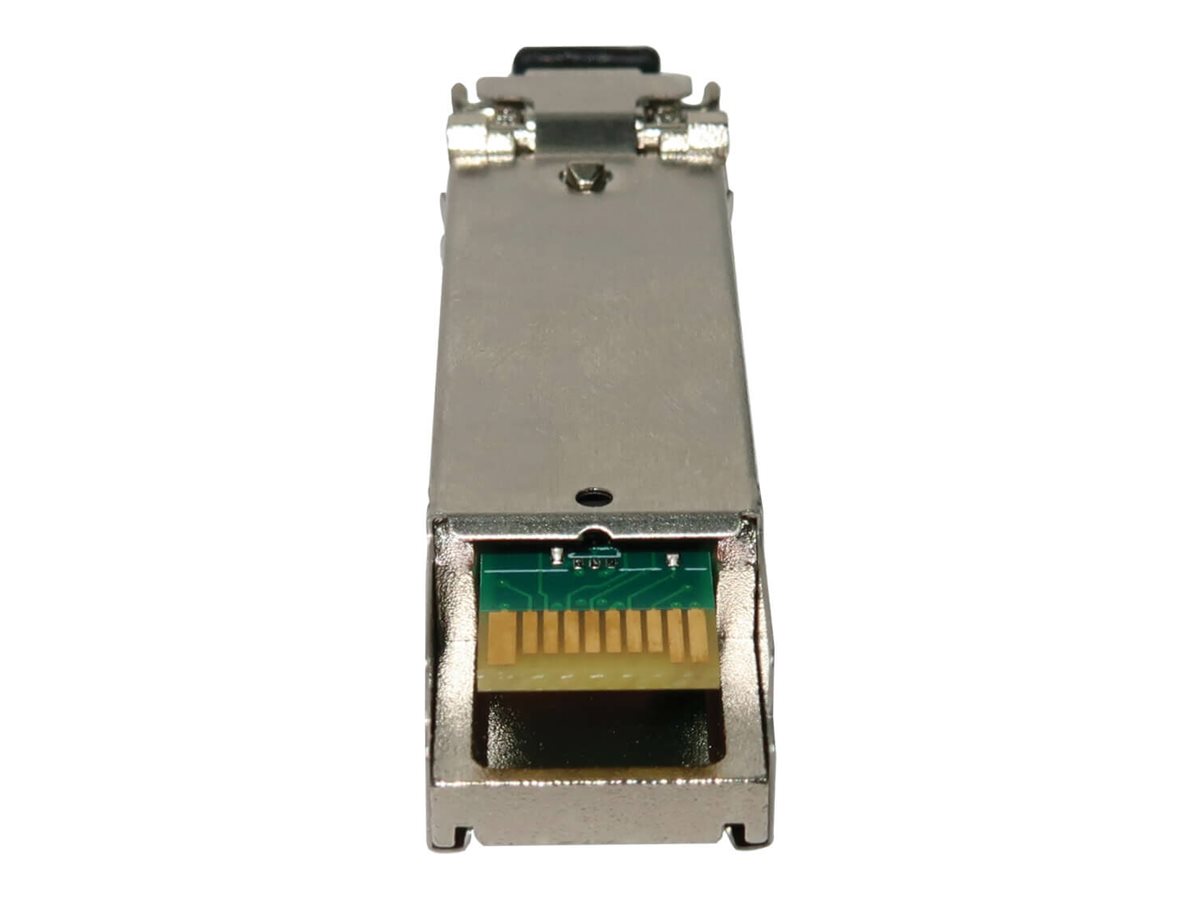

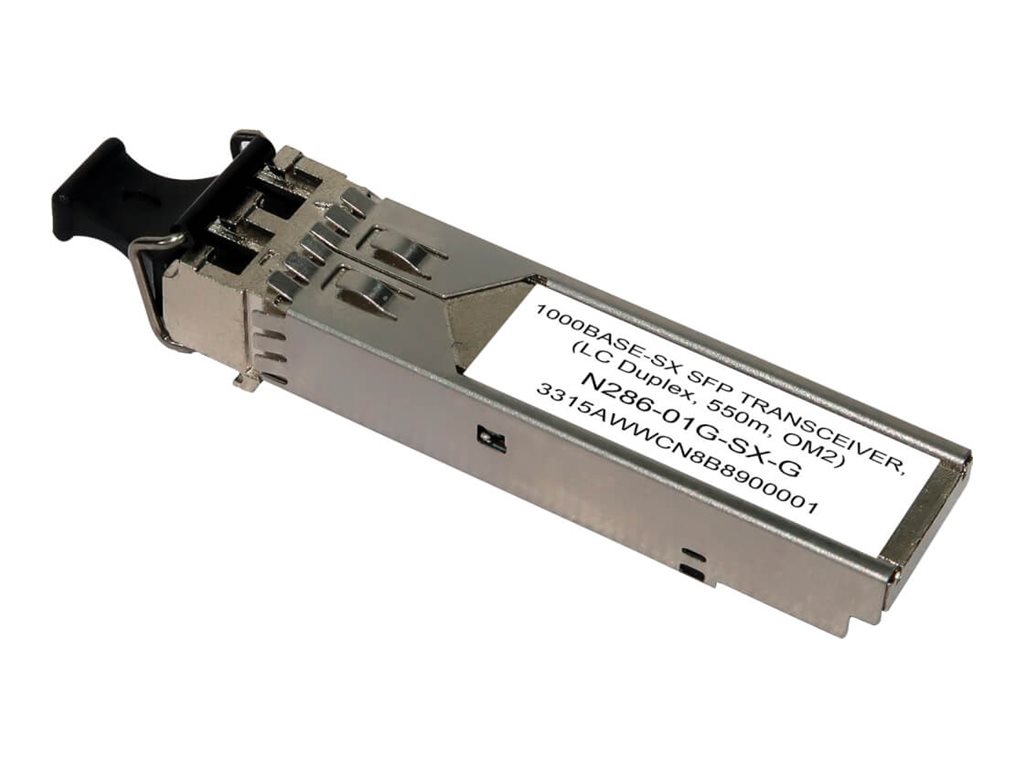

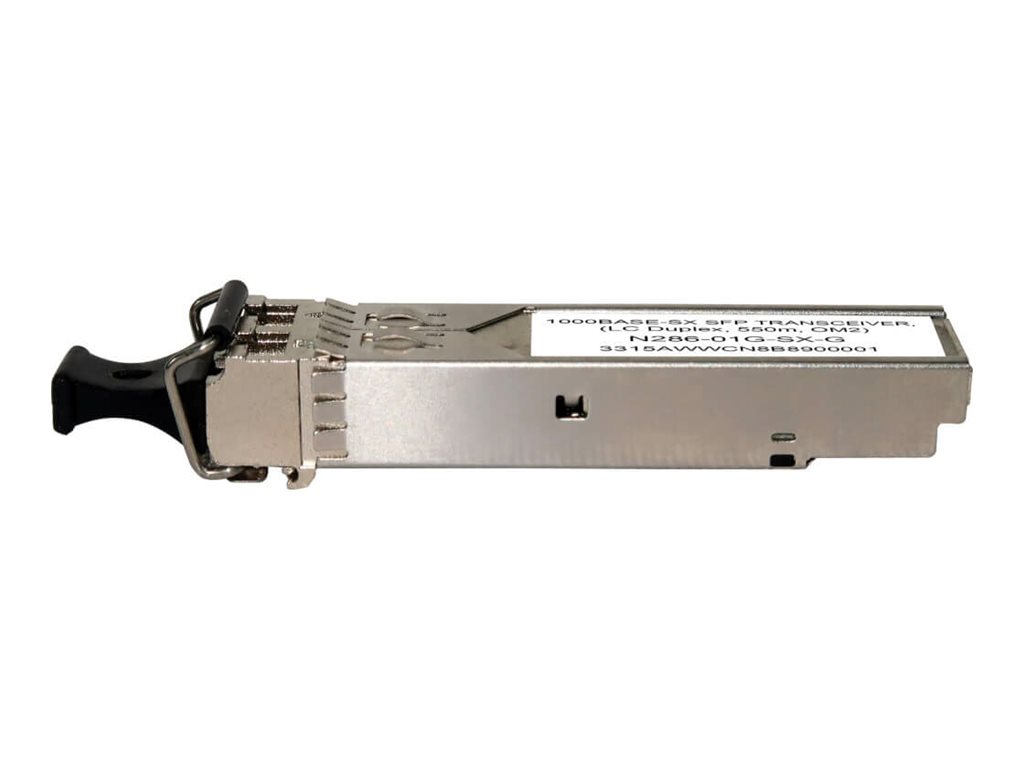

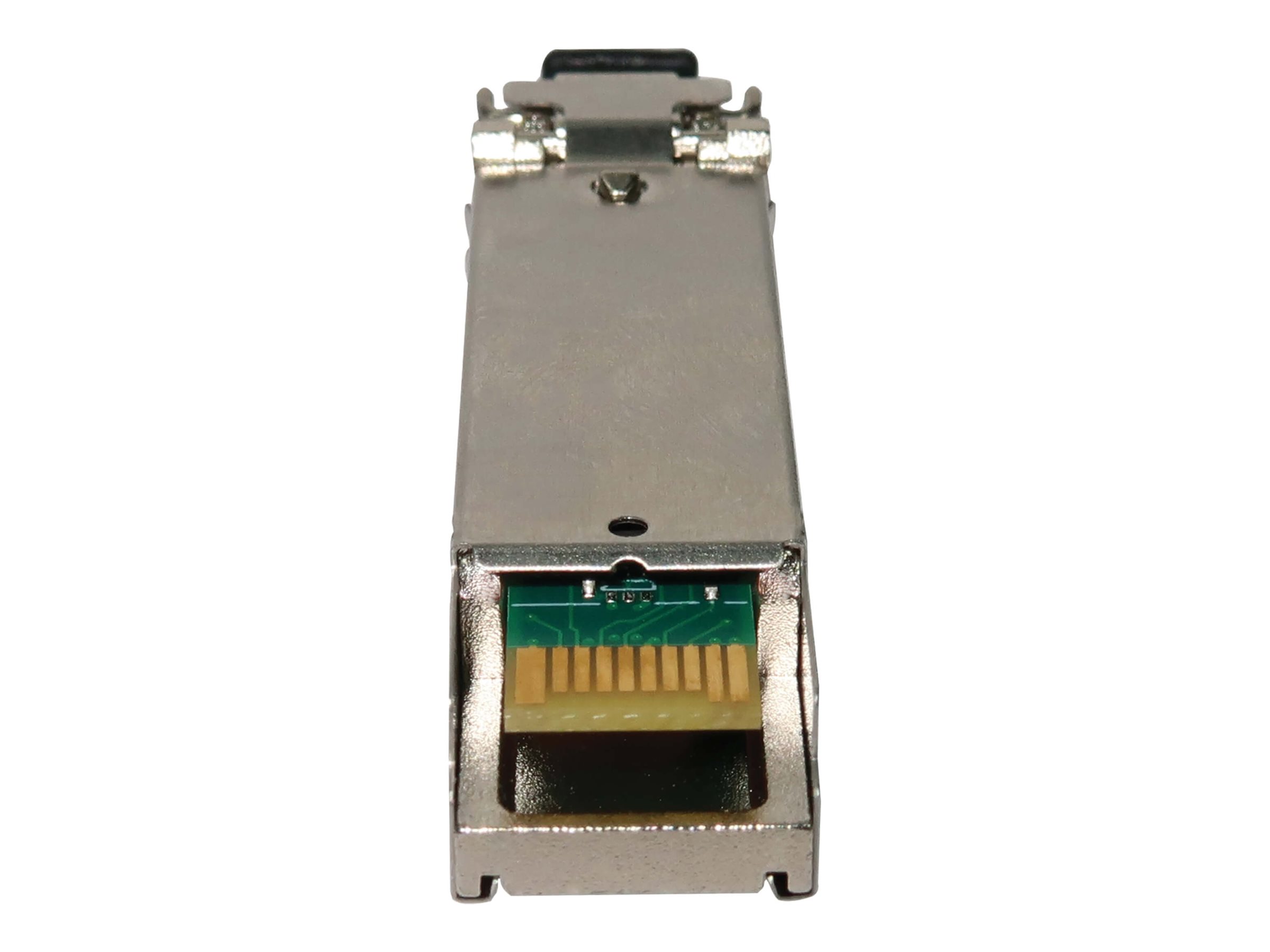

Eaton Tripp Lite Series SFP Transceiver
MSRP$224.68
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series SFP Transceiver
- 1000Base-SX, LC Duplex MMF, 1.25 Gbps, 850 nm, 550 m (1804 ft.)
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 550 m
- 830-860 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $224.68 |
| Mfr Part #: | N286-01G-SX-G |
| SHI Part #: | 46750412 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Eaton Tripp Lite Series SFP Transceiver - 1000Base-SX, LC Duplex MMF, 1.25 Gbps, 850 nm, 550 m (1804 ft.) - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 550 m - 830-860 nm |
| Manufacturer | Eaton |
| MSRP | $224.68 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Eaton |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1.25 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP (mini-GBIC) transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode female x 2 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM2, EN 55032, IEC/EN 63000, RoHS, UKCA |
| Networking | |
| Cabling Type | 1000Base-SX |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Features | Cisco compatible, multi-segment analysis (MSA), EMI/RFI protection, metal housing, Digital Diagnostics Monitoring (DDM), hot swappable |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 830-860 nm |
