Hanwha Vision XNP-C9303RW
MSRP$5,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

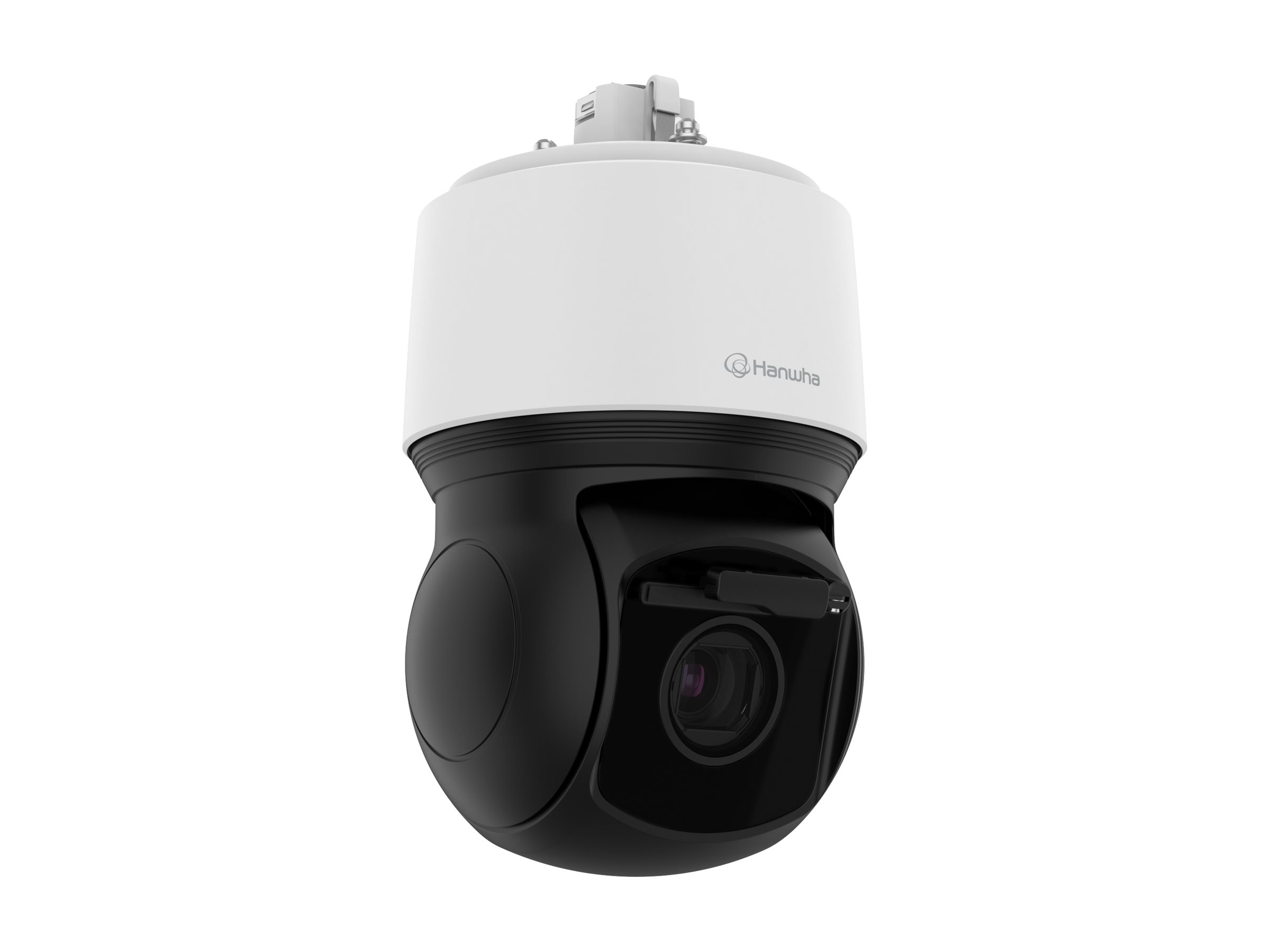

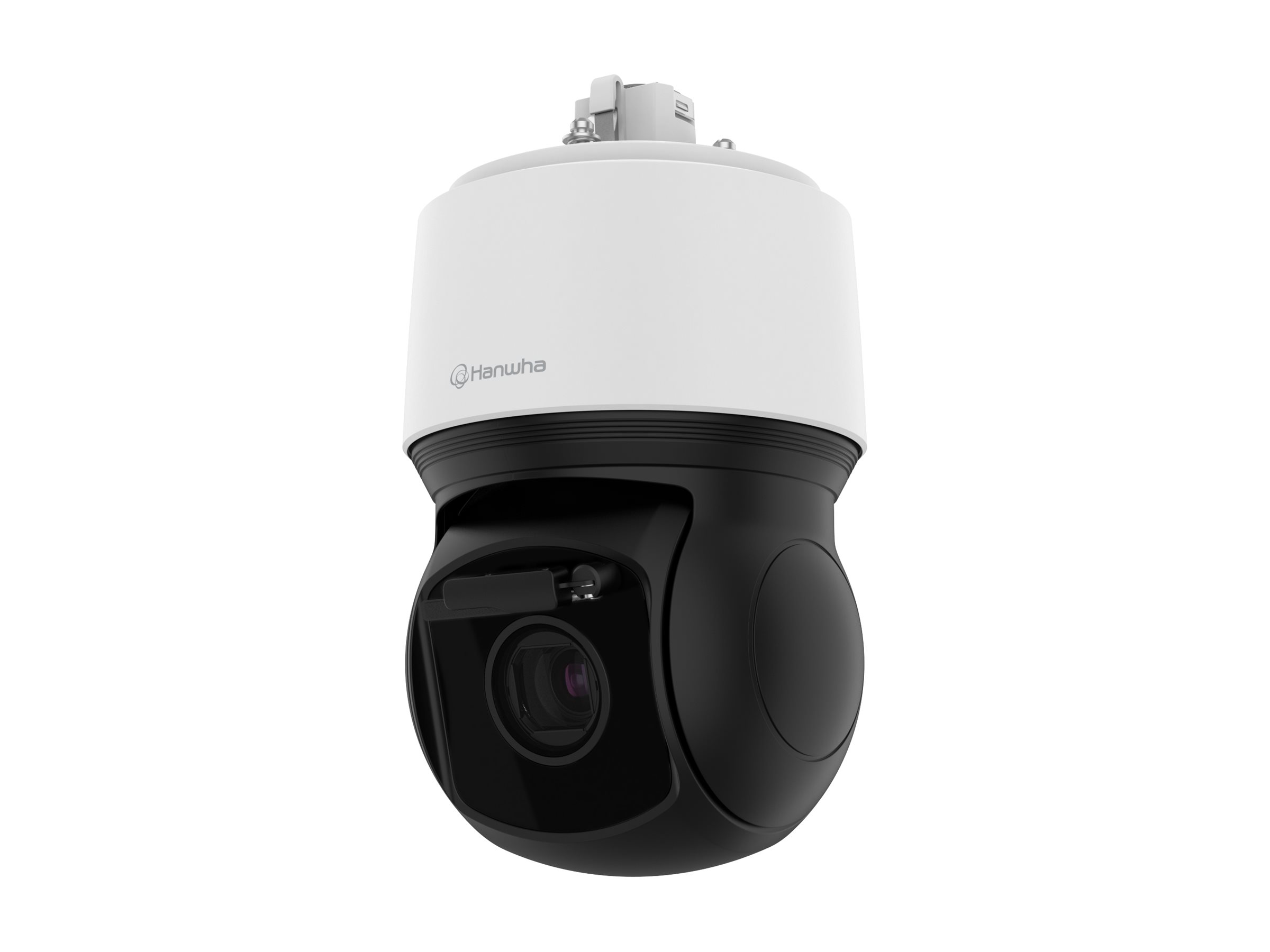

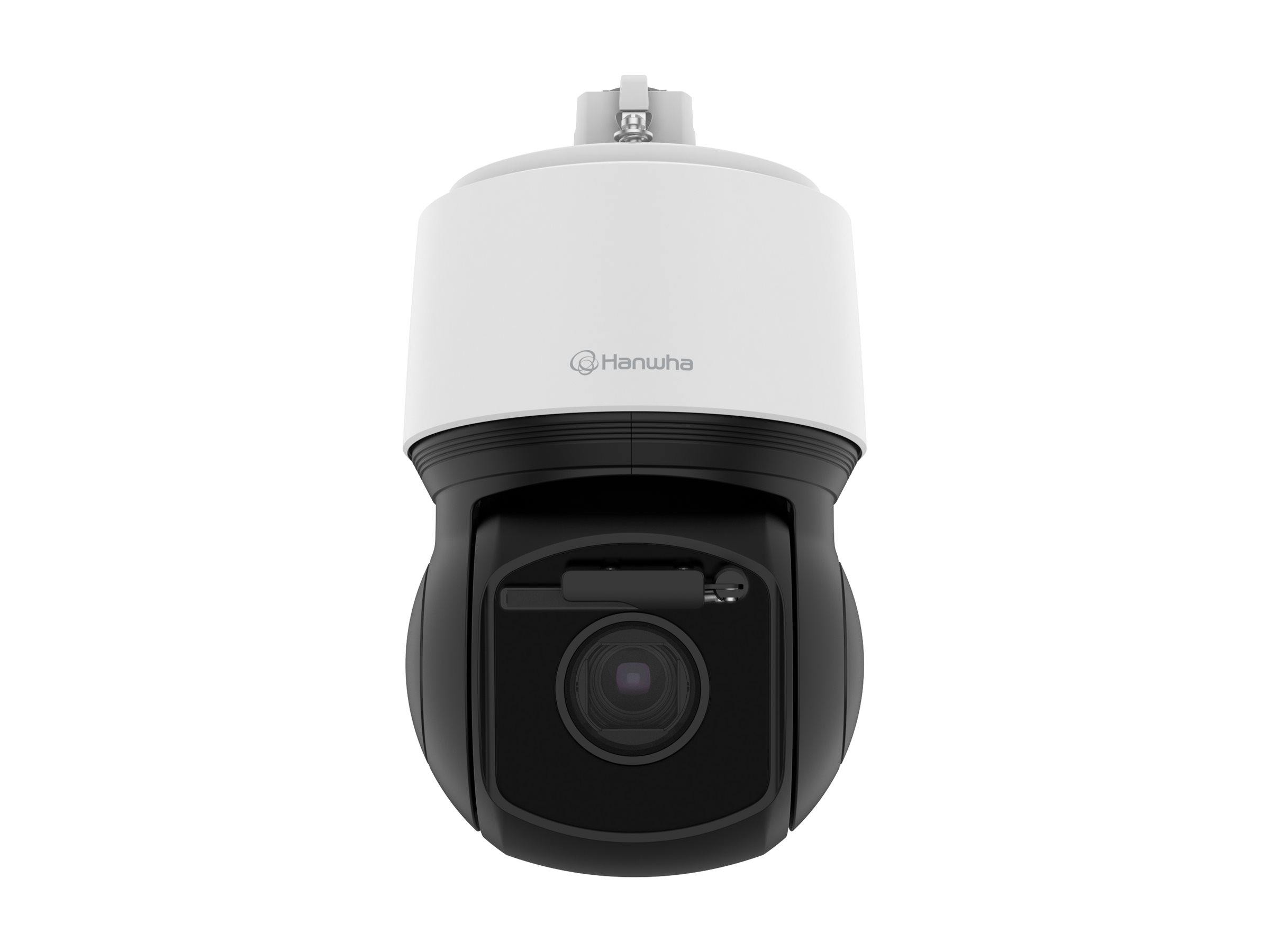

Hanwha Vision XNP-C9303RW
- Network surveillance camera
- PTZ
- color (Day&Night)
- 8 MP
- 3840 x 2160
- auto iris
- motorized
- LAN 10/100
- MJPEG, H.264, H.265
- PoE ++
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,500.00 |
| Mfr Part #: | XNP-C9303RW |
| SHI Part #: | 46563615 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNP-C9303RW - Network surveillance camera - PTZ - color (Day&Night) - 8 MP - 3840 x 2160 - auto iris - motorized - LAN 10/100 - MJPEG, H.264, H.265 - PoE ++ |
| Manufacturer | HANWHA VISION |
| MSRP | $5,500.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.49 cm |
| Dimensions & Weight / Height | 31.88 cm |
| Dimensions & Weight / Weight | 5.6 kg |
| Dimensions & Weight / Width | 18.49 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240, 3840 x 2160, 2592 x 1944 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Built-in wiper, WiseStream II support, Extreme WDR, Target lock tracking, AI Analytics, Object Tracking, Object Detection, Person Detection, face detection, Vehicle Detection, license plate detection, Virtual Line detection, entrance / exit detection, loitering detection, direction detection, intrusion detection, Defocus Detection, motion detection, tamper-detection, fog detection, Audio Detection, sound classification, auto ICR, 300 preset positions, Trusted Platform Module (TPM), Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Defog, Privacy Mask Function, adjustable gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, image flip, image mirror, Variable Bitrate (VBR), Constant Bitrate (CBR), Smart Codec, Unicast Streaming, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, secure boot, firmware encryption, signed firmware, digest authentication, IP address filtering, Multicast Streaming, 2 microSD card slots, aluminum housing, polycarbonate housing |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 200 m |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 100% RH |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 18.49 cm |
| Device Type | Network surveillance camera |
| Height | 31.88 cm |
| Weight | 5.6 kg |
| Width | 18.49 cm |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | SUNAPI, IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, NTCIP, MQTT |
| Lens Construction | |
| Focal Length | 5 mm - 150 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 2.19 - 57.42 |
| Lens Iris | F/1.6-4.56 auto iris (DC) |
| Min Focus Distance | 3 m |
| Optical Zoom | 30 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.25 - 33.54 |
| Miscellaneous | |
| Color | White, black, RAL 9003, RAL 9005 |
| Compliant Standards | IP66, NEMA250 Type 4X, FIPS 140-2 Level 2, FCC 47 CFR Part 15 Subpart B Class A, IEEE 802.1x, IEEE 802.3at, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC 62471, IEC/EN 63000, IEC 60529, IEC 62262 IK10, NEMA TS-2, ICES-3(A)/NMB-3(A), CE/UKCA, EN 55032 Class A, EN 50130-4, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 500 |
| Power | |
| Power Device | 26 Watt |
| Power Requirements | PoE ++ |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 350 |
