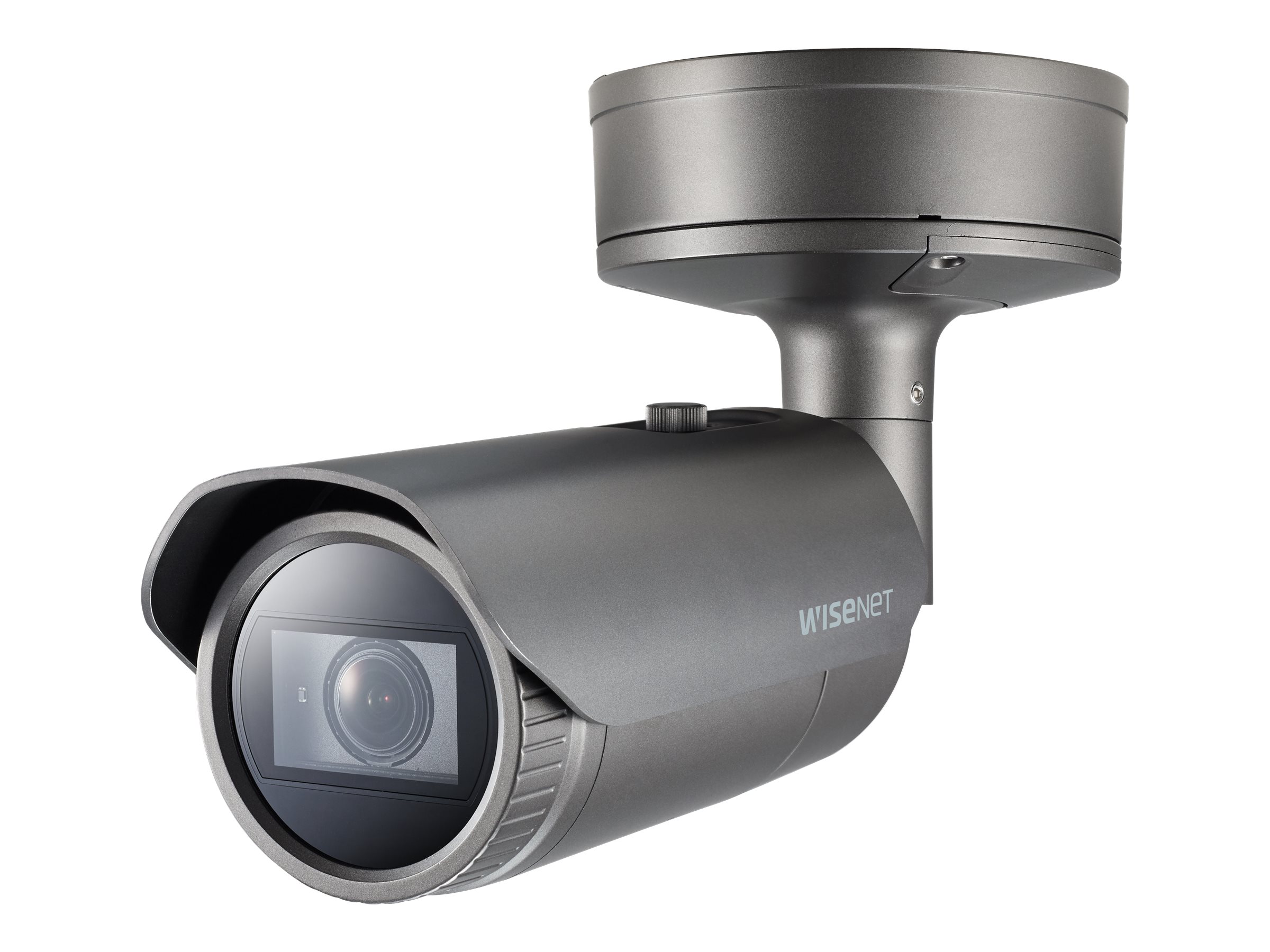

Hanwha Vision WiseNet P PNO-A9081R
MSRP$2,150.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet P PNO-A9081R
- Network surveillance camera
- color (Day&Night)
- 3840 x 2160
- auto iris
- motorized
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,150.00 |
| Mfr Part #: | PNO-A9081R |
| SHI Part #: | 43074381 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet P PNO-A9081R - Network surveillance camera - color (Day&Night) - 3840 x 2160 - auto iris - motorized - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Plus |
| Manufacturer | HANWHA VISION |
| MSRP | $2,150.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.1 cm |
| Dimensions & Weight / Height | 36.86 cm |
| Dimensions & Weight / Weight | 2.48 kg |
| Dimensions & Weight / Width | 9.1 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Object Detection, Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), Camera Tampering Detection, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, people counting, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Vehicle Detection, IP address filtering, Hallway View, motion detection, Unicast Streaming, Person Detection, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, mask detection, license plate tracking, sound classification, digital auto tracking |
| Flash Memory | 512 MB |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed |
| Video Capture | 3840 x 2160 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711, U-LAW |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 9.1 cm |
| Device Type | Network surveillance camera |
| Height | 36.86 cm |
| Weight | 2.48 kg |
| Width | 9.1 cm |
| Image Sensor | |
| Type | CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 52.3 - 120.7 |
| Focal Length | 4.5 mm - 10 mm |
| Horizontal Field of View (degree) | 45.5 - 101.4 |
| Lens Iris | F/1.6-2.65 auto iris (DC, P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.2 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 25.5 - 53.6 |
| Miscellaneous | |
| Color | Dark gray |
| Compliant Standards | FCC, NEMA Type 4X, cULus, IP67, IK10, IP66, EAC, IEEE 802.3at, IEEE 802.1x |
| Power | |
| Power Device | 18 Watt |
| Power Requirements | DC 12 V / PoE Plus |
| Software / System Requirements | |
| OS Required | Windows 8.1, Windows 10, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14 |
