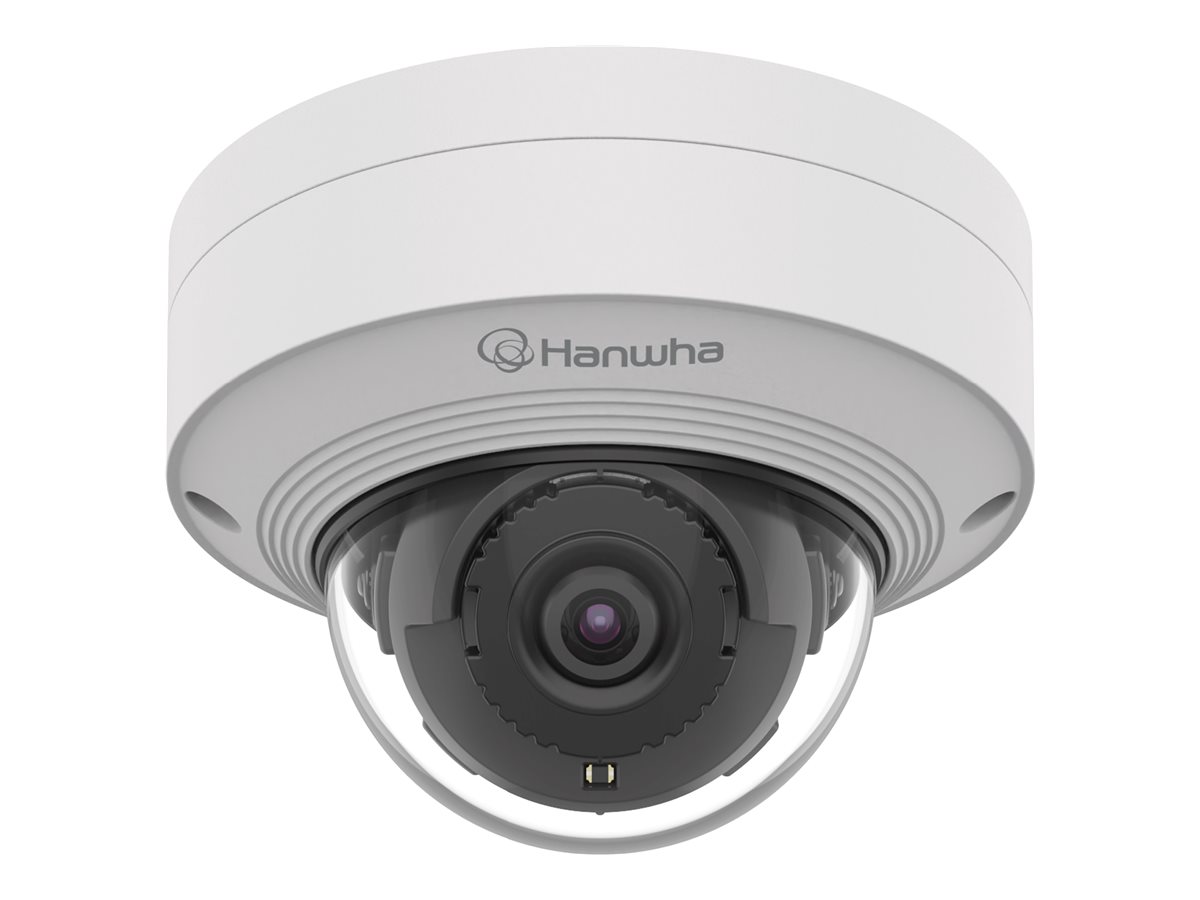

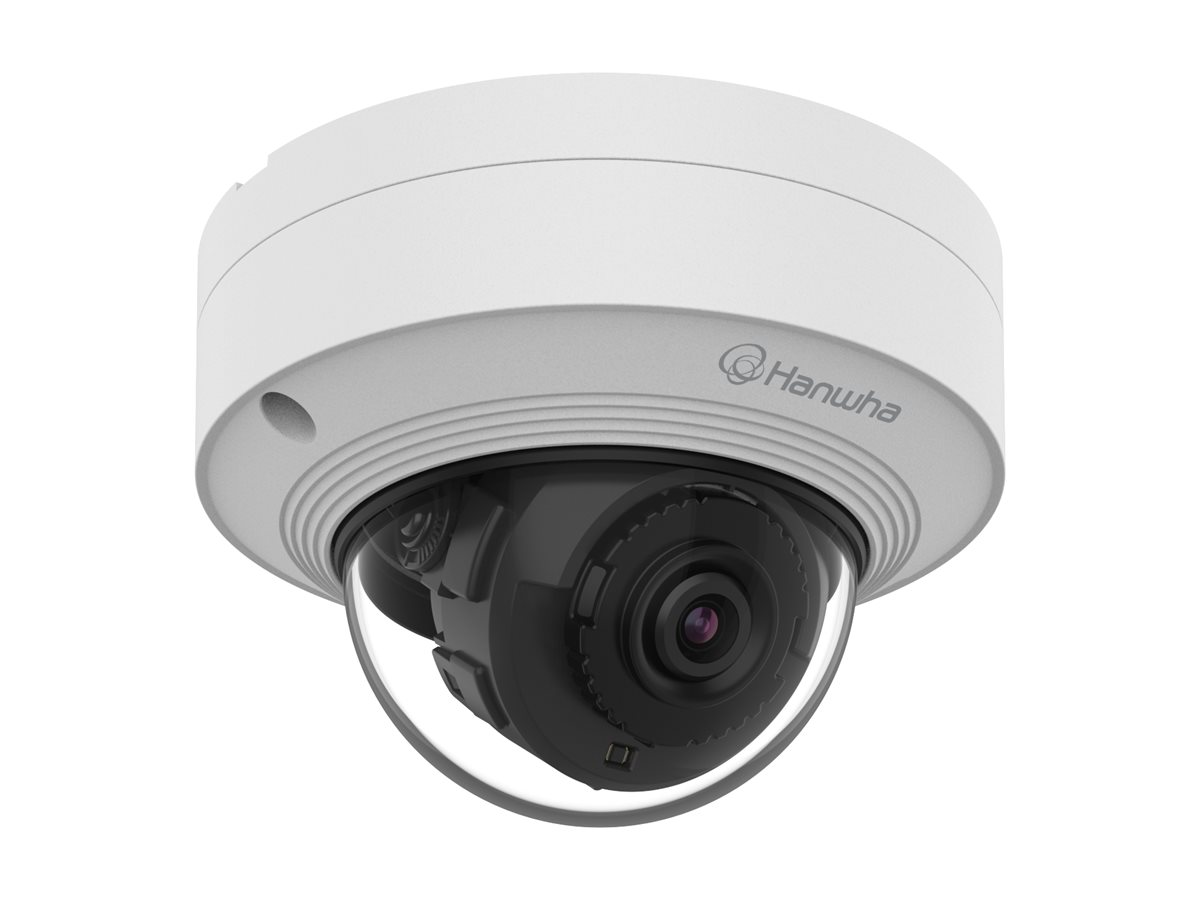

WISENET Q MINI NETWORK OUTDOOR VANDAL DOME CAMERA, 5MP @ 30FPS, FIX LENS 2.4MM (
MSRP$680.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
WISENET Q MINI NETWORK OUTDOOR VANDAL DOME CAMERA, 5MP @ 30FPS, FIX LENS 2.4MM (
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $680.00 |
| Mfr Part #: | QNV-C8012 |
| SHI Part #: | 46563612 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | WISENET Q MINI NETWORK OUTDOOR VANDAL DOME CAMERA, 5MP @ 30FPS, FIX LENS 2.4MM ( |
| Manufacturer | HANWHA VISION |
| MSRP | $680.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11 cm |
| Dimensions & Weight / Height | 7.7 cm |
| Dimensions & Weight / Weight | 522 g |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | WiseStream III support, WiseNR II, Wide Dynamic Range (WDR), Defocus Detection, appearing / disappearing detection, tamper-detection, Object Detection, Person Detection, Vehicle Detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, Hallway View, Lens Distortion Compensation (LDC), 355° rotation, Backlight Compensation (BLC), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Motion Detection Technology, Privacy Mask Function, adjustable gain control, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), anti-flicker, digital PTZ function, image flip, image mirror, people counting, vehicle counting, queue management, Heat Map, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Smart Codec, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, secure boot, signed firmware, firmware encryption, digest authentication, aluminum housing, hard-coated dome, DORI coverage, WiseStream II support, auto ICR |
| Flash Memory | 1 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 11 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 7.7 cm |
| Weight | 522 g |
| Width | 11 cm |
| Image Sensor | |
| Effective Pixels | 2592 x 1944 |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP |
| Lens Construction | |
| Diagonal Field of View (degree) | 159 |
| Focal Length | 2.4 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 123 |
| Lens Iris | F/2.0 fixed iris |
| Min Focus Distance | 50 cm |
| Type | M12 mount - fixed focal |
| Vertical Field of View (degree) | 91 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, EAC, NDAA, NEMA Type 4X, IEEE 802.1x, IEEE 802.3af, FCC 47 CFR Part 15 B Class A, ICES-003 Class A, NMB-003 Class A, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP66, IEC/EN 62262 IK10, UKCA |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 7 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | -35 to +70 |
