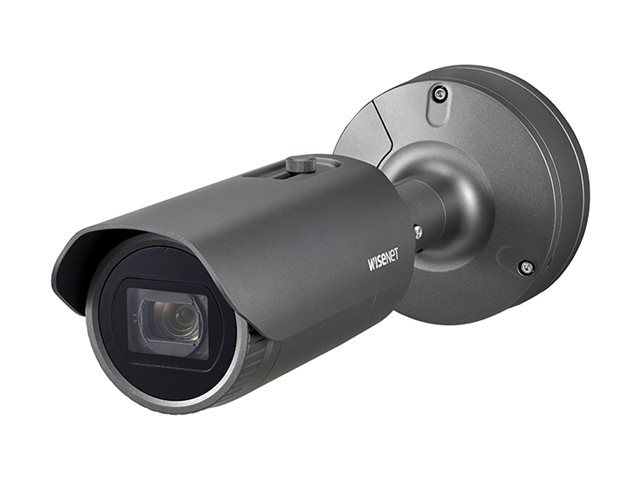

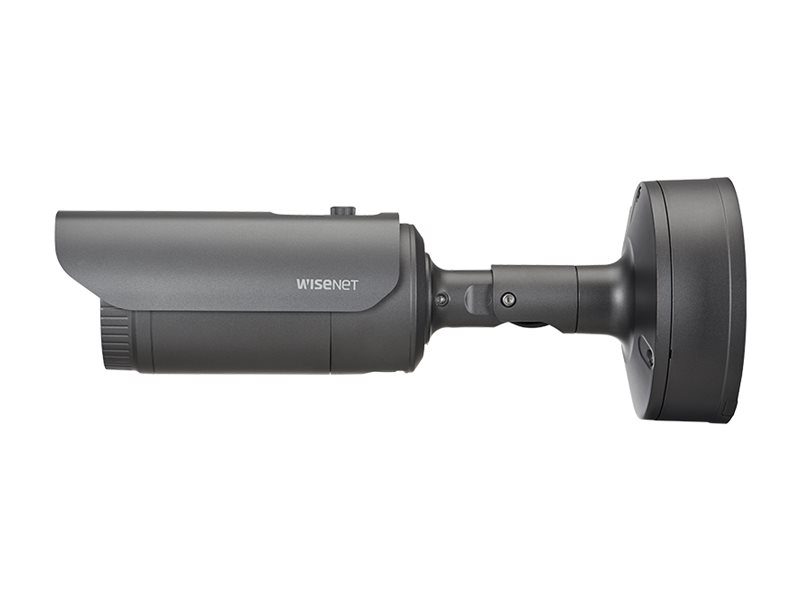

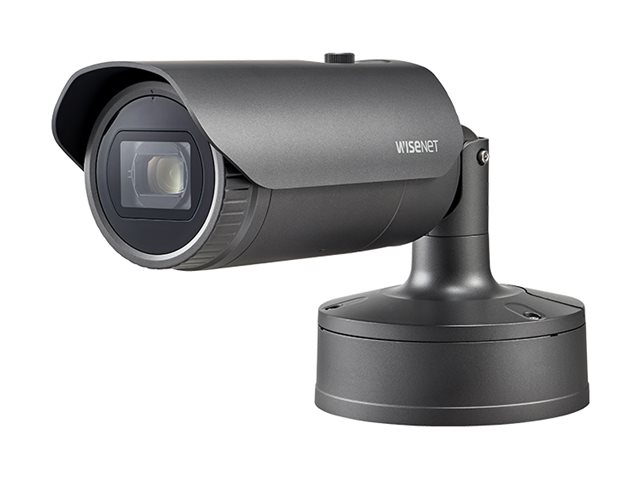

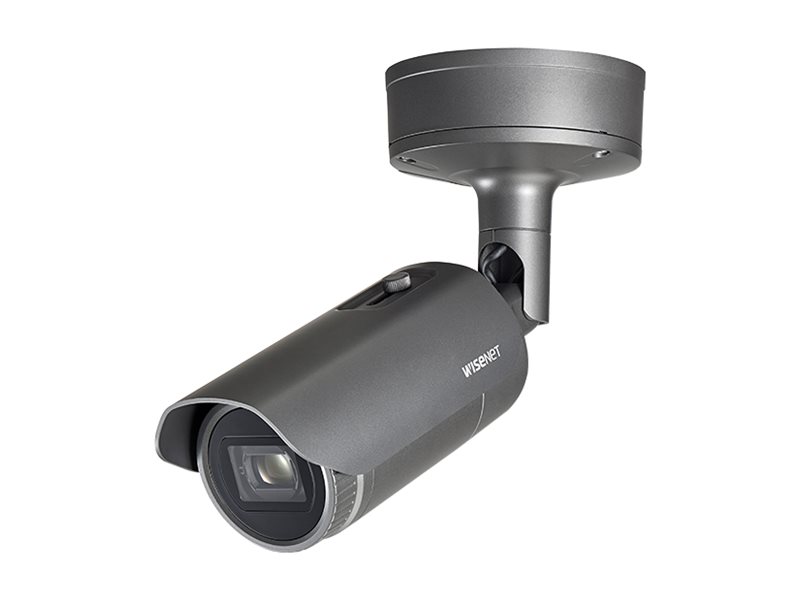

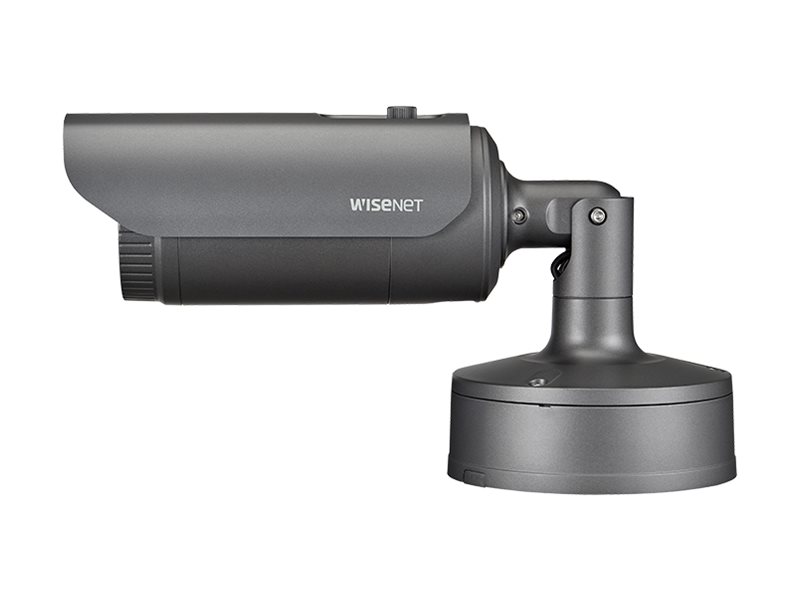

Hanwha Vision WiseNet X XNO-6120R/LPR

MSRP$2,000.00
$1,550.00
Hanwha Vision WiseNet X XNO-6120R/LPR
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • outdoor
  • vandal-proof
  • color (Day&Night)
  • 2.2 MP
Hanwha Vision WiseNet X XNO-6120R/LPR
  • Network surveillance camera
  • outdoor
  • vandal-proof
  • color (Day&Night)
  • 2.2 MP
  • 1920 x 1080
  • auto iris
  • vari-focal
  • audio
  • composite
  • LAN 10/100
  • MPEG-4, MJPEG, H.264, AVC, H.265
  • DC 12 V / AC 24 V / PoE Class 3
  Additional Details
Price: $1,550.00
MSRP: $2,000.00
Mfr Part #: XNO-6120R/LPR
SHI Part #: 43075573
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision WiseNet X XNO-6120R/LPR - Network surveillance camera - outdoor - vandal-proof - color (Day&Night) - 2.2 MP - 1920 x 1080 - auto iris - vari-focal - audio - composite - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, H.265 - DC 12 V / AC 24 V / PoE Class 3
ManufacturerHANWHA VISION
MSRP$2,000.00
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth9.1 cm
Dimensions & Weight / Height36.86 cm
Dimensions & Weight / Weight2.18 kg
Dimensions & Weight / Width9.1 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorGray
Packaged Quantity1
Camera
Digital Video FormatMPEG-4, MJPEG, H.264, AVC, H.265
Digital Zoom24
Exposure Range2 sec - 1/12000 sec
FeaturesBacklight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), heater, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Correction, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, auto gain control, auto white balance, 300 preset positions, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, Pixel Counter Support, License plate recognition (LPR), Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, fog detection, motion detection, Unicast Streaming, Handover, Directional Detection, 2D Noise Filtering
Infrared Distance70 m
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.03 lux - color - F1.6
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
TypeColor - Day&Night - fixed - outdoor - vandal-proof
Video Capture1920 x 1080 @ 60 fps
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)0 - 90%
Expansion / Connectivity
Ports
  • Composite video
  • Audio line-in/microphone
  • Audio line out - 3.5 mm mono jack
  • USB - Micro-USB Type B
  • LAN/power - RJ-45
Supported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711, U-LAW
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth9.1 cm
Device TypeNetwork surveillance camera
Height36.86 cm
Weight2.18 kg
Width9.1 cm
Image Sensor
Effective Pixels1945 x 1097
Total Pixels1945 x 1109
Type2.2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SRTP, EAP
VideoComposite video
Lens Construction
Diagonal Field of View (degree)6.06 - 61.4
Focal Length5.2 mm - 62.4 mm
Focus AdjustmentAutomatic, manual
Horizontal Field of View (degree)5.3 - 54.58
Lens IrisF/1.6-3.0 auto iris (DC)
Min Focus Distance150 cm
Optical Zoom12 x
TypeVari-focal
Vertical Field of View (degree)3 - 32.19
Miscellaneous
ColorDark gray
Compliant StandardsNEMA Type 4X, IP67, IK10, IP66, IEEE 802.3af, IEEE 802.1x
Power
Power Device14.5 Watt
Power RequirementsDC 12 V / AC 24 V / PoE Class 3
