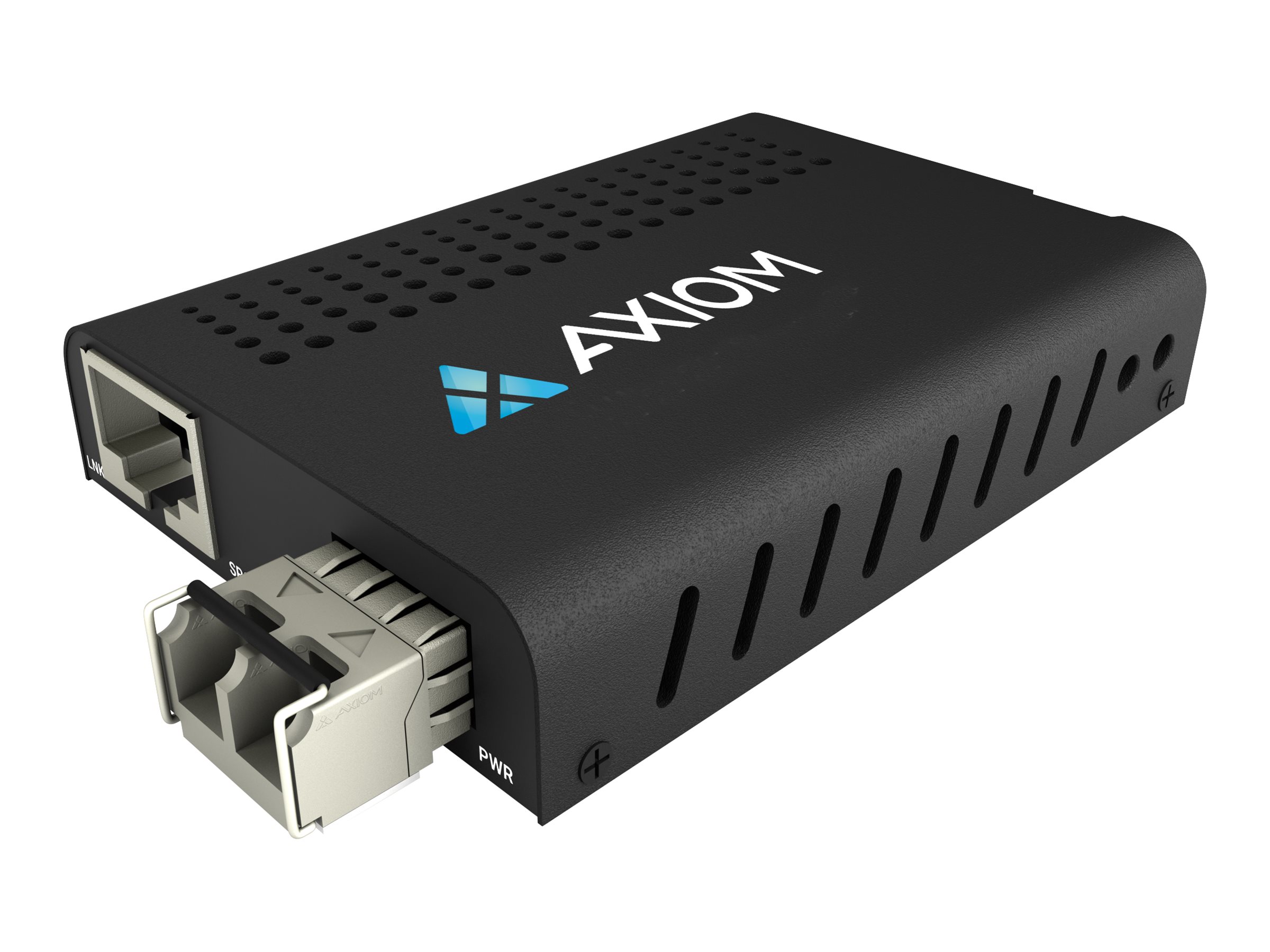

Axiom Mini - Fiber media converter
MSRP$423.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom Mini - Fiber media converter
- 1GbE
- over CAT 5/5e/6
- 10Base-T, 100Base-TX, 1000Base-SX, 1000Base-LX, 1000Base-T
- RJ-45 / LC Duplex multi-mode
- up to 2 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $423.00 |
| Mfr Part #: | AXG99290 |
| SHI Part #: | 46459681 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Axiom Mini - Fiber media converter - 1GbE - over CAT 5/5e/6 - 10Base-T, 100Base-TX, 1000Base-SX, 1000Base-LX, 1000Base-T - RJ-45 / LC Duplex multi-mode - up to 2 km - 1310 nm - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $423.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.2 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Width | 7.4 cm |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 10.2 cm |
| Height | 2.2 cm |
| Width | 7.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-SX, 1000Base-LX, 1000Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | 16 KB Jumbo Frame, auto-uplink (auto MDI/MDI-X), auto-negotiation, Link Fault Pass Through function (LFP), 384KB packet buffer, built-in DIP switch, full duplex mode, half duplex mode, flow control, LED status indicators, Automatic Link Restoration, collision domain elimination |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1310 nm |
| Power | |
| Power Consumption Operational | 2 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 5 / 12 V |
