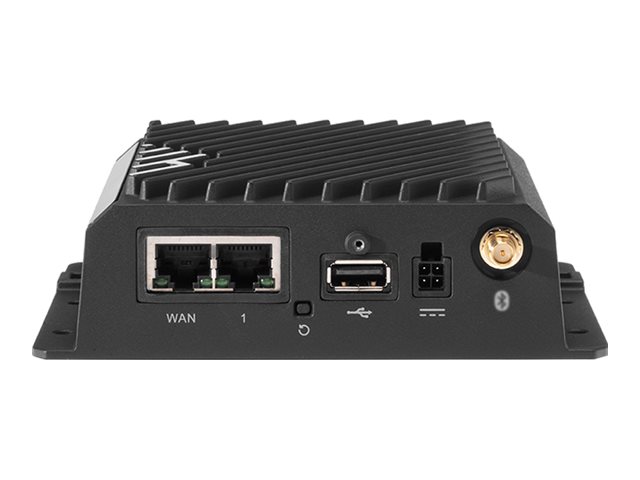

NETCLOUD IOT COMPLETE AND R920 ROUTER WITH WIFI 3YR, GA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
NETCLOUD IOT COMPLETE AND R920 ROUTER WITH WIFI 3YR, GA
| Additional Details | |
|---|---|
| Mfr Part #: | TCA3-0920-C7B-GM |
| SHI Part #: | 46453095 |
| Category: | Network bridges |
| UNSPSC: | 43222631 |
| Manufacturer: | Cradlepoint |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Network bridges |
| Description | NETCLOUD IOT COMPLETE AND R920 ROUTER WITH WIFI 3YR, GA |
| Manufacturer | Cradlepoint |
| UNSPSC | 43222631 |
| Main Specifications | |
| ABC Code | B |
| Height | 1.34 |
| Length | 16.88 |
| One Source Flag | YNY N |
| Serialized Flag | Y |
| SKU Created Date | 240731 |
| UPC | 840292703551 |
| Width | 9.38 |
| Antenna | |
| Antenna | External detachable |
| Communications | |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B66, LTE B41, LTE B14, LTE B42, LTE B43, LTE B48, LTE B71, HSPA+ B2, HSPA+ B4, HSPA+ B5 |
| Cellular Protocol | UMTS, WCDMA, HSPA+, FDD LTE, TDD LTE |
| Generation | 3G, 4G |
| Max Transfer Rate | 300 Mbps |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 12.15 cm |
| Height | 4.1 cm |
| Weight | 595 g |
| Width | 13.36 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Nano-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GNSS receiver |
| Bundled Services | 3 years NetCloud Ruggedized IoT Essentials + Advanced Plan |
| Capacity |
|
| Compliant Standards | Wi-Fi CERTIFIED, IEEE 802.11k, IEEE 802.11v, UL, cUL, IC, FCC, RoHS, IP64, WEEE, E Mark, PTCRB, RoHS2, MIL-STD 810G 514.6, CP65, SAE J1455, EN 62368-1, IEC/EN 61373 Category 1 Class B, C1D2, CB Scheme |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Encryption Algorithm | WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Features | DFS support, Access Point operational mode, Wireless Client Mode, SMS remote control, 2x2 MIMO technology, 3GPP Release 11, Ignition Sense, Docker Support, dual core CPU, GPS/GLONASS/Galileo/BeiDou/QZSS support |
| Flash Memory | 8 GB |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance |
|
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), LTE Cat 7 |
| Internet of Things (IoT) Compatible | Yes |
| Line Properties | |
| Line Coding Format | 64 QAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 x Wi-Fi antennas, 2 x cellular antennas |
| Localization | Australia, South Africa, New Zealand, Malaysia, Singapore, United Kingdom, European Union |
| MTBF | 388,022 hour(s) |
| Power | |
| Power Consumption Operational | 14.5 watt |
| Power Device | External power adapter |
