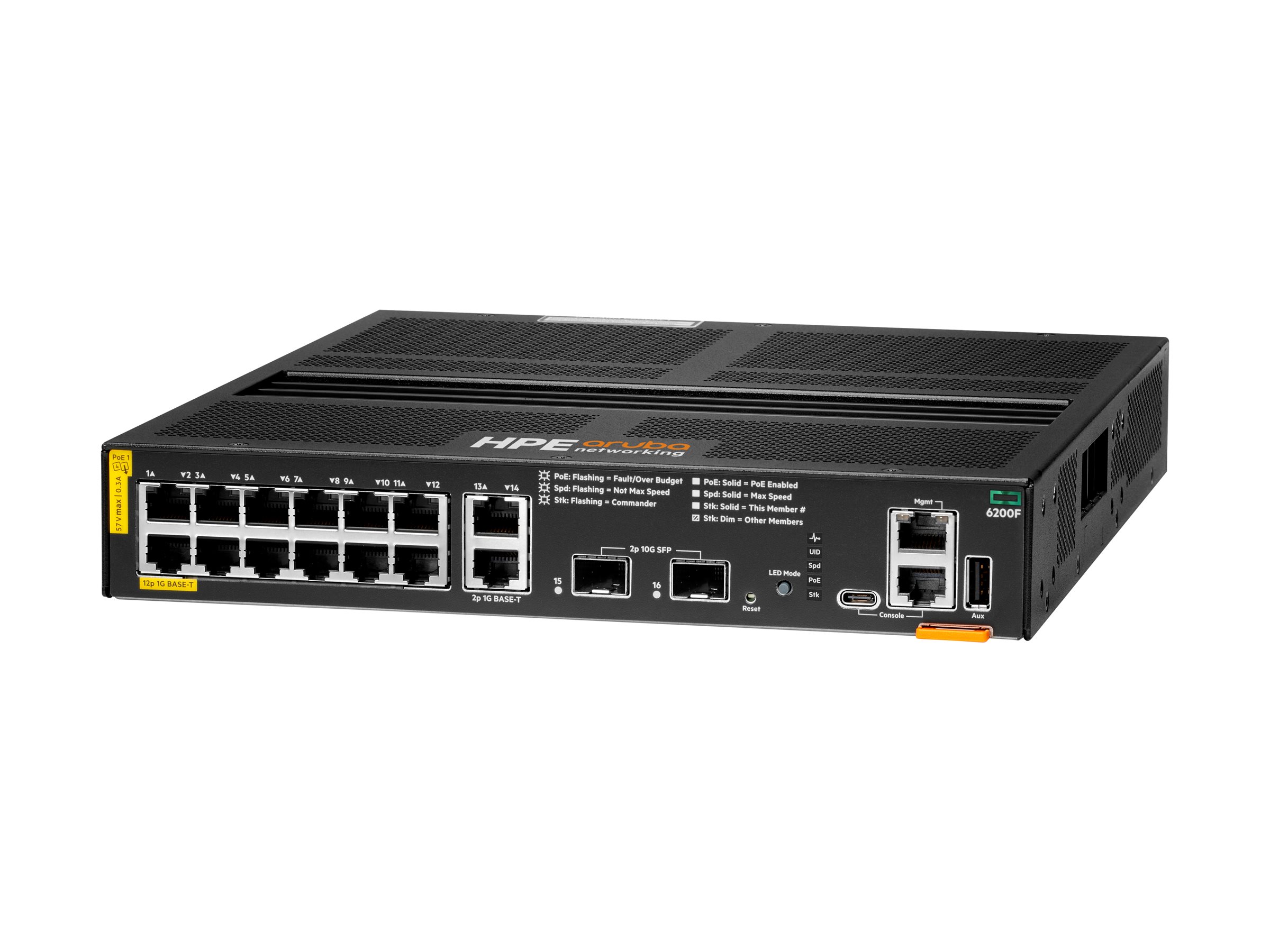

HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch


MSRP$2,699.00
$1,964.00
HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
  • Switch
  • L3
  • managed
  • 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • PoE+ (139 W)
  Additional Details
Price: $1,964.00
MSRP: $2,699.00
Mfr Part #: R8Q72A#B2E
SHI Part #: 46438810
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Network Cables

HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ to SFP+
  • 1 m
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP $149.00 $114.00
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • 3 m
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP $195.00 $155.00

Warranties

HPE Foundation Care Next Business Day Service
  • Extended service agreement
  • parts and labor
  • 3 years
  • on-site
  • 9x5
  • response time: NBD
MSRP $486.00 $485.00
HPE Foundation Care Next Business Day Exchange Service
  • Extended service agreement
  • replacement
  • 3 years
  • shipment
  • 9x5
  • response time: NBD
$254.00
HPE Foundation Care Software Support 24x7
  • Technical support
  • phone consulting
  • 1 year
  • 24x7
  • response time: 2 h
  • academic, for retail customers
$71.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - Switch - L3 - managed - 12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE+ (139 W)
ManufacturerHewlett Packard Enterprise
MSRP$2,699.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth30.5 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight3.24 kg
Dimensions & Weight / Width25.4 cm
Header / BrandAruba
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Form FactorRack-mountable
Networking / Ports Qty12
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth30.5 cm
Height4.39 cm
Weight3.24 kg
Width25.4 cm
Environmental Parameters
Humidity Range Operating5 - 95% RH (non-condensing)
Humidity Range Storage5 - 95% RH (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 12 x 10/100/1000 Base-T RJ-45 PoE Class 4
  • 2 x 1/10Gbit LAN SFP+
  • 2 x 1000Base-T
  • 1 x console RJ-45
  • 1 x console (USB) Type C
  • 1 x USB Type A host
General
Authentication MethodRADIUS, TACACS+
Capacity
  • Switched virtual interfaces (SVIs): 128
  • IPv4 host table capacity: 8000
  • IPv6 host table capacity: 8000
  • IPv4 routes (Unicast): 2000
  • IPv6 routes (Unicast): 2000
  • IGMP groups: 1000
  • MLD groups: 1000
  • IPv4 ACL entries (ingress): 1000
  • IPv6 ACL entries (ingress): 1000
  • MAC ACL entries (ingress): 1000
  • IPv4 ACL entries (egress): 512
  • IPv6 ACL entries (egress): 256
  • MAC ACL entries (egress): 512
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device TypeSwitch - 12 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmMD5, SSL, FIPS 140-2
FeaturesLayer 2 switching, ARP support, DiffServ support, VRRP support, QoS, TPM, ECMP, UDLD, fanless, DWRR, MIB, CoS, ToS, BPDU, SSM, NTP, security slot (Kensington security lock compatible), RPVST+, DNS support, IGMP support, UDLD, Auto MDIX, web GUI management portal, UTM, EQS
Flash Memory16 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
Max Units In A Stack8
Performance
  • Switching capacity: 68 Gbps
  • Throughput: 50.5 Mpps
  • Latency (1 Gbps): 3.8 µs
  • Latency (10 Gbps): 2.9 µs
  • Packet buffer size: 12.38 MB
  • Stacking bandwidth: 20 Gbps
PoE Budget139 W
Ports12 x 10/100/1000 (PoE+) + 2 x 100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
Processor1 x ARM: 1.2 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolSNMP, SNMP 3, SNMP 2c, CLI
Routing ProtocolOSPF, RIP-2, OSPFv2, OSPFv3, ECMP
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, RoHS, Laser Class 1, WEEE, VCCI Class A, EN 50581:2012, IEC 60950-1:2005 + A1:2009 + A2:2013, DoE Level VI, CISPR 35, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, UL 62368-1 Third Edition, EN 61000-3-3:2013/A1:2019, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, EN 62368-1:2014+A11:2017 2nd Ed., EN 62368-1:2020+A11:2020 3rd Ed., BS EN 62368-1:2020 + A11:2020 3rd Ed, CNS 15598-1:2020, CISPR 32 Ed 2.1: 2019 Class A, CISPR 35 Ed 1.0:2016, CSA 22.2 No.62368-1 Third Edition, EN 55032:2015 + A11:2020 Class A, FCC 47 CFR part 15B:2014 Class A
Included AccessoriesRack kit (2 post)
Power
Power Consumption Operational28 Watt
Power DeviceInternal power supply
Voltage RequiredAC 90-264 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
