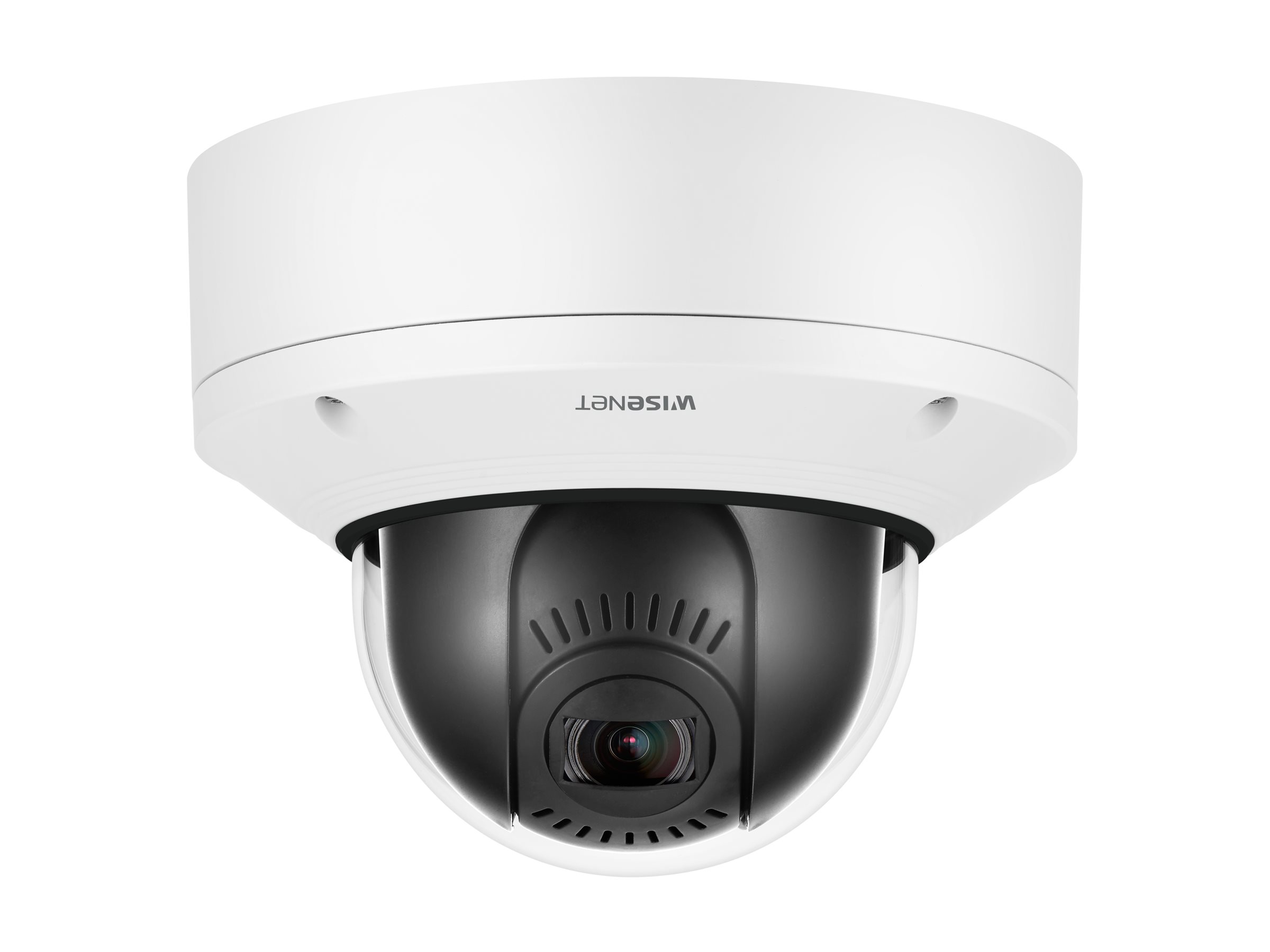

Hanwha Vision WiseNet X XND-6081V

Login for Price
Hanwha Vision WiseNet X XND-6081V
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • dome
  • color (Day&Night)
  • 2 MP
  • 1920 x 1080
Hanwha Vision WiseNet X XND-6081V
  • Network surveillance camera
  • dome
  • color (Day&Night)
  • 2 MP
  • 1920 x 1080
  • auto iris
  • motorized
  • audio
  • composite
  • LAN 10/100
  • MJPEG, H.264, H.265
  • DC 12 V / PoE Class 3
  Additional Details
Mfr Part #: XND-6081V
SHI Part #: 46400167
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionHanwha Vision WiseNet X XND-6081V - Network surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3
ManufacturerHANWHA VISION
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth16 cm
Dimensions & Weight / Height12.5 cm
Dimensions & Weight / Weight1.45 kg
Dimensions & Weight / Width16 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorWhite
Packaged Quantity1
System Requirements / OS Required
  • Apple macOS 10.12
  • Apple MacOS X 10.10
  • Apple MacOS X 10.11
  • Microsoft Windows 7
  • Windows 10
  • Windows 8.1
Camera
Digital Video FormatMJPEG, H.264, H.265
FeaturesWhite balance, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), digital PTZ function, Camera Tampering Detection, auto tracking, shock detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, appearing / disappearing detection, people counting, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, fog detection, motion detection, Unicast Streaming, Handover, Directional Detection
Infrared Distance50 m
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.015 lux - color - F1.4
  • 0.0015 lux - B&W - F1.4 - infrared LEDs on
Motion DetectionYes
TypeColor - Day&Night - fixed
Video Capture1920 x 1080 @ 60 fps
Video FormatNTSC, PAL
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-25 °C
Relative Humidity (operating)0 - 90%
Expansion / Connectivity
Ports
  • Composite video
  • USB - Micro-USB Type B
  • Audio line-in/microphone
  • Audio line out
  • LAN/power - RJ-45
Supported Memory CardsSD Memory Card, SDXC Memory Card, SDHC Memory Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711, U-LAW
Audio SupportYes: built-in microphone, two-way audio capability
Connectivity TechnologyWired
Depth16 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height12.5 cm
Weight1.45 kg
Width16 cm
Image Sensor
Effective Pixels1945 x 1097
Type2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, PIM-SM, LLDP
VideoComposite video
Lens Construction
Diagonal Field of View (degree)32 - 142.1
Focal Length2.8 mm - 12 mm
Focus AdjustmentManual
Horizontal Field of View (degree)27.9 - 119.5
Lens IrisF/1.4-3.6 auto iris (DC)
Min Focus Distance50 cm
Optical Zoom4.3 x
TypeMotorized zoom
Vertical Field of View (degree)15.7 - 62.8
Miscellaneous
ColorWhite
Compliant StandardscULus, IP52, EAC, IEEE 802.1x, IK10
Panning
Range (degree)0 to 360
Power
Power Device7 Watt
Power RequirementsDC 12 V / PoE Class 3
Software / System Requirements
OS RequiredMicrosoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12
Tilting
Range (degree)-45 to +85
