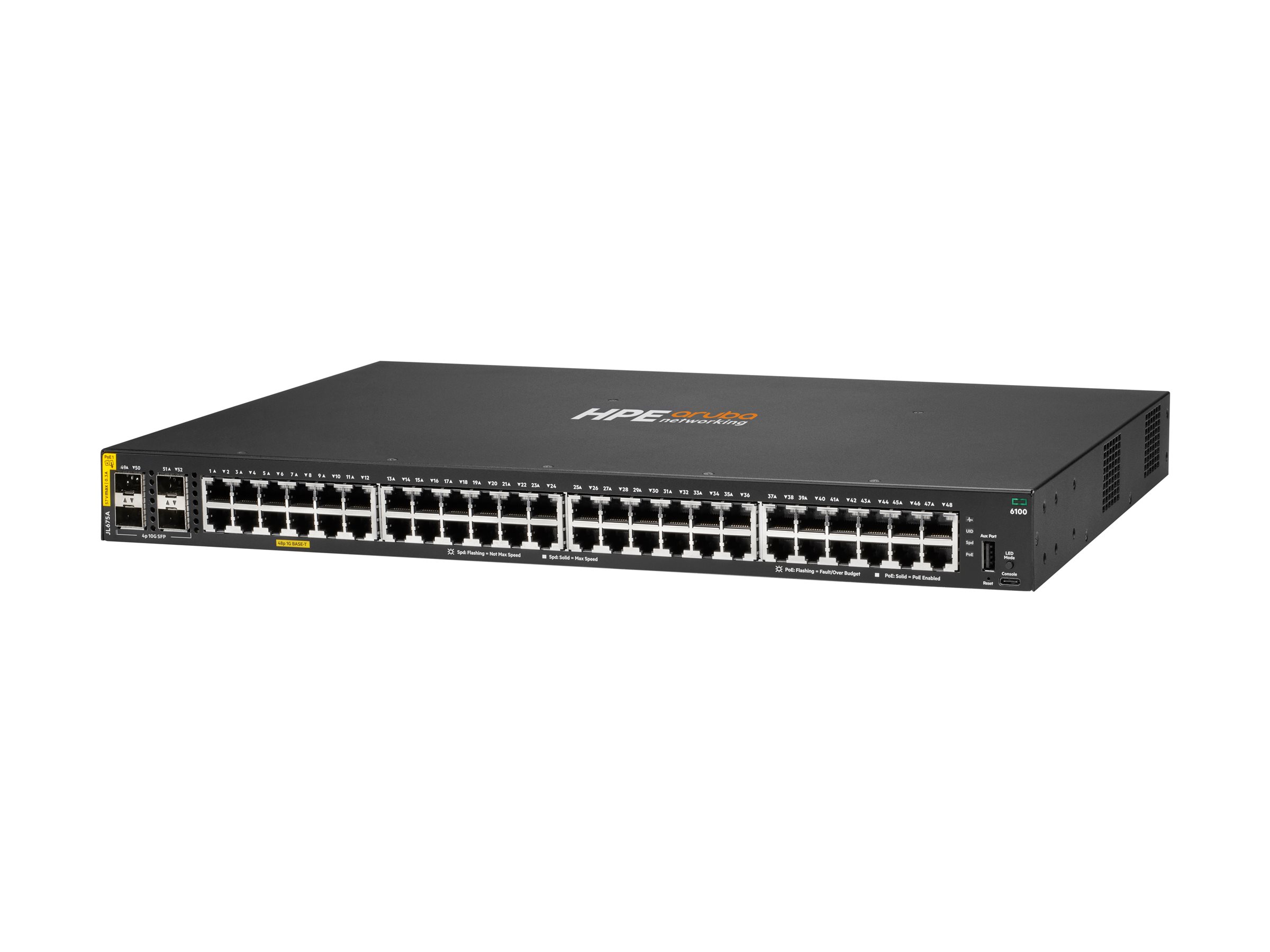

HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch

MSRP$5,559.00
$3,319.00
HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  • side to side airflow
  • rack-mountable
HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch
  • Switch
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
  • side to side airflow
  • rack-mountable
  • PoE+ (370 W)
  Additional Details
Price: $3,319.00
MSRP: $5,559.00
Mfr Part #: JL675A#ACJ
SHI Part #: 46360891
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategorySwitch matrixes
DescriptionHPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch - Switch - managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (370 W)
ManufacturerHewlett Packard Enterprise
MSRP$5,559.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth30.48 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight5.02 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Header / Country KitsIndia
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty52
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth30.48 cm
Height4.39 cm
Weight5.02 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 90% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45 PoE+
  • 4 x 1/10Gbit LAN SFP+
  • 1 x USB-C console
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 16
  • ARP entries: 1024
  • IPv4 routes (Unicast): 512
  • IPv6 routes (Unicast): 512
  • IGMP groups: 512
  • MLD groups: 512
  • IPv4 ACL entries (ingress): 256
  • IPv6 ACL entries (ingress): 128
  • MAC ACL entries (ingress): 256
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Device TypeSwitch - 52 ports - managed
Enclosure TypeSide to side airflow rack-mountable 1U
Encryption AlgorithmSSL
FeaturesFlow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, MSTP support, TFTP support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, MIB, NAC, NDP, SNMP support, ICMP, EntityMIB, DNS client, LLDP-MED, UDP, RSTP, IPv6 addressing
Flash Memory16 GB
MAC Address Table Size8192 entries
Performance
  • Switching capacity: 176 Gbps
  • Throughput: 98.6 µs
  • Latency (1 Gbps): 1.9 µs
  • Latency (10 Gbps): 1.8 µs
PoE Budget370 W
Ports48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
Processor1 x ARM A9: 1.016 GHz
RAM4 GB DDR3 SDRAM
Routing ProtocolIGMPv2, IGMPv3
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
LocalizationEnglish / India
Power
Power Consumption Operational30.6 Watt
Power DeviceInternal power supply
Power Provided500 Watt 2.4 A
Voltage RequiredAC 220 V (50/60 Hz)
