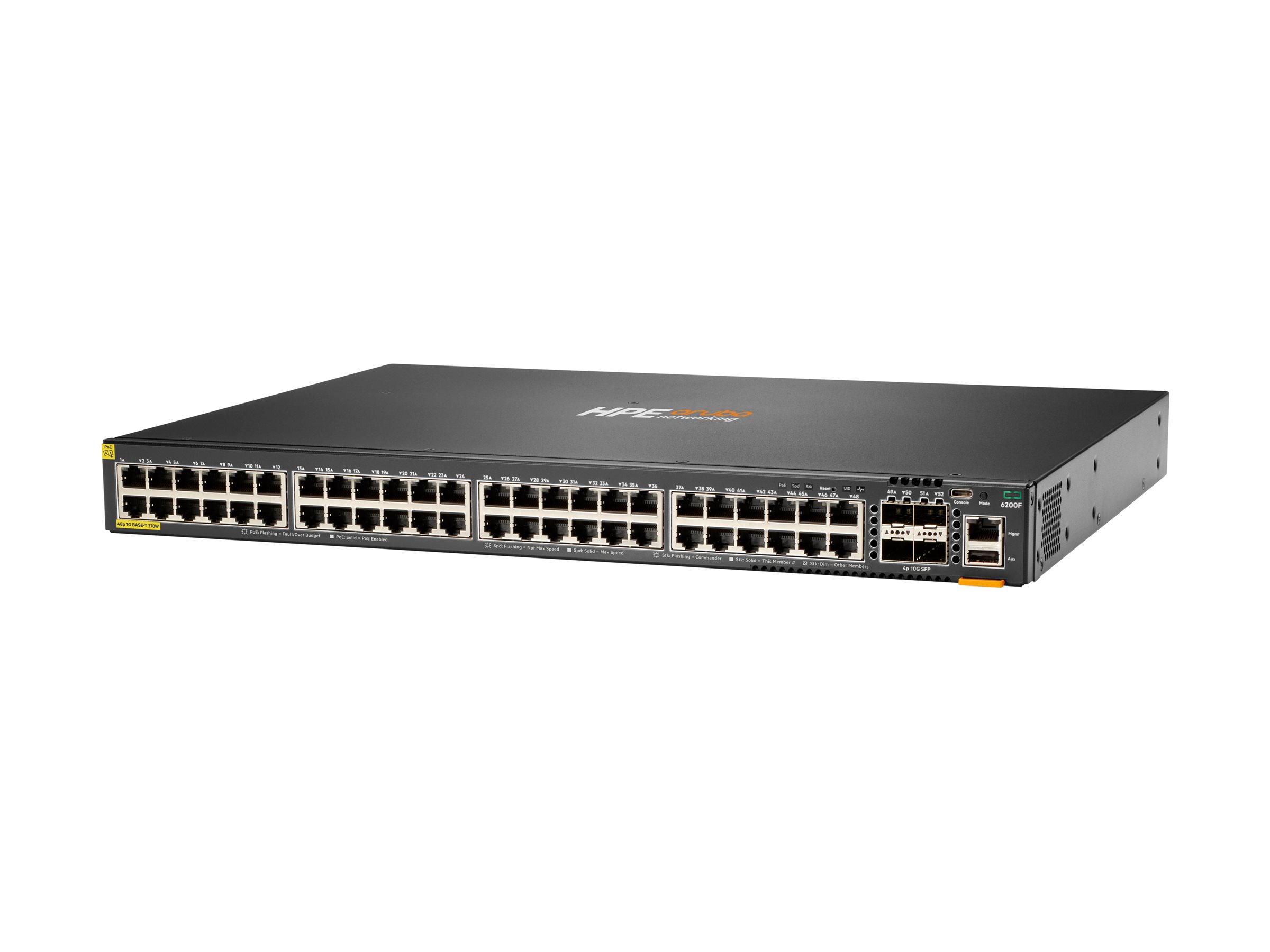

HPE Aruba Networking CX 6200F 48G 4SFP Switch


MSRP$5,869.00
$4,457.00
HPE Aruba Networking CX 6200F 48G 4SFP Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 100/1000 SFP
HPE Aruba Networking CX 6200F 48G 4SFP Switch
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 100/1000 SFP
  • front and side to back
  • rack-mountable
  Additional Details
Price: $4,457.00
MSRP: $5,869.00
Mfr Part #: S0M83A#ABA
SHI Part #: 46203551
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Warranties

HPE Foundation Care Call-To-Repair Service with Comprehensive Defective Material Retention Post Warranty
  • Extended service agreement (renewal)
  • parts and labor
  • 1 year
  • on-site
  • 24x7
  • repair time: 6 hours
$1,152.00
HPE Foundation Care Software Support 24x7
  • Technical support
  • phone consulting
  • 5 years
  • 24x7
  • response time: 2 h
  • academic, for retail customers
$686.00
HPE Foundation Care Next Business Day Service
  • Extended service agreement
  • parts and labor
  • 1 year
  • on-site
  • 9x5
  • response time: NBD
$438.00
General Information
CategorySwitch matrixes
DescriptionHPE Aruba Networking CX 6200F 48G 4SFP Switch - Switch - Max. Stacking Distance 10 kms - L3 - managed - 48 x 10/100/1000 + 4 x 100/1000 SFP - front and side to back - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$5,869.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth28.45 cm
Dimensions & Weight / Height4.37 cm
Dimensions & Weight / Weight3.9 kg
Dimensions & Weight / Width44.25 cm
Header / BrandAruba
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth28.45 cm
Height4.37 cm
Weight3.9 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 100/1000 SFP uplink
  • 1 x USB-C console
  • 1 x console RJ-45
  • 1 x management
  • 1 x USB Type A host
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Packet buffer size: 8 MB
  • IPv4 ACL entries (ingress): 5120
  • IPv6 ACL entries (ingress): 1280
  • MAC ACL entries (ingress): 5120
  • IPv4 ACL entries (egress): 2048
  • IPv6 ACL entries (egress): 512
  • MAC ACL entries (egress): 2048
  • IPv4 host table capacity: 8192
  • IPv6 host table capacity: 8192
  • IPv4 routes (Unicast): 2048
  • IPv6 routes (Unicast): 1024
  • IGMP groups: 1024
  • MLD groups: 1024
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront and side to back rack-mountable 1U
Encryption AlgorithmSSL, FIPS 140-2
FeaturesVirtual Route Redundancy Protocol (VRRP) support, Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
Flash Memory16 GB
Jumbo Frame Support9220 bytes
MAC Address Table Size32768 entries
Max Units In A Stack8
Performance
  • Switching capacity: 176 Gbps
  • Throughput: 130.9 Mpps
  • Latency (1 Gbps): 2.28 µs
  • Latency (10 Gbps): 1.46 µs
  • Stacking bandwidth: 40 Gbps
Ports48 x 10/100/1000 + 4 x 100/1000 SFP
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, CLI, MIB
Routing ProtocolRIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2020 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, IEC 63000:2018
Included Accessories2-Post Rack Kit
LocalizationEnglish / United States
Power
80 PLUS Certification80 PLUS Silver
Power DeviceInternal power supply
Voltage RequiredAC 100-120/200-240 V (50/60 Hz)
Software / System Requirements
OS RequiredAOS-CX
