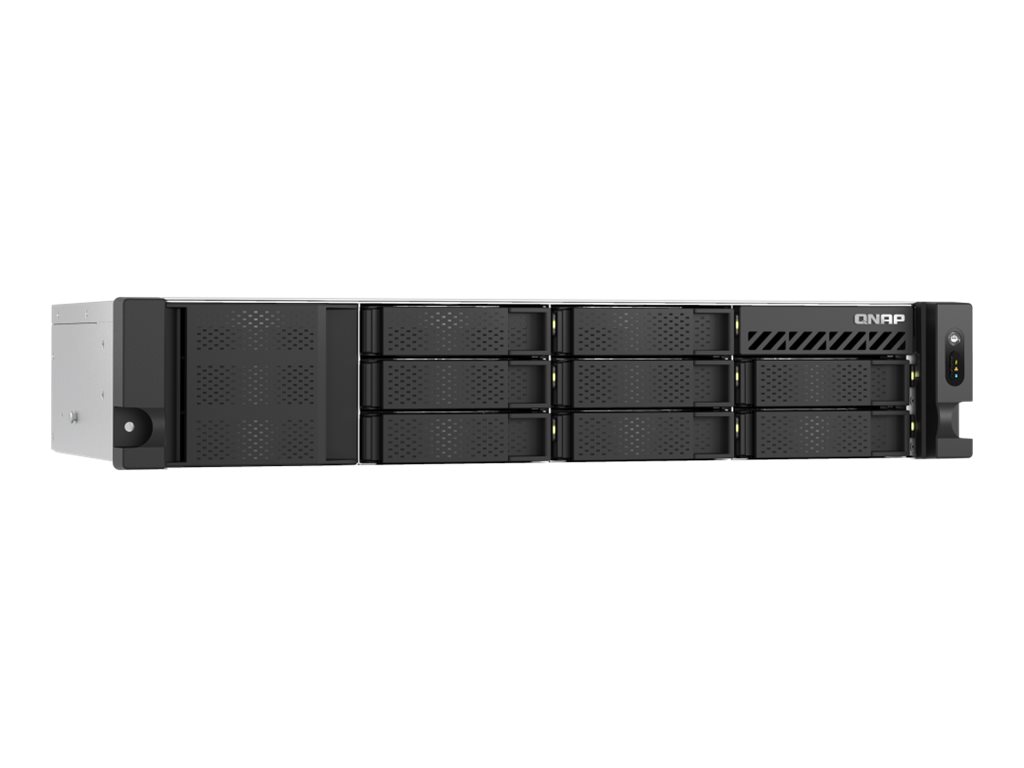

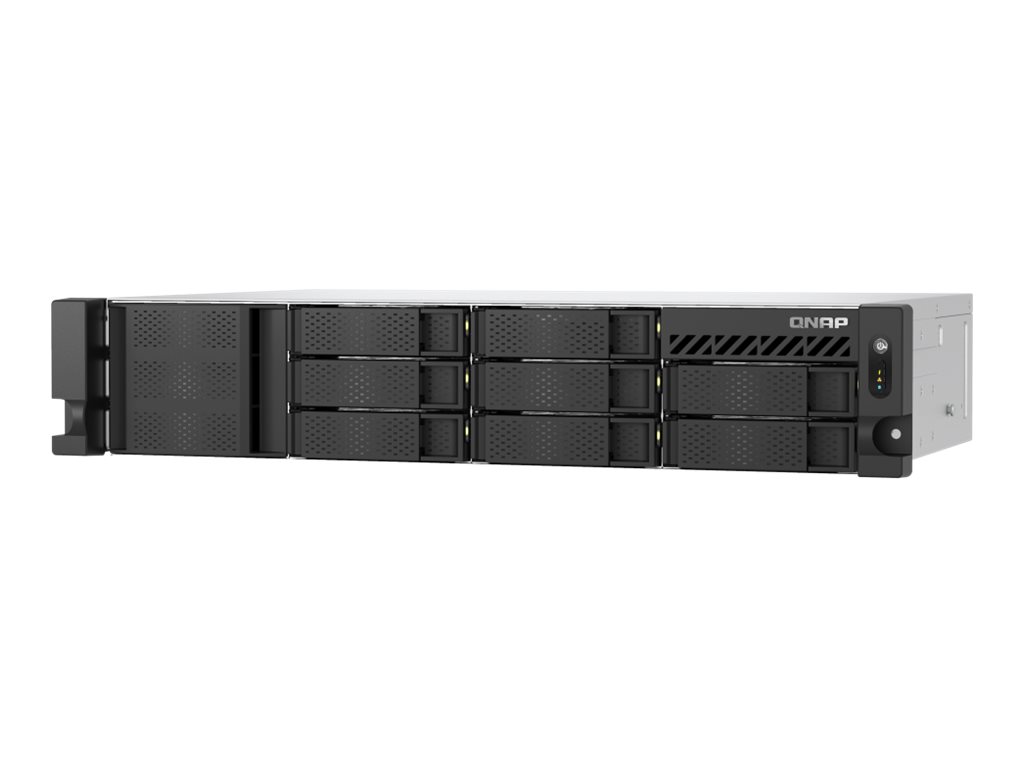

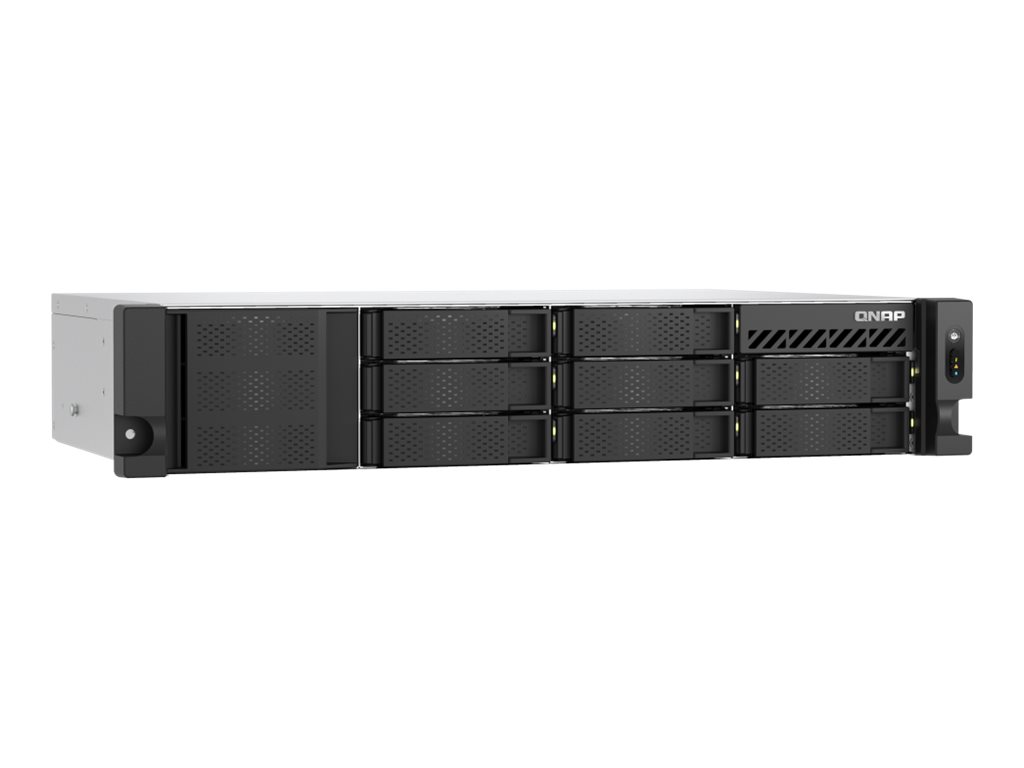

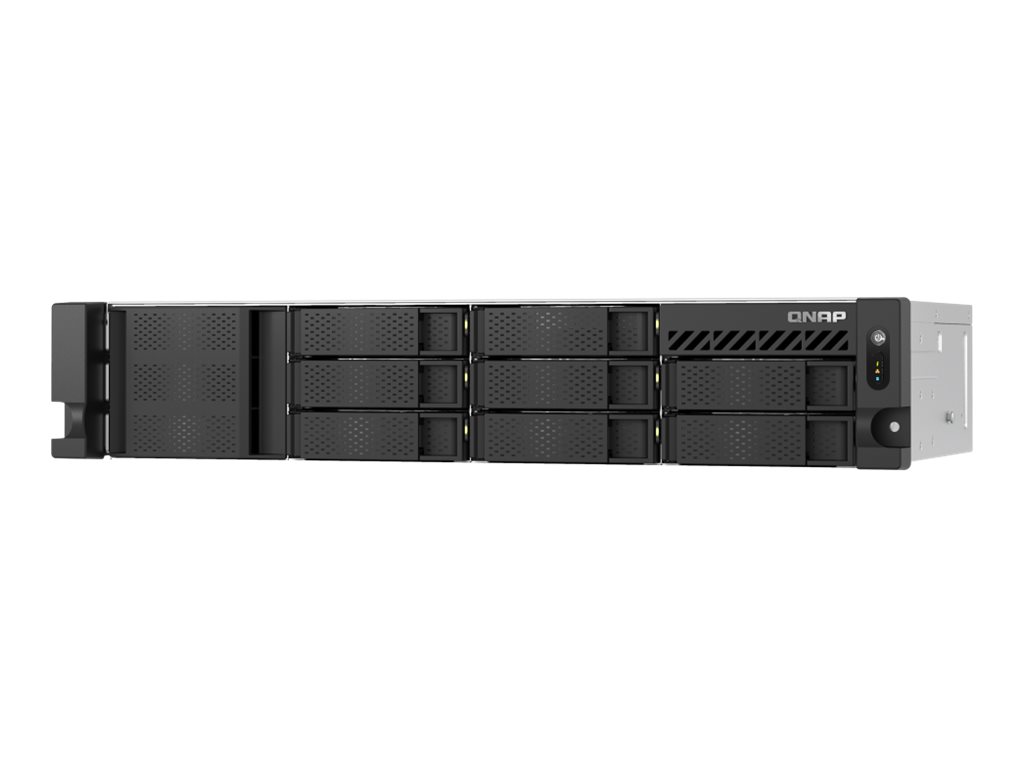

QNAP TS-855eU - NAS server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
QNAP TS-855eU - NAS server
- 8 bays
- rack-mountable
- SATA 6Gb/s
- RAID 0, 5, 6, RAID TP, 10, 50, 60, 1
- RAM 8 GB
- Gigabit Ethernet / 2.5 Gigabit Ethernet
- iSCSI support
- 2U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TS-855EU-8G-US |
| SHI Part #: | 46056325 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | QNAP |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | QNAP TS-855eU - NAS server - 8 bays - rack-mountable - SATA 6Gb/s - RAID 0, 5, 6, RAID TP, 10, 50, 60, 1 - RAM 8 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 2U |
| Manufacturer | QNAP |
| MSRP | $1,699.00 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.74 cm |
| Dimensions & Weight / Height | 8.86 cm |
| Dimensions & Weight / Weight | 7.61 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | QNAP |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | C5125 |
| Processor / Type | Atom |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Built-in Devices | LED panel |
| Depth | 29.74 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Height | 8.86 cm |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Installed Devices / Modules Qty | 8 (max) |
| Total Storage Capacity | 0 GB |
| Weight | 7.61 kg () |
| Width | 43.2 cm |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Power | |
| Power Consumption Operational | 79.113 watt |
| Power Device | Internal power supply |
| Power Provided | 250 watt |
| Voltage Required | AC 100-240 V |
| Processor / Memory | |
| Flash Memory Installed | 5 GB |
| Max Supported Qty | 1 |
| Number of Cores | 8-core |
| Processors Installed | 1 x Intel Atom C5125 2.8 GHz |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Software / System Requirements | |
| OS Required | Apple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
| Storage Operating System | QNAP QuTS hero h5.0.1 / QTS 5.0.1 |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 5, RAID 6, RAID TP, RAID 10, RAID 50, RAID 60, RAID 1 |
| Type | RAID |
