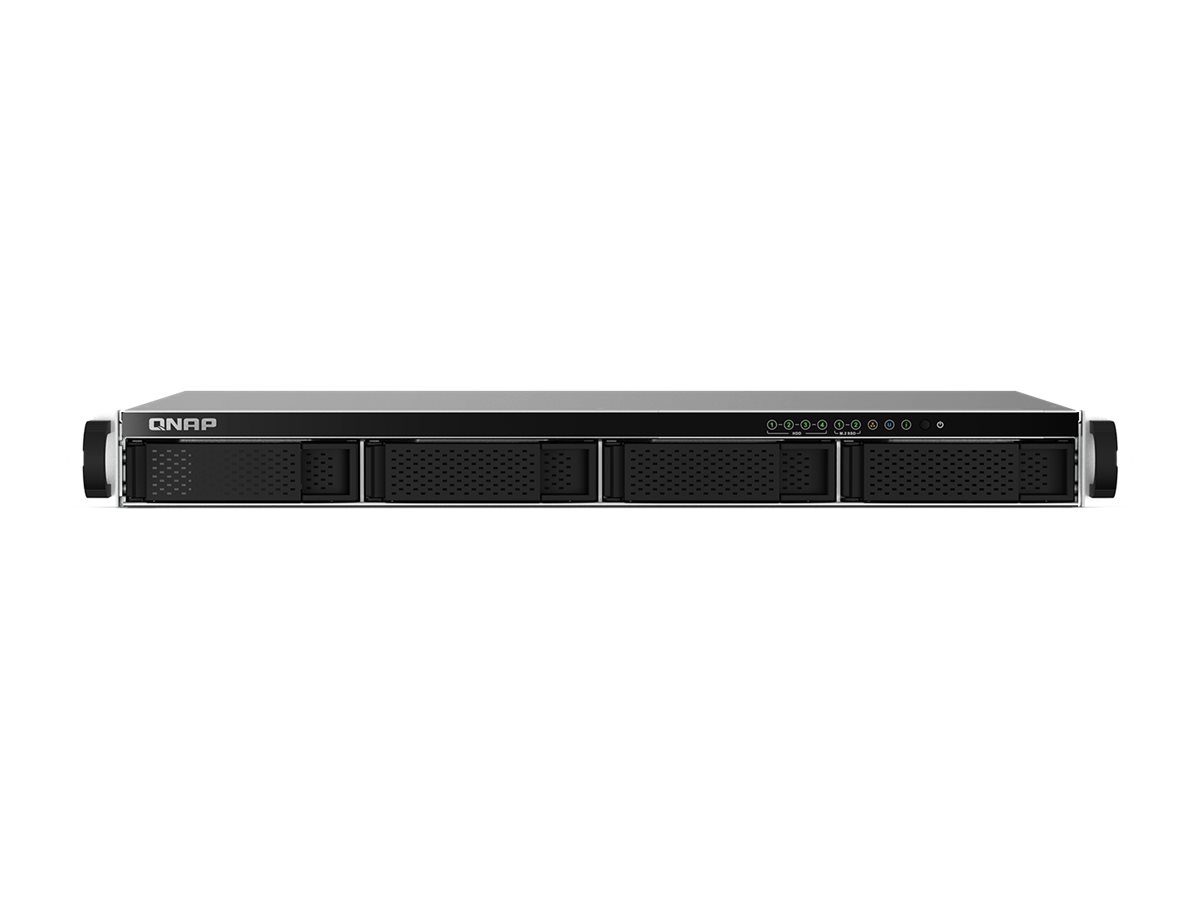

QNAP TS-464eU - NAS server

$1,025.00
QNAP TS-464eU - NAS server
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 4 bays
  • rack-mountable
  • SATA 6Gb/s
  • RAID 0, 1, 5, 6, 10, JBOD
  • RAM 8 GB
QNAP TS-464eU - NAS server
  • 4 bays
  • rack-mountable
  • SATA 6Gb/s
  • RAID 0, 1, 5, 6, 10, JBOD
  • RAM 8 GB
  • 2.5 Gigabit Ethernet
  • iSCSI support
  • 1U
  Additional Details
Price: $1,025.00
Mfr Part #: TS-464EU-8G-US
SHI Part #: 45640668
Category: Electronic data storage equipment
UNSPSC: 43201800
Manufacturer: QNAP
Product Type: Hardware
General Information
CategoryElectronic data storage equipment
DescriptionQNAP TS-464eU - NAS server - 4 bays - rack-mountable - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, JBOD - RAM 8 GB - 2.5 Gigabit Ethernet - iSCSI support - 1U
ManufacturerQNAP
MSRP$849.00
UNSPSC43201800
Main Specifications
Dimensions & Weight / Depth32.133 cm
Dimensions & Weight / Height4.33 cm
Dimensions & Weight / Weight4.35 kg
Dimensions & Weight / Width48.26 cm
Header / BrandQNAP
Header / Country KitsUnited States
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Processor / Processor NumberN5095
Processor / TypeCeleron
Service & Support / Type3-year warranty
Storage / Rack-mountableRack-mountable
System Requirements / OS Required
  • Apple MacOS X 10.10 or later
  • CentOS 7.0
  • IBM AIX 7
  • Microsoft Windows 7 / 8 / 10 / 11
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Oracle Solaris 10 or later
  • Red Hat Enterprise Linux 6.6
  • SuSE Linux 12 or later
  • Ubuntu 14.04
Dimensions & Weight (Shipping)
Shipping Weight5.91 kg
Environmental Parameters
Humidity Range Operating5 - 95% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Bays4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots2 (total) / 2 (free) x M.2 2280
Interfaces
  • 2 x 2.5 Gigabit Ethernet - RJ-45
  • 2 x USB 2.0 - Type A
  • 2 x USB 3.2 Gen 2 - Type A
  • 1 x HDMI output
General
Depth32.133 cm
Device TypeNAS server
Enclosure TypeRack-mountable - 1U
Height4.33 cm
Host Connectivity2.5 Gigabit Ethernet
Installed Devices / Modules Qty0 (installed) / 4 (max)
LocalizationUnited States
Total Storage Capacity0 GB
Weight4.35 kg ()
Width48.26 cm
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - accessories - 1 year
Miscellaneous
Cables Included1 x network cable
FeaturesDual boot, built-in 3 cooling fans, Secure Erase
Included AccessoriesPower cable, 16 x flat head screws (for 3.5" HDD), 12 x flat head screws (for 2.5" HDD), 2 x hangers, 2 x holders
Networking
Data Link Protocol10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Encryption AlgorithmAES-NI, 256-bit AES, FIPS 140-2, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
FeaturesFloating point unit, built-in hardware transcoding, SSD cache acceleration support, WOL, Jumbo Frames support, built-in buzzer, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD Cache RAID, SSD profiling tool, External Device Management, MTP, FXP support, file station, Object Storage, domain security, Domain Controller, shared folder permission, advanced folder permission, Windows ACL, group quota, folder quota, home folder, Resource Monitor, Network Recycle Bin, Smart Fan, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Qsync, HybridMount, Hyper Data Protector, Qsirch, QuMagie, HD Station, LDAP server, RADIUS support, SQL Server, DA Driver Analyzer, QuWAN, QmailAgent, Boxafe
Network / Transport ProtocolQuFTP, FTP, SFTP, TFTP, IPv4, IPv6, DDNS, QBelt, PPTP, L2TP, IPSec, WireGuard
Network Services CompatibilityMicrosoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Web-based Distributed Authoring and Versioning (WebDAV)
Performance
  • Concurrent connections (CIFS): 1500 - (with maximum memory)
  • Maximum pool size: 308 TB
  • Maximum number of storage pool: 128
  • Maximum number of volume: 128
  • Maximum shared folder size: 250 TB
  • Maximum number of shared folder: 512
  • Maximum number of targets LUN: 256
  • Minimum snapshot interval: 5 min
  • Maximum FTP connection: 1024
  • Local user account: 4096
  • Local group account: 512
  • Domain user/group account: 200000
  • Log recording: 3000 events per second
  • Virtual hosts: 32
  • Maximum volume size: 250 TB
  • Maximum LUN size: 250 TB
Remote Management ProtocolSNMP 3, SNMP 2, SSH, Telnet, HTTPS, RADIUS
Power
Power Consumption Operational35.297 watt (with drives fully populated)
Power Consumption Stand by21.105 watt
Power DeviceInternal power supply
Power Provided100 watt
Voltage RequiredAC 100-240 V
Processor / Memory
Flash Memory Installed4 GB
Max Supported Qty1
Max Turbo Speed2.9 GHz
Number of CoresQuad-Core
Processors Installed1 x Intel Celeron N5095
RAM8 GB (installed) / 8 GB (supported)
Software / System Requirements
OS RequiredApple MacOS X 10.10 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11, IBM AIX 7, Oracle Solaris 10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later
Software IncludedIronWolf Health Management, McAfee
Storage Operating SystemQNAP QTS 5.0.1
Storage Controller
Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
TypeRAID
