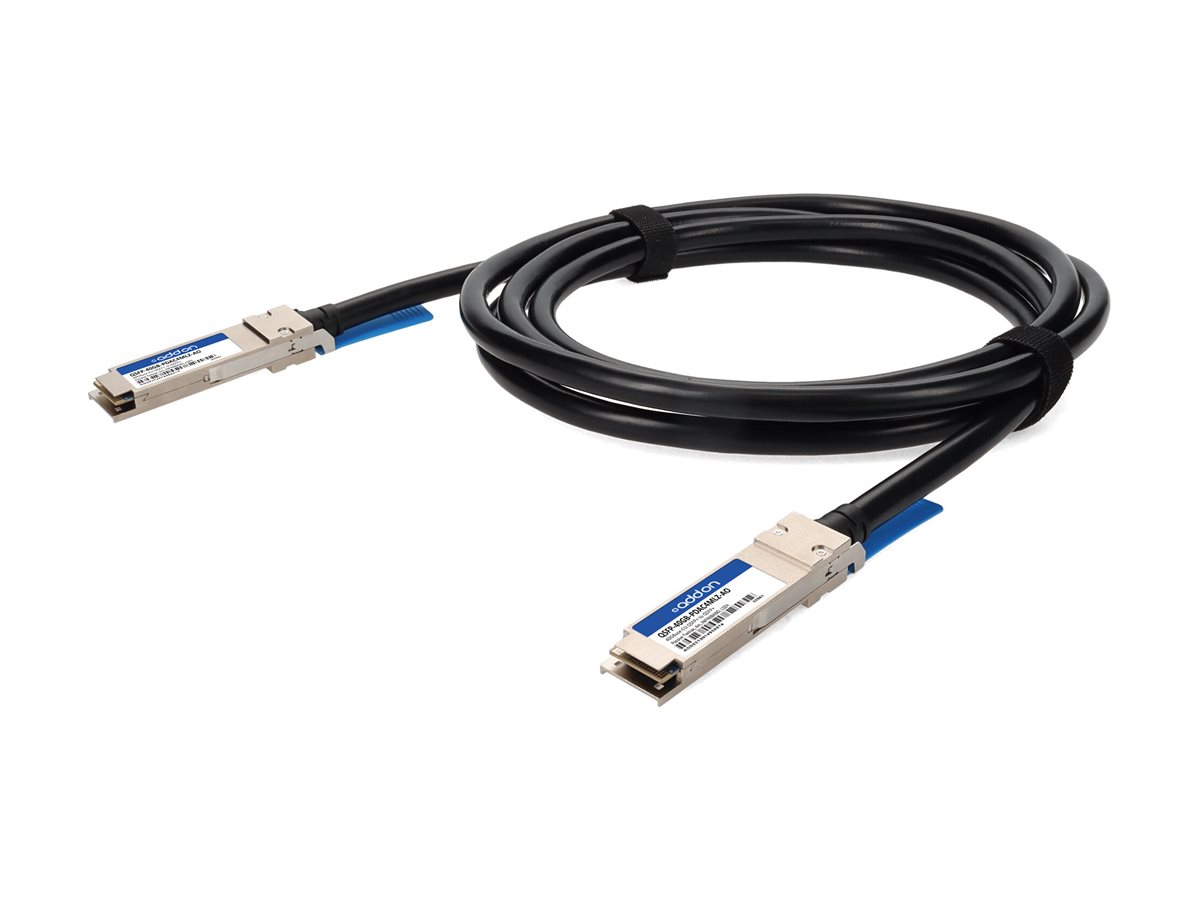

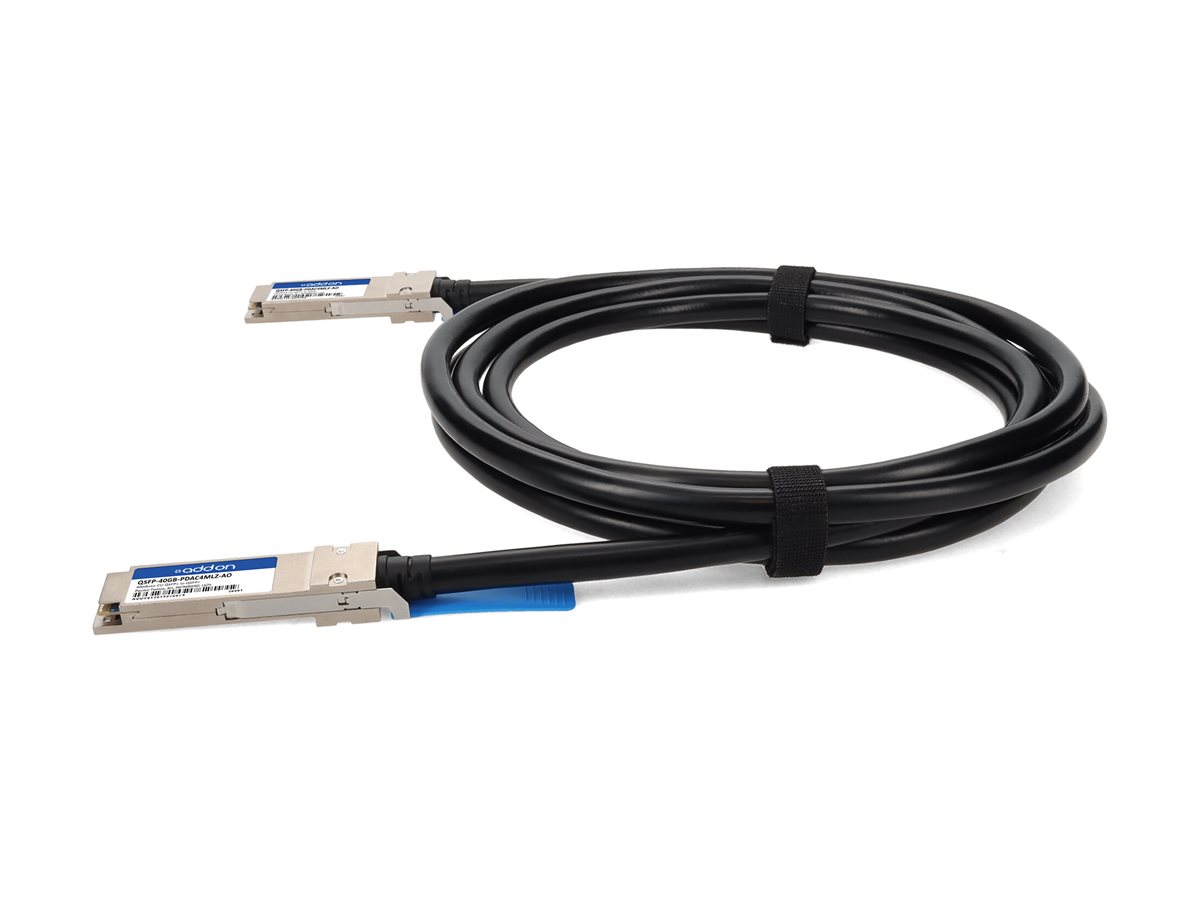

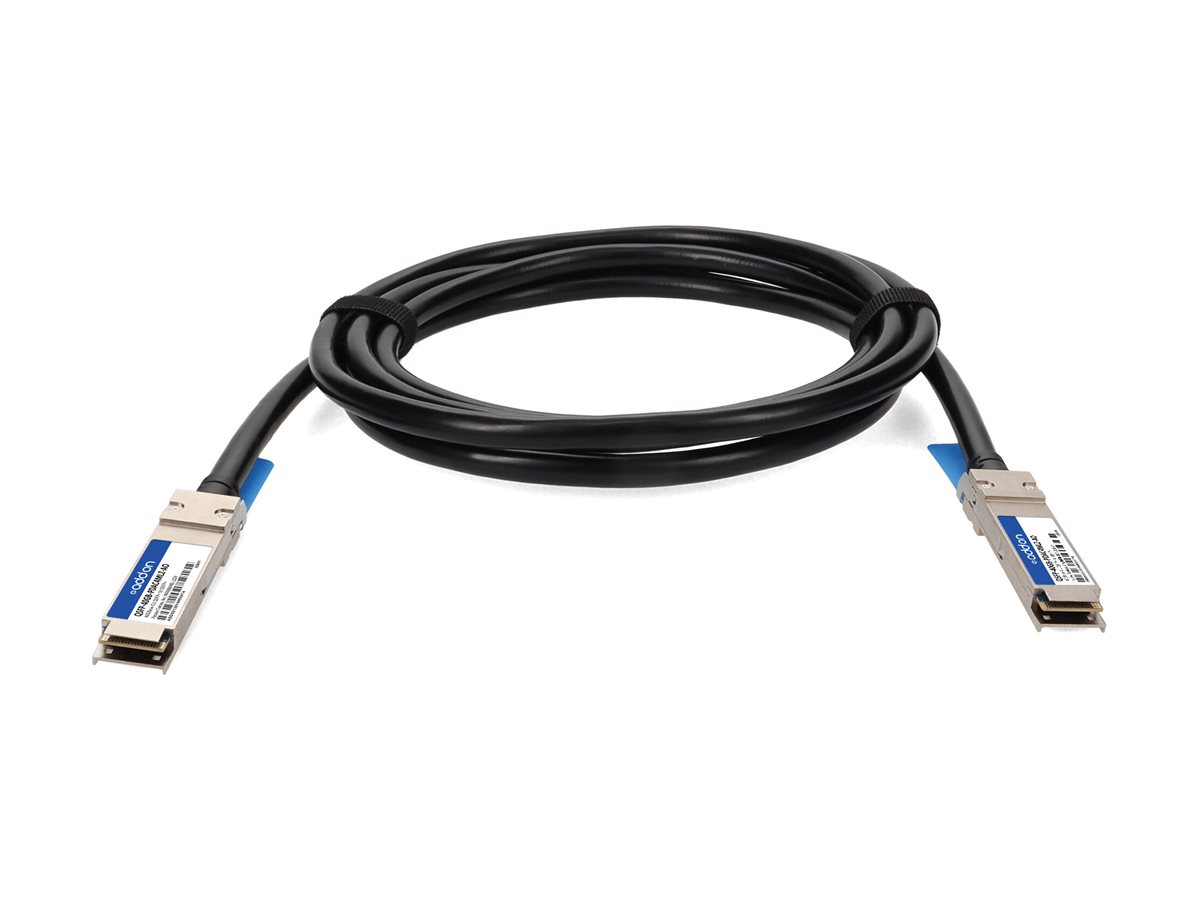

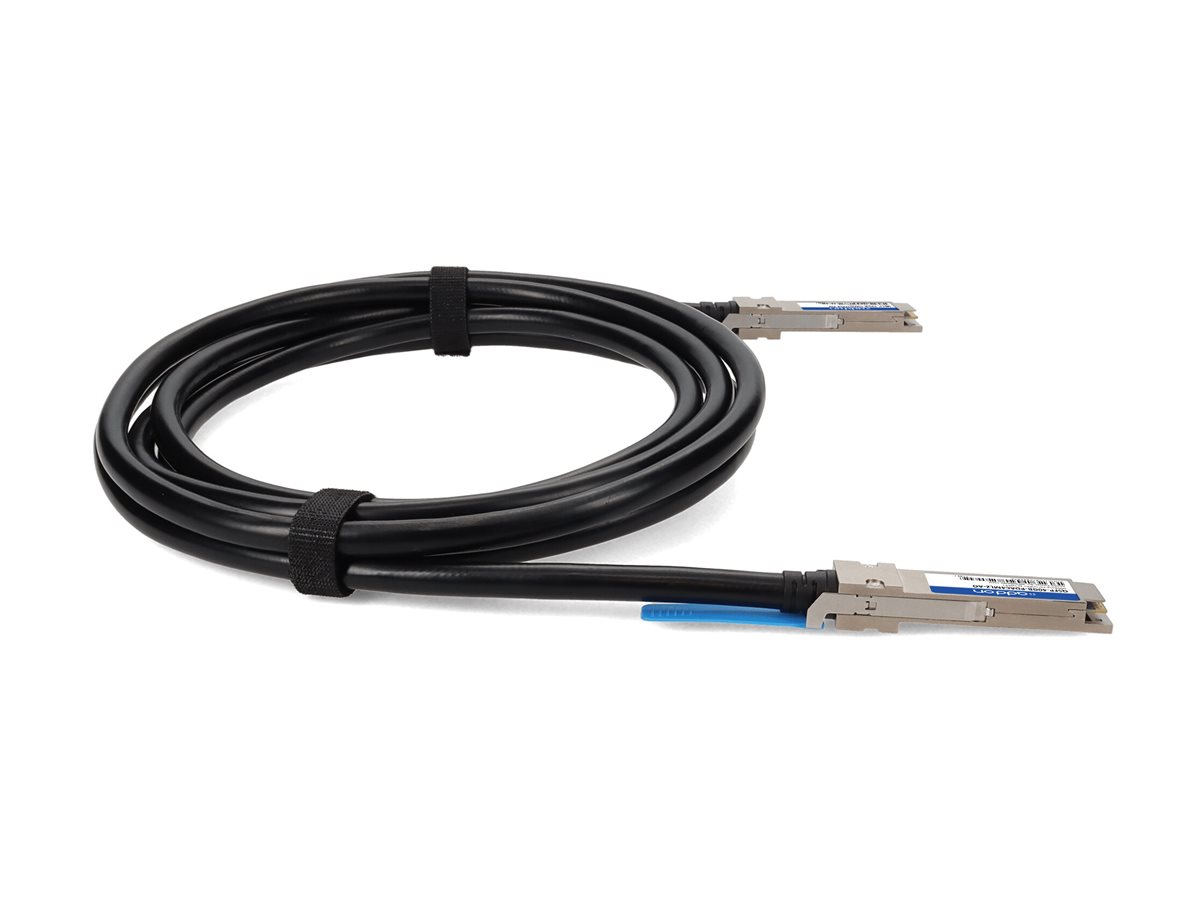

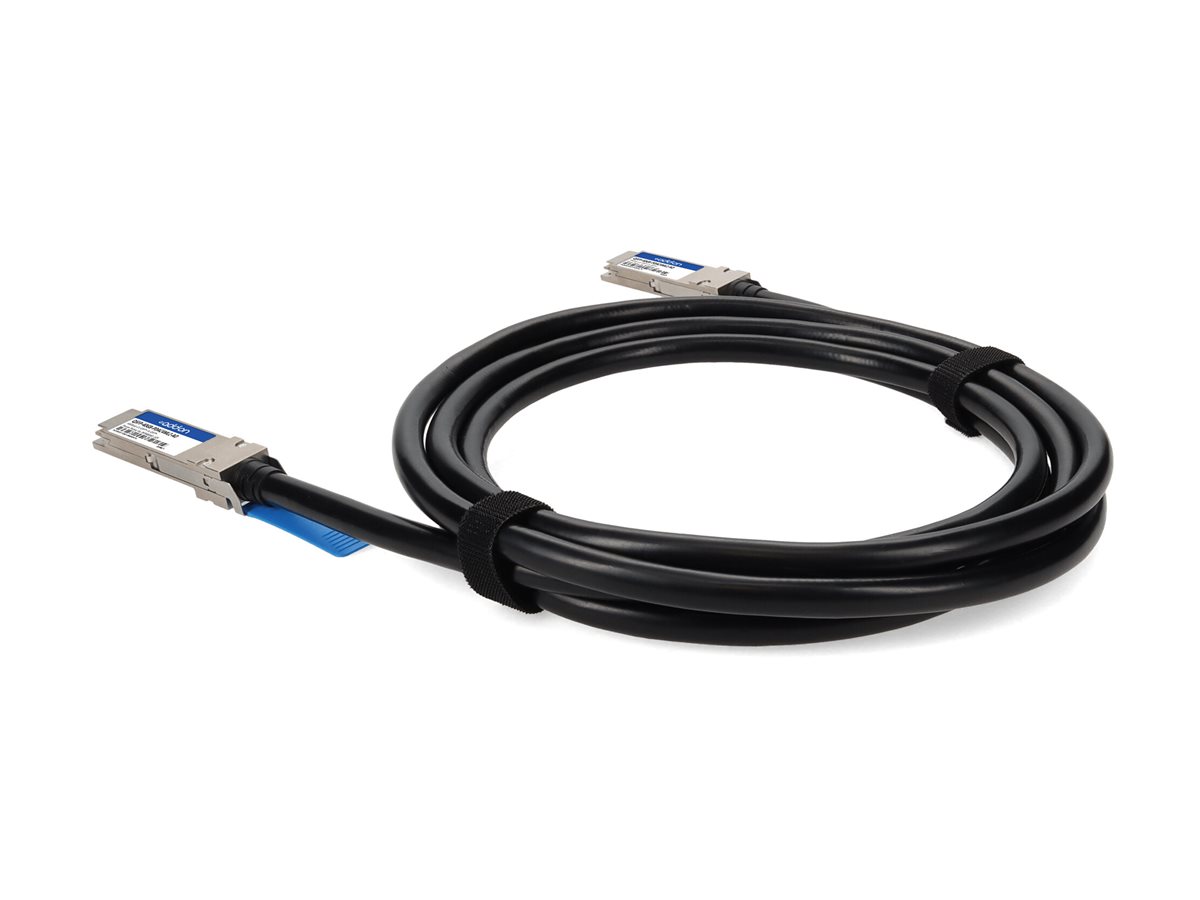

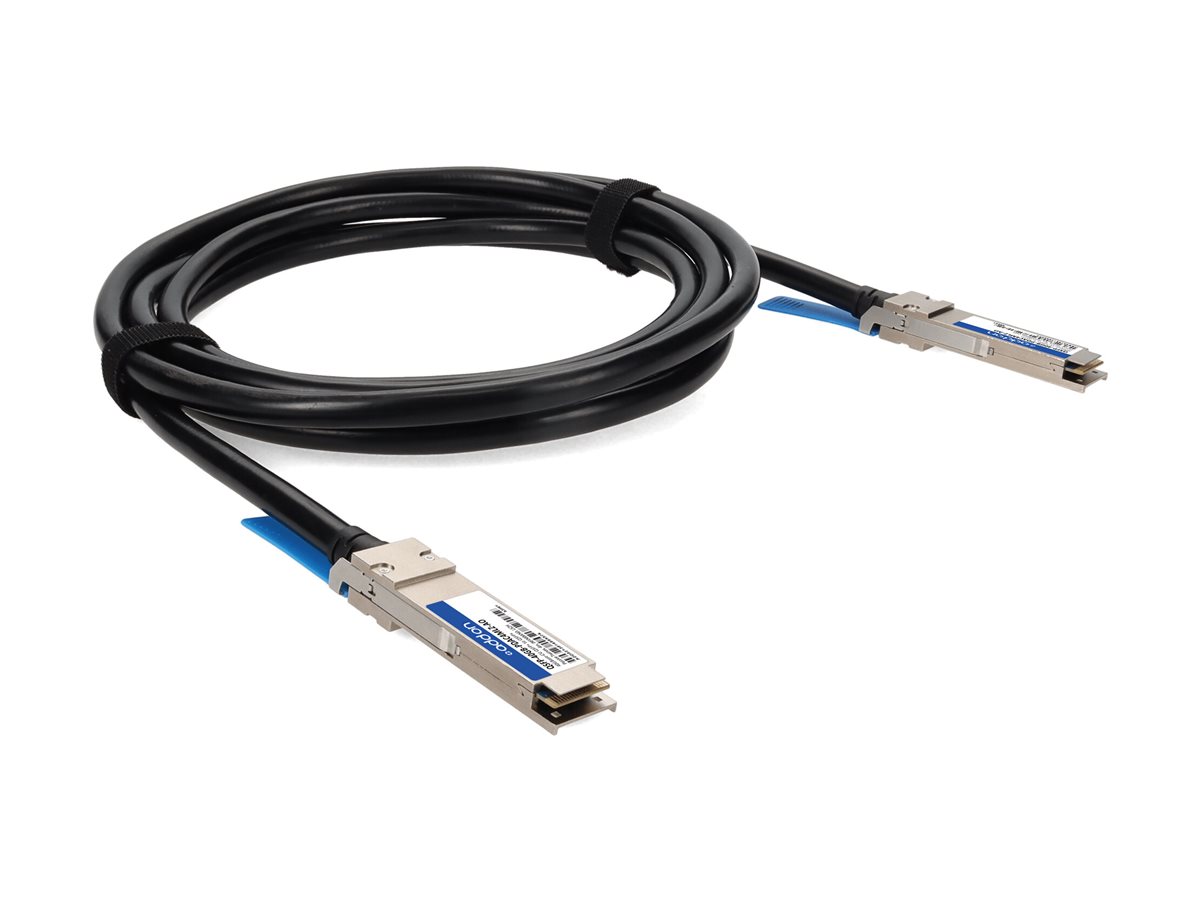

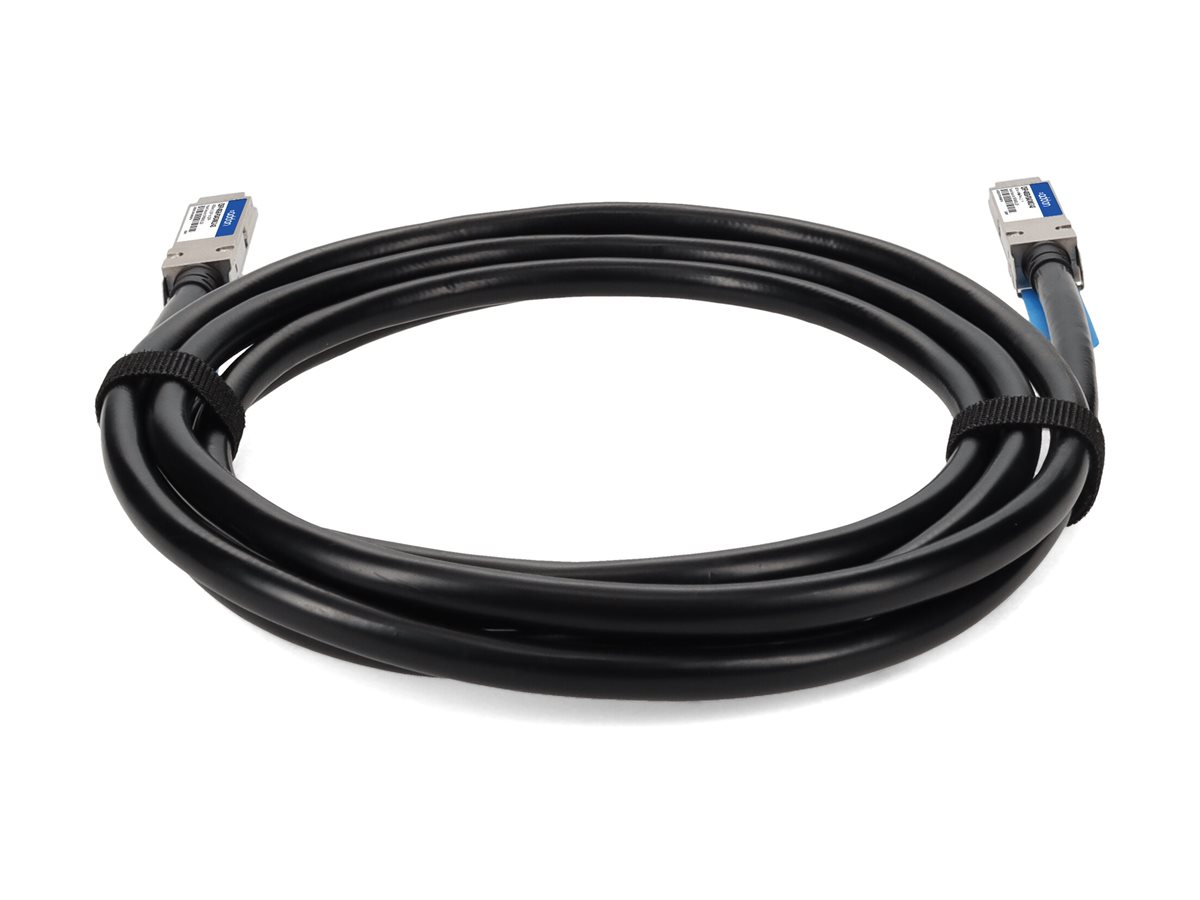

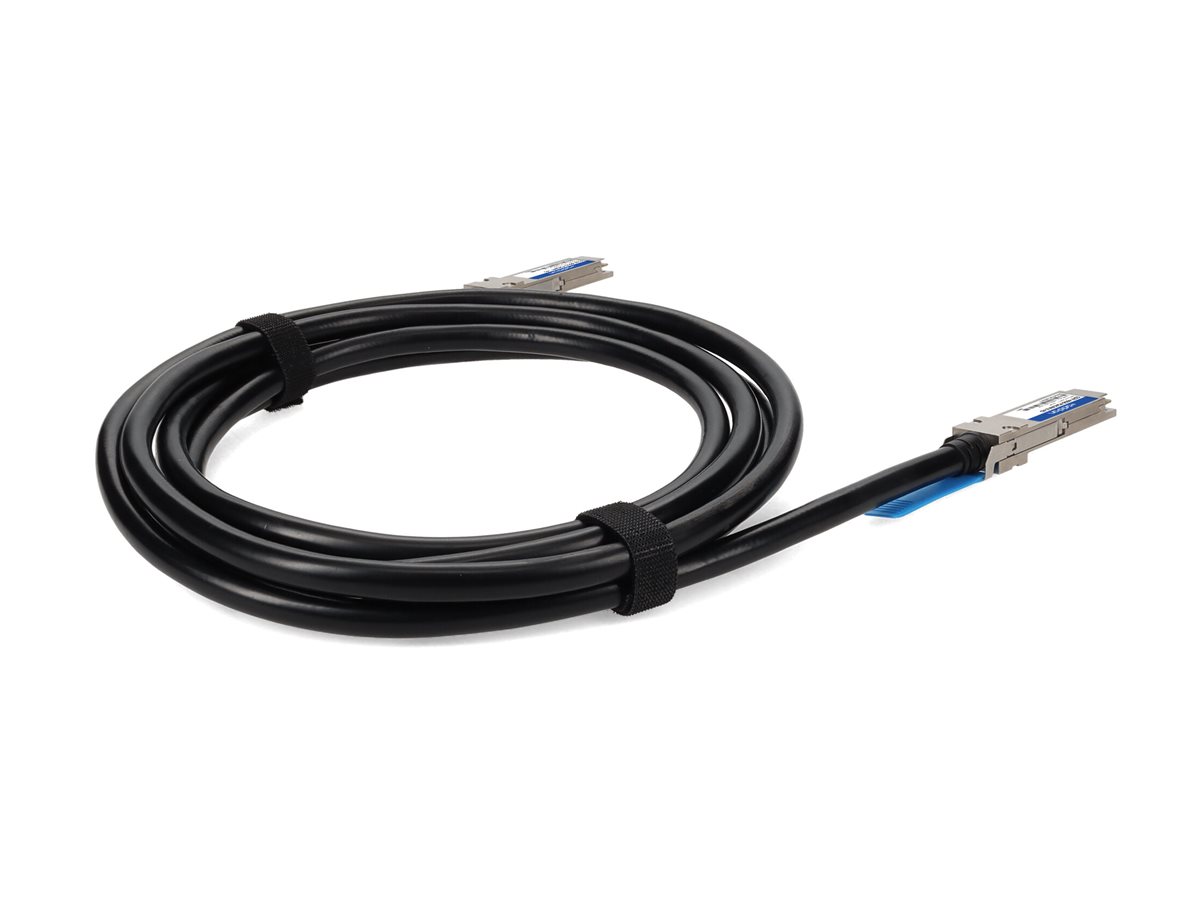

MSA & TAA COMP DAC40G-CU QSFP+ 30AWG LSZH 4M

MSRP$210.00

$138.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

MSA & TAA COMP DAC40G-CU QSFP+ 30AWG LSZH 4M

General Information
Category	Transceivers
Description	MSA & TAA COMP DAC40G-CU QSFP+ 30AWG LSZH 4M
Manufacturer	AddOn Networks
MSRP	$210.00
UNSPSC	43201553
Main Specifications
Height	2.50
Length	14.00
UPC	0195285703057
Width	14.00
Connectivity
Connector	QSFP+
Connector (Second End)	QSFP+
Dimensions & Weight (Shipping)
Shipping Depth	35.6 cm
Shipping Height	6.35 cm
Shipping Weight	227 g
Shipping Width	35.6 cm
Environmental Parameters
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
General
American Wire Gauge (AWG)	26
Color	Black
Features	Halogen-free, passive cable, copper conductor, InfiniBand FDR10 Link support
Jacket Material	Low Smoke Zero Halogen (LSZH)
Length	4 m
Network Cable Type	40GBase-CU direct attach cable - SFF-8661/IEEE 802.3ba/IEEE 802.3bj
Plated Connector	Zinc
Technology	Twinaxial
Manufacturer Warranty
Service & Support	Limited lifetime warranty
Miscellaneous
Compliant Standards	Lead-Free, MSA, IEEE 802.3ba, RoHS 2.0
TAA Compliant	Yes
