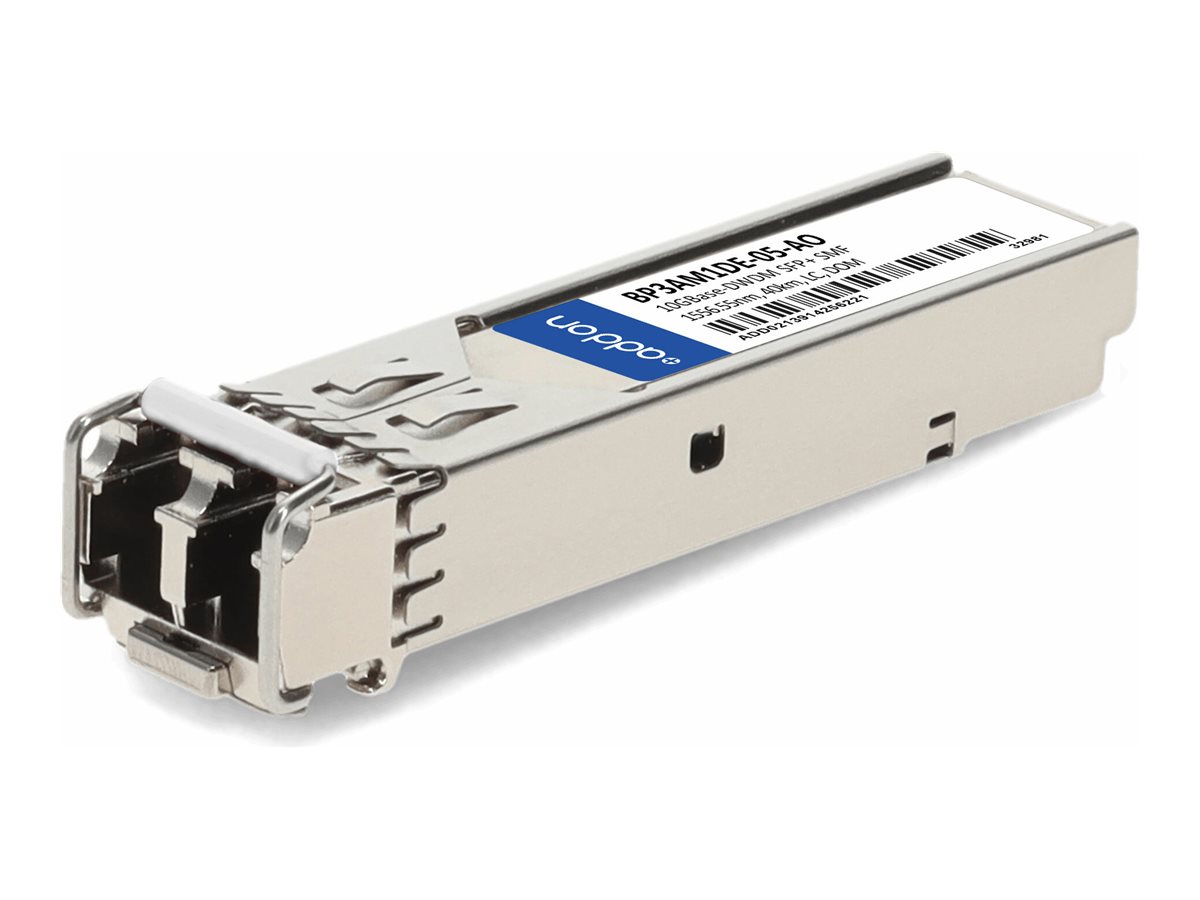

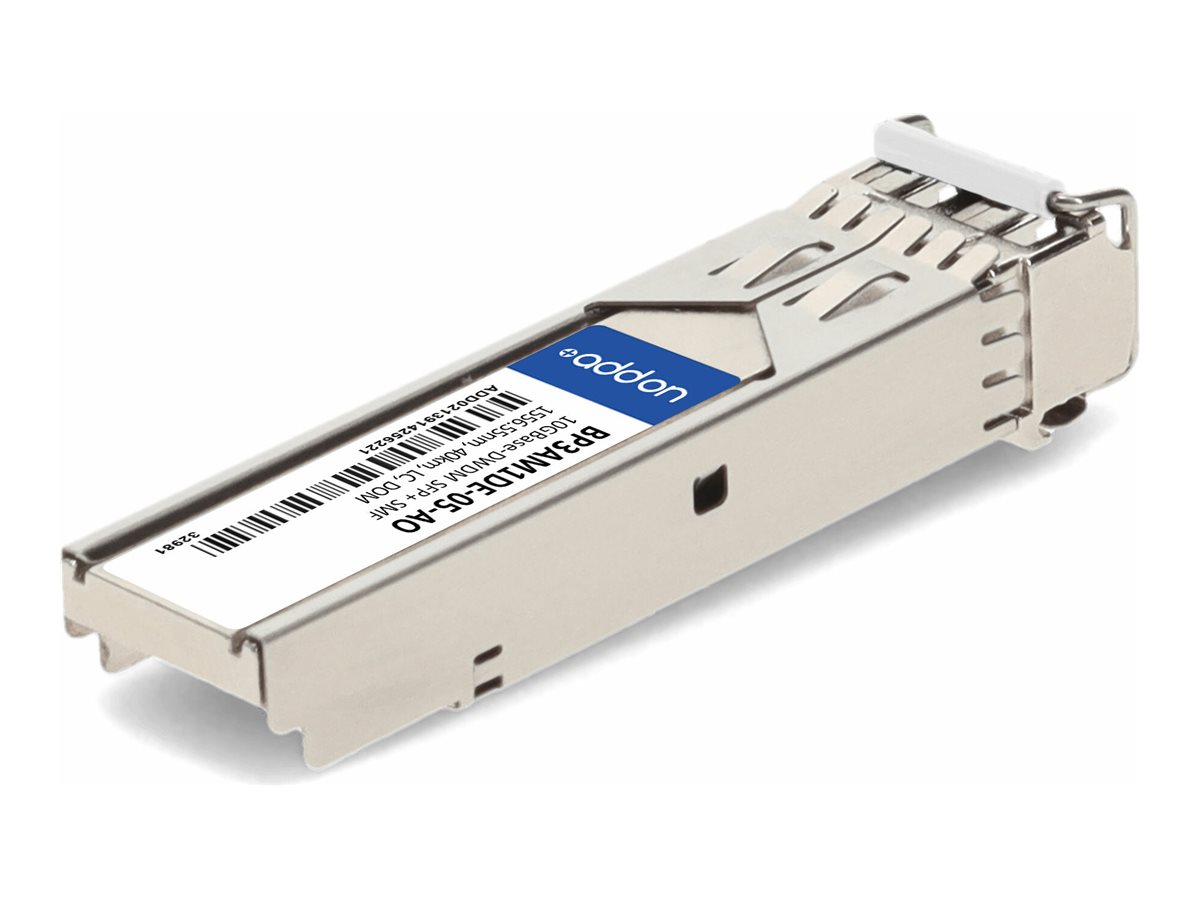

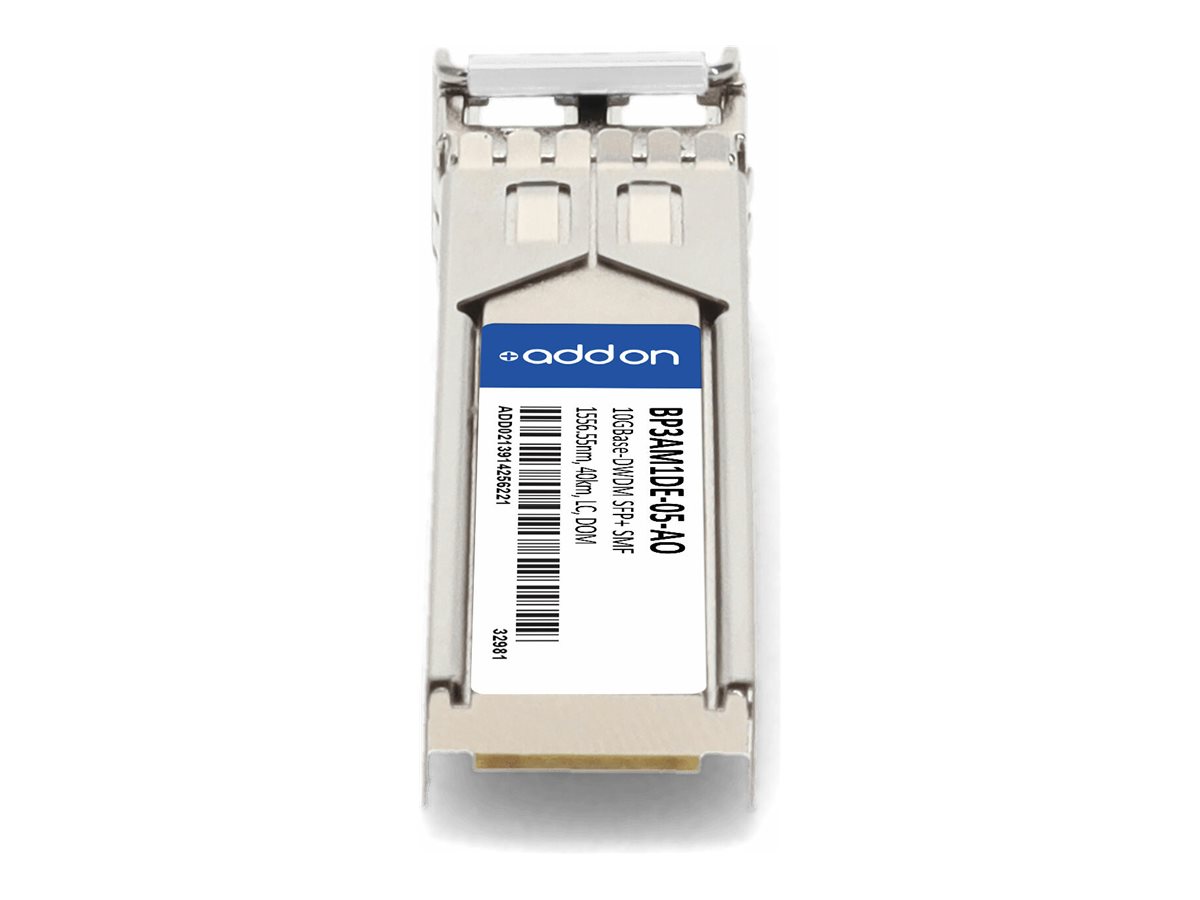

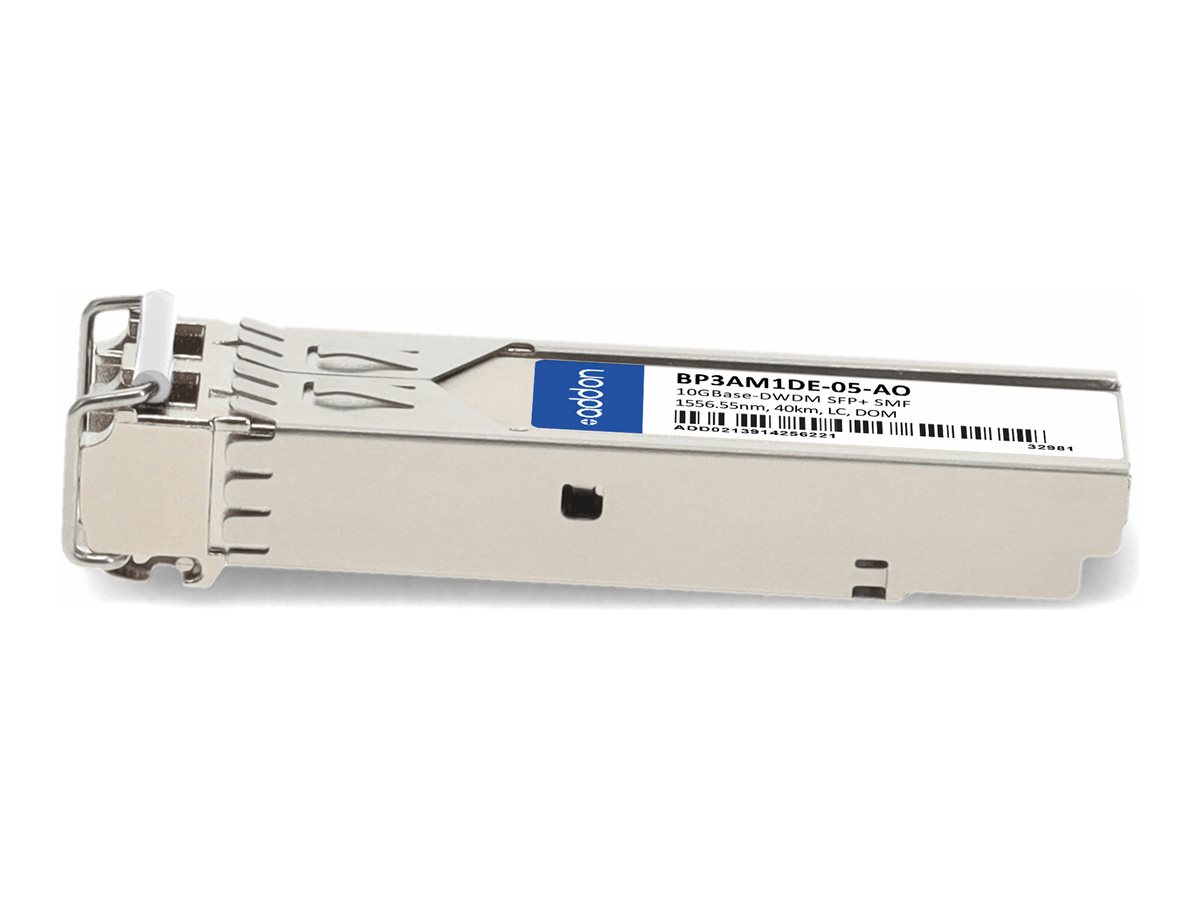

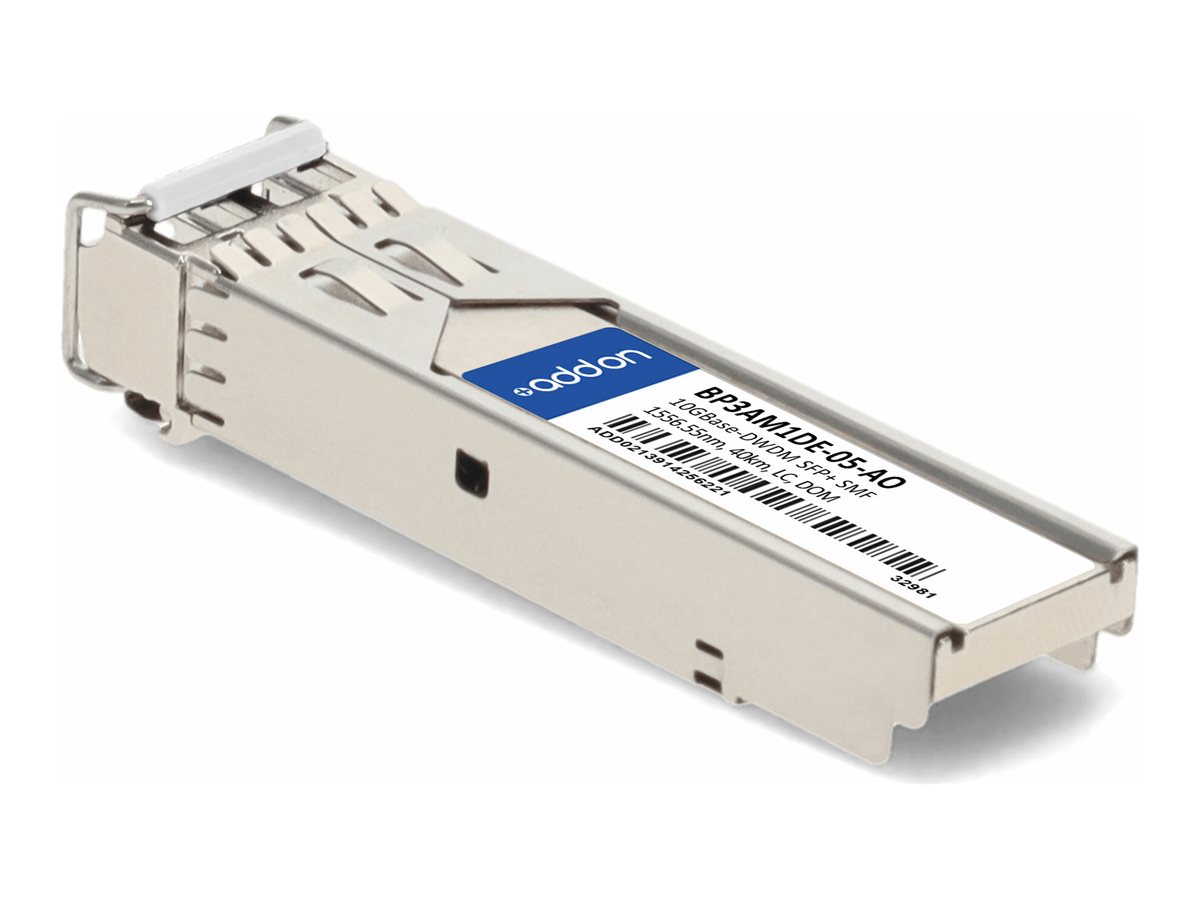

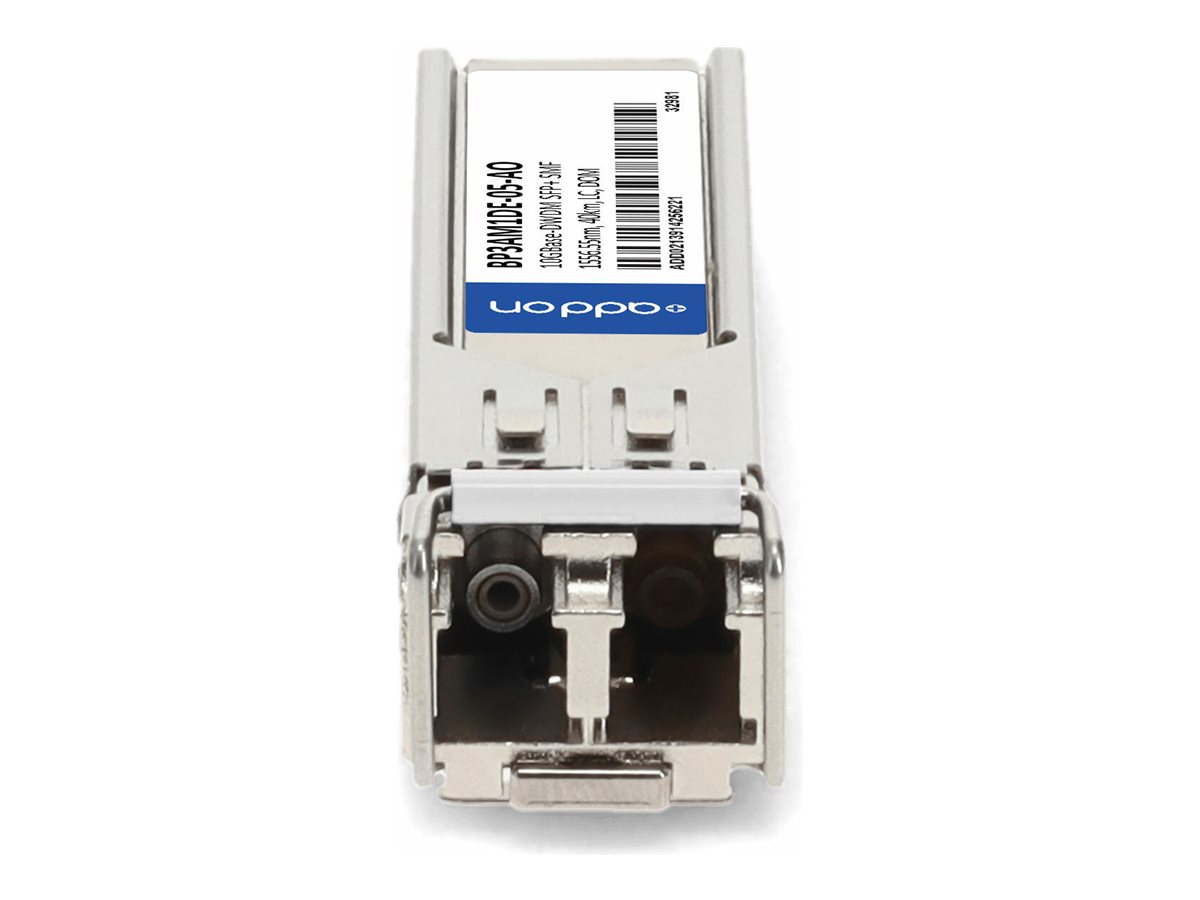

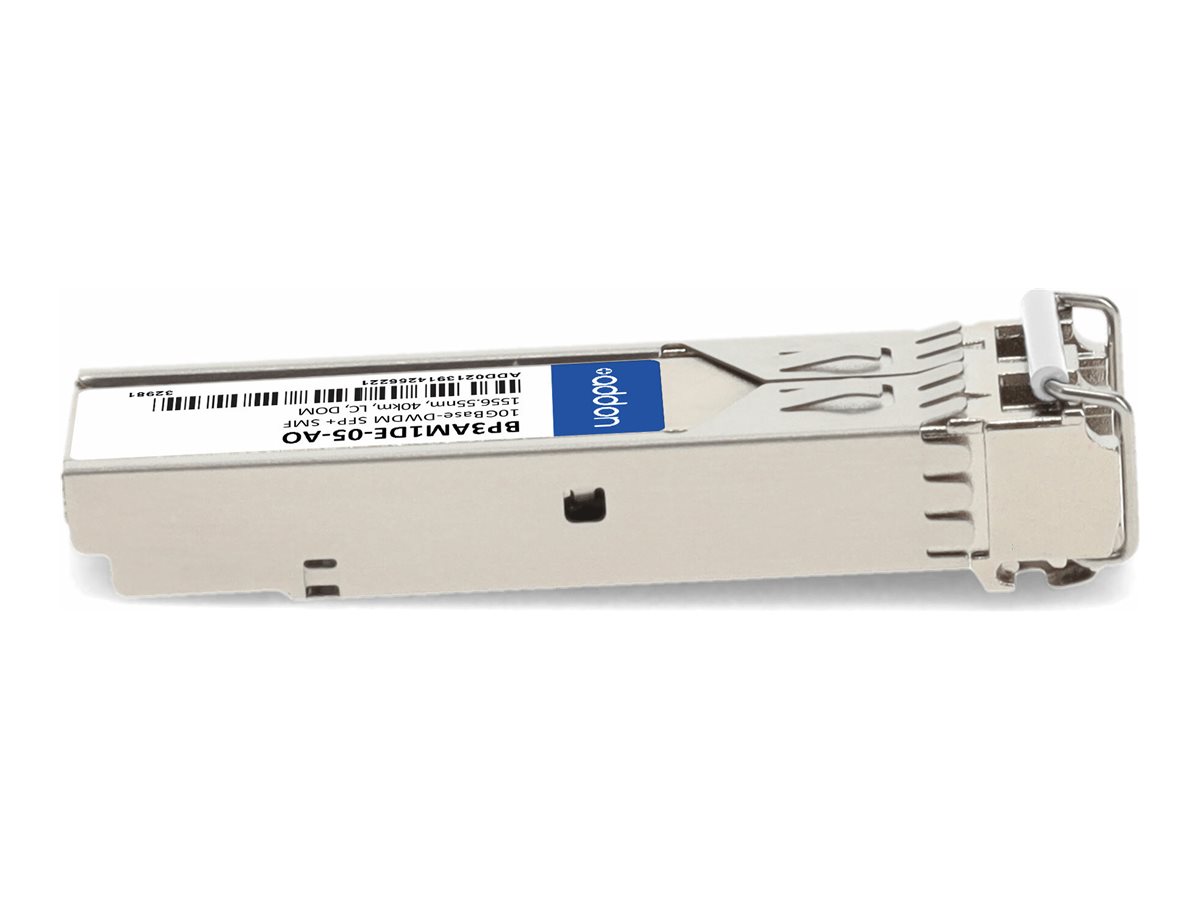

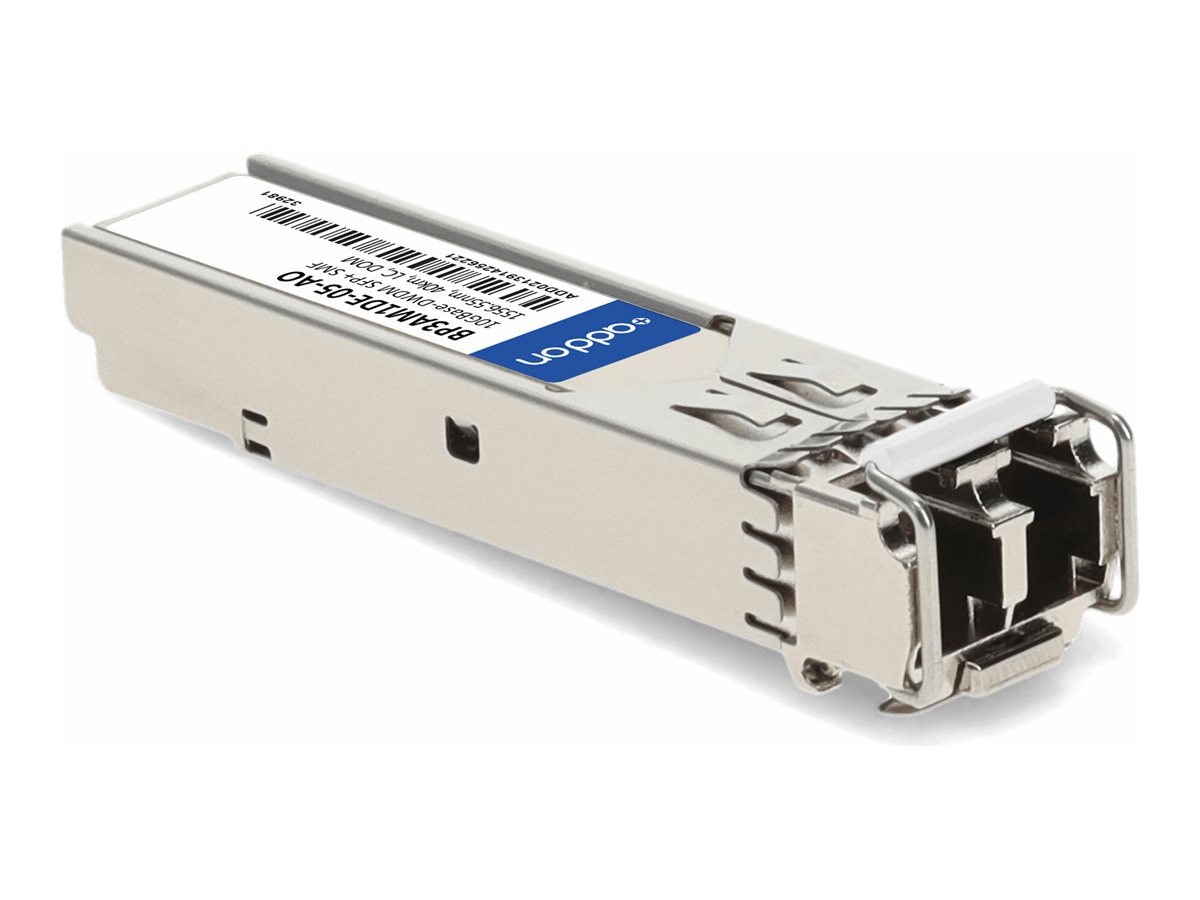

AddOn - SFP+ transceiver module (equivalent to: Juniper Networks BP3AM1DE-05)
MSRP$7,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
AddOn - SFP+ transceiver module (equivalent to: Juniper Networks BP3AM1DE-05)
- 10GbE
- 10GBase-DWDM
- LC single-mode
- up to 40 km
- channel: 26
- 1556.55 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,200.00 |
| Mfr Part #: | BP3AM1DE-05-AO |
| SHI Part #: | 45895786 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | AddOn Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | AddOn - SFP+ transceiver module (equivalent to: Juniper Networks BP3AM1DE-05) - 10GbE - 10GBase-DWDM - LC single-mode - up to 40 km - channel: 26 - 1556.55 nm - TAA Compliant |
| Manufacturer | AddOn Networks |
| MSRP | $7,200.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | AddOn |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP+ transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.1 cm |
| Shipping Height | 3.05 cm |
| Shipping Weight | 181 g |
| Shipping Width | 6.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-DWDM (duplex) - LC single-mode x 2 |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA SFF-8472, MSA SFF-8432 |
| OEM Manufacturer Equivalent Part Number | Juniper Networks BP3AM1DE-05 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10GBase-DWDM |
| Connectivity Technology | Wired |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| DWDM Channel | 26 |
| Features | PIN Receiver, Digital Optical Monitoring (DOM) support, c-band, 100GHz channel spacing, ESD Protector, hot-pluggable, low EMI, temperature-stabilized EML transmitter, lead-free |
| Max Transfer Distance | 40 km |
| Optical Wave Length | 1556.55 nm |
