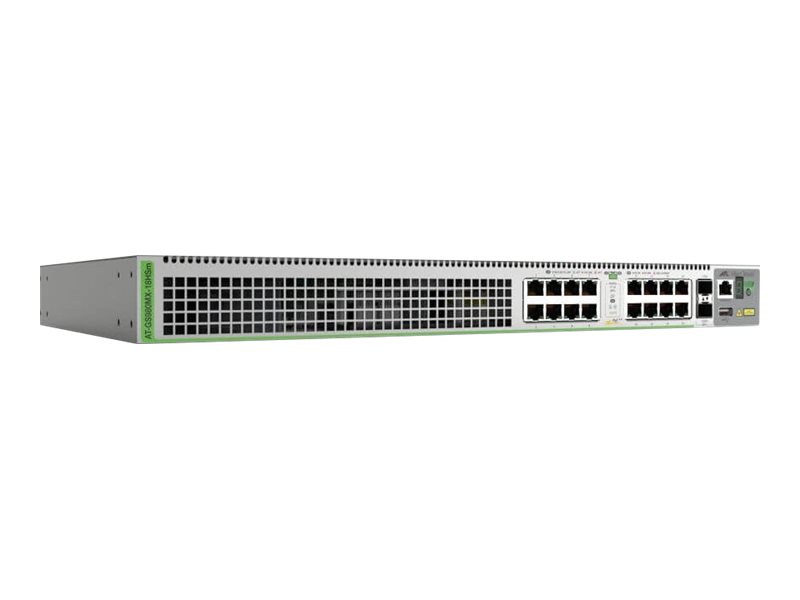

Allied Telesis CentreCOM AT-GS980MX/18HSm

MSRP$3,318.00
$3,026.00
Allied Telesis CentreCOM AT-GS980MX/18HSm
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3 Lite
  • managed
  • 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
Allied Telesis CentreCOM AT-GS980MX/18HSm
  • Switch
  • L3 Lite
  • managed
  • 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+
  • rack-mountable
  • PoE++ (720 W)
  Additional Details
Price: $3,026.00
MSRP: $3,318.00
Mfr Part #: AT-GS980MX/18HSM-10
SHI Part #: 45891962
Category: Network switches
UNSPSC: 43222612
Manufacturer: Allied Telesis
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionAllied Telesis CentreCOM AT-GS980MX/18HSm - Switch - L3 Lite - managed - 16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE++ (720 W)
ManufacturerAllied Telesis
MSRP$3,318.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth25.6 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.3 kg
Dimensions & Weight / Width44.1 cm
Header / BrandAllied Telesis
Header / Country KitsUnited States
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty16
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth25.6 cm
Height4.4 cm
Weight4.3 kg
Width44.1 cm
Dimensions & Weight (Shipping)
Shipping Depth41.2 cm
Shipping Height12.9 cm
Shipping Weight5.8 kg
Shipping Width52.6 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 16 x 100/1000/2.5G/5G RJ-45 PoE++ - 60 W
  • 2 x 1/10Gbit LAN SFP+
  • 1 x console RJ-45
  • 1 x USB Type A
General
Authentication MethodRADIUS, X.509 certificates, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Buffer capacity (MB): 1.5
  • Configurable VLANs: 4094
  • Priority queues: 8
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Device TypeSwitch - 16 ports - L3 Lite - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmDES, Triple DES, RSA, MD5, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, DSA, ECDSA, AES-ECB, PKI, 128-bit AES, 192-bit AES, 256-bit AES, AES-CBC, SHA-2, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, TLS 1.2, AES-CFB, AES-OFB, RNG, 224-bit SHA-2, CCM, CMAC, GCM, XTS, DRBG
FeaturesVCStack, AMF, Active Fiber Monitoring, EPSRing, flow control, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, MAC address filtering, SNTP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, PVST+, STP Root Guard, RSPAN, SNMP trap, DHCP client, MIB, MAC address lockout, GVRP, NAC, loop prevention, port isolation, SP, 802.1x authentication, VoIP support, IP source guard, Logical Link Control, ICMP, CPP, SCP, BIST, DDM, MAC address authentication, NTP, AAA, IGMP querier, VLAN mirroring, Voice VLAN, LLDP-MED, Private VLAN, storm protection, Guest VLAN, WRR, loopback detection, VLAN Tagging, BPDU Guard, eco-friendly button
Flash Memory256 MB
Jumbo Frame Support10KB
MAC Address Table Size16K entries
Max Units In A Stack4
Performance
  • Switching fabric bandwidth: 200 Gbps
  • Forwarding rate: 148.8 Mpps
  • Latency (10 Gbps): 2.56 µs
  • Latency (5 Gbps): 5.23 µs
  • Latency (2.5 Gbps): 7.72 µs
  • Latency (1 Gbps): 7.96 µs
  • Latency (100 Mbps): 8.35 µs
PoE Budget720 W
Ports16 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE++
RAM1 GB DDR3 SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SMTP, SNMP, SNMP 6
Routing ProtocolRIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, CIDR, ECMP
Status IndicatorsPoE, link/activity
Subtype5 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsFCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55022 Class A
Included AccessoriesAccessory kit
LocalizationUnited States
Rack Mounting KitIncluded
Power
Installed Qty1
Power Consumption Operational86 Watt
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
Software / System Requirements
Software IncludedAlliedware Plus
