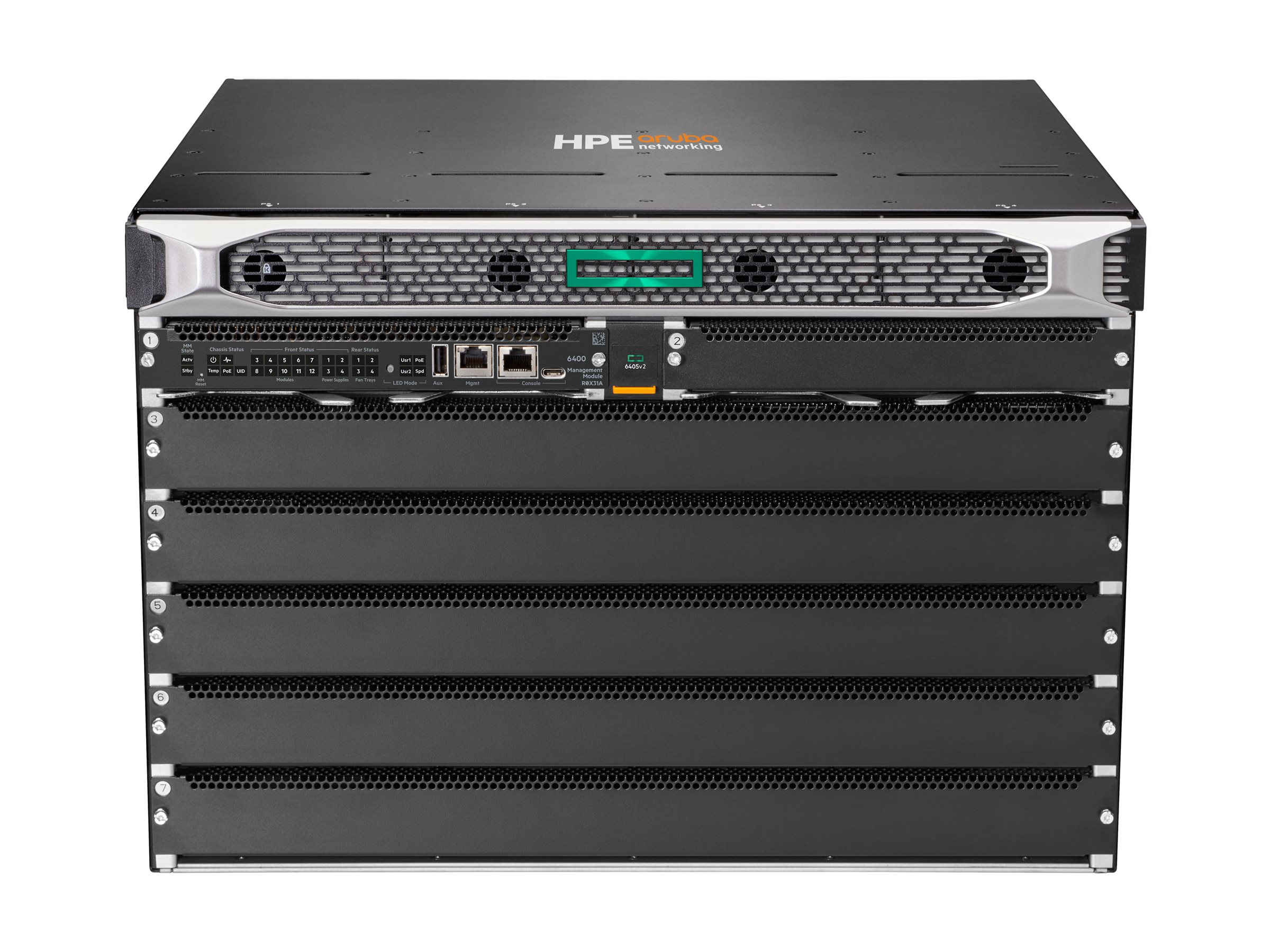

HPE Aruba 6405 V2 - Switch

Login for Price
HPE Aruba 6405 V2 - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 5 line module slots
  • L3
  • managed
  • front to back airflow
  • rack-mountable
HPE Aruba 6405 V2 - Switch
  • 5 line module slots
  • L3
  • managed
  • front to back airflow
  • rack-mountable
  • 4PPoE
  • BTO
  • with 1x Aruba 6405 Chassis (R0X24C), 1x Management Module (R0X31A), 2x Fan Tray (R0X32A)
  Additional Details
Mfr Part #: R0X26C#ABA
SHI Part #: 45297005
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Control/Interface Boards

HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-SR
  • LC multi-mode
  • up to 100 m
  • for CX 8360
MSRP $2,771.00 $2,439.00
HPE Aruba - SFP56 transceiver module
HPE Aruba - SFP56 transceiver module
  • 50GbE
  • 50GBase-BX-U
  • LC single-mode
  • up to 10 km
MSRP $5,495.00 $4,149.00

Network Cables

HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • 3 m
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
MSRP $215.00 $171.00
HPE Aruba - 1000Base direct attach cable
HPE Aruba - 1000Base direct attach cable
  • QSFP28 to QSFP28
  • 1 m
  • for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
MSRP $595.00 $545.00
HPE Aruba - 50GBase direct attach cable
HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • 65 cm
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
MSRP $450.00 $413.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba 6405 V2 - Switch - 5 line module slots - L3 - managed - front to back airflow - rack-mountable - 4PPoE - BTO - with 1x Aruba 6405 Chassis (R0X24C), 1x Management Module (R0X31A), 2x Fan Tray (R0X32A)
ManufacturerHewlett Packard Enterprise
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth44.85 cm
Dimensions & Weight / Height30.66 cm
Dimensions & Weight / Weight29.3 kg
Dimensions & Weight / Width44.26 cm
Header / BrandAruba
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Form FactorRack-mountable
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth44.85 cm
Height30.66 cm
Weight29.3 kg
Width44.26 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Installed Modules Qty (Max)1 (installed) / 7 (max)
Interfaces
  • 1 x console RJ-45
  • 1 x USB-C console
  • 1 x management RJ-45
  • 1 x USB Type A host
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 2048
  • IPv4 host table capacity:
  • IPv4 routes (Unicast):
  • IPv6 routes (Unicast):
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 8192
  • MLD groups: 8192
Compliant StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Device TypeSwitch - L3 - managed - stackable - with 1x Aruba 6405 Chassis (R0X24C), 1x Management Module (R0X31A), 2x Fan Tray (R0X32A)
Enclosure TypeFront to back airflow rack-mountable 7U
Flash Memory32 GB
MAC Address Table Size32768 entries
Performance
  • Switching capacity: 14 Tbps
  • Throughput: 5.7 Bpps
  • Latency (1 Gbps): 5.32 µs
  • Latency (10 Gbps): 1.48 µs
  • Latency (25 Gbps): 2.78 µs
  • Latency (40 Gbps): 1.31 µs
  • Latency (100 Gbps): 1.42 µs
Power Over Ethernet (PoE)4PPoE
Processor1 x ARM: 1.8 GHz
RAM16 GB DDR4 SDRAM
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC Class A certified, CISPR 22 Class A, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-8, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, WEEE, VCCI Class A, EN 50581:2012, IEC 60825-1:2007, IEC 60950-1:2005 Second Edition, EN 55022 Class A, UL 62368-1 Second Edition, CISPR 32:2012 Class A, EN 55032:2012 Class A, EN 62368-1:2014, CSA 60950-1 Second Edition, EN 55035, CISPR 35, EN 55024:2010 + A1:2001 + A2:2003, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Included AccessoriesCable management kit, rack mounting kit (2 post)
Pricing TypeBTO
Rack Mounting KitIncluded
Power
Max Supported Qty4
Power DeviceInternal power supply (not installed)
Power RedundancyOptional
Power Redundancy SchemeN+1 (with optional power supply), N+N (with optional power supply)
Voltage Required(50/60 Hz)
