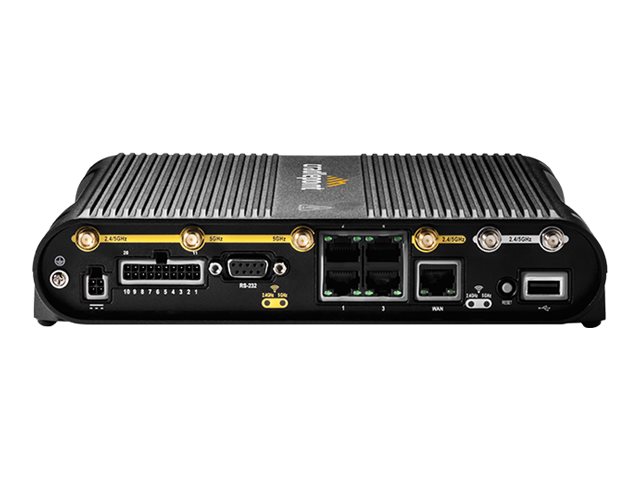

Cradlepoint IBR1700 Series IBR1700-1200M-B
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cradlepoint IBR1700 Series IBR1700-1200M-B
- Wireless router
- WWAN 4-port switch
- 1GbE Dual Band
- 3G, 4G
- in-vehicle
- with 3 years NetCloud Mobile Essentials Plan
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 590GBL000654 |
| SHI Part #: | 44907634 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Getac |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Cradlepoint IBR1700 Series IBR1700-1200M-B - Wireless router - WWAN 4-port switch - 1GbE Dual Band - 3G, 4G - in-vehicle - with 3 years NetCloud Mobile Essentials Plan |
| Manufacturer | Getac |
| MSRP | $2,205.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth |
|
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 22.43 cm |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Header / Brand | CradlePoint |
| Header / Country Kits | North America (US and Canada) |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology |
|
| Networking / Data Link Protocol |
|
| Networking / Form Factor | In-vehicle |
| Networking / Type | Wireless router |
| Networking / Wireless Protocol | 802.11a/b/g/n/ac Wave 2 |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 Pro |
| Packaged Quantity | 1 |
| Processor / Manufacturer | Intel |
| Service & Support / Type | Limited lifetime warranty |
| Antenna | |
| Antenna | External detachable |
| Communications | |
| Cellular Band | LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B66, LTE B71, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, WCDMA B1, WCDMA B2, WCDMA B5, WCDMA B8, WCDMA B19, WCDMA B4, WCDMA B9 |
| Cellular Protocol | LTE Advanced Cat 18, WCDMA, DC-HSPA+ |
| Generation | 3G, 4G |
| Max Transfer Rate | 1.2 Gbps |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 19 cm |
| Height | 4.4 cm |
| Width | 22.43 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 Mini-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GPS, GLONASS, Beidou, Galileo |
| Bundled Services | 3 years NetCloud Mobile Essentials Plan |
| Capacity |
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Wi-Fi CERTIFIED, IP64, ISO 7637-2, UL, cUL, CB Scheme, EN 62368-1, E Mark, WEEE, RoHS, RoHS2, CP65, MIL-STD 810G, SAE J1455, PTCRB, GCF |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | In-vehicle |
| Encryption Algorithm | WPA-Personal, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, WEP |
| Features | 4x4 MU-MIMO technology, reverse polarity protection, transient voltage protection, Ignition Sense, firewall protection, 3GPP Release 12, 2x2 MU-MIMO technology |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance |
|
| Status Indicators | Power, signal strength, WAN, GPS, modem, Wi-Fi, LTE |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x GPIO cable - 3 m |
| Localization | North America (US and Canada) |
| MTBF | 286,853 hours |
| Power | |
| Power Consumption Operational | 14 watt |
| Voltage Required | AC 120/230 V |
