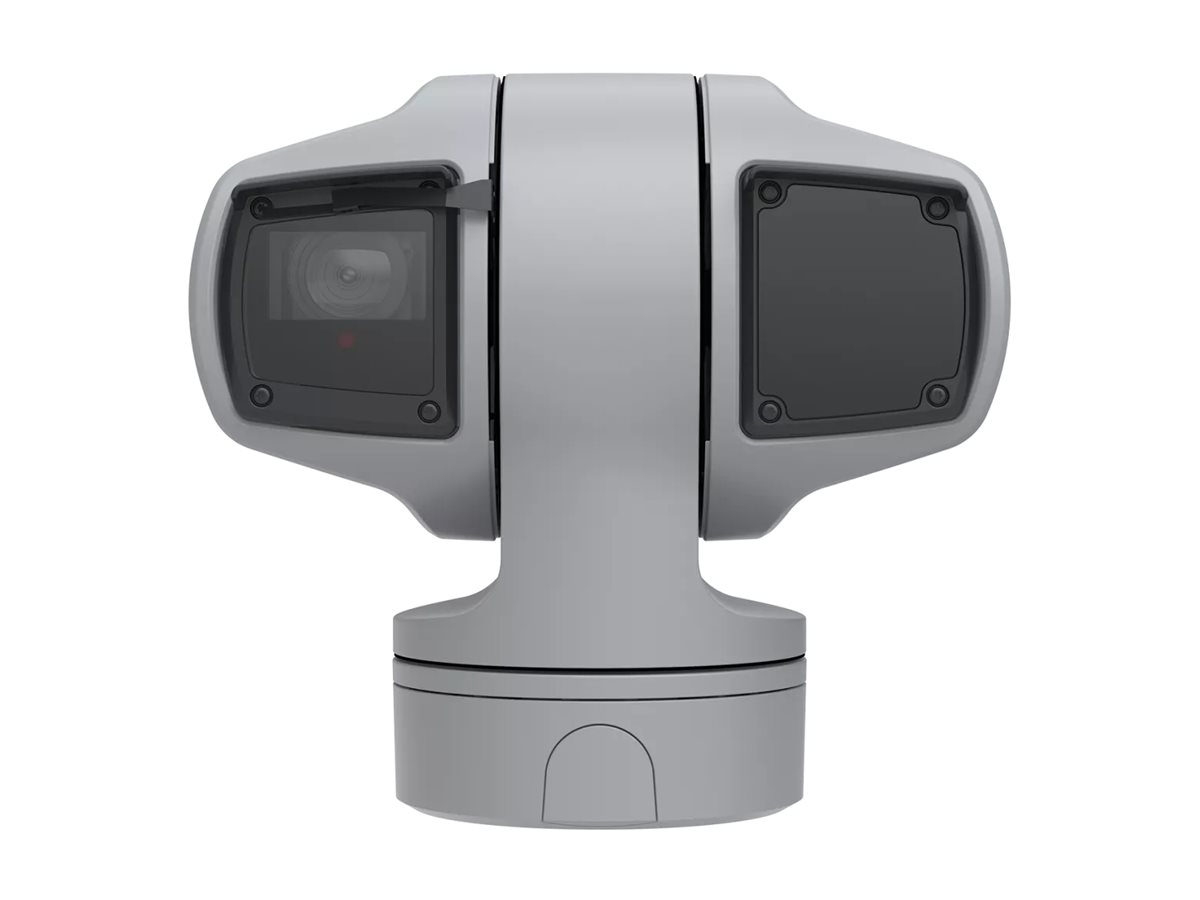

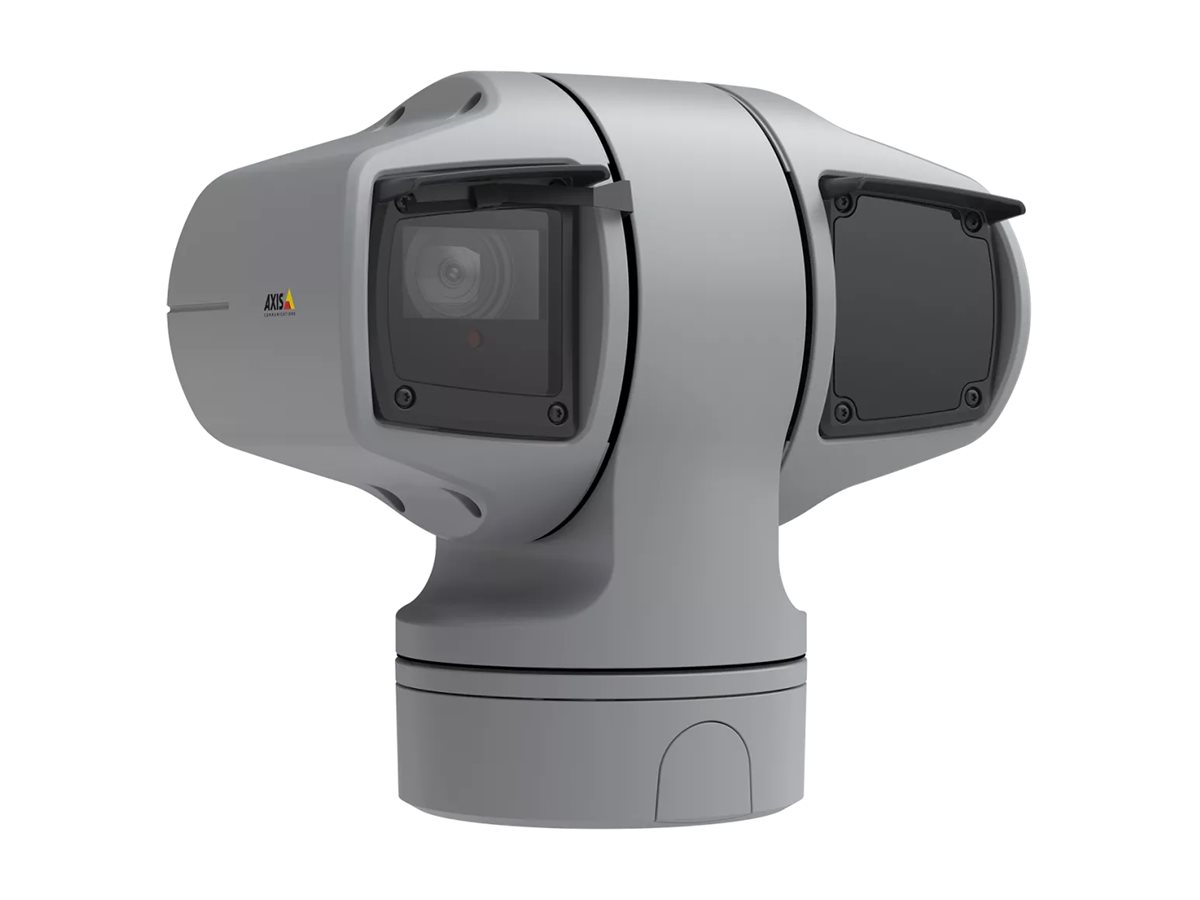

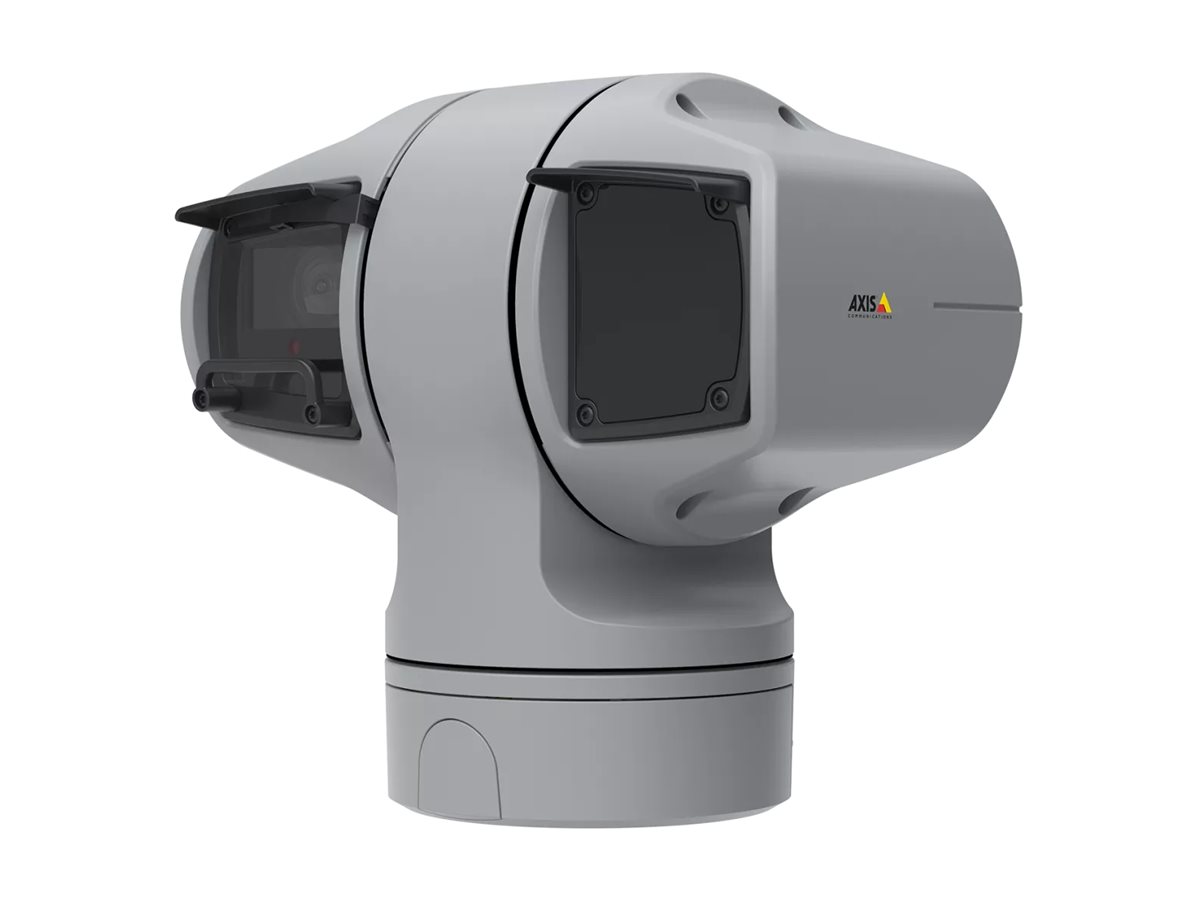

Q6225-LE PTZ CAMERA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Q6225-LE PTZ CAMERA
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02317-004 |
| SHI Part #: | 44896304 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Q6225-LE PTZ CAMERA |
| Manufacturer | Axis Communications |
| MSRP | $3,949.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21 cm |
| Dimensions & Weight / Height | 31.3 cm |
| Dimensions & Weight / Weight | 8.7 kg |
| Dimensions & Weight / Width | 33 cm |
| Header / Brand | Axis |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Digital Video Format | H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Digital Zoom | 12 |
| Exposure Range | 1/2 sec - 1/111000 sec |
| Features | OptimizedIR, electronic image stabilization, Zipstream technology, infrared-cut filter, 300 preset positions, control queue, focus recall, guard tour, Machine learning processing unit (MLPU), tour recording, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), compression, color control, brightness control, sharpness control, white balance, exposure control, exposure zone, defogging, Forensic WDR, polygon privacy mask, IP address filtering, HTTPs encryption, user access log, centralized certificate management, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, e-mail alerts, text overlay, Pixel Counter Support, human detection, Vehicle Detection, Line Crossing Detection, AXIS Object Analytics, secure boot, Lightfinder 2.0 technology, Trusted Platform Module (TPM), autotracking 2 |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 400 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - dust resistant / water resistant / vandal resistant |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -55 °C |
| Relative Humidity (operating) | 10 - 100% (condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 21 cm |
| Device Type | Network surveillance camera |
| Height | 31.3 cm |
| Localization | United States |
| Weight | 8.7 kg |
| Width | 33 cm |
| Image Sensor | |
| Type | PS CMOS 1/2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT, Zeroconf, Syslog |
| Lens Construction | |
| Focal Length | 6.91 mm - 214.64 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.2 - 63.8 |
| Lens Iris | F/1.36-4.6 (P-Iris) |
| Optical Zoom | 31 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.3 - 37 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Urban gray, NCS S 5502-B |
| Compliant Standards | MIL-STD-810G military testing, NEMA TS-2, IEEE 802.1x, Common Criteria EAL4+, AES-256, FIPS 140-2 Level 2, IEEE 802.1ar, TLS v1.3, TLS v1.2, X.509, IEC/EN 60529 IP66, IEC/EN 60529 IP68, NEMA250 Type 4X, IEC/EN 62262 IK10, PVC-free, IEEE 802.3bt, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, AS/NZS CISPR 32 Class A, RCM, KS C 9832 Class A, KS C 9835, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267, EN 60950-1, GS, UL, cUL, FCC, CB |
| Included Accessories | IK10 bumper, AXIS High PoE Midspan (1 port), RJ45 push-pull connector |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 150 |
| Power | |
| Power Device | 25 Watt |
| Power Requirements | High PoE Class 8 |
| Software / System Requirements | |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user license, AXIS Camera Station |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 150 |
