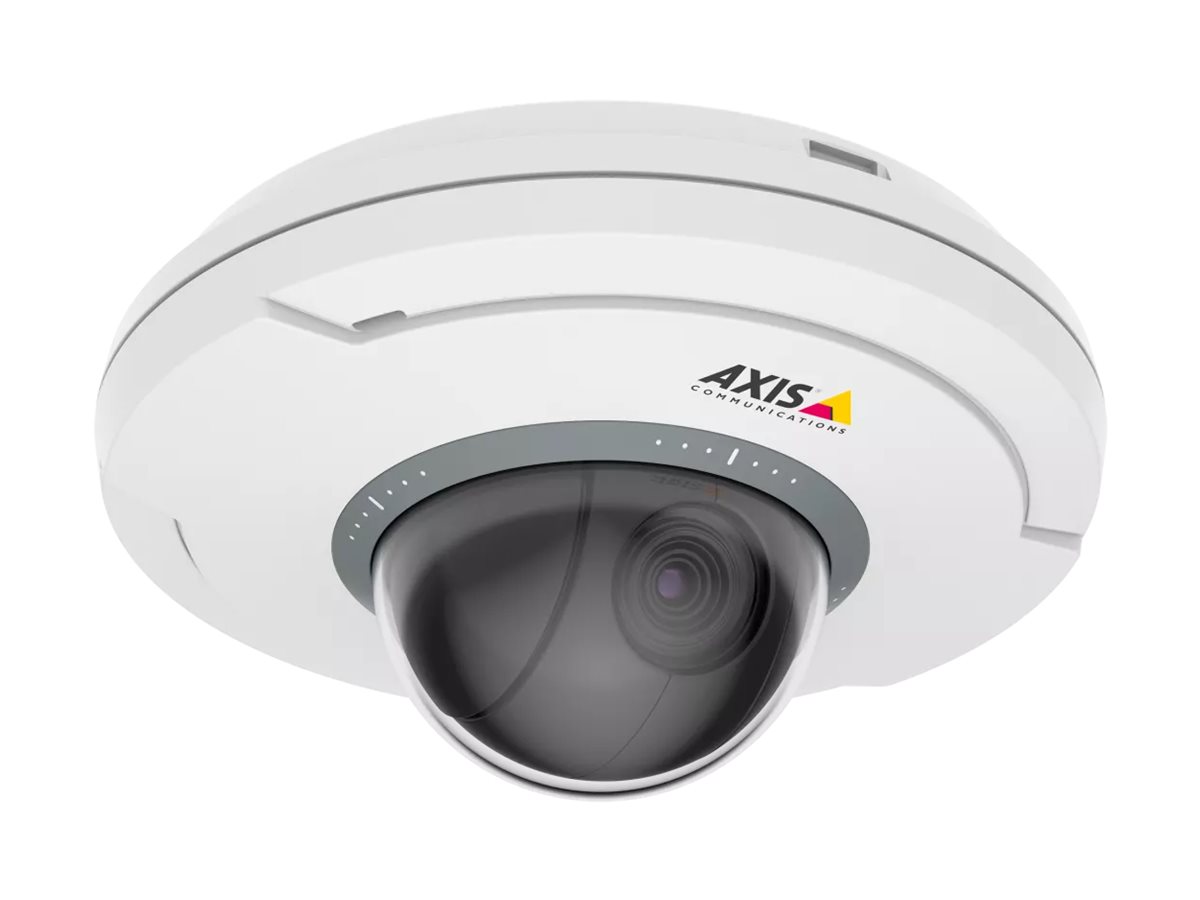

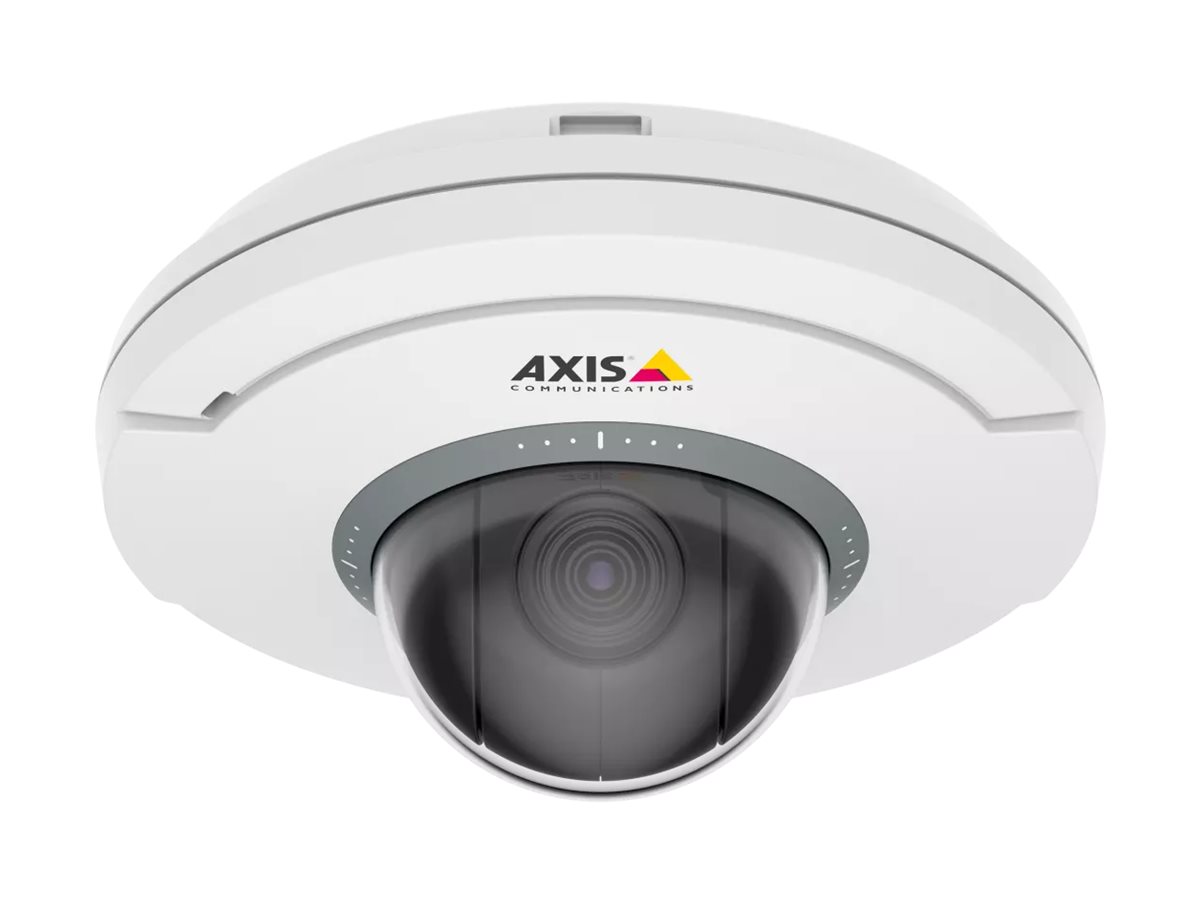

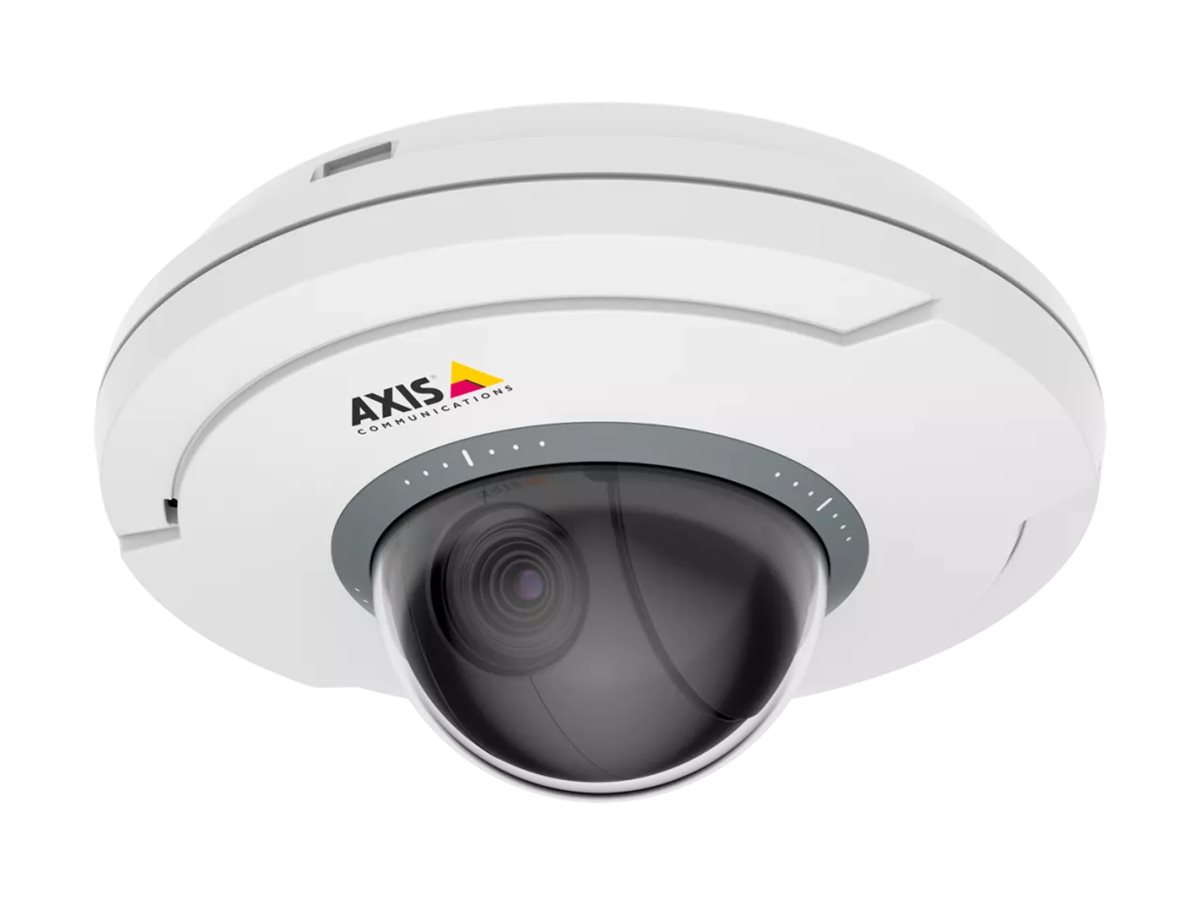

M5075-G PTZ CAMERA 11-15WK ELT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
M5075-G PTZ CAMERA 11-15WK ELT
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02347-004 |
| SHI Part #: | 44719886 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
Memory (RAM)
- 1 TB
- A2 / UHS-I U3 / Class10
- microSDXC UHS-I
- for AXIS D3110, M3085, M3086, M5075, M7116, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
- 512 GB
- A2 / UHS-I U3 / Class10
- microSDXC UHS-I
- for AXIS D3110, M3085, M3086, M5075, M7116, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
- 128 GB
- UHS-I U1 / Class10
- microSDXC UHS-I
- black
- for AXIS D3110, M3085, M3086, M4308, M5075, P3818, Q1656, Q1715, Q1942, Q6100; P37 Series
Networking and Security
- Kit
- media converter
- 100Mb LAN
- over Coax
- 10Base-T, 100Base-TX
- RJ-45 / BNC
- Media converter
- 100Mb LAN
- 10Base-T, 100Base-TX
- RJ-45 / BNC (pack of 2)
- for AXIS P1346, P1346-E, P5534, P5534-E
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | M5075-G PTZ CAMERA 11-15WK ELT |
| Manufacturer | Axis Communications |
| MSRP | $709.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 6.3 cm |
| Dimensions & Weight / Weight | 380 g |
| Dimensions & Weight / Width | 13 cm |
| Header / Brand | Axis |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Digital Video Format | H.265, H.264, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC, MJPEG |
| Digital Zoom | 12 |
| Exposure Range | 2 sec - 1/17000 sec |
| Features | 256 preset positions, control queue, on-screen directional indicator, focus recall, Zipstream technology, 180° image rotation, Adaptive Bitrate (ABR), brightness control, compression, contrast control, day/night threshold, distortion control, exposure control, exposure zone, image overlay, Multi-Bitrate (MBR), polygon privacy mask, saturation control, sharpness control, text overlay, Variable Bitrate (VBR), video streaming indicator, white balance, Forensic WDR, brute force delay protection, centralized certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Audio Detection, Pixel Counter Support, plastic housing, memory card encryption, NAS-Ready |
| Flash Memory | 512 MB |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.1 lux - color - F1.4 - 30 IRE |
| Motion Detection | Yes |
| RAM | 1 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 10 - 90% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Audio Support | Yes: built-in microphone, one-way audio capability |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 13 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 6.3 cm |
| Localization | United States |
| Weight | 380 g |
| Width | 13 cm |
| Image Sensor | |
| Type | 2 MP PS RGB CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf, Z-Wave Plus v2 |
| Lens Construction | |
| Focal Length | 2.2 mm - 11 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 14 - 71 |
| Lens Iris | F/1.4-2.5 |
| Optical Zoom | 5 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 8 - 40 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | PVC-free, BFR-free, CFR free, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN 60529 IP51, FCC Part 15 Subpart C, ISED, NIST SP500-267 |
| Included Accessories | Mounting kit |
| Panning | |
| Range (degree) | -179 to +179 |
| Speed (degree/sec) | Up to 100 |
| Power | |
| Power Device | 4.4 Watt |
| Power Requirements | PoE Plus Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Video Motion Detection |
| Tilting | |
| Range (degree) | 90 |
| Speed (degree/sec) | Up to 100 |
