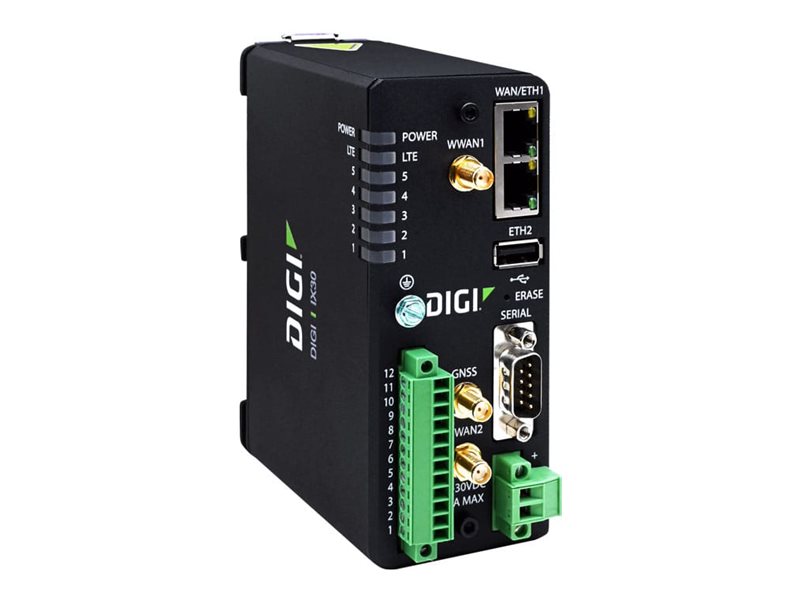

Digi IX30 - Router - WWAN
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Digi IX30 - Router - WWAN
- 3G, 4G
- DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IX30-00P7 |
| SHI Part #: | 44828245 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Digi International |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Digi IX30 - Router - WWAN - 3G, 4G - DIN rail mountable |
| Manufacturer | Digi International |
| MSRP | $819.00 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 12.8 cm |
| Dimensions & Weight / Weight | 500 g |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Digi |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Router |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Communications | |
| Cellular Band | LTE B12, LTE B13, LTE B2, LTE B25, LTE B26, LTE B4, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71, WCDMA B2, WCDMA B4, WCDMA B5, FirstNet Band 14 |
| Cellular Protocol | LTE Advanced, FDD LTE, TDD LTE, WCDMA |
| Generation | 3G, 4G |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 12.8 cm |
| Weight | 500 g |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 74 °C |
| Min Operating Temperature | -34 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GNSS receiver, GPS, GLONASS, Beidou, Galileo, QZSS |
| Compliant Standards | IP30, ANSI/ISA 12.12.01-2015, CAN/CSA C22.2 No. 213-15, UL 62368-1 Second Edition, UL 62368:2014 Second Edition, ATEX II 3 G Ex nA IIC T4 Gc, EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1, FCC Part 15 B, ICES-003, AS/NZS CISPR 32, RoHS3, PTCRB |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Device Type | Router |
| Enclosure Type | DIN rail mountable |
| Features | SMS remote control, Syslog support, SNTP support, auto-sensing per device, flow control, aluminum housing, 15KV ESD Protector, Primary Responder, FirstNet ready |
| Network / Transport Protocol | HTTP, HTTPs, FTP, SFTP, NTP, SMTP |
| Remote Management Protocol | SNMP 2c, SNMP 3, SNMP 1, HTTP, HTTPS, CLI, SSH, Telnet, SFTP, SCP, NTP, SMTP |
| Status Indicators | Power, signal strength, LTE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Localization | North America |
| Power | |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 9 - 30 V |
