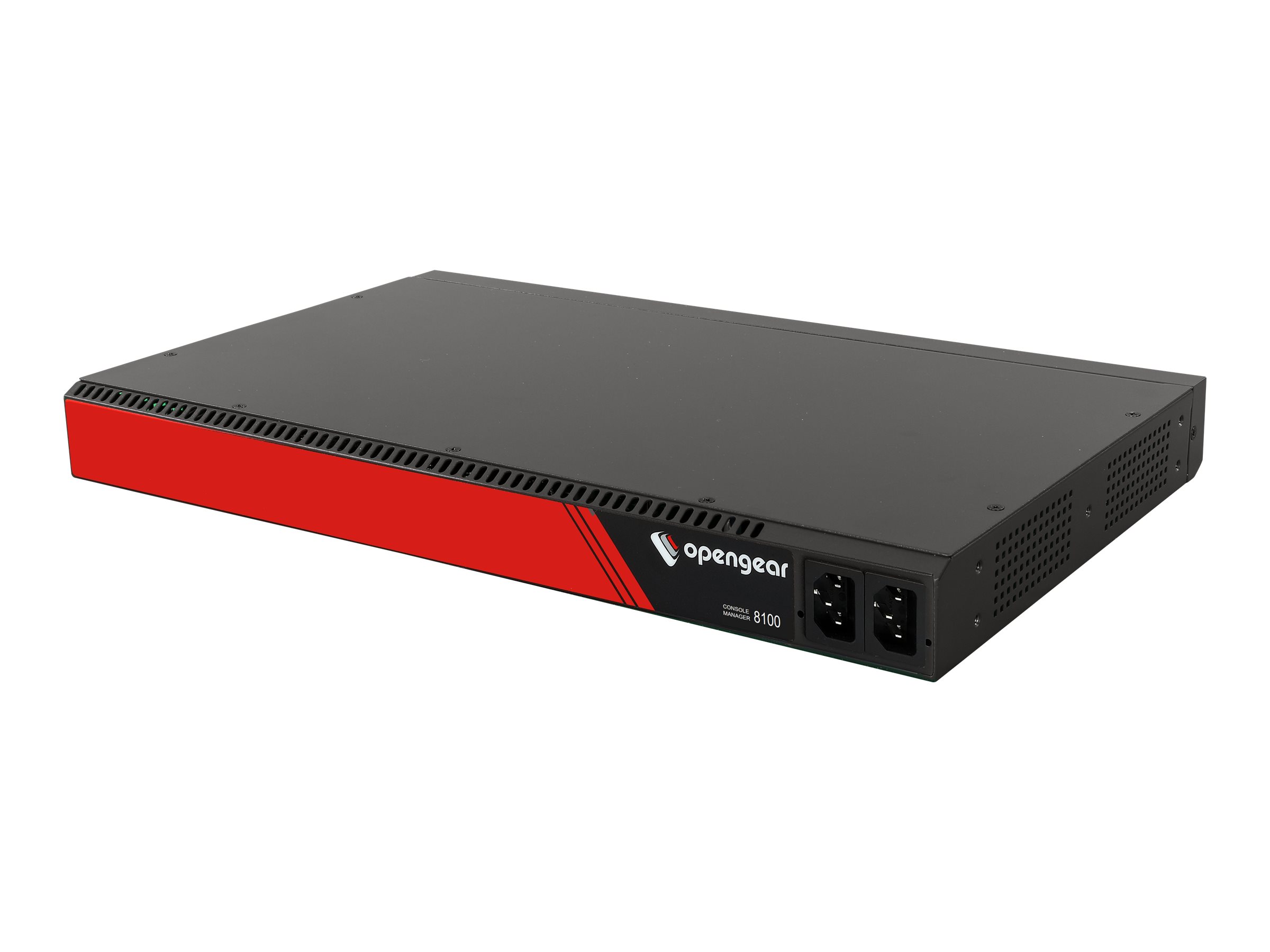

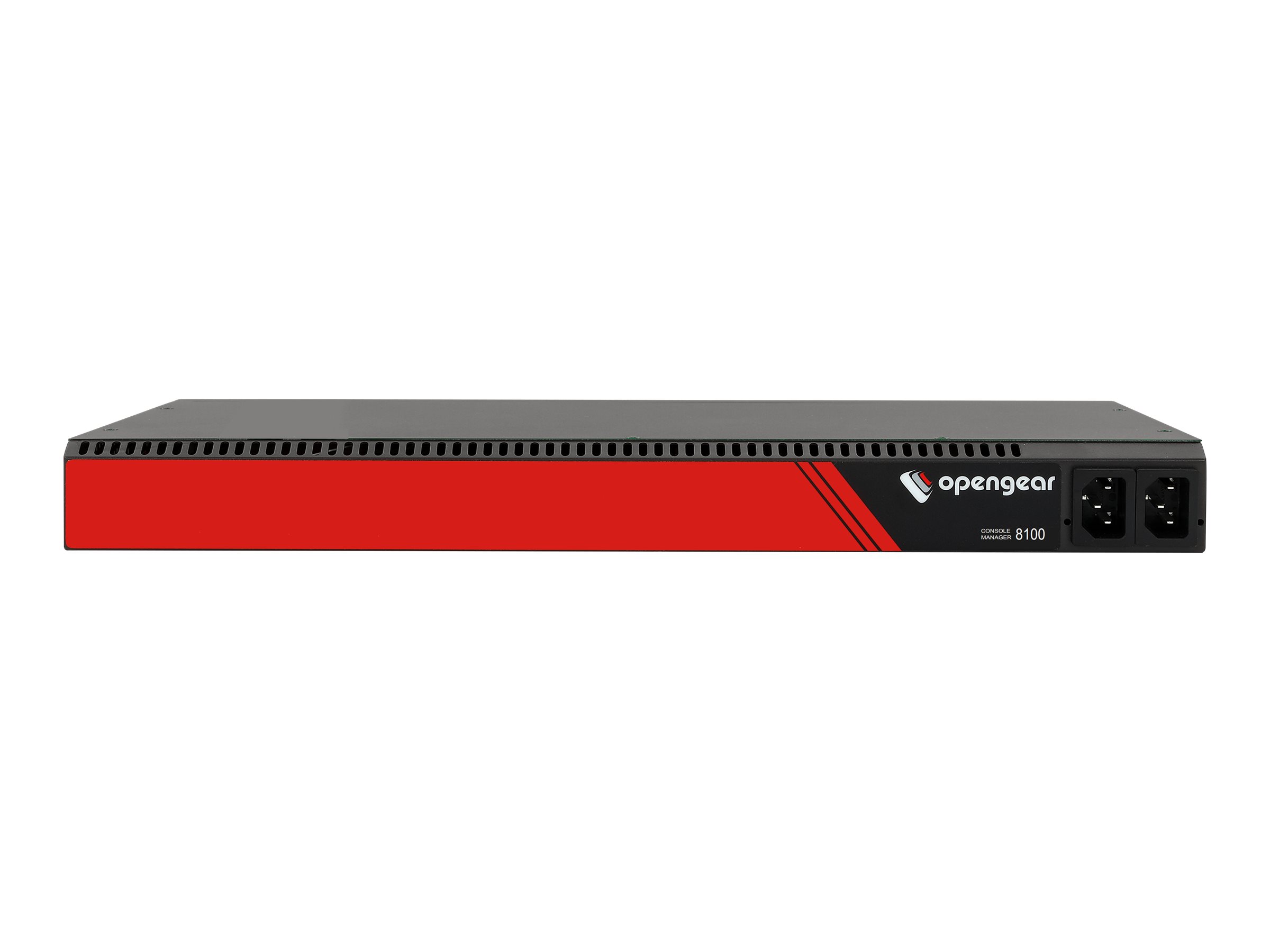

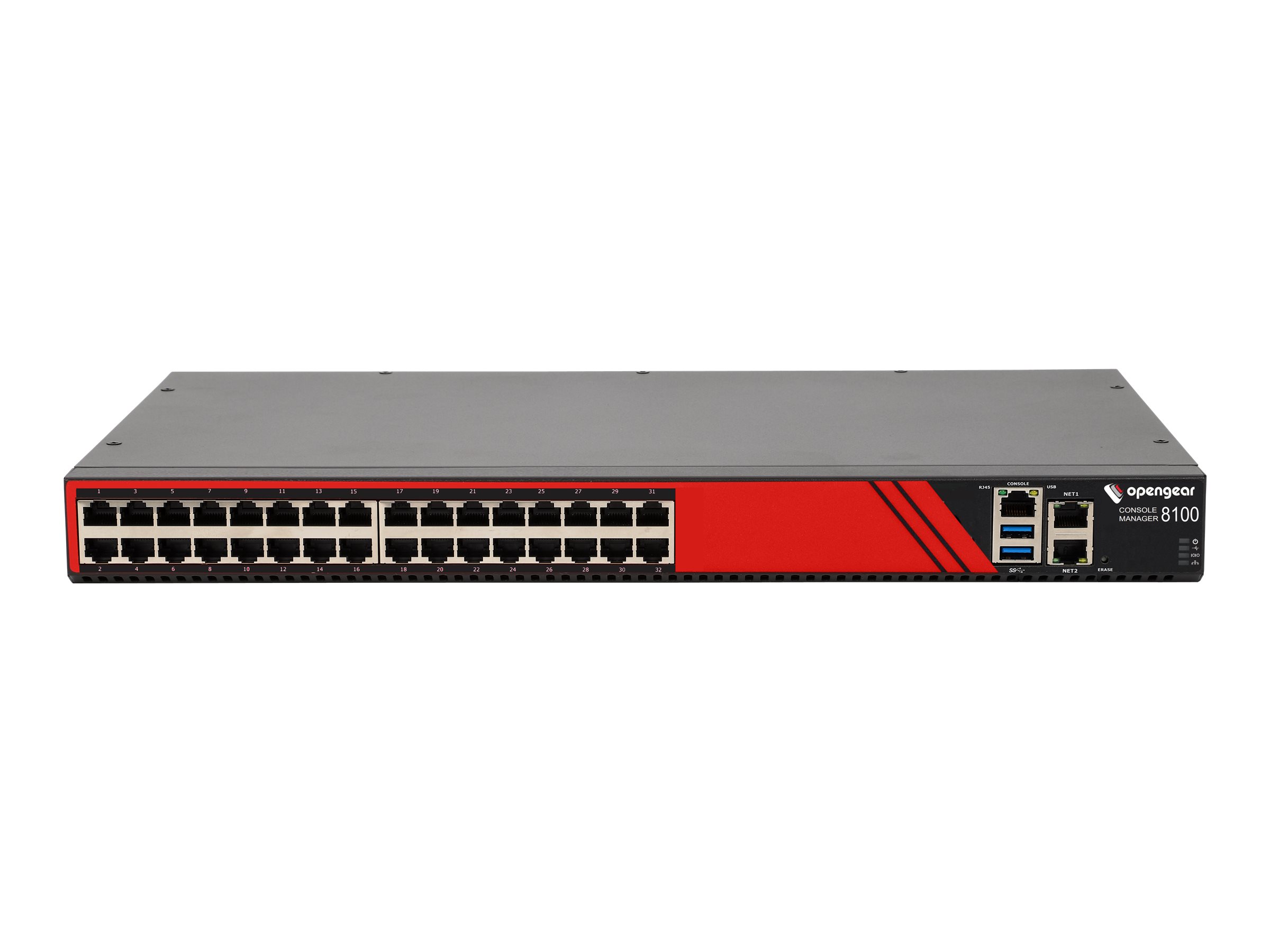

Opengear CM8132 - Console server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Opengear CM8132 - Console server
- 32 ports
- 1GbE, RS-232
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | CM8132-US |
| SHI Part #: | 44798157 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Opengear |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Opengear CM8132 - Console server - 32 ports - 1GbE, RS-232 - 1U - rack-mountable |
| Manufacturer | Opengear |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 4.5 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Opengear |
| Header / Country Kits | United States |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 230.4 Kbps |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 32 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Service & Support / Type | 4-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Temperature sensor |
| Depth | 23.5 cm |
| Device Type | Console server |
| Height | 4.4 cm |
| Height (Rack Units) | 1U |
| Localization | United States |
| Weight | 4.5 kg |
| Width | 44 cm |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Part 15 B Class A, ICES-003 issue 7, AS/NZS CISPR 32:2015, EN 55035:2017, EN 55032:2017, CISPR 32:2016, VCCI 32, EN 61000-3-2:2019, IEC 61000-3-2:2018, IEC 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-3-3:2013, CNS13438:2006, IEC 61000-4-2:2008, EN 61000-4-3:2006+A1:2008+A2:2010, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, EN 61000-4-4:2012, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-4-11:2004, IEC 62368, RoHS |
| Included Accessories | Rack mount kit, 2 rack mounting ears, nuts, 4 x screws |
| MTBF | 150,000 hours |
| Networking | |
| Authentication Method | TACACS+, Active Directory, RADIUS, LDAP, Secure Shell (SSH) |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Data Transfer Rate | 230.4 Kbps |
| Features | Trusted Platform Module 2.0 (TPM 2.0), ESD Protector, temperature sensor, Authentication, Authorization and Accounting (AAA), firewall protection, VPN support, Management Information Base (MIB), Smart Out-of-Band |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | IPv6, IPSec |
| Ports Qty | 32 |
| Remote Management Protocol | IPv6, SSH, HTTP, SNMP |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 15 watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V |
| Processor / Memory / Storage | |
| Flash Memory | 32 GB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x Marvell 88F6820 1.6 GHz |
| RAM | 2 GB DDR4 SDRAM |
