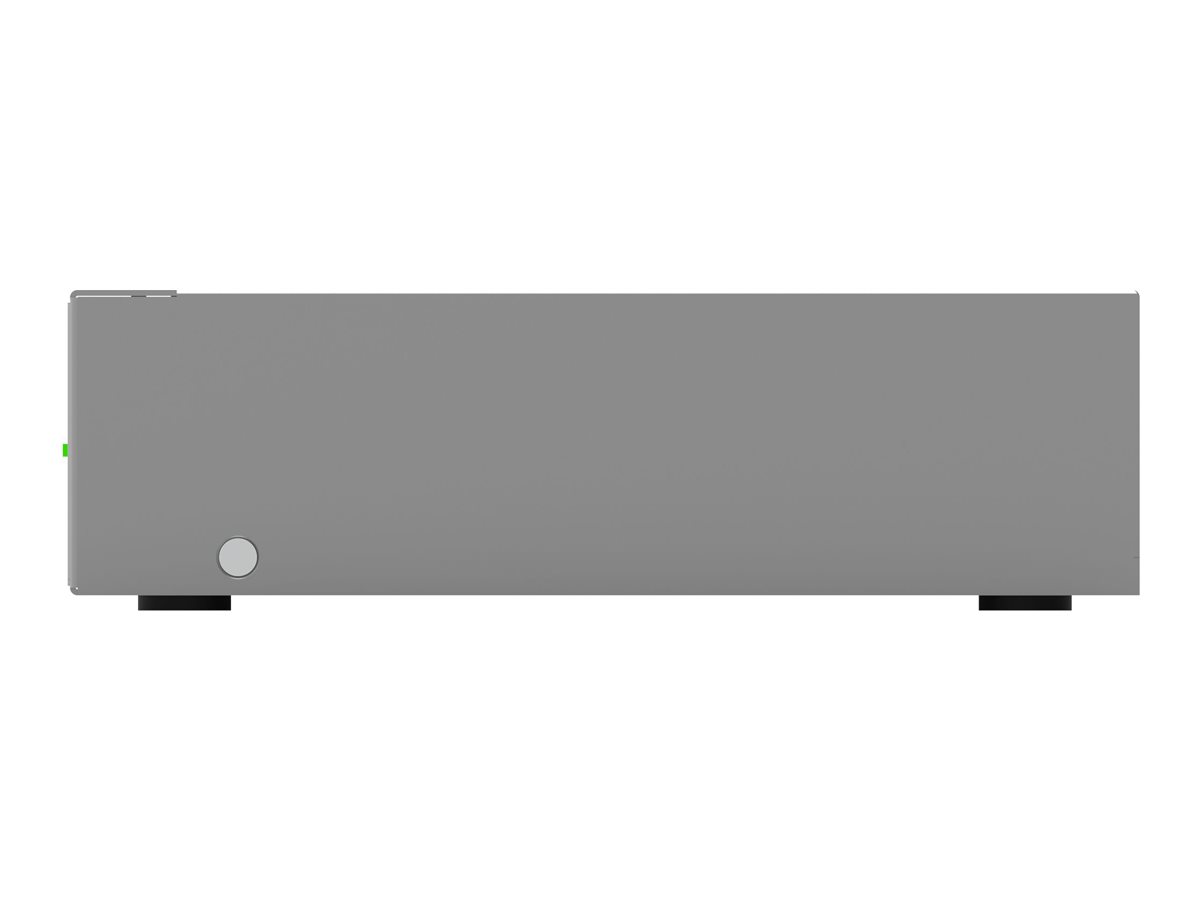

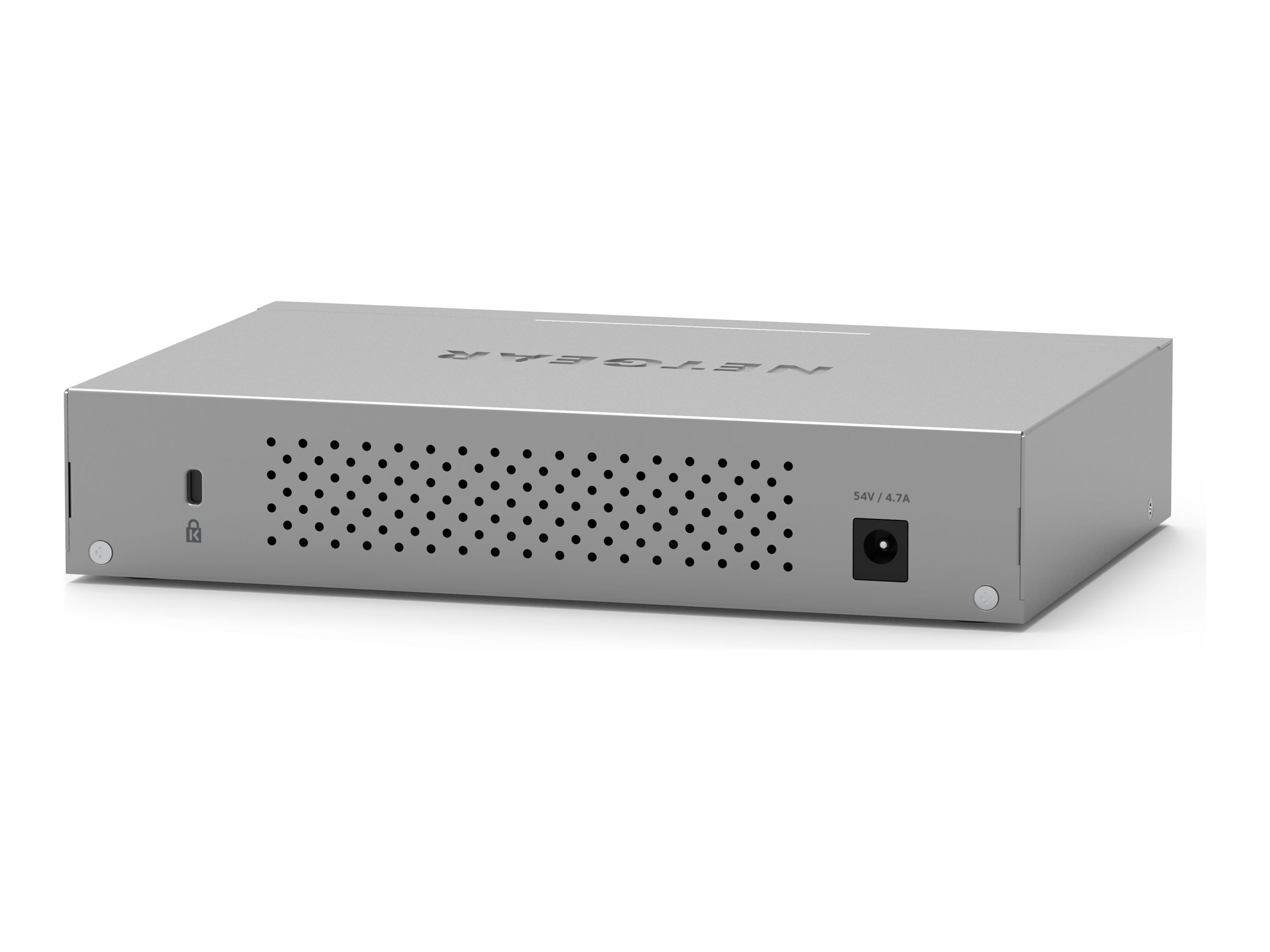

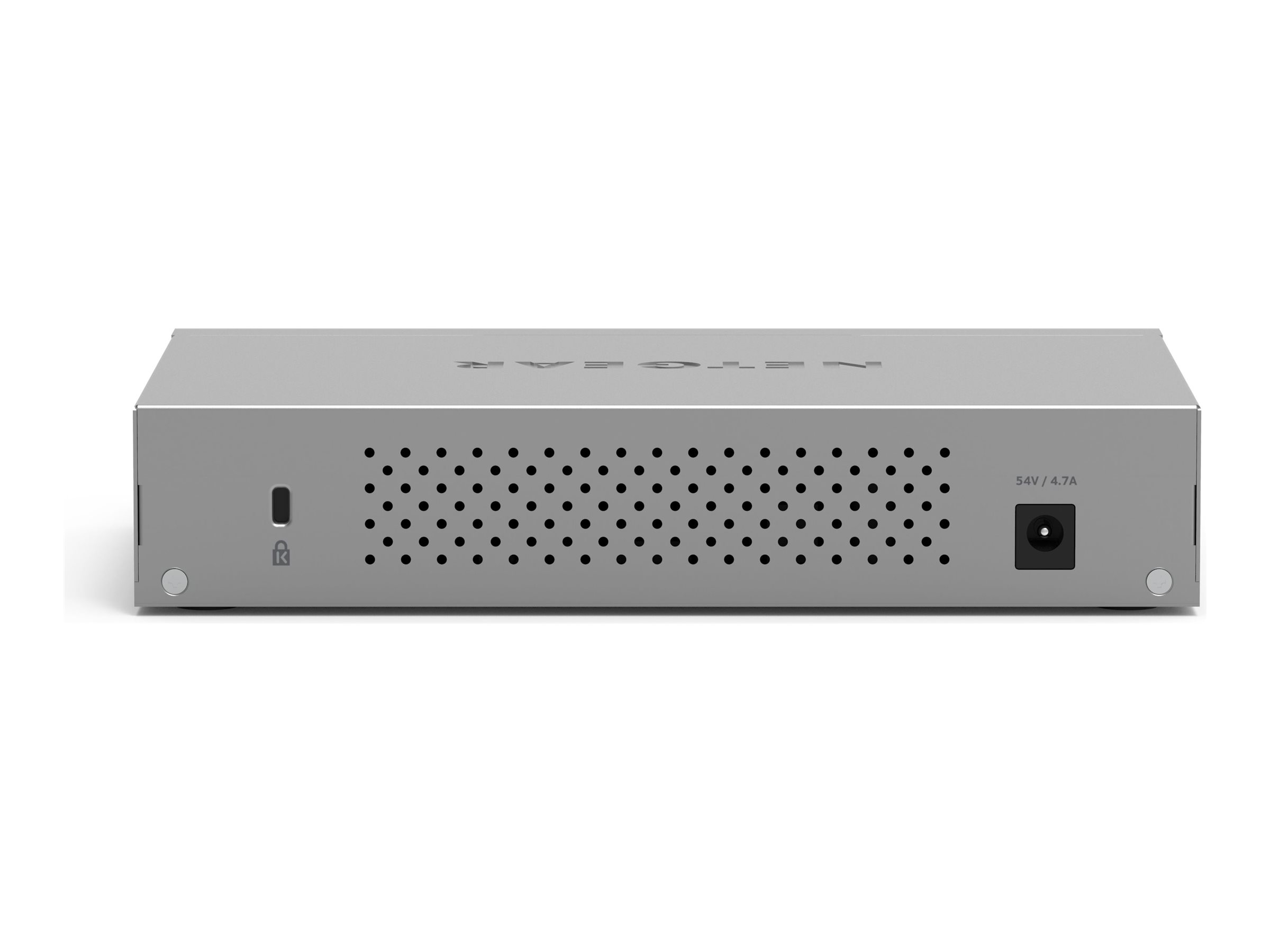

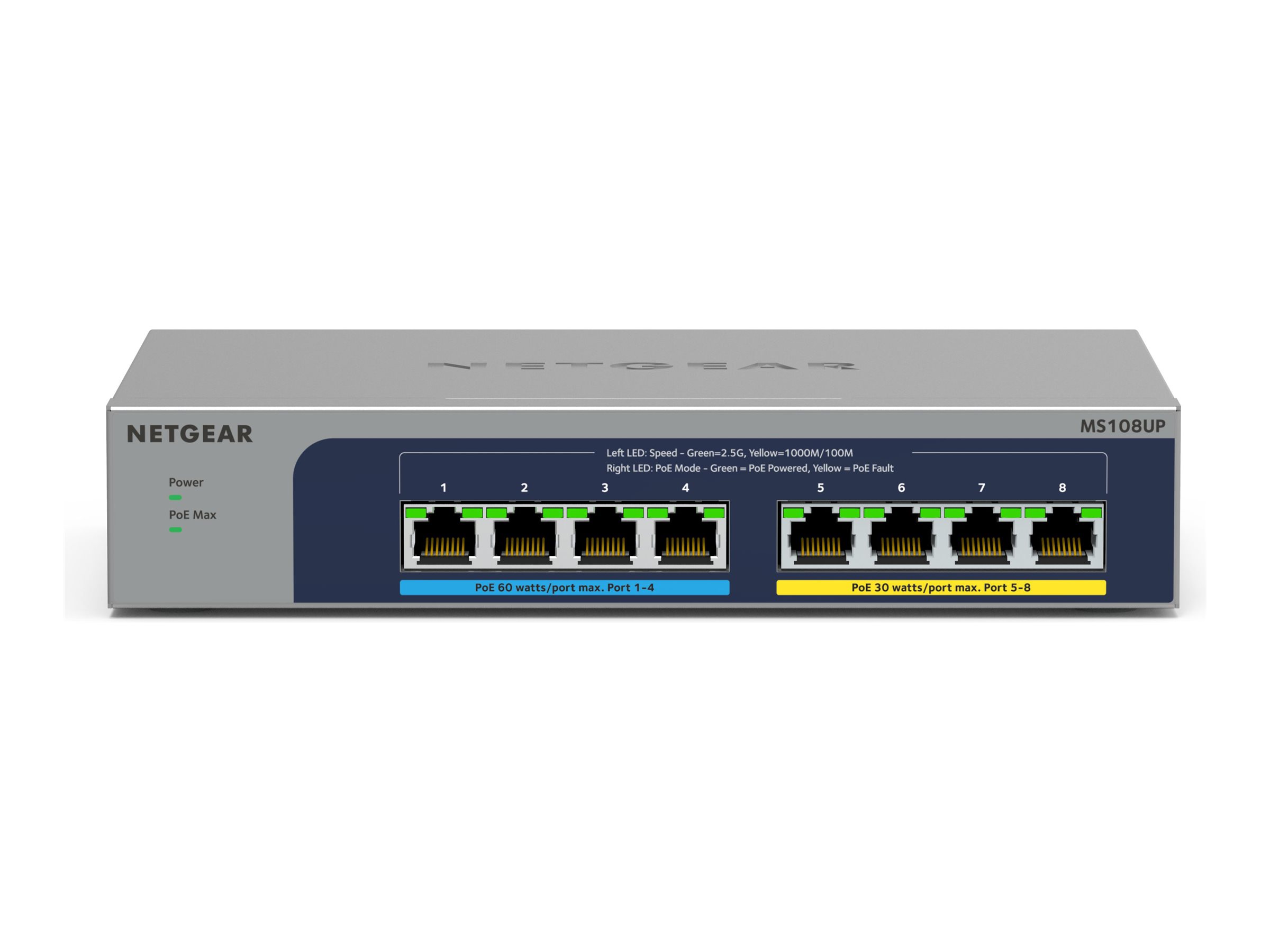

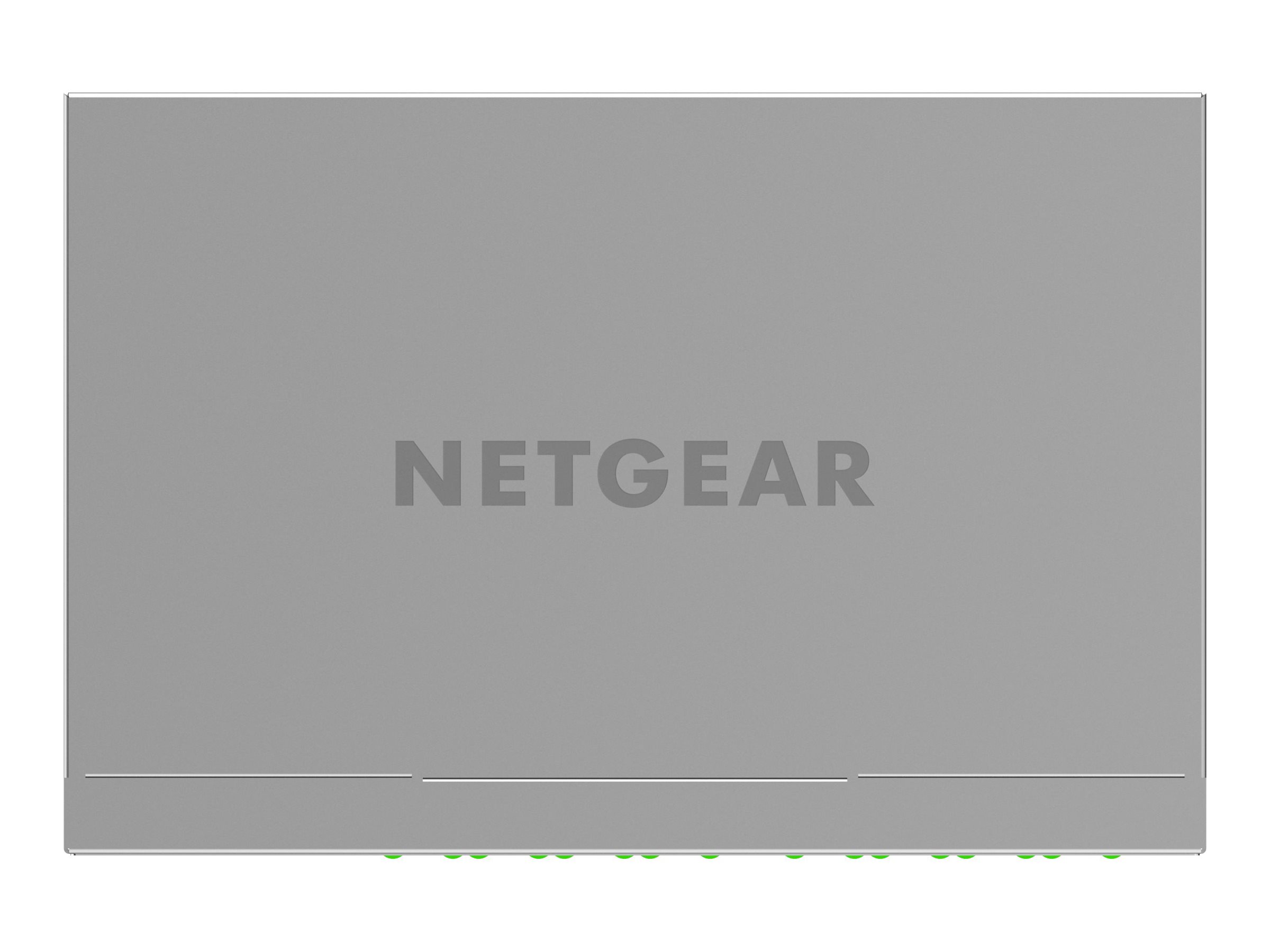

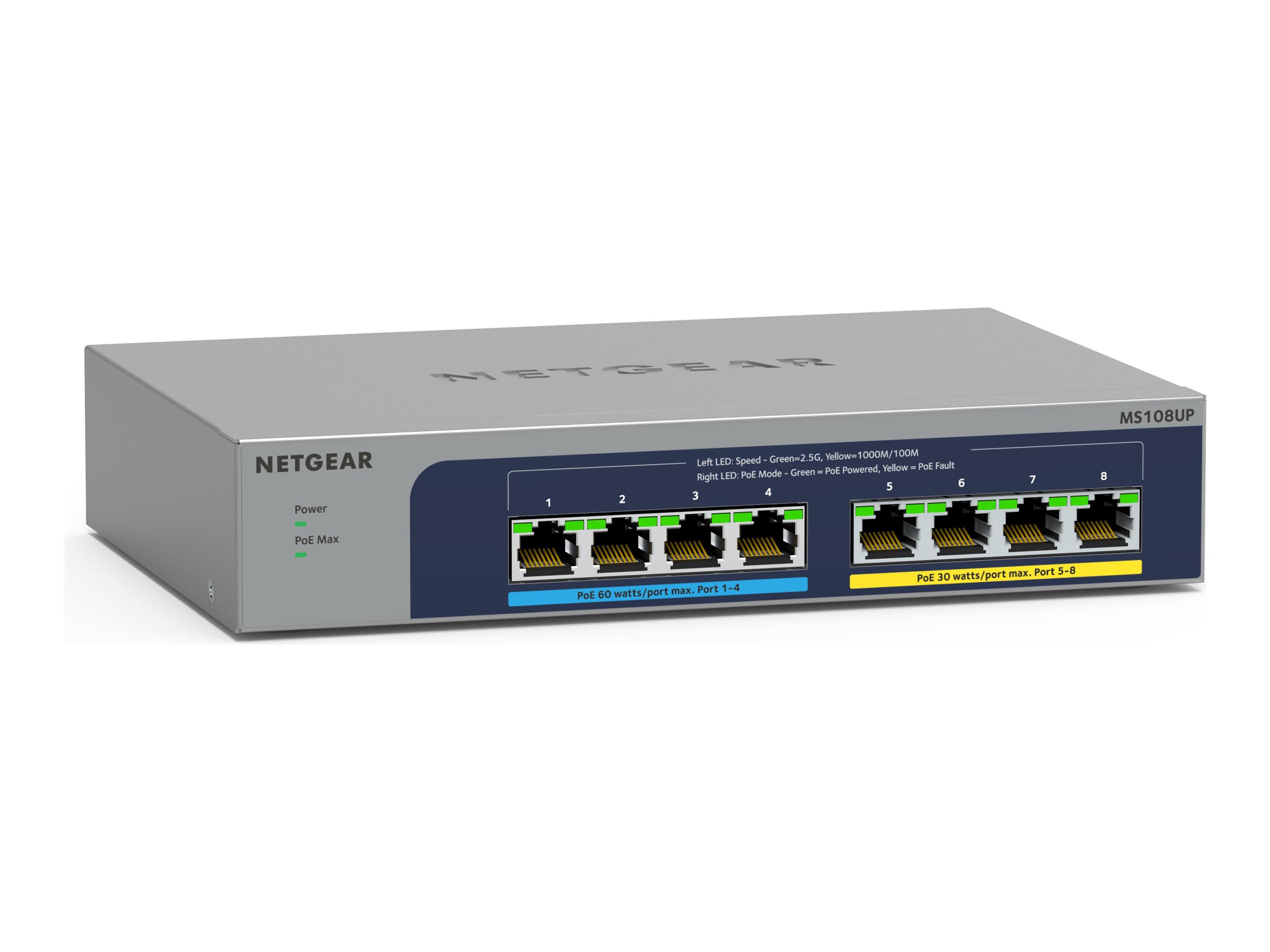

NETGEAR MS108UP - Switch
MSRP$410.88
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR MS108UP - Switch
- unmanaged
- 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+)
- desktop, wall-mountable
- PoE++ (230 W)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $410.88 |
| Mfr Part #: | MS108UP-100NAS |
| SHI Part #: | 44789351 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | NETGEAR MS108UP - Switch - unmanaged - 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+) - desktop, wall-mountable - PoE++ (230 W) |
| Manufacturer | NETGEAR |
| MSRP | $410.88 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14 cm |
| Dimensions & Weight / Height | 4 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 21 cm |
| Header / Brand | NETGEAR |
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 4 cm |
| Weight | 900 g |
| Width | 21 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, UPnP, IEEE 802.3bt |
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, QoS, fanless, DHCP client, metal housing, DSCP support, Link Aggregation, EEE, WRR, loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast |
| Jumbo Frame Support | 12000 bytes |
| MAC Address Table Size | 16K entries |
| Performance | Bandwidth: 40 Gbps |
| PoE Budget | 230 W |
| Ports | 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+) |
| Power Over Ethernet (PoE) | PoE++ |
| Status Indicators | Power, system, PoE, link/activity/speed, PoE max |
| Subtype | 2.5 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032 |
| Included Accessories | Rubber feet, wall mounting kit |
| MTBF | 373,644 hours |
| Power | |
| Power Device | External power adapter |
