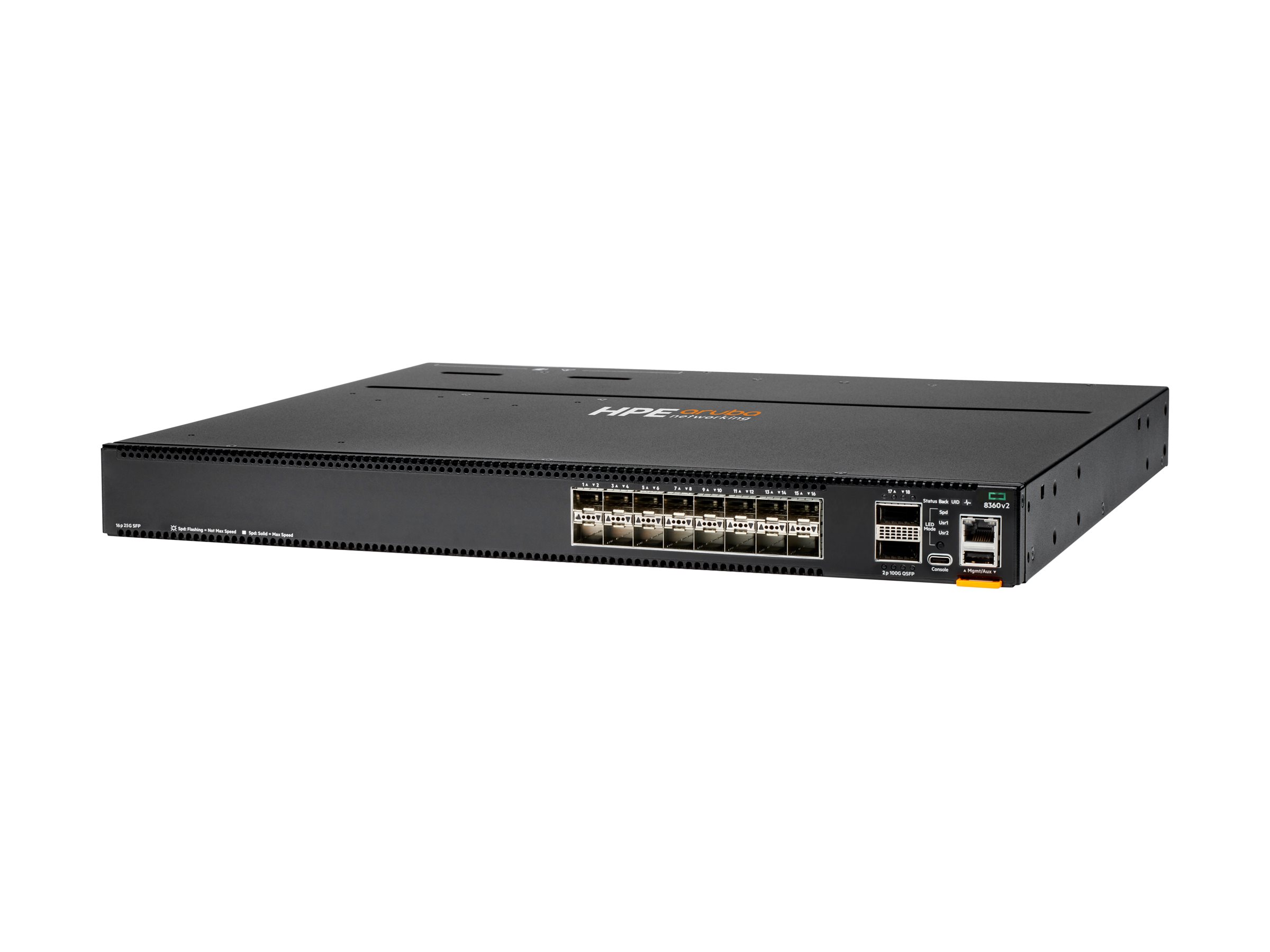

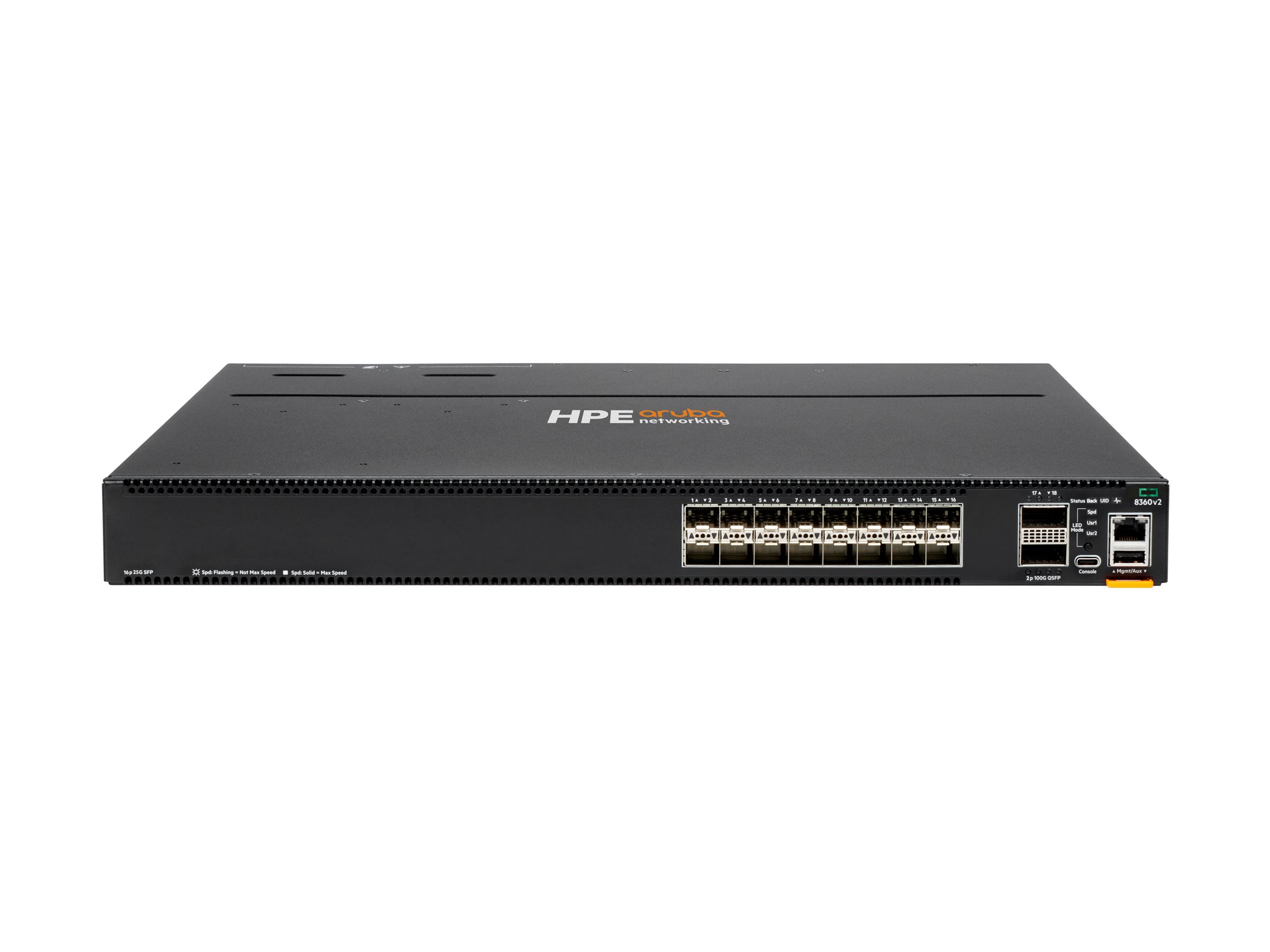

HPE Aruba CX 8360-16Y2C V2

MSRP$35,685.00
$30,262.00
HPE Aruba CX 8360-16Y2C V2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 16 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
  • rack-mountable
HPE Aruba CX 8360-16Y2C V2
  • Switch
  • L3
  • managed
  • 16 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
  • rack-mountable
  Additional Details
Price: $30,262.00
MSRP: $35,685.00
Mfr Part #: JL718C
SHI Part #: 44669199
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Aruba CX 8360-16Y2C V2 - Switch - L3 - managed - 16 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28 - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$35,685.00
UNSPSC43222612
Main Specifications
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty16
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Expansion / Connectivity
Interfaces
  • 16 x 1/10/25Gbit LAN SFP/SFP+/SFP28
  • 2 x 40/100Gbit LAN QSFP28/QSFP+
  • 1 x management (LAN) RJ-45
  • 1 x console (USB) Type C
  • 1 x USB
  • 1 x serial (console) RJ-45
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, RADSEC, Secure Shell v.2 (SSH2)
Capacity
  • MAC addresses: 212992
  • IPv4 host table capacity: 145780
  • IPv6 host table capacity: 145780
  • IPv4 routes (Unicast): 606977
  • IPv6 routes (Unicast): 630784
  • IPv4 ACL entries (ingress): 65536
  • IPv6 ACL entries (ingress): 16384
  • MAC ACL entries (ingress): 65536
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
  • VLANs supported: 4094
  • IGMP groups: 7000
  • MLD groups: 7000
  • IPv4 routes (Multicast): 7000
  • IPv6 routes (Multicast): 7000
Device TypeSwitch - 16 ports - L3 - managed
Enclosure TypeRack-mountable 1U
Encryption Algorithm256-bit AES, 128-bit AES
FeaturesIPv6 support, aggregation mode, ToR, 32MB packet buffer, DDoS Protection, MACsec support
Flash Memory32 GB
Jumbo Frame Support9KB
Performance
  • Routing/switching capacity: 1.2 Tbps
  • Switch fabric speed: 1.2 Tbps
  • Switching capacity: 4.8 Tbps
  • Throughput: 2.678 Mpps
Ports16 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
Processor1: 1.8 GHz
RAM16 GB
Remote Management ProtocolSSH, SSH 6, SSH-2
Routing ProtocolOSPF, static IPv6 routing, static IPv4 routing, RIP-2, RIPng, OSPFv3, BGP-4, BGP-MP, policy-based routing (PBR), ECMP, GRE, MPLS, BGP
Subtype25 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsRoHS, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014 Second Edition, UL 60950-1, CSA 22.2 No. 60950-1, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, IEC 62368-1: 2014, EN 55024:2010, CISPR 24, EN 55032:2015, CISPR 32 Class A, EN 55035:2017, CISPR 35, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class A, ICES-003 Class A, VCCI Class A, CNS 13438, CNS 13438 Class A, EN 60825-1:2014, IEC 60825-1:2014, Laser Class 1
Rack Mounting KitIncluded
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 100-240 V
