Digi IX30 - Router - WWAN
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

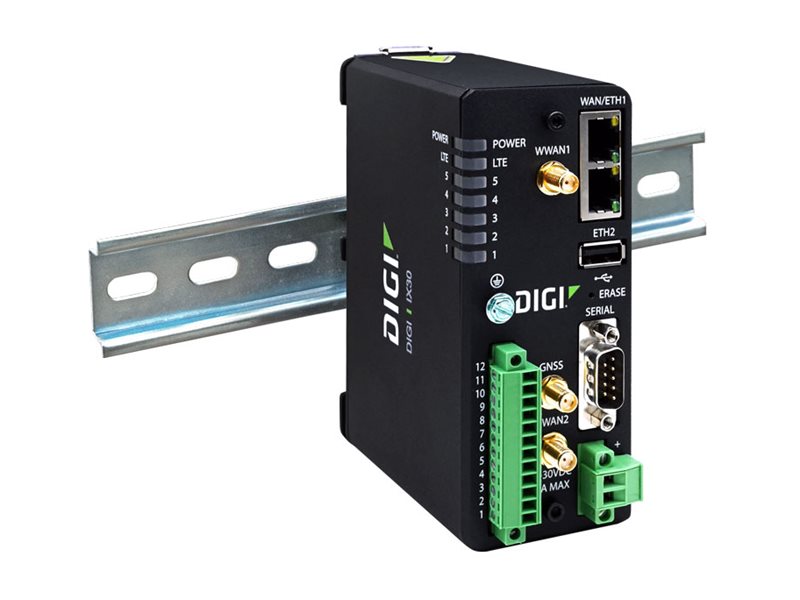

Digi IX30 - Router - WWAN
- 2G, 3G, 4G
- DIN rail mountable
| Additional Details | |
|---|---|
| Mfr Part #: | IX30-00A4 |
| SHI Part #: | 44476407 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Digi International |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Digi IX30 - Router - WWAN - 2G, 3G, 4G - DIN rail mountable |
| Manufacturer | Digi International |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 12.8 cm |
| Dimensions & Weight / Weight | 500 g |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Digi |
| Header / Country Kits |
|
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|

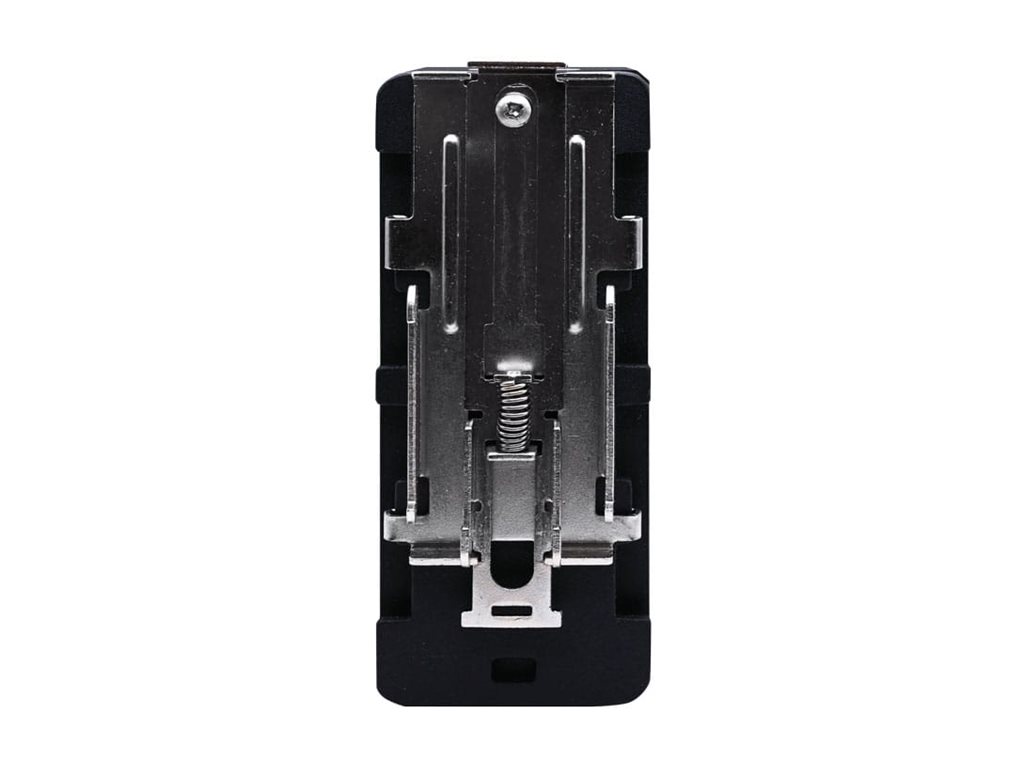

| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Router |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 3 |
| Communications | |
| Cellular Band | LTE B1, LTE B18, LTE B19, LTE B21, LTE B28, LTE B3, LTE B38, LTE B39, LTE B40, LTE B41, LTE B5, LTE B7, LTE B8 |
| Cellular Protocol | FDD LTE, TDD LTE |
| Generation | 2G, 3G, 4G |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 12.8 cm |
| Weight | 500 g |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 74 °C |
| Min Operating Temperature | -34 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Interfaces |
|
| General | |
| Built-in Devices | GNSS receiver, GPS, GLONASS, Beidou, Galileo, QZSS |
| Compliant Standards | IP30, ANSI/ISA 12.12.01-2015, CAN/CSA C22.2 No. 213-15, UL 62368-1 Second Edition, UL 62368:2014 Second Edition, ATEX II 3 G Ex nA IIC T4 Gc, EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1, FCC Part 15 B, ICES-003, AS/NZS CISPR 32, RoHS3 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Device Type | Router |
| Enclosure Type | DIN rail mountable |
| Features | SMS remote control, Syslog support, SNTP support, auto-sensing per device, flow control, aluminum housing, 15KV ESD Protector |
| Network / Transport Protocol | HTTP, HTTPs, FTP, SFTP, NTP, SMTP |
| Remote Management Protocol | SNMP 2c, SNMP 3, SNMP 1, HTTP, HTTPS, CLI, SSH, Telnet, SFTP, SCP, NTP, SMTP |
| Status Indicators | Power, signal strength, LTE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Localization | Australia, New Zealand |
| Power | |
| Power Device | External power adapter (not included) |
| Voltage Required | DC 9 - 30 V |
