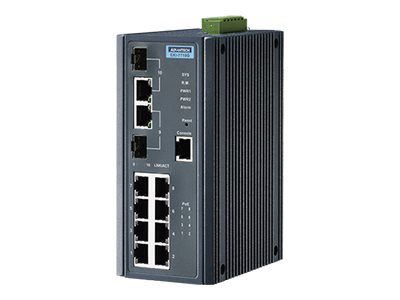

Advantech EKI-7710G-2CPI-BE
MSRP$1,781.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech EKI-7710G-2CPI-BE
- Switch
- managed
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- DIN rail mountable, wall-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,781.00 |
| Mfr Part #: | EKI-7710G-2CPI-BE |
| SHI Part #: | 44291473 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Advantech EKI-7710G-2CPI-BE - Switch - managed - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - DIN rail mountable, wall-mountable |
| Manufacturer | Advantech |
| MSRP | $1,781.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 15.2 cm |
| Dimensions & Weight / Weight | 1.2 kg |
| Dimensions & Weight / Width |
|
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor |
|
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 15.2 cm |
| Weight | 1.2 kg |
| Width | 7.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% RH |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS |
| Compliant Standards | IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Device Type | Switch - 10 ports - managed |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Encryption Algorithm | MD5, TLS, TTLS, PEAP |
| Features | IGMP snooping, STP support, RSTP support, metal housing, IPv6 support, X-Ring Pro support, VLAN support, GVRP, VLAN Stacking, port mirroring, MSTP support, QoS, WRR, SP, CoS, DSCP based CoS, trunking, DHCP server, DHCP client, TFTP support, LACP, MLD snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, GVRP, 4.1MB packet buffer |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 8K entries |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, RMON, SSH-2 |
| Status Indicators | Power, system, alarm, link/activity, port transmission speed, PoE |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS, IEC 60068-2-6, IEC 60068-2-32, IEC 60068-2-27, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, UL 62368, IP30 |
| MTBF | 858,835 hours |
| Power | |
| Features | Redundant Power System (RPS) connector, Power Polarity Reverse Protect |
| Power Consumption Operational | 12.1 Watt |
| Power Redundancy | Yes |
