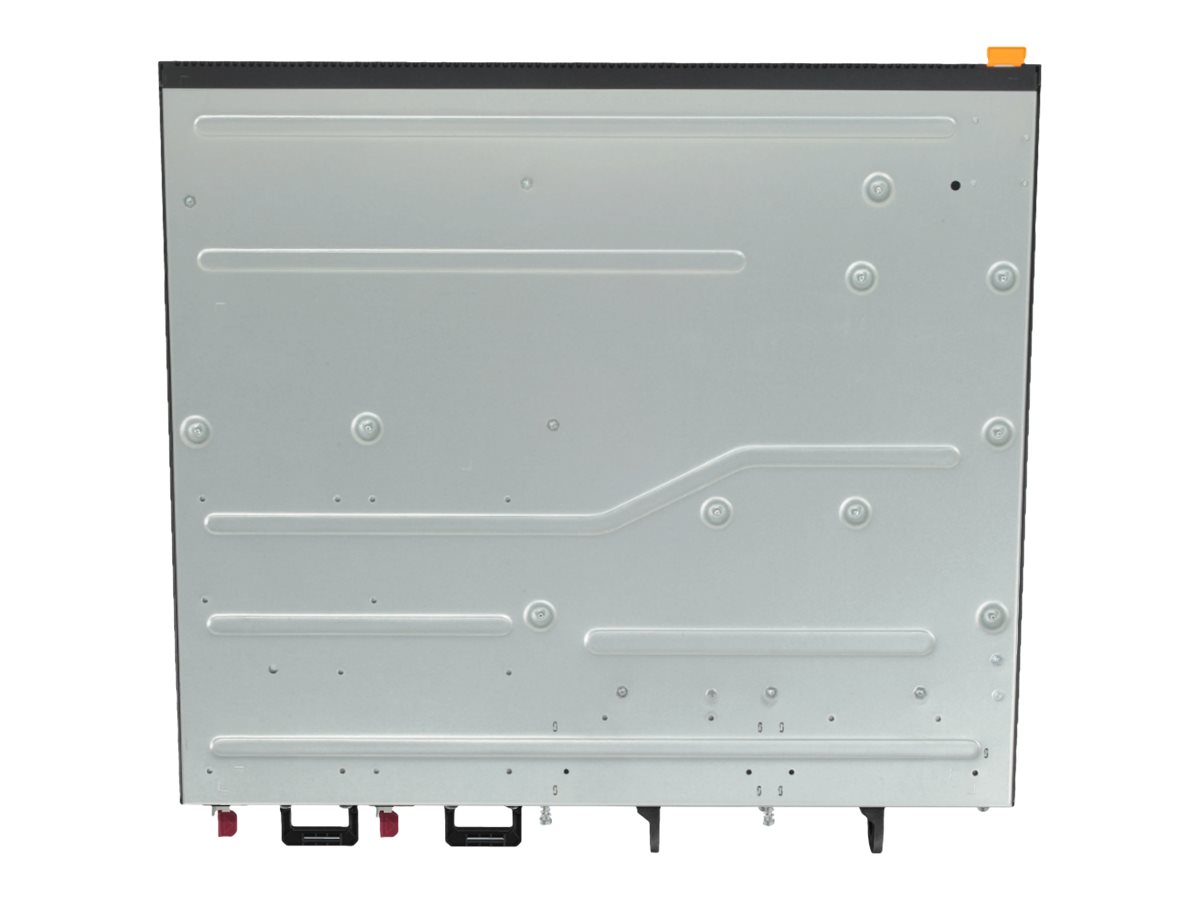

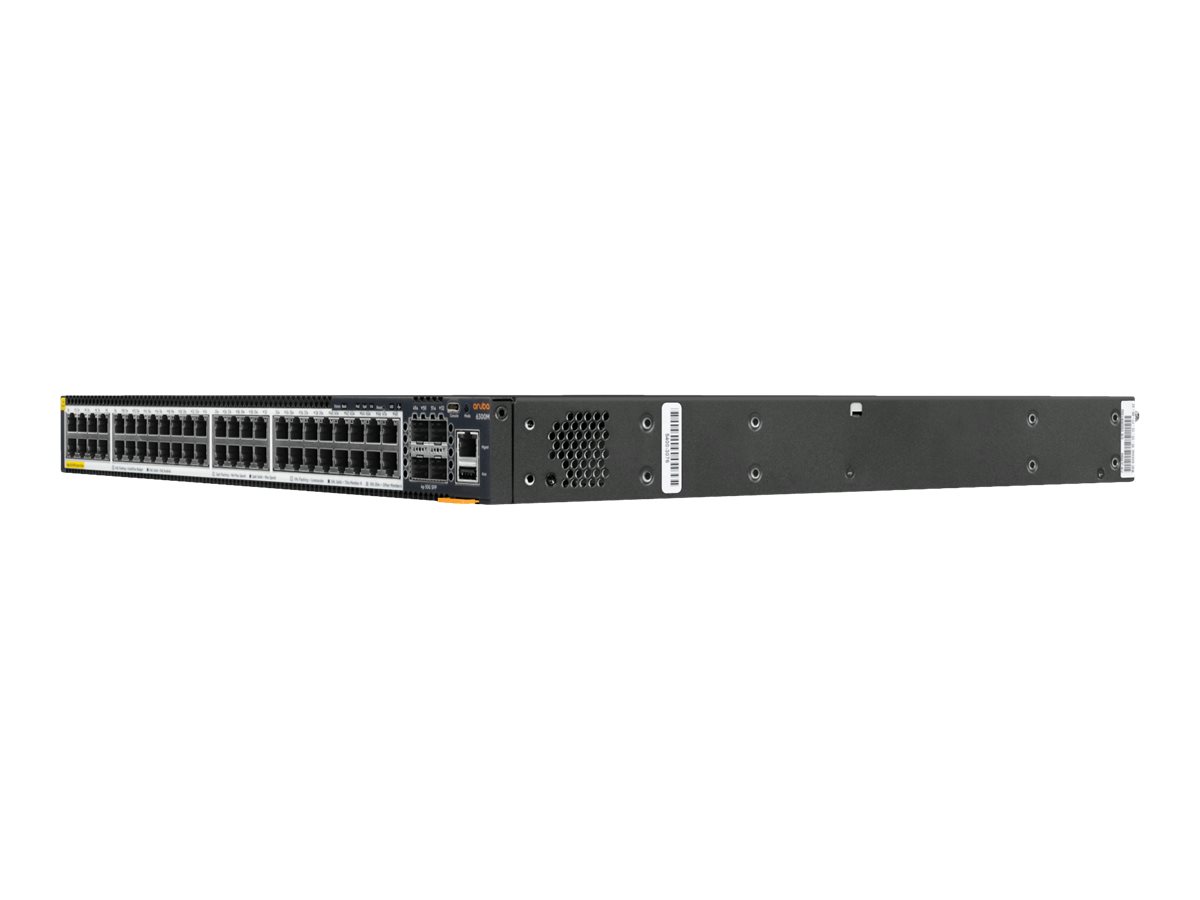

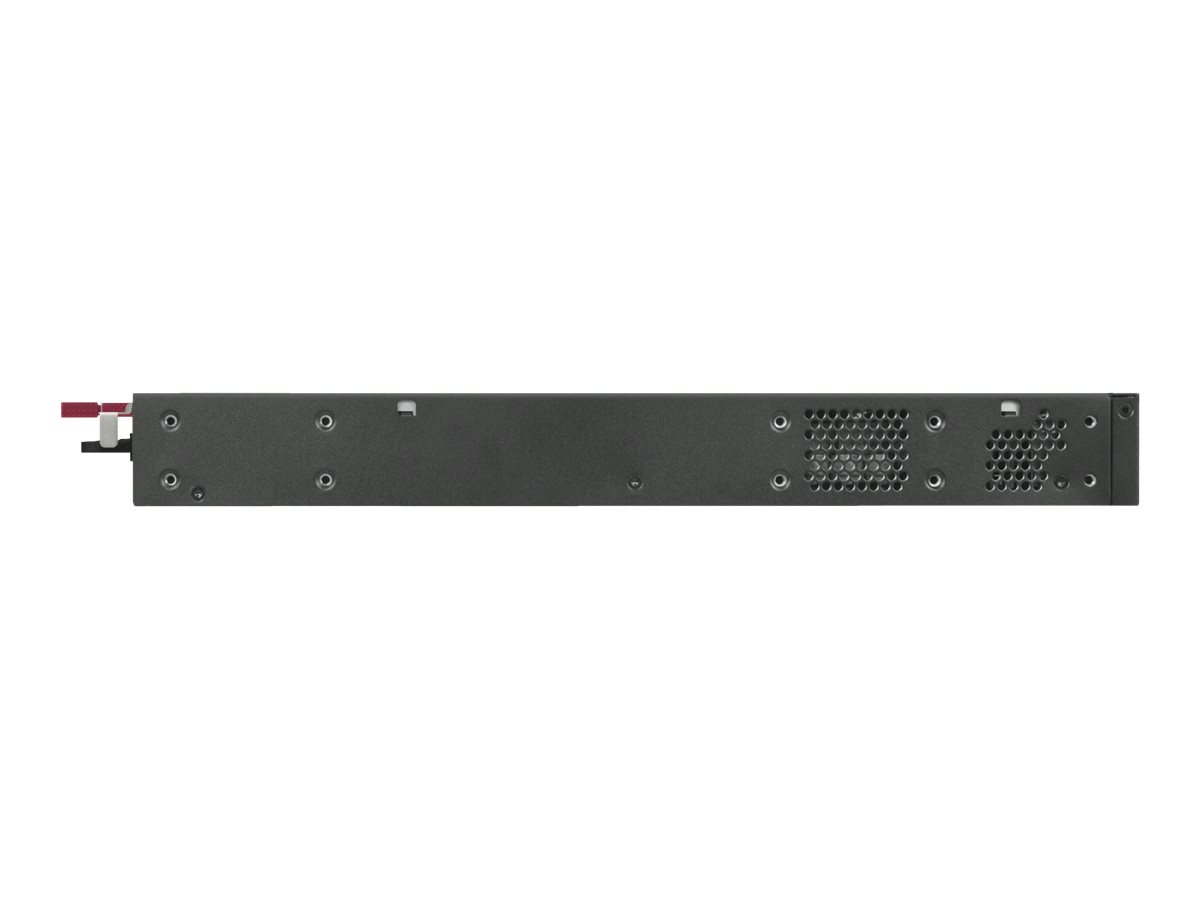

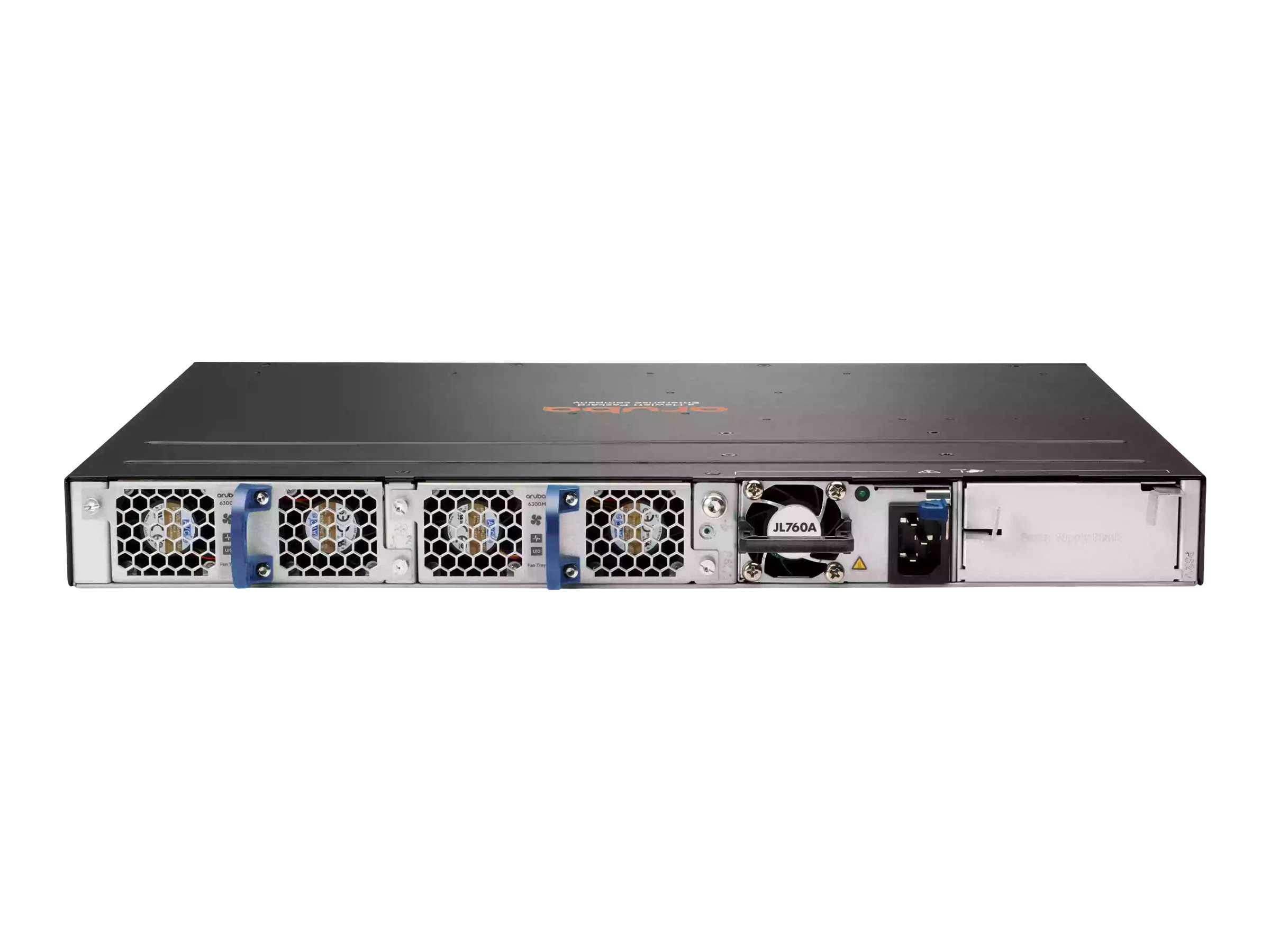

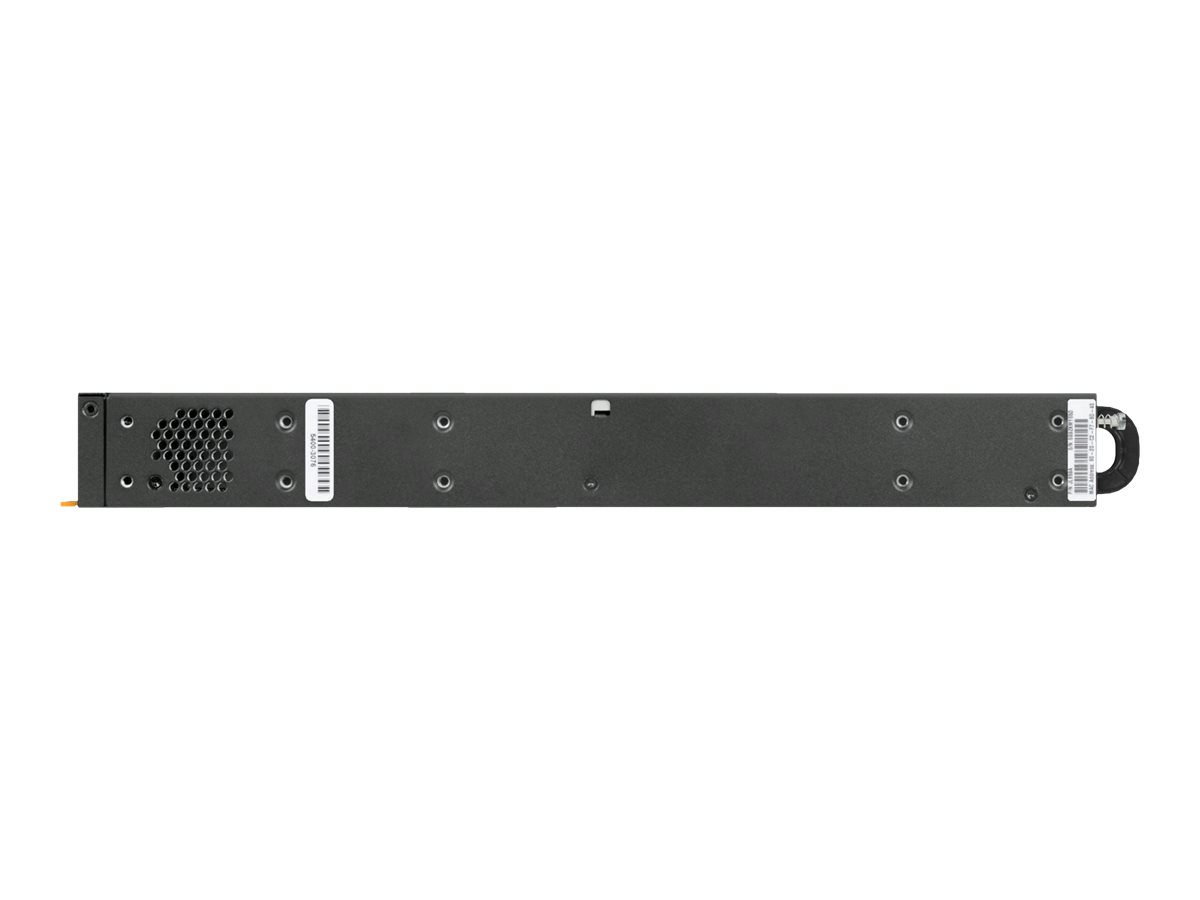

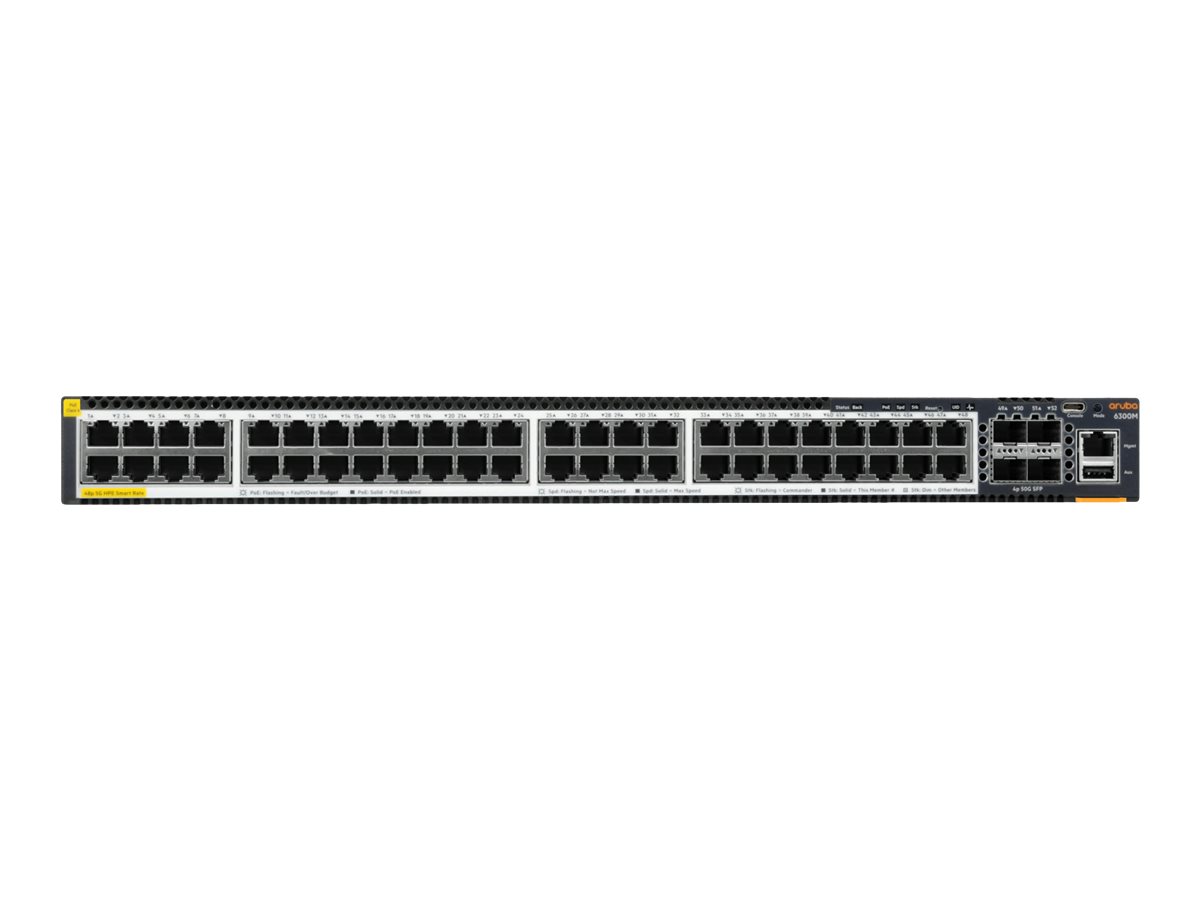

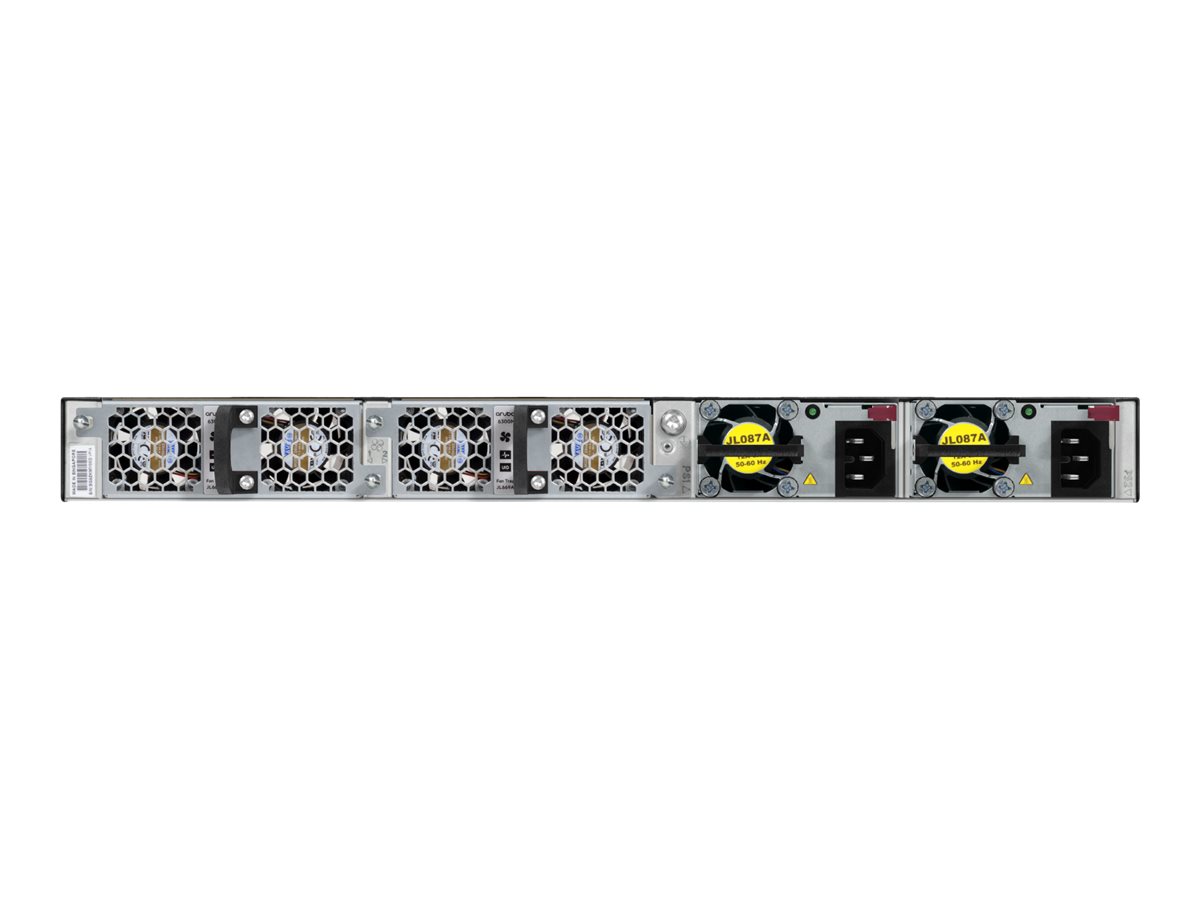

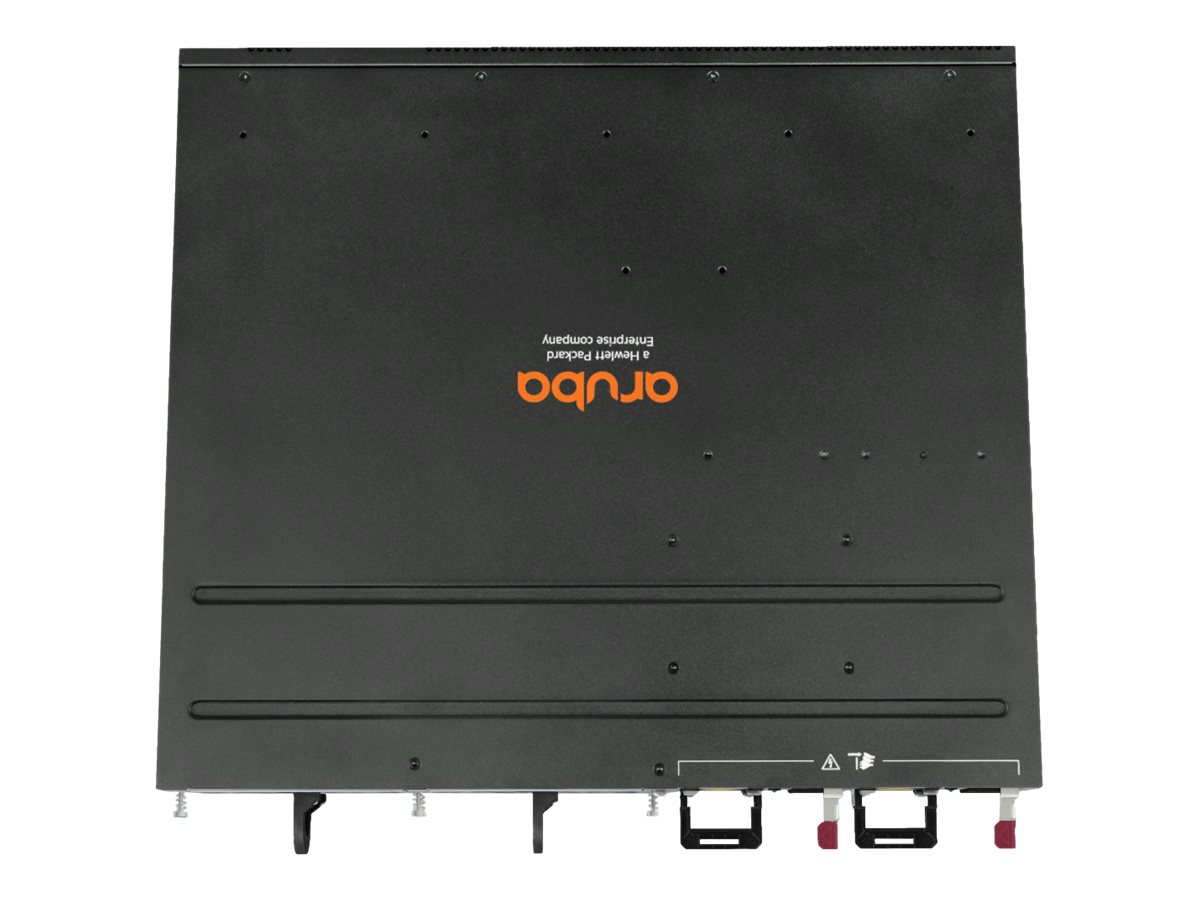

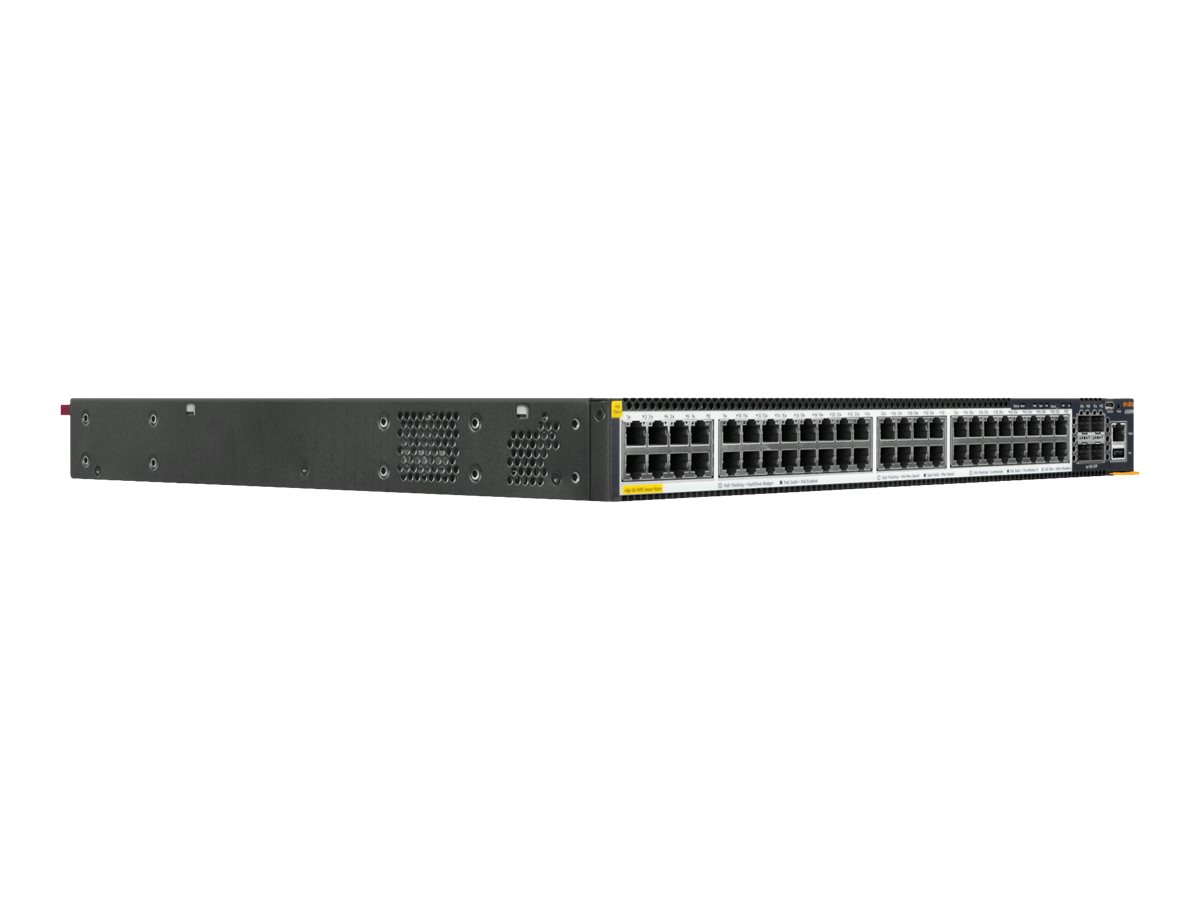

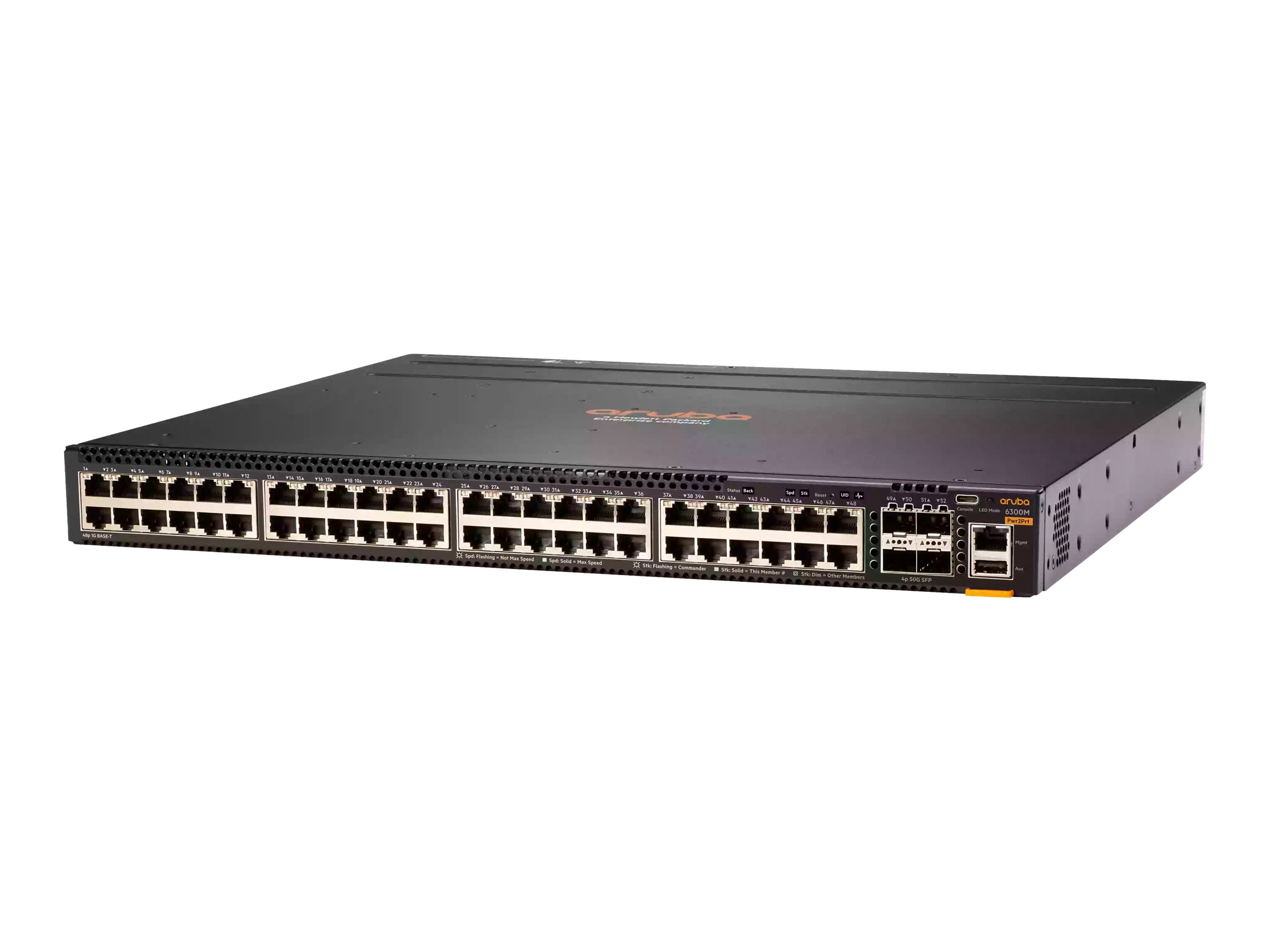

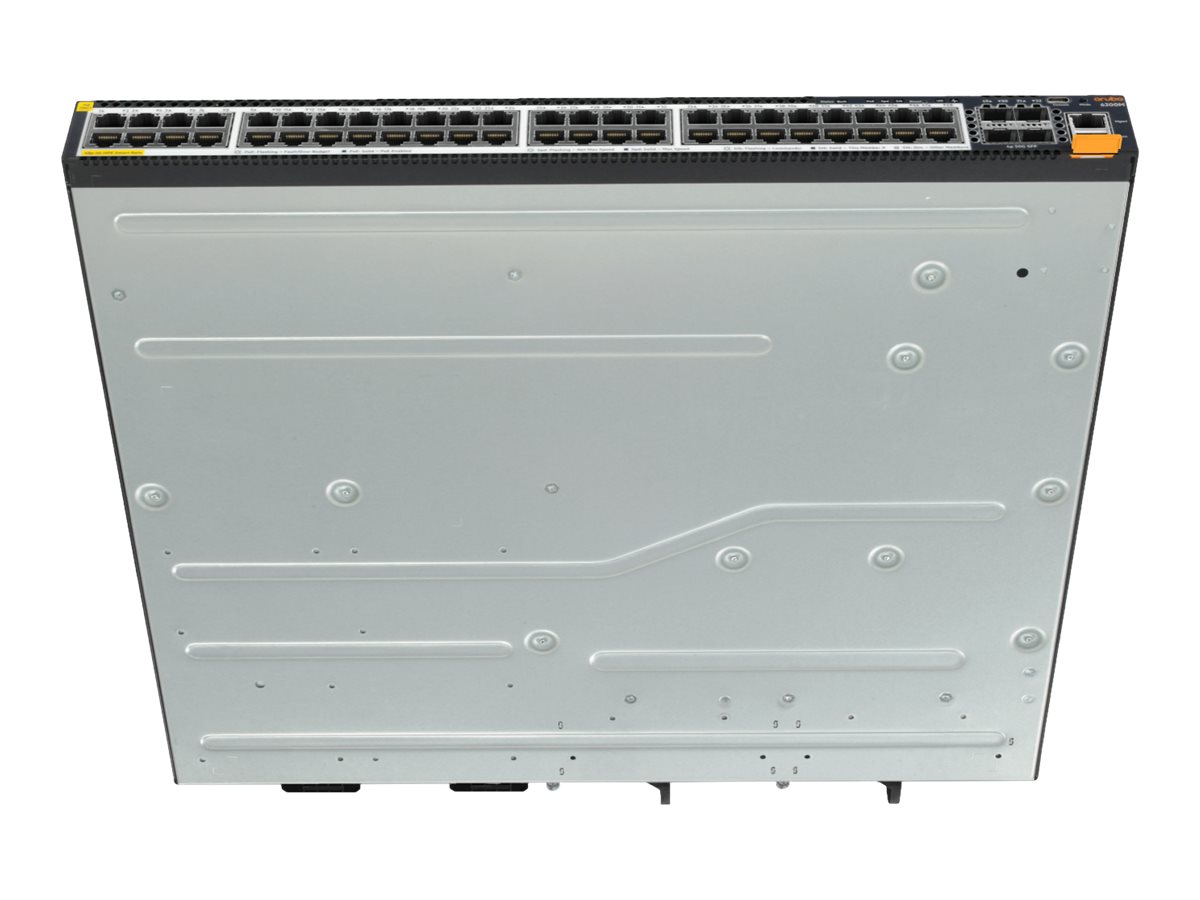

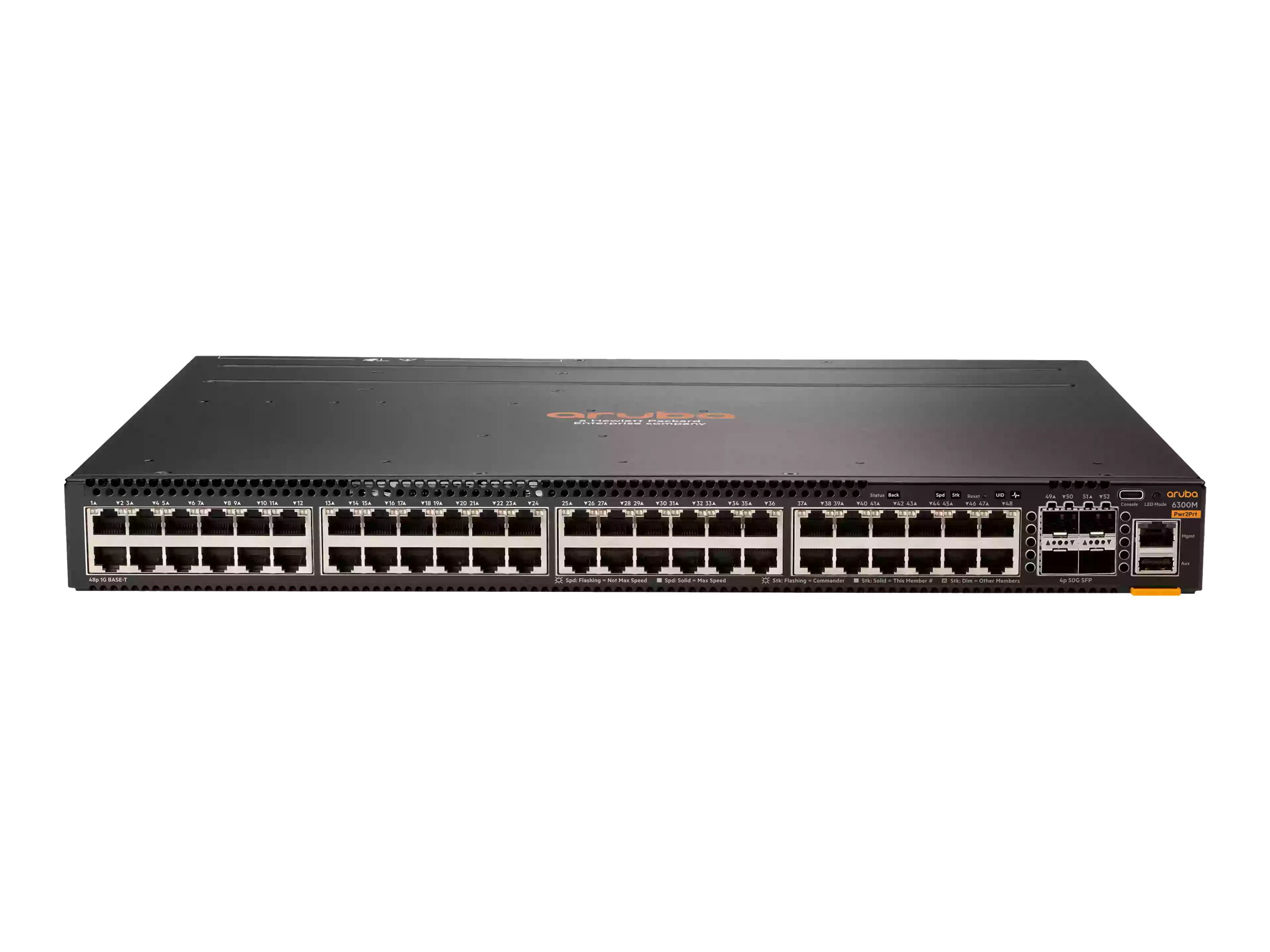

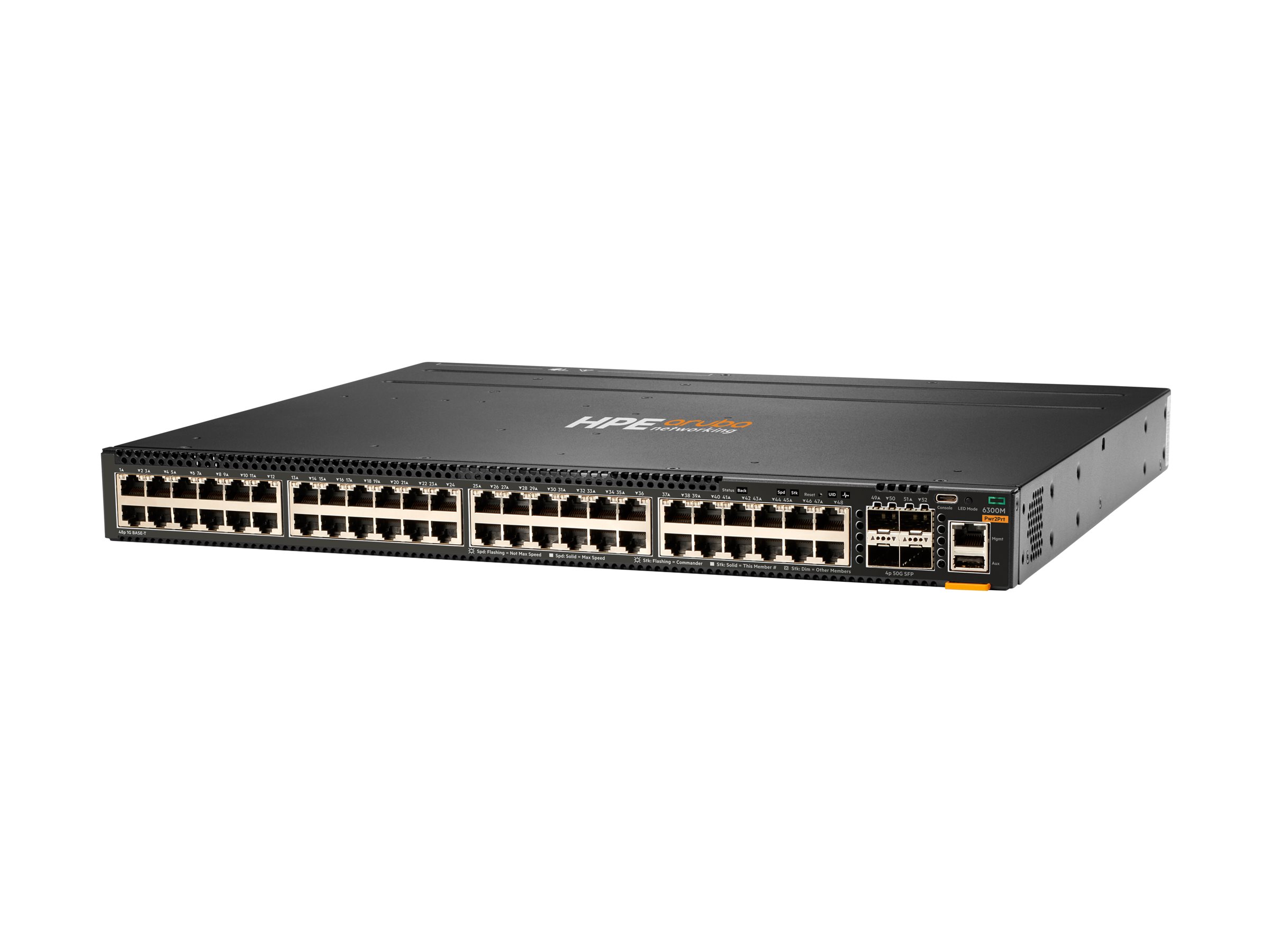

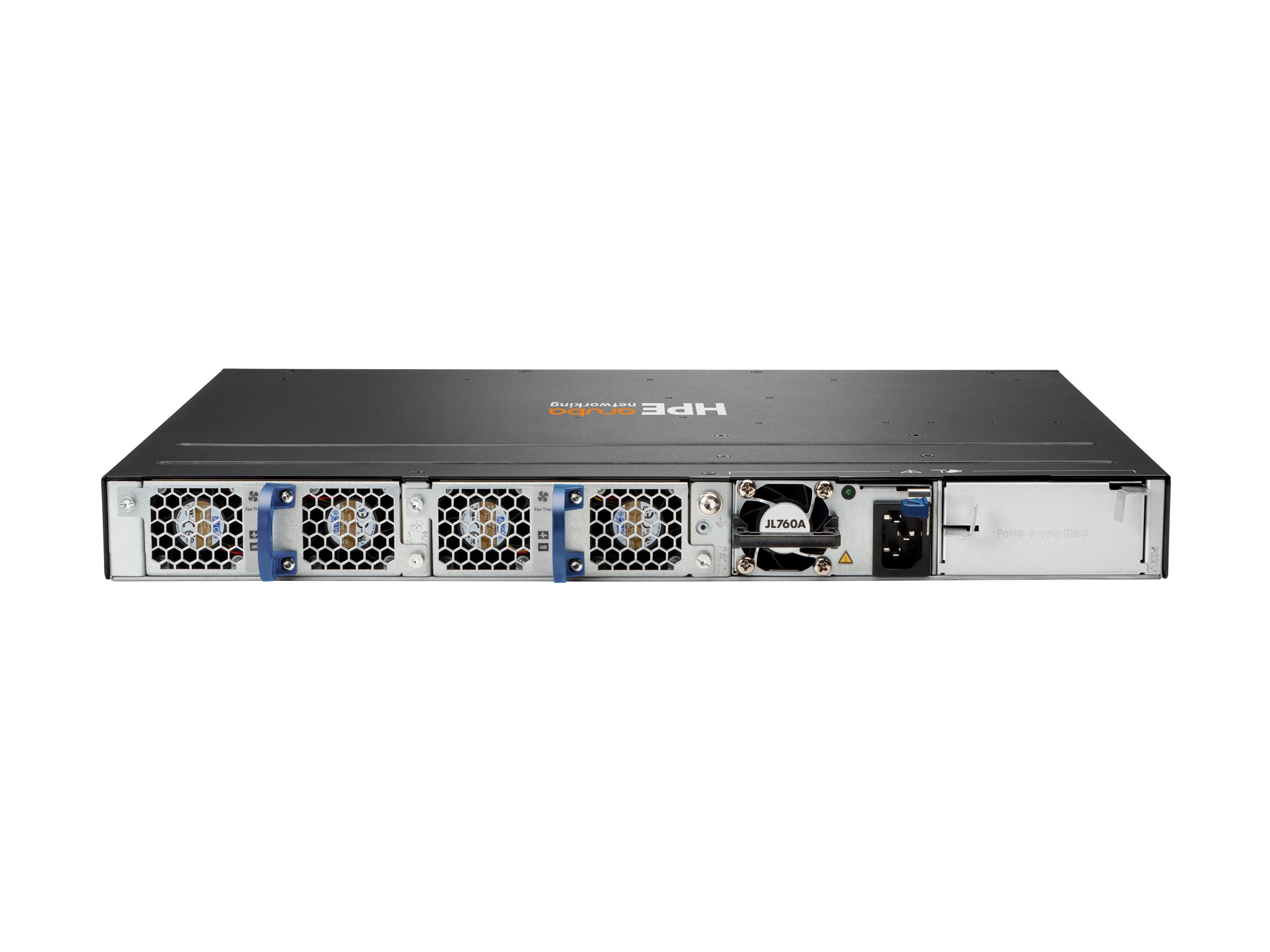

HPE Aruba 6300M - Switch


MSRP$13,039.00
$11,126.00
HPE Aruba 6300M - Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  • back to front airflow
  • rack-mountable
HPE Aruba 6300M - Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  • back to front airflow
  • rack-mountable
  Additional Details
Price: $11,126.00
MSRP: $13,039.00
Mfr Part #: R9F63A#AKM
SHI Part #: 44242444
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Network Cables

HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • 65 cm
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
MSRP $409.00 $387.00
HPE Aruba - 50GBase direct attach cable
  • SFP56 to SFP56
  • 3 m
  • for HPE Aruba 6300, 6405, 6405 48, 6405 96, 6410; CX 8360
MSRP $629.00 $598.00
HPE Aruba - 25GBase direct attach cable
  • SFP28 (M) to SFP28 (M)
  • 5 m
  • for HPE Aruba 6300F, 6300M, 8325-32C, 8325-48Y8C
MSRP $539.00 $440.00

Storage Networking (SAN)

HPE Aruba Universal - Rack mounting kit (4 post)
  • 1U
  • for HPE Aruba 6300F, 6300M
MSRP $285.00 $230.00
HPE Aruba Universal - Air duct kit (4-post)
  • for HPE Aruba 6300F, 6300M
MSRP $805.00 $649.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba 6300M - Switch - L3 - managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - back to front airflow - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$13,039.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.7 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Header / Country KitsChina
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth38.5 cm
Height4.4 cm
Weight5.7 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56
  • 1 x USB-C
  • 1 x management
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Switched virtual interfaces (SVIs): 1024
  • IPv4 host table capacity: 49152
  • IPv6 host table capacity: 49152
  • IPv4 routes (Unicast): 61000
  • IPv6 routes (Unicast): 61000
  • IPv4 routes (Multicast): 8192
  • IPv6 routes (Multicast): 8192
  • IGMP groups: 8192
  • MLD groups: 8192
  • IPv4 ACL entries (ingress): 20480
  • IPv6 ACL entries (ingress): 5120
  • MAC ACL entries (ingress): 20480
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC ACL entries (egress): 8192
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeBack to front airflow rack-mountable 1U
Encryption AlgorithmFIPS 140-2
FeaturesVLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), LLDP support, fan tray, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Bootstrap Router (BSR) Mechanism, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB)
Flash Memory32 GB
Jumbo Frame Support9198 bytes
MAC Address Table Size32768 entries
Performance
  • Switching capacity: 496 Gbps
  • Throughput: 369 Mpps
  • Latency (1 Gbps): 2.28 µs
  • Latency (10 Gbps): 1.46 µs
  • Latency (25 Gbps): 1.9 µs
  • Latency (50 Gbps): 3.49 µs
  • Stacking bandwidth: 200 Gbps
Ports48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
Processor1 x ARM: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolSNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Routing ProtocolOSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1:2007 Class 1, CISPR 32:2015+COR1:2016, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017, EN 62368-1:2014+A11:2017, EN 55032:2015+AC:2016 Class A, IEC 62368-1: 2014, CISPR 35:2016 Class A
LocalizationEnglish / China
Rack Mounting KitIncluded
Power
Installed Qty1
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided75 Watt
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 100-240 V (50/60 Hz)
