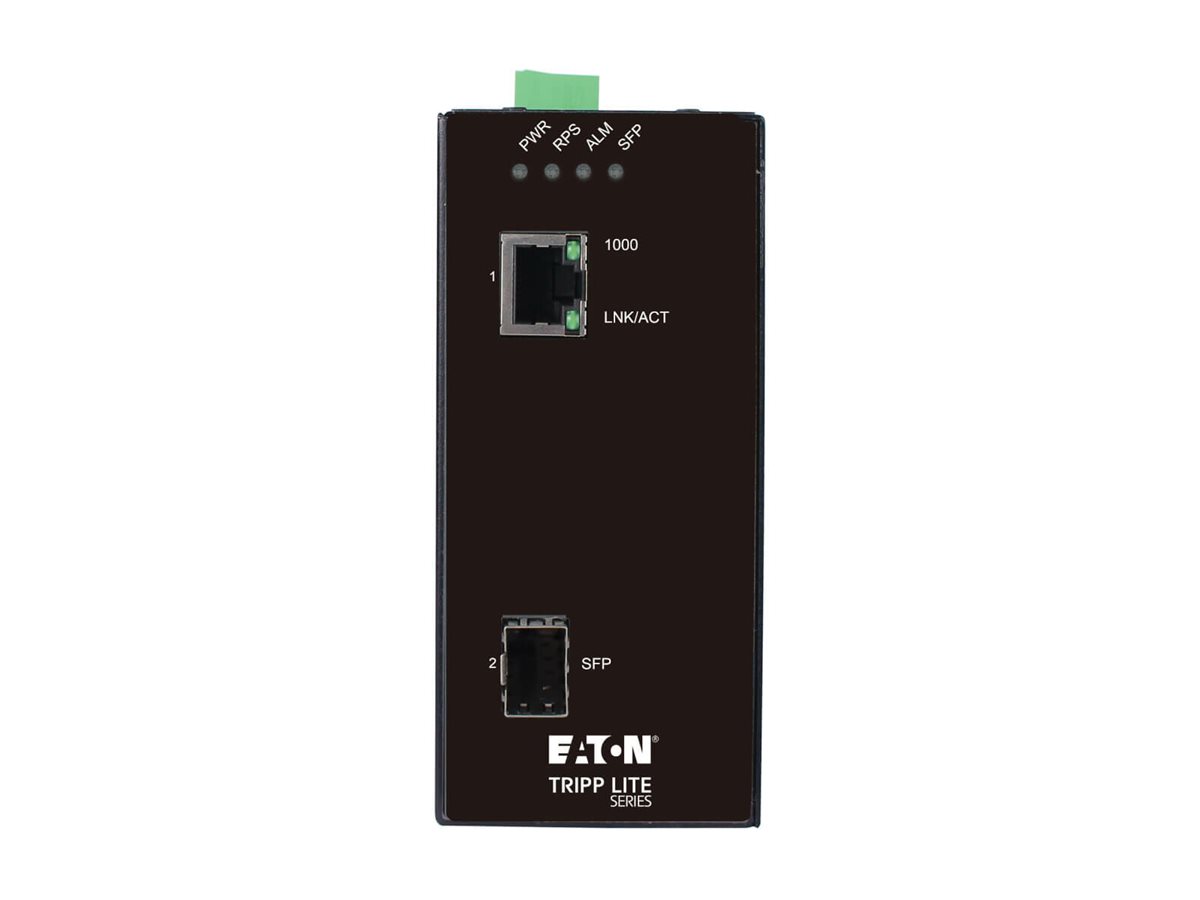

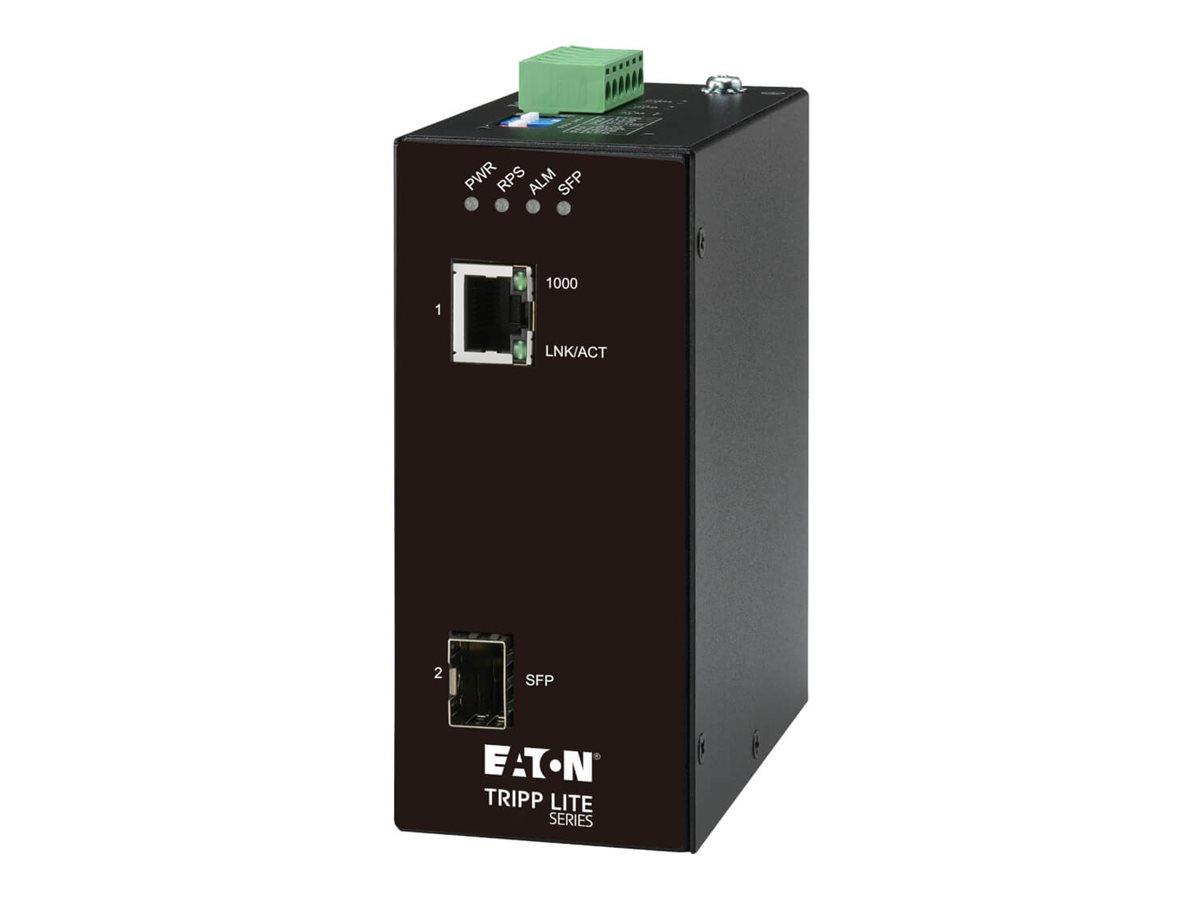

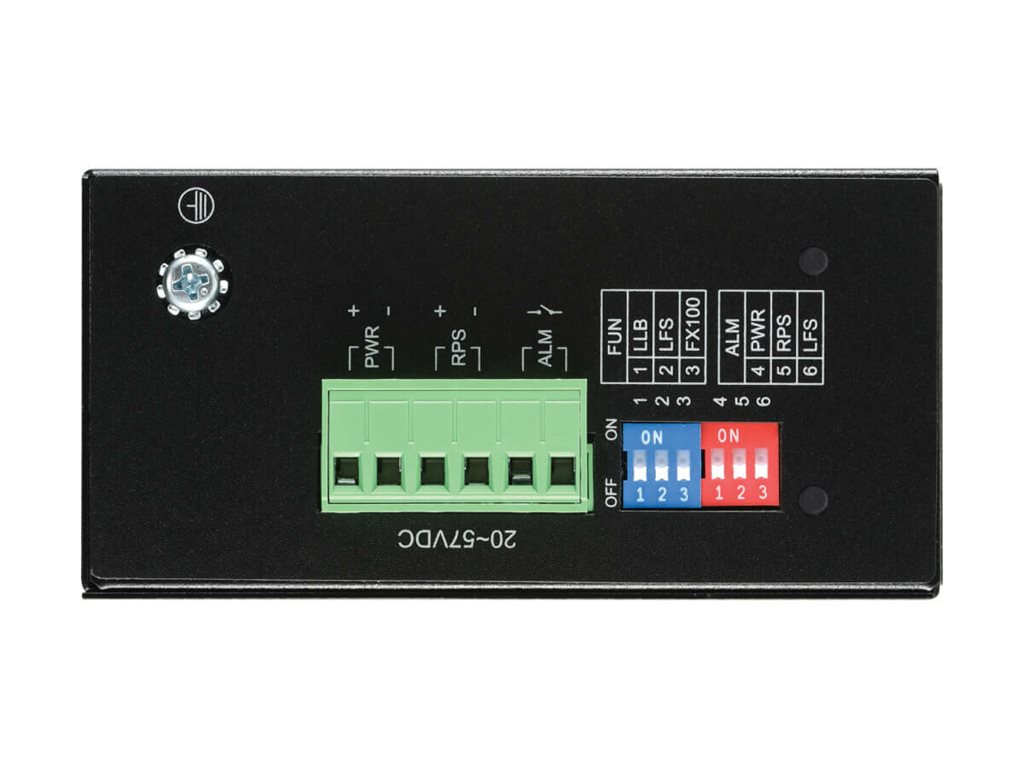

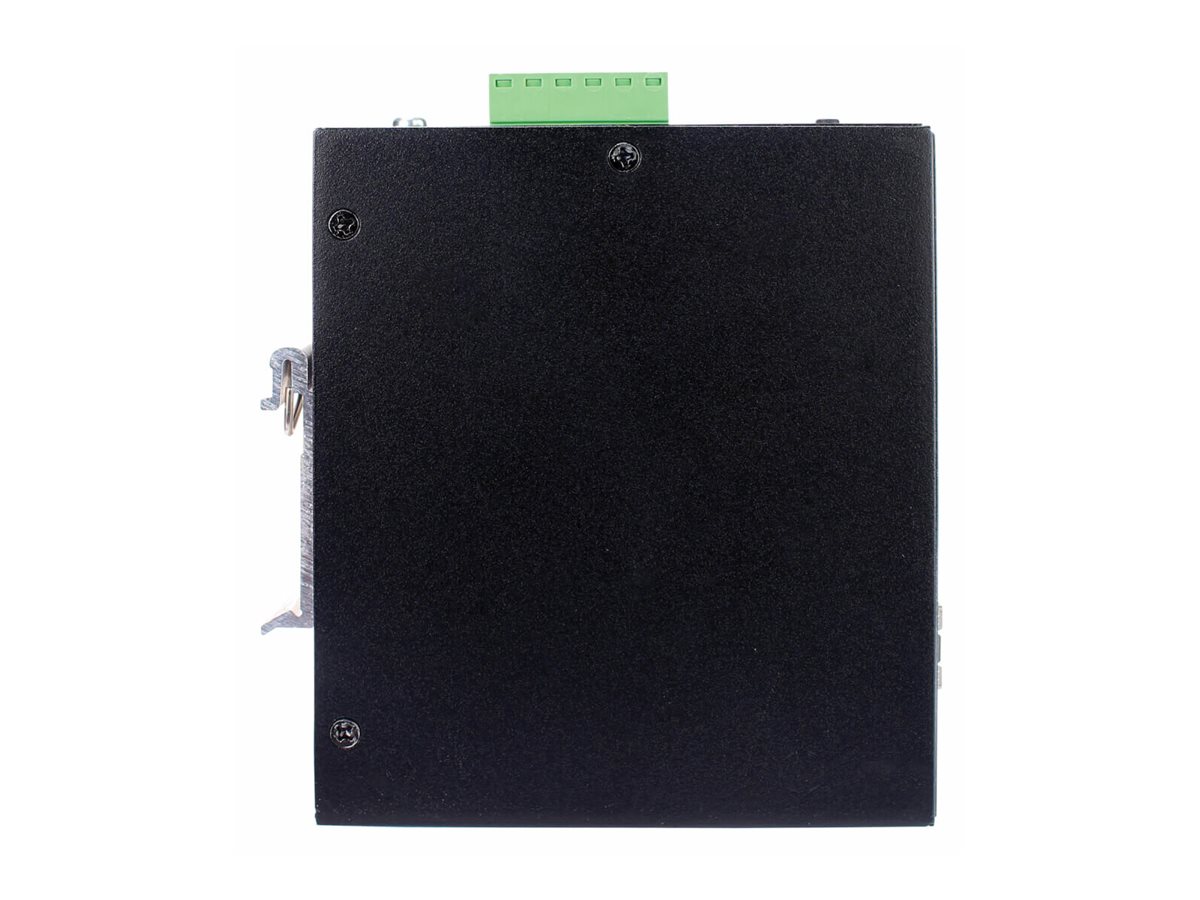

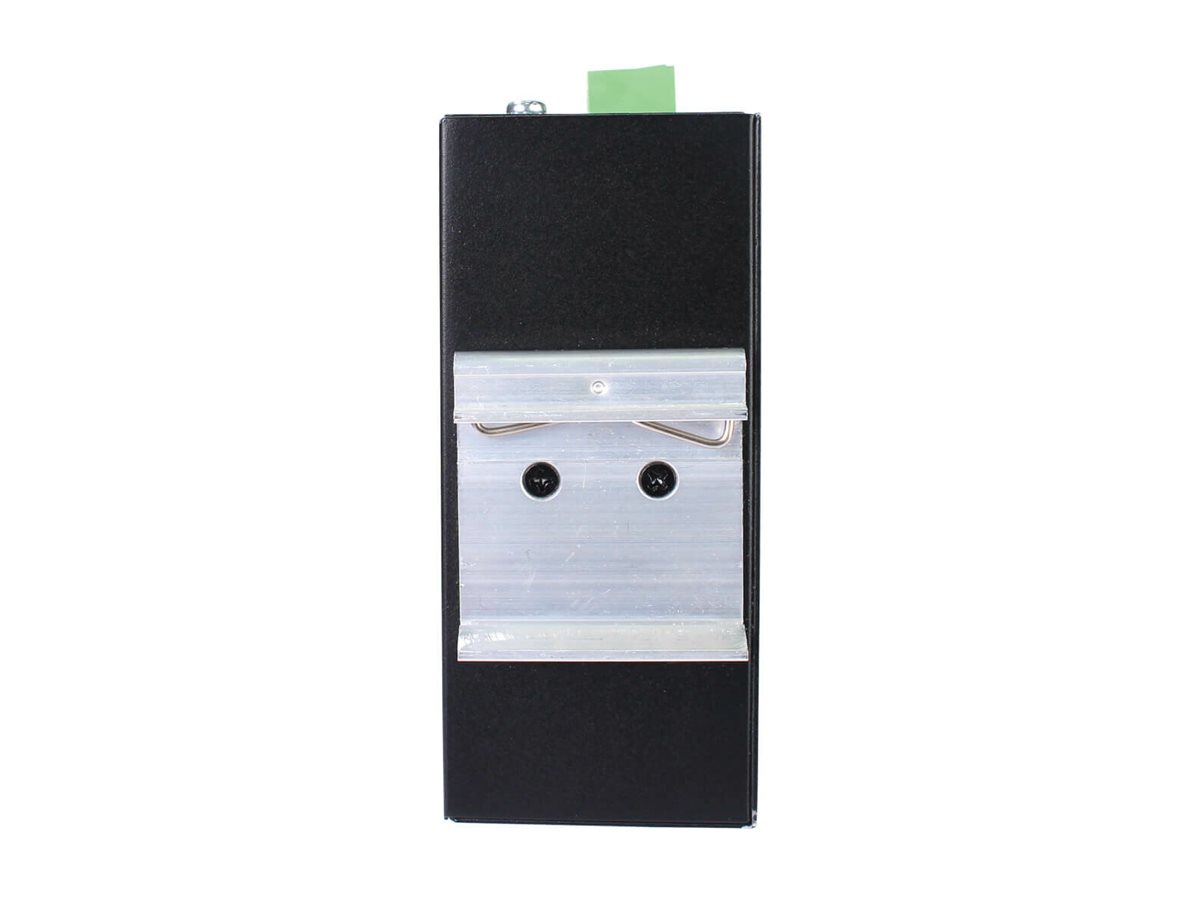

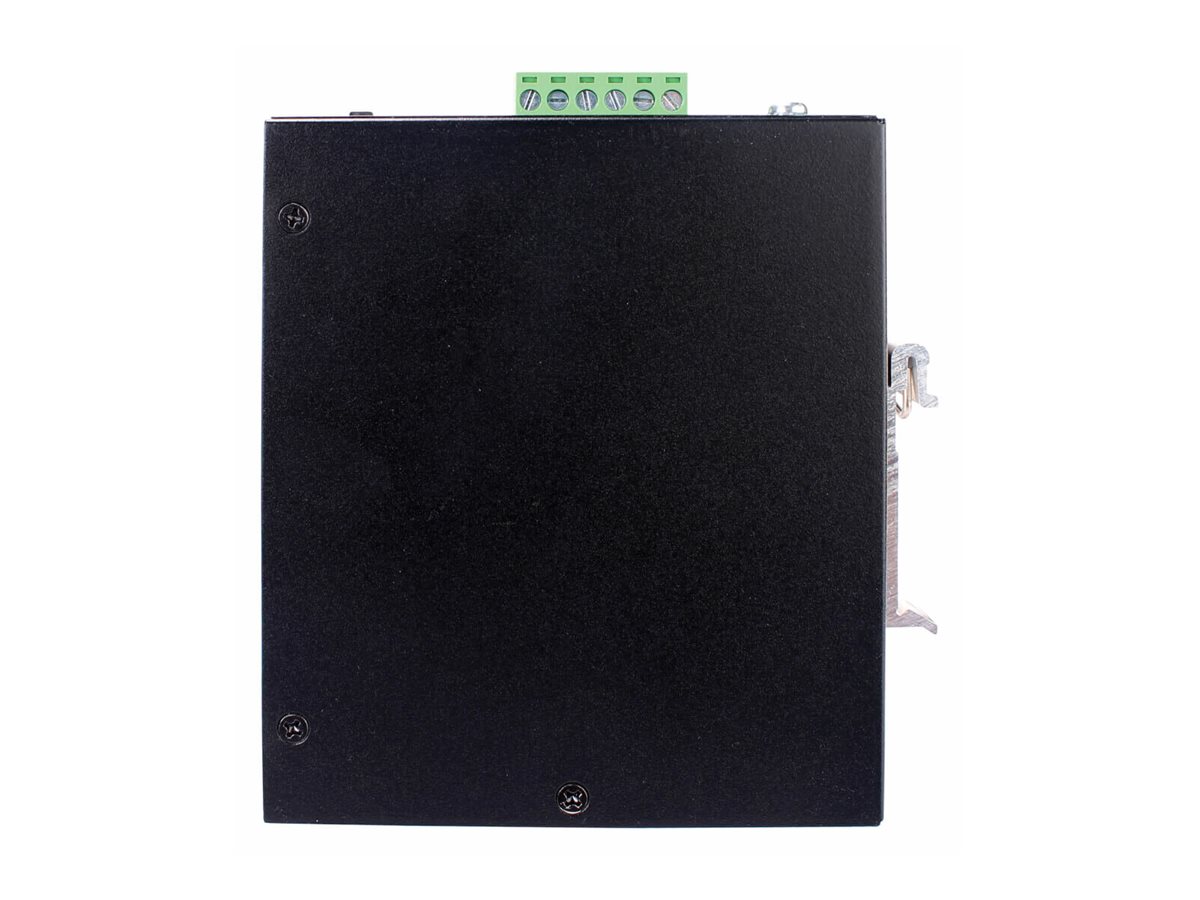

Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter
MSRP$219.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter
- 10/100/1000 Mbps, RJ45/SFP, -10° to 60°C, DC Power
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
- RJ-45 / SFP (mini-GBIC)
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $219.00 |
| Mfr Part #: | N785-H01-SFP-D |
| SHI Part #: | 44235462 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| Product Line: | Tripp Lite |
Network Cables
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 3 m
- UTP
- CAT 6
- molded, snagless, stranded
MSRP $11.85
$5.00
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 3 m
- UTP
- CAT 5e
- booted, snagless
MSRP $7.76
$7.00
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 0.9 m
- UTP
- CAT 5e
- molded, snagless, stranded
MSRP $4.39
$4.00
Networking and Security
- 1000Base-LX, Singlemode, LC Duplex, DDM, -40° to 85°C, 10 km (6.2 mi.)
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-LX
- LC single-mode
- up to 10 km
MSRP $96.60
$37.00
- 10GBase-LR, DDM, SMF, LC, 1310 nm, 10 km (6.1 mi.)
- SFP+ transceiver module (equivalent to: Cisco SFP-10G-LR-S)
- 10 GigE
- 10GBase-LR
- LC single-mode
- up to 10 km
MSRP $629.09
$238.00
- 1000Base-SX, Multimode, LC Duplex, DDM, -40° to 85°C, 550 m (1,804 ft.)
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 550 m
MSRP $96.60
$37.00
| General Information | |
|---|---|
| Category | Channel converter |
| Description | Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SFP, -10° to 60°C, DC Power - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $219.00 |
| UNSPSC | 43201540 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 5 cm |
| Dimensions & Weight / Weight | 422 g |
| Dimensions & Weight / Width | 11.6 cm |
| Header / Brand | Tripp Lite |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 5 cm |
| Weight | 422 g |
| Width | 11.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC |
| Included Accessories | DIN-rail mounting kit, 2 x connector caps |
| Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Features | Auto-uplink (auto MDI/MDI-X), metal housing |
| Status Indicators | Status |
