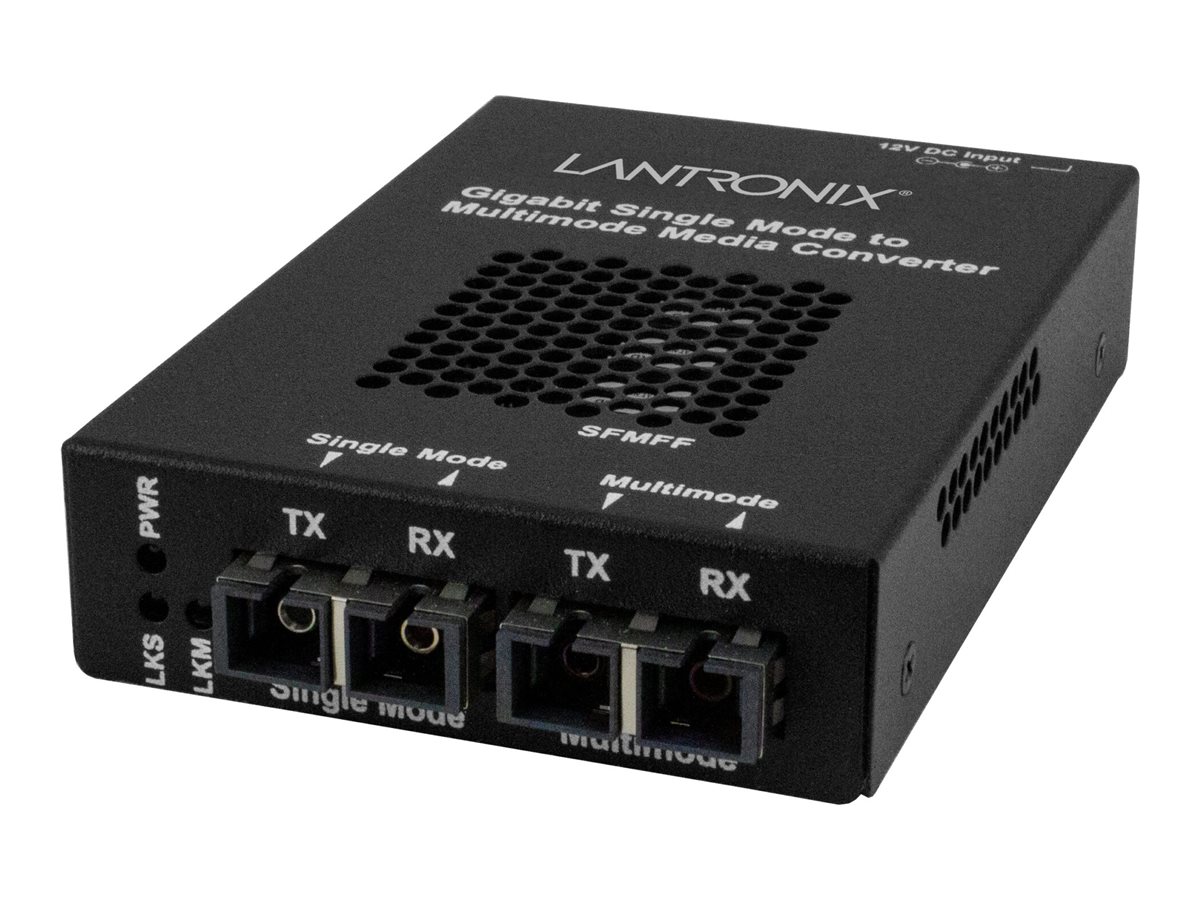

Lantronix SFMFF1314-220
MSRP$1,403.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lantronix SFMFF1314-220
- Fiber media converter
- 1GbE
- 1000Base-SX, 1000Base-LX
- SC single-mode / SC multi-mode
- up to 10 km
- OC-3/STM-1
- 850 nm / 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,403.00 |
| Mfr Part #: | SFMFF1314-220-EU |
| SHI Part #: | 44206640 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Lantronix |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Lantronix SFMFF1314-220 - Fiber media converter - 1GbE - 1000Base-SX, 1000Base-LX - SC single-mode / SC multi-mode - up to 10 km - OC-3/STM-1 - 850 nm / 1310 nm - TAA Compliant |
| Manufacturer | Lantronix |
| MSRP | $1,403.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.938 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 8.255 cm |
| Header / Brand | Lantronix |
| Header / Country Kits | European Union |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 11.938 cm |
| Height | 2.5 cm |
| Weight | 900 g |
| Width | 8.255 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | European Union |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, FCC Class A certified, FCC Class B certified, CISPR Class B, EN 55022 Class B, EN 55022 Class A, CISPR Class A |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 1000Base-SX, 1000Base-LX |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | 7 dB link budget, 50/125µm core size, 62.5/125µm core size, auto-negotiation, Automatic Link Restoration, protocol transparency |
| Line Rate | OC-3/STM-1 |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 850 nm / 1310 nm |
| Status Indicators | Power, link |
| Power | |
| Power Device | External power adapter |
