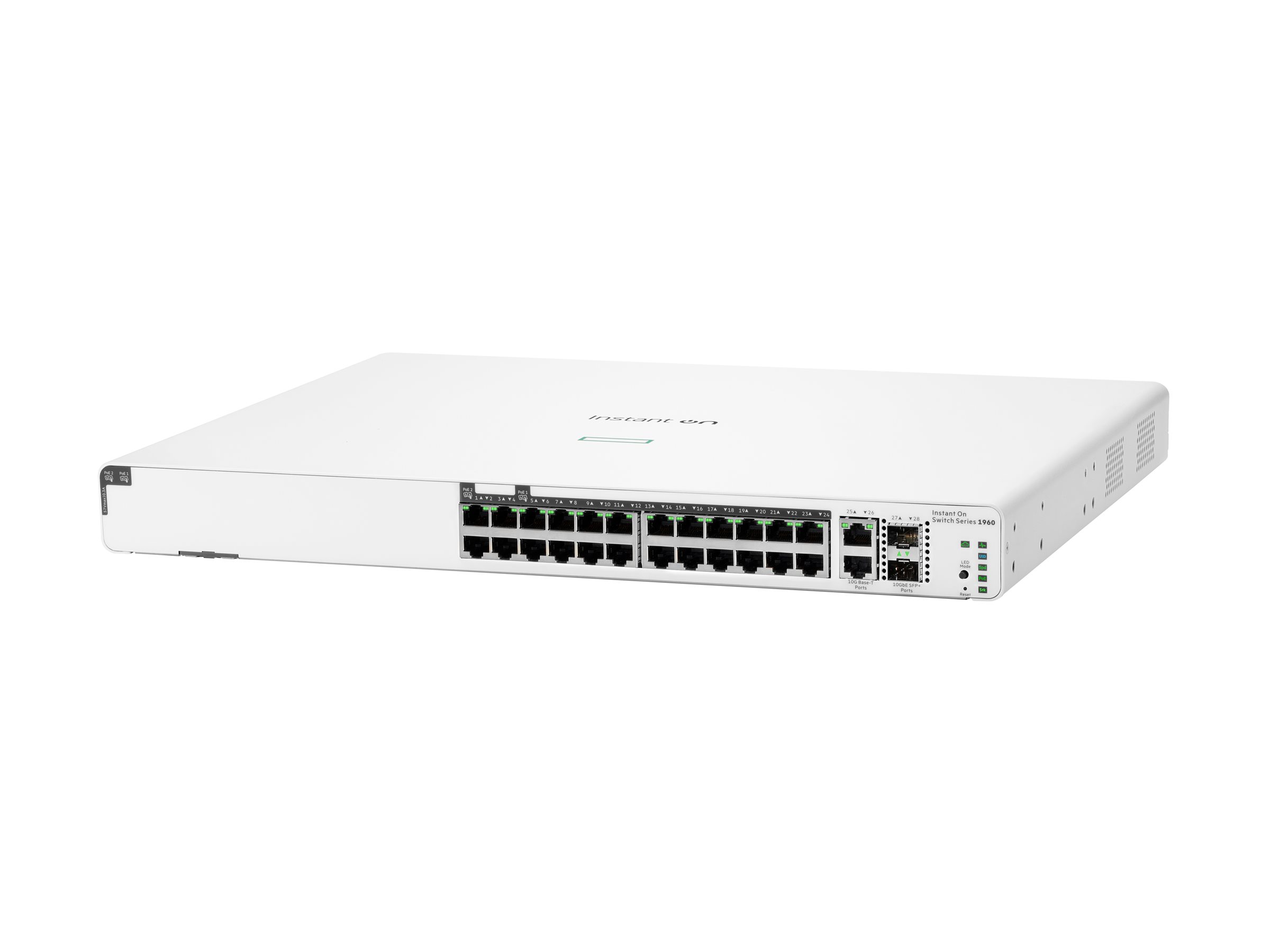

HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch

MSRP$1,472.00
$1,042.00
HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
  • rack-mountable
  • PoE (370 W)
HPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
  • Switch
  • managed
  • 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
  • rack-mountable
  • PoE (370 W)
  Additional Details
Price: $1,042.00
MSRP: $1,472.00
Mfr Part #: JL807A#ACF
SHI Part #: 44056149
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Networking Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch - Switch - managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T - rack-mountable - PoE (370 W)
ManufacturerHewlett Packard Enterprise
MSRP$1,472.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth35.05 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.7 kg
Dimensions & Weight / Width44.25 cm
Header / Brand
  • Aruba
  • HPE
Header / Country KitsJapan
Header / LocalizationEnglish
Miscellaneous / Product ColorWhite
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth35.05 cm
Height4.4 cm
Weight4.7 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating15 - 95% (40 °C)
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 24 x 10/100/1000 Base-T RJ-45 370 W
  • 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ SFP+
  • 2 x 10GBase-T RJ-45
General
Authentication MethodRADIUS
Capacity
  • MAC address entries: 16000
  • IPv4 routes (static): 32
  • IPv6 routes (static): 32
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p
Device TypeSwitch - 24 ports - managed - stackable
Enclosure TypeRack-mountable 1U
FeaturesEEE, ARP support, auto-uplink (auto MDI/MDI-X), DHCP support, TPM, VLAN support, auto voice VLAN, LLDP-MED, LACP, STP support, BPDU Filter, flow control, IPv6 support, auto-negotiation, ACL support, CoS, port mirroring, full duplex mode, half duplex mode
Jumbo Frame Support9216 bytes
MAC Address Table Size16000 entries
Performance
  • Throughput: 95 Mpps
  • Switching capacity: 128 Gbps
  • Latency (100 Mbps): 4.4 µs
  • Latency (1 Gbps): 2.2 µs
  • Latency (10 Gbps): 1.1 µs
PoE Budget370 W
Ports24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T
Power Over Ethernet (PoE)PoE
Processor1 x ARM: 800 MHz
Remote Management ProtocolRADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS
Routing ProtocolStatic IP routing
Status IndicatorsPort status, power
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsIEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 62368-1, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, IEC/EN 60825-1:2014 Class 2, EN 55032:2015 Class A, CISPR 32:2015 Class A, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, EN 55035, CISPR 35, KN35, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3
LocalizationEnglish / Japan
MTBF65.3 years
Power
Power DeviceInternal power supply
Voltage RequiredAC 100-240 V (50/60 Hz)
