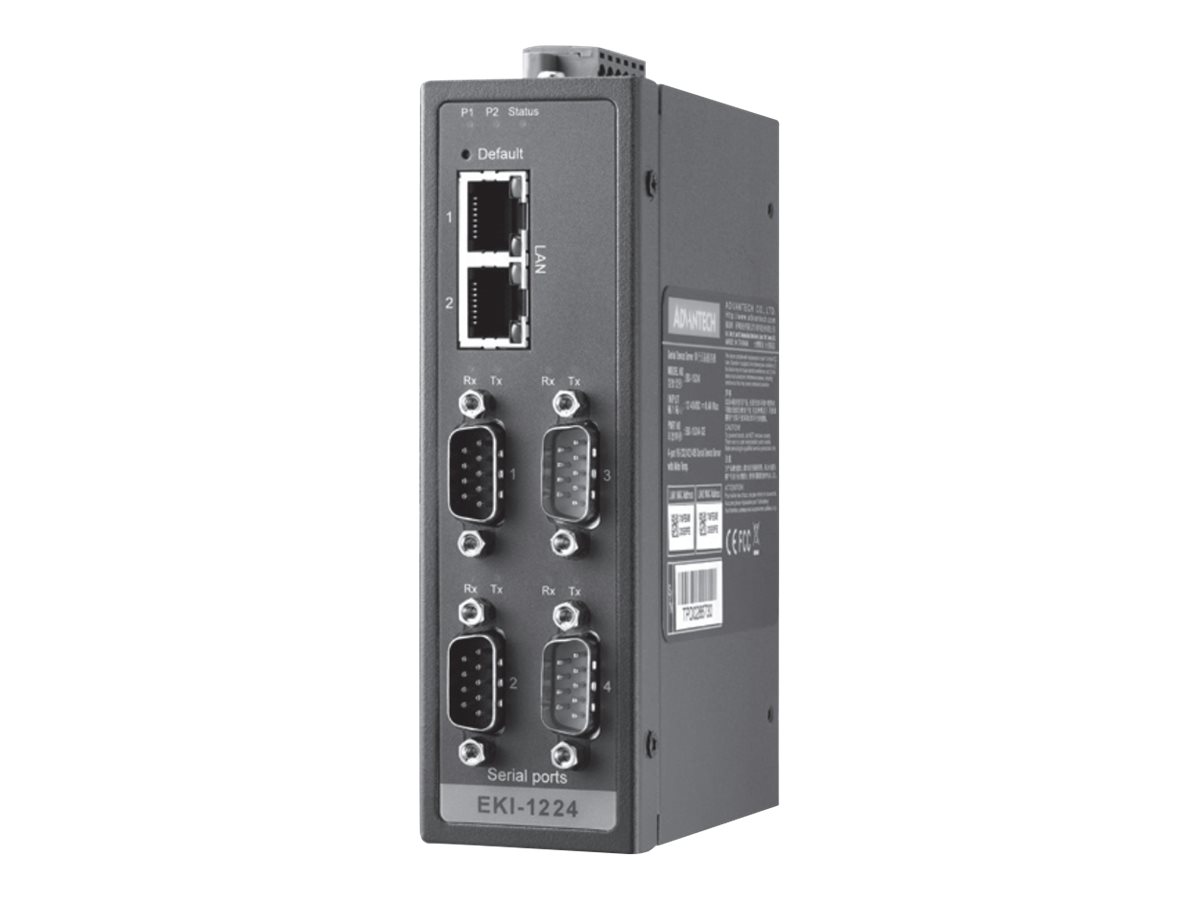

Advantech EKI-1224I-CE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech EKI-1224I-CE
- Gateway
- 4 ports
- 100Mb LAN, RS-232, RS-422, RS-485, Modbus
- DC power
- wall / DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EKI-1224I-CE |
| SHI Part #: | 43912746 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Advantech EKI-1224I-CE - Gateway - 4 ports - 100Mb LAN, RS-232, RS-422, RS-485, Modbus - DC power - wall / DIN rail mountable |
| Manufacturer | Advantech |
| MSRP | $692.20 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.5 cm |
| Dimensions & Weight / Height | 14 cm |
| Dimensions & Weight / Weight | 555 g |
| Dimensions & Weight / Width | 5.5 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Form Factor | Wall / DIN rail mountable |
| Networking / Ports Qty | 4 |
| Networking / Type | Gateway |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9.5 cm |
| Device Type | Gateway |
| Height | 14 cm |
| Weight | 555 g |
| Width | 5.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | UL, cUL, FCC, RoHS, cULus, FCC Part 15 B Class A, 2002/95/EC |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485, Modbus |
| Data Transfer Rate | 921.6 Kbps |
| Features | Flow control, DHCP support, BOOTP support, surge protection, 15KV ESD Protector, SNMP support, Watch Dog Timer (WDT) |
| Form Factor | Wall / DIN rail mountable |
| Network / Transport Protocol | TCP/IP, NTP, ARP, SMTP, BOOTP, DHCP, DNS, HTTP |
| Ports Qty | 4 |
| Remote Management Protocol | SNMP, Telnet, HTTP, SMTP, NTP, ICMP |
| Status Indicators | Power, system, status, transmit, receive, link/activity, speed |
| Power | |
| Power Consumption Operational | 4.1 Watt |
| Voltage Required | DC 12 - 48 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
