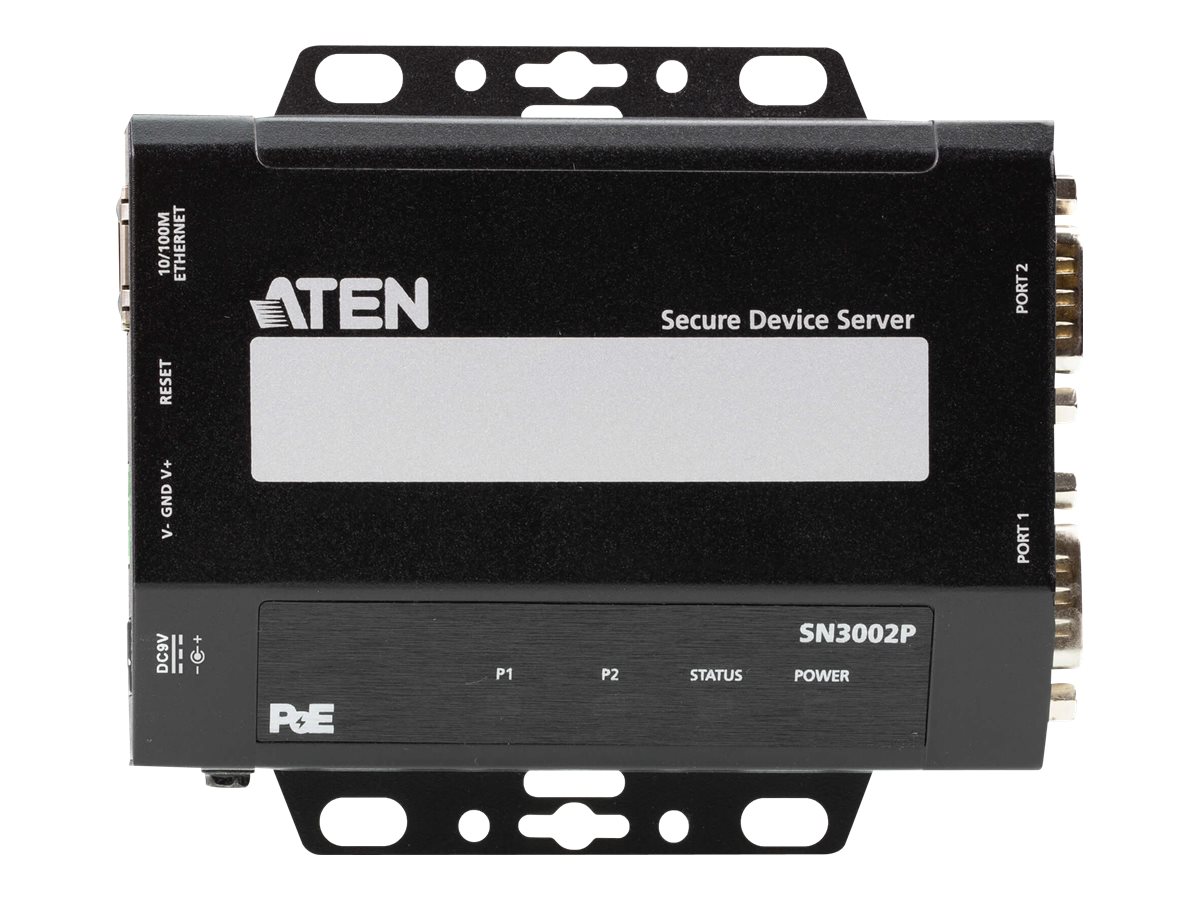

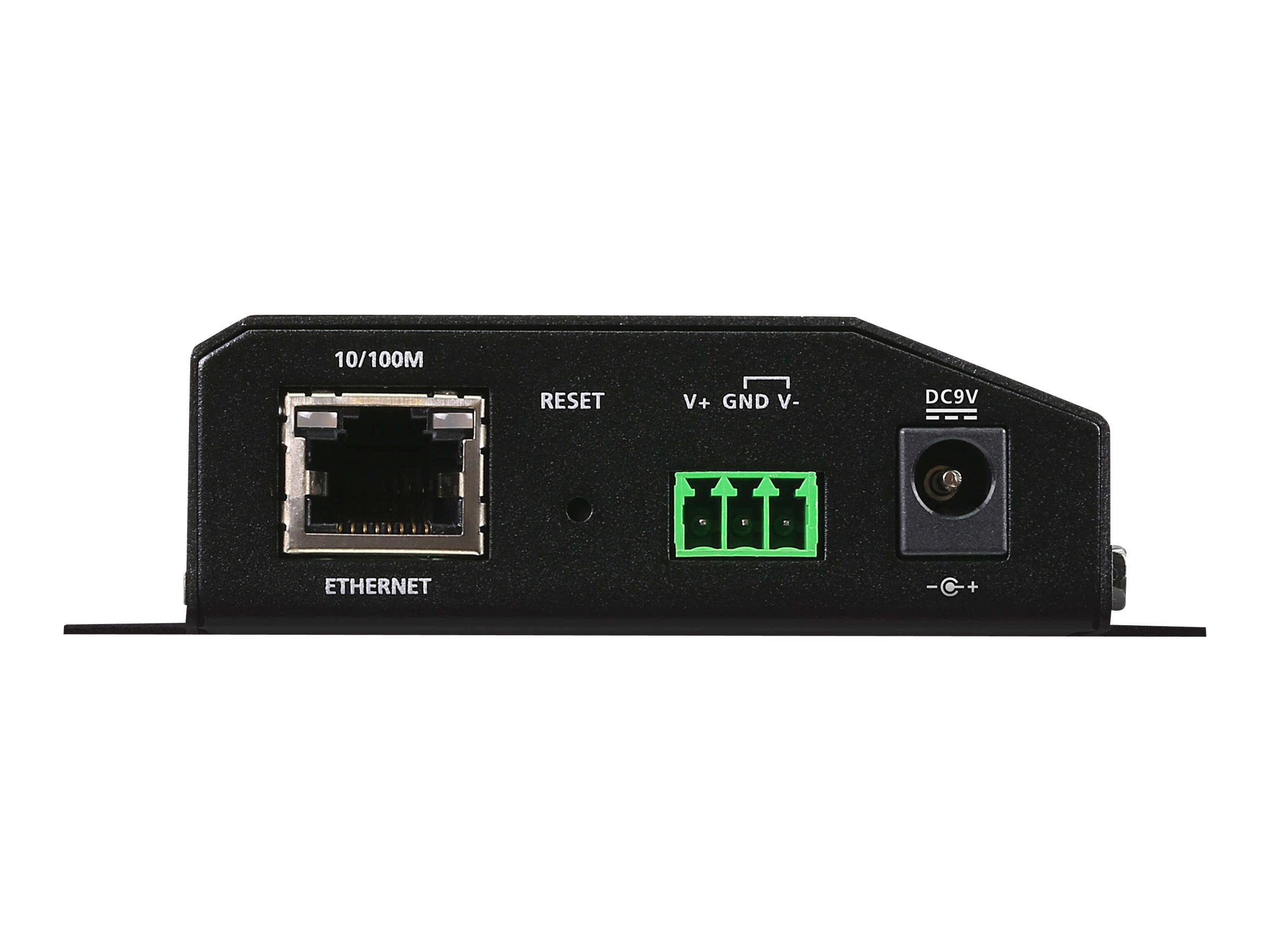

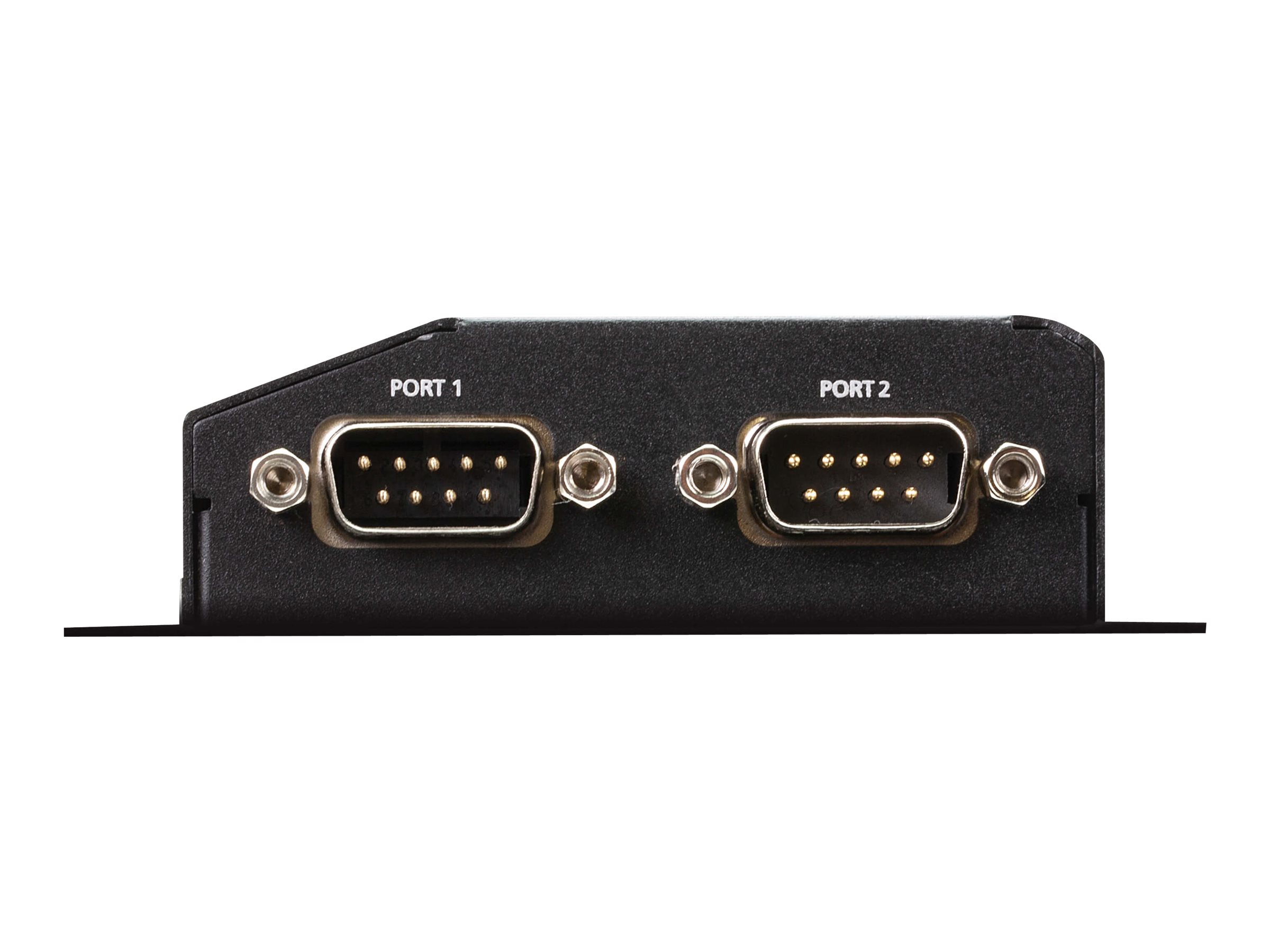

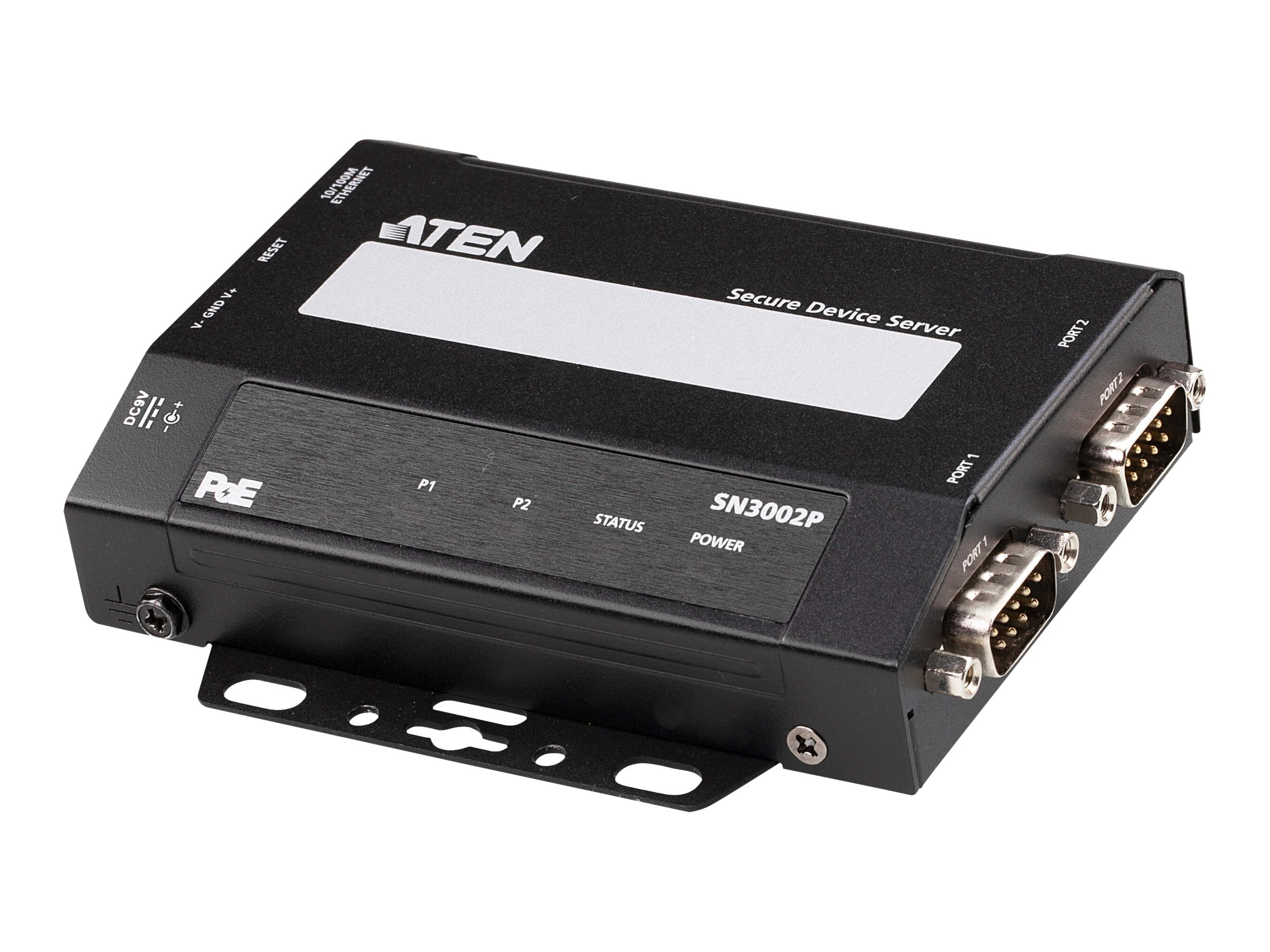

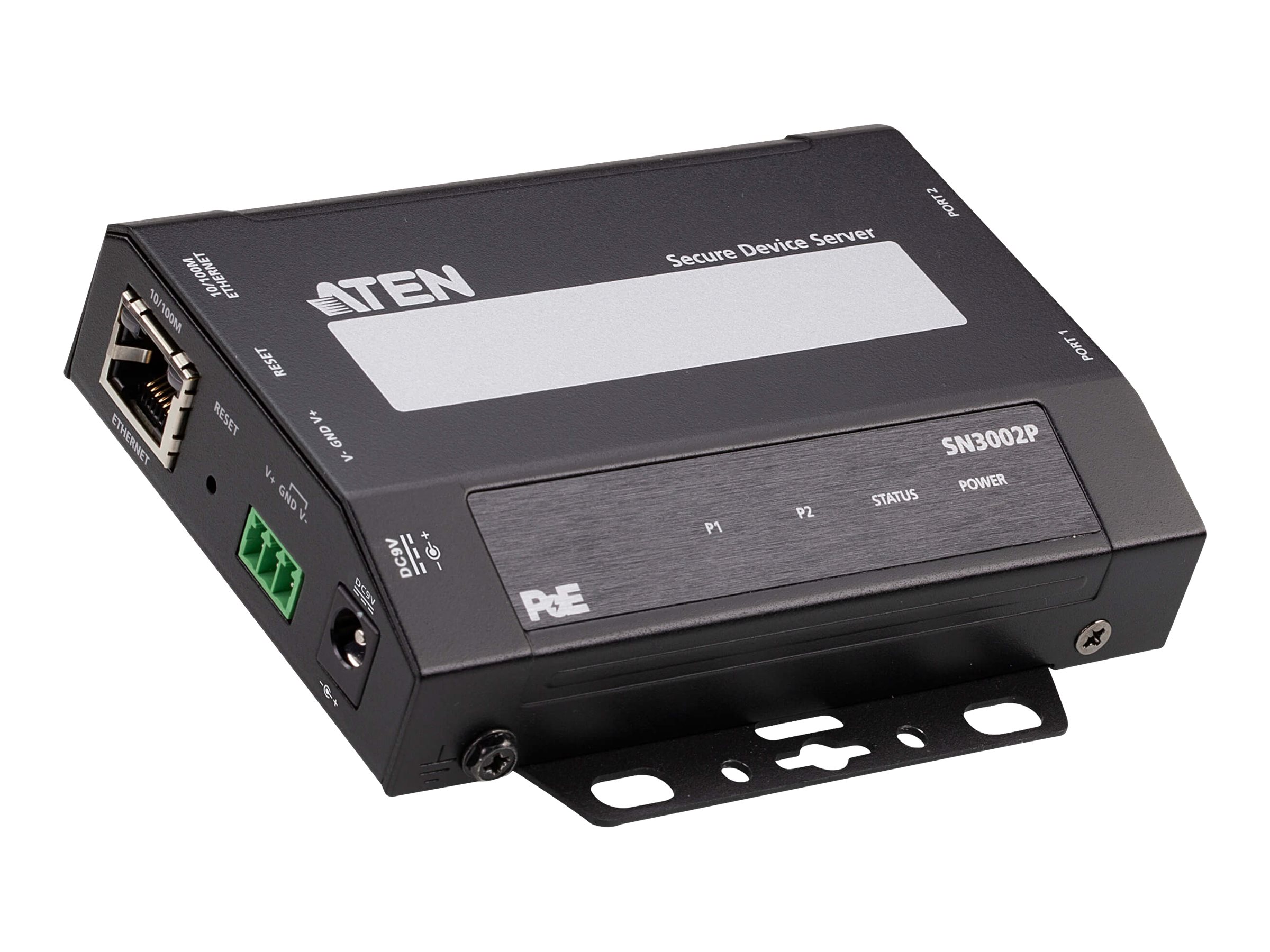

ATEN Altusen SN3002P
MSRP$228.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ATEN Altusen SN3002P
- Device server
- 2 ports
- 100Mb LAN, RS-232
- desktop / wall / DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $228.00 |
| Mfr Part #: | SN3002P |
| SHI Part #: | 42910146 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | ATEN Altusen SN3002P - Device server - 2 ports - 100Mb LAN, RS-232 - desktop / wall / DIN rail mountable |
| Manufacturer | ATEN |
| MSRP | $228.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.8 cm |
| Dimensions & Weight / Height | 2.6 cm |
| Dimensions & Weight / Weight | 220 g |
| Dimensions & Weight / Width | 11.7 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Form Factor | Desktop / wall / DIN rail mountable |
| Networking / Ports Qty | 2 |
| Networking / Type | Device server |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9.8 cm |
| Device Type | Device server |
| Height | 2.6 cm |
| Weight | 220 g |
| Width | 11.7 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN 55032, EN 55035, CISPR 32, FCC Part 15 B Class A, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, RoHS, UL 60950-1, UL 62368-1 |
| Included Accessories | Terminal block connector, feet set, DIN-rail mounting kit |
| Networking | |
| Compliant Standards | IEEE 802.3af |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Data Transfer Rate | 921.6 Kbps |
| Features | Reset button, flow control, 1.5 KV Magnetic Isolation, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), metal housing, RADIUS support, IP address filtering, event notification, SNMP trap, NTP server |
| Form Factor | Desktop / wall / DIN rail mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Ports Qty | 2 |
| Remote Management Protocol | Telnet, SSH, SNMP 1, SNMP 2c |
| Status Indicators | Power, status, port status, port transmission speed |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
