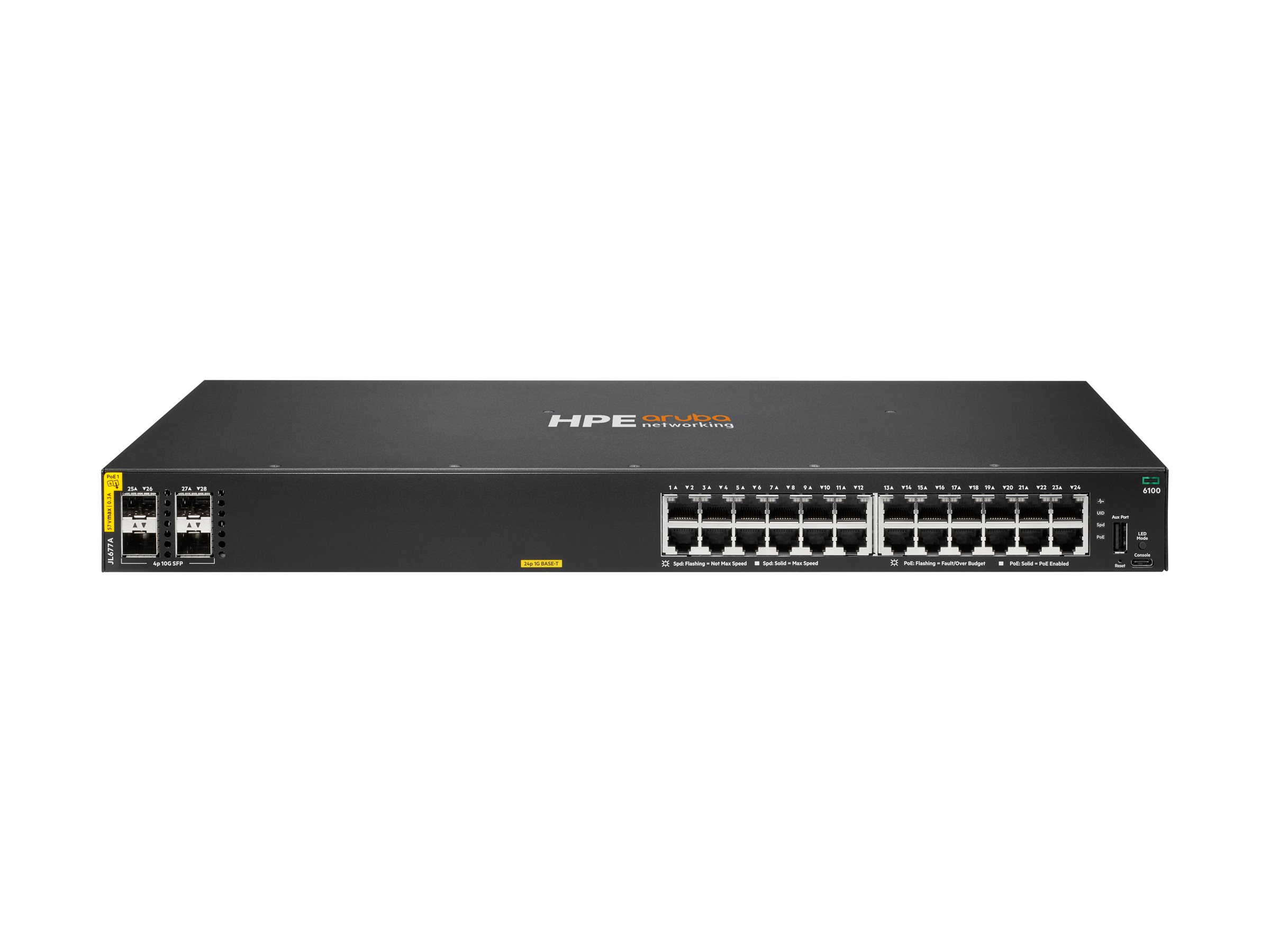

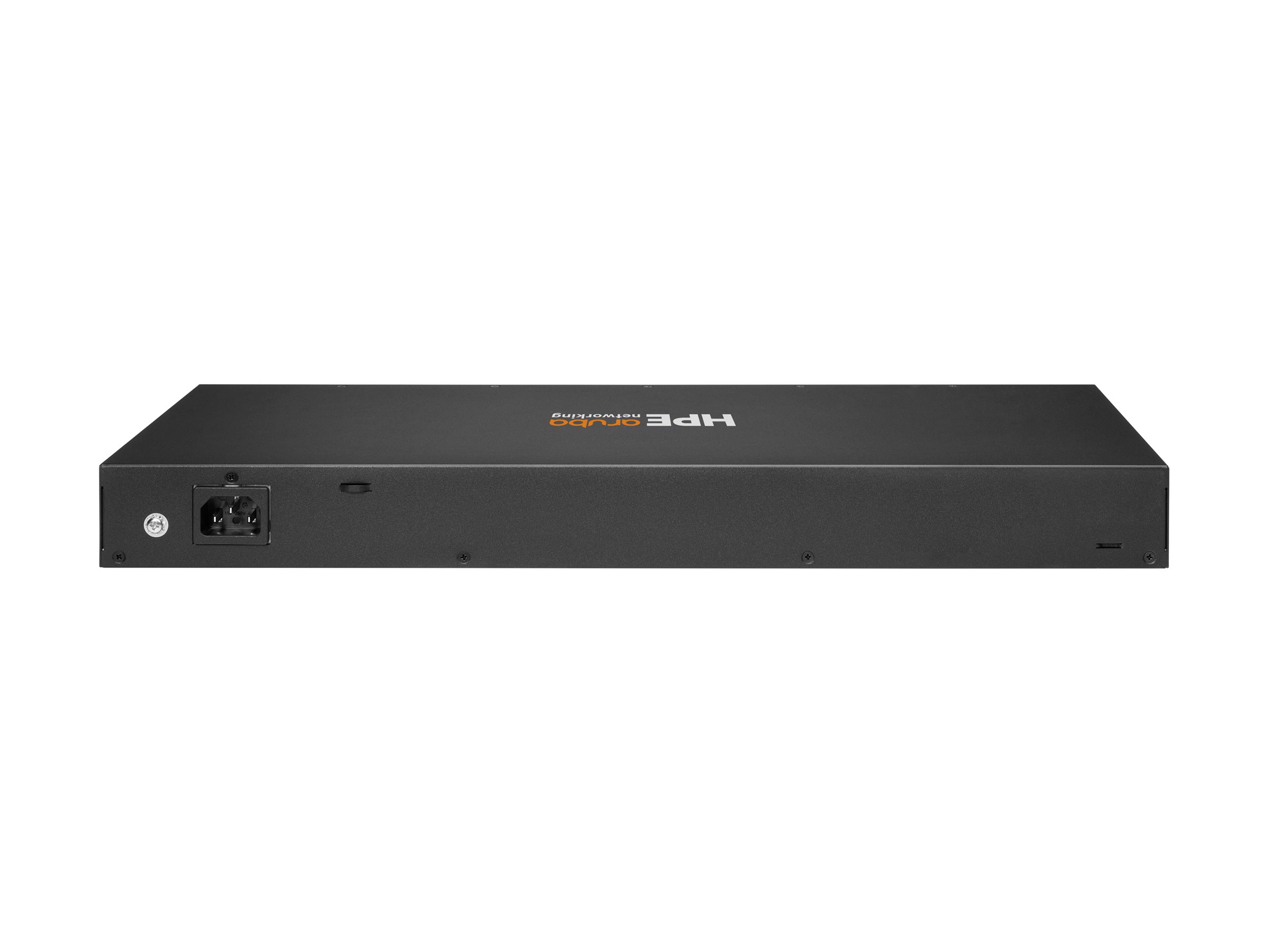

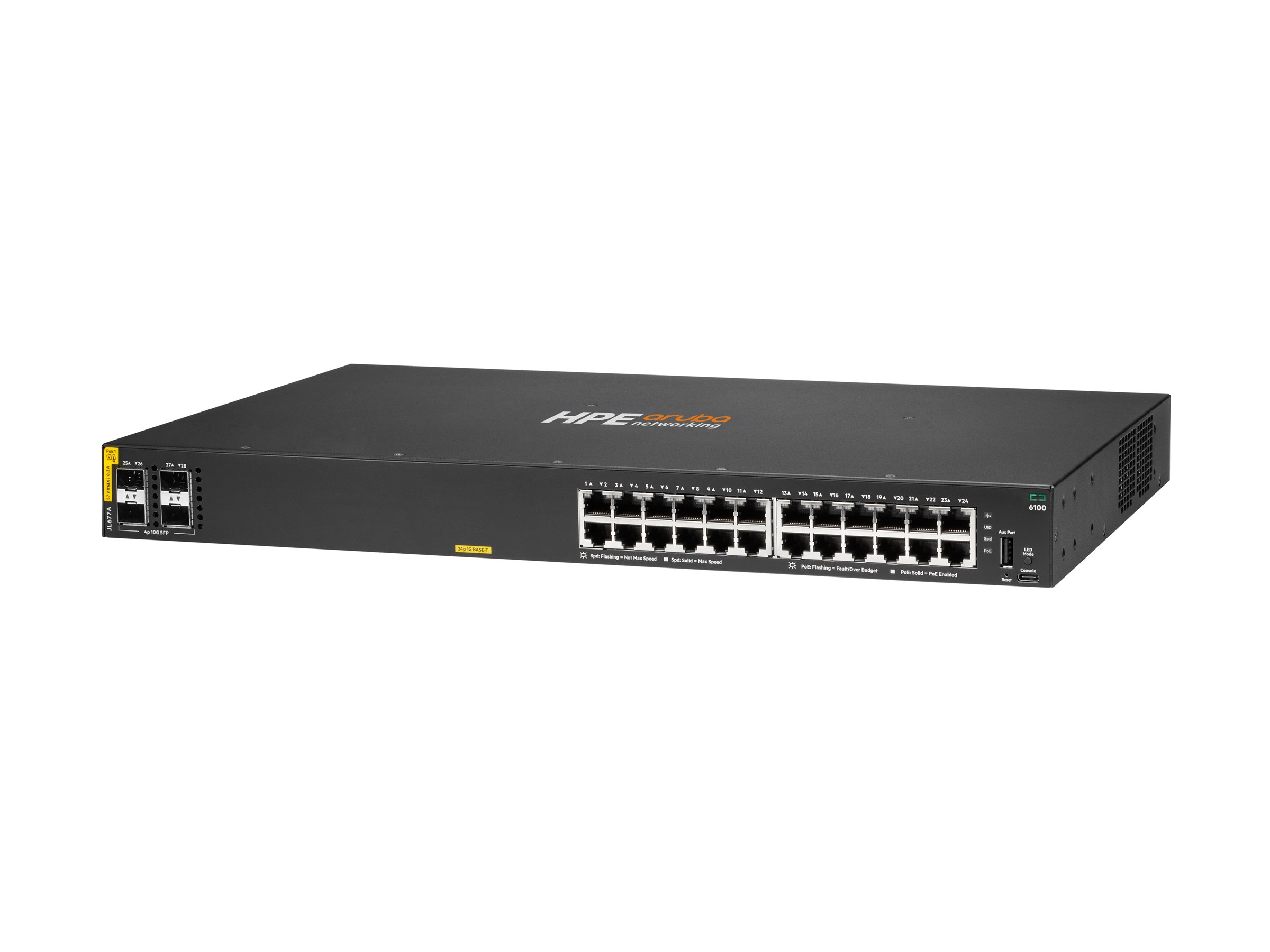

HPE Aruba 6100 24G Class4 PoE 4SFP+

MSRP$4,331.00
$2,587.00
HPE Aruba 6100 24G Class4 PoE 4SFP+
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  • side to side airflow
  • rack-mountable
HPE Aruba 6100 24G Class4 PoE 4SFP+
  • Switch
  • managed
  • 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
  • side to side airflow
  • rack-mountable
  • PoE+ (370 W)
  Additional Details
Price: $2,587.00
MSRP: $4,331.00
Mfr Part #: JL677A#ACC
SHI Part #: 42740992
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Hubs and Switches

HPE Aruba 6300M - Switch
HPE Aruba 6300M - Switch
  • L3
  • managed
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  • front and side to back
  • rack-mountable
MSRP $31,452.00 $26,672.00
HPE Aruba 6300M - Switch
HPE Aruba 6300M - Switch
  • L3
  • managed
  • 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking)
  • front and side to back
  • rack-mountable
  • PoE+ (720 W)
MSRP $10,337.00 $8,766.00
HPE Aruba 2930F 12G PoE+ 2G/2SFP+
HPE Aruba 2930F 12G PoE+ 2G/2SFP+
  • Switch
  • L3
  • managed
  • 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
  • rack-mountable
  • PoE+ (139 W)
MSRP $3,153.00 $1,047.00

Networking and Security

HPE Networking Instant On
HPE Networking Instant On
  • SFP+ transceiver module
  • 10GbE
  • 10GBase-SR
  • SFP+ / LC multi-mode
  • up to 300 m
  • for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP $1,454.00 $1,233.00
HPE Aruba Networking C-Class
HPE Aruba Networking C-Class
  • SFP+ transceiver module
  • 10GbE
  • 10GBase-SR
  • LC multi-mode
  • up to 400 m
  • 850 nm / 1310 nm
MSRP $947.00 $804.00
HPE Networking Instant On
HPE Networking Instant On
  • SFP+ transceiver module
  • 10GbE
  • 10GBase-LR
  • SFP+ / LC single-mode
  • up to 10 km
  • for HPE Aruba 2930F 12, 2930M 40, 6200F 12, 6200M 24, 6300, 6405 48, 6405 96, 64XX; CX 8360
MSRP $4,078.00 $1,748.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba 6100 24G Class4 PoE 4SFP+ - Switch - managed - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (370 W)
ManufacturerHewlett Packard Enterprise
MSRP$4,331.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth26.82 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight4.19 kg
Dimensions & Weight / Width44.2 cm
Header / BrandAruba
Header / Country KitsUnited Kingdom
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth26.82 cm
Height4.39 cm
Weight4.19 kg
Width44.2 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 90% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 24 x 10/100/1000 Base-T RJ-45
  • 4 x 1/10Gbit LAN SFP+
  • 1 x USB-C console
  • 1 x USB Type A
General
Authentication MethodSecure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS
Capacity
  • Switched virtual interfaces (SVIs): 16
  • ARP entries: 1024
  • IPv4 routes (Unicast): 512
  • IPv6 routes (Unicast): 512
  • IGMP groups: 512
  • MLD groups: 512
  • IPv4 ACL entries (ingress): 256
  • IPv6 ACL entries (ingress): 128
  • MAC ACL entries (ingress): 256
Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Device TypeSwitch - 28 ports - managed - stackable
Enclosure TypeSide to side airflow rack-mountable 1U
Encryption AlgorithmSSL
FeaturesDNS client, VLAN support, MSTP support, Rapid Reconfiguration of Spanning Tree (RSTP), LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support
Flash Memory16 GB
MAC Address Table Size8192 entries
Performance
  • Switching capacity: 128 Gbps
  • Throughput: 95.2 Mpps
  • Latency (1 Gbps): 1.5 µs
  • Latency (10 Gbps): 1.8 µs
PoE Budget370 W
Ports24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
Processor1 x ARM A9: 1.016 GHz
RAM4 GB DDR3 SDRAM
Routing ProtocolIGMPv2, IGMPv3
Subtype10 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsIEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674
LocalizationEnglish / United Kingdom
Power
Power Consumption Operational22.9 Watt
Power DeviceInternal power supply
Power Provided500 Watt 2.3 A
Voltage RequiredAC 100-127/200-240 V (50/60 Hz)
