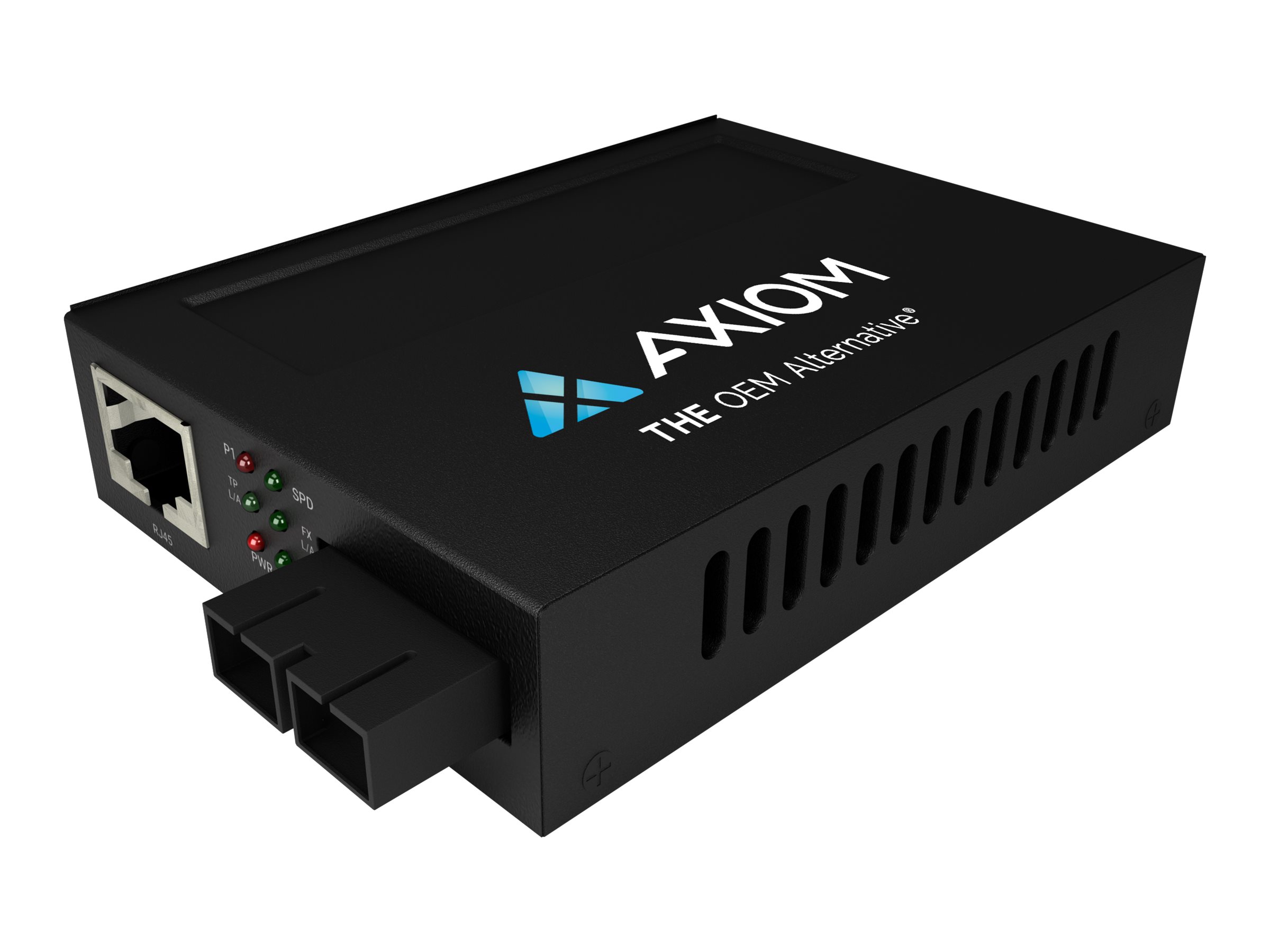

Axiom POE (PSE) Series MCP32-F1-M3S2-AX
MSRP$140.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom POE (PSE) Series MCP32-F1-M3S2-AX
- Fiber media converter
- GigE
- 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
- RJ-45 / SC multi-mode
- up to 2 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $140.00 |
| Mfr Part #: | MCP32-F1-M3S2-AX |
| SHI Part #: | 42473505 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Axiom POE (PSE) Series MCP32-F1-M3S2-AX - Fiber media converter - GigE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SC multi-mode - up to 2 km - 1310 nm |
| Manufacturer | Axiom Memory |
| MSRP | $140.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified |
| MTBF | 65,000 hours |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX |
| Compliant Standards | IEEE 802.3af |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Link Fault Pass Through function (LFP), over-current protection, Power Sourcing Equipment (PSE), metal housing, store and forward |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1310 nm |
| Power | |
| Power Consumption Operational | 60 Watt |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Voltage Required | AC 120/230 V |
