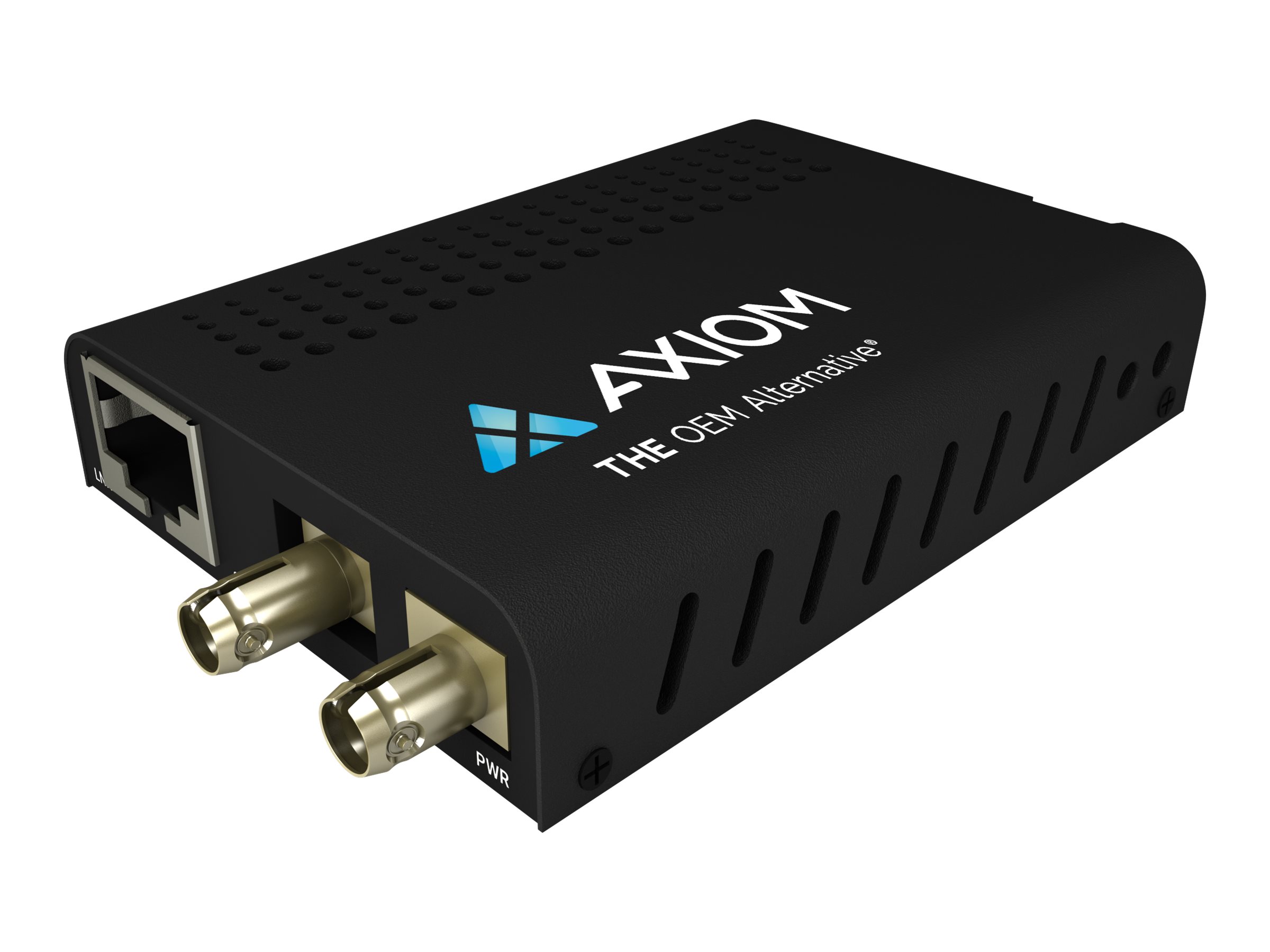

Axiom Mini MC01-S3T10-AX
MSRP$129.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom Mini MC01-S3T10-AX
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-TX, 100Base-LX
- RJ-45 / ST single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $129.00 |
| Mfr Part #: | MC01-S3T10-AX |
| SHI Part #: | 42473477 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Axiom Mini MC01-S3T10-AX - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-LX - RJ-45 / ST single-mode - up to 10 km - 1310 nm |
| Manufacturer | Axiom Memory |
| MSRP | $129.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | Axiom |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified |
| MTBF | 65,000 hours |
| Networking | |
| Cabling Type | 100Base-LX, 100Base-TX, 10Base-T |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, 10Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Automatic Link Restoration, auto-uplink (auto MDI/MDI-X), full duplex mode, half duplex mode, auto-negotiation, built-in DIP switch, Link Fault Pass Through function (LFP), store and forward, metal housing |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Status |
| Power | |
| Power Consumption Operational | 3 Watt |
| Power Device | External power adapter |
