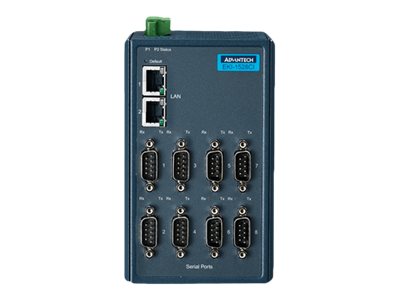

Advantech EKI-1528I-DR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech EKI-1528I-DR
- Device server
- 8 ports
- 100Mb LAN, RS-232, RS-422, RS-485
- DC power
- wall / DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EKI-1528I-DR-AE |
| SHI Part #: | 41863807 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Advantech EKI-1528I-DR - Device server - 8 ports - 100Mb LAN, RS-232, RS-422, RS-485 - DC power - wall / DIN rail mountable |
| Manufacturer | Advantech |
| MSRP | $877.40 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.5 cm |
| Dimensions & Weight / Height | 14 cm |
| Dimensions & Weight / Width | 8.6 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Blue |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Form Factor | Wall / DIN rail mountable |
| Networking / Ports Qty | 8 |
| Networking / Type | Device server |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9.5 cm |
| Device Type | Device server |
| Height | 14 cm |
| Width | 8.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, UL 60950-1, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30 |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Data Transfer Rate | 921.6 Kbps |
| Features | Flow control, 15KV ESD Protector, metal housing |
| Form Factor | Wall / DIN rail mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Ports Qty | 8 |
| Remote Management Protocol | Telnet, HTTP |
| Power | |
| Power Consumption Operational | 5 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 12 - 48 V |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 2000/XP/Vista/7/8/8.1 (32 bit), Microsoft Windows 2000/XP/Vista/7/8/8.1 (64 bits), Microsoft Windows Server 2016 |
