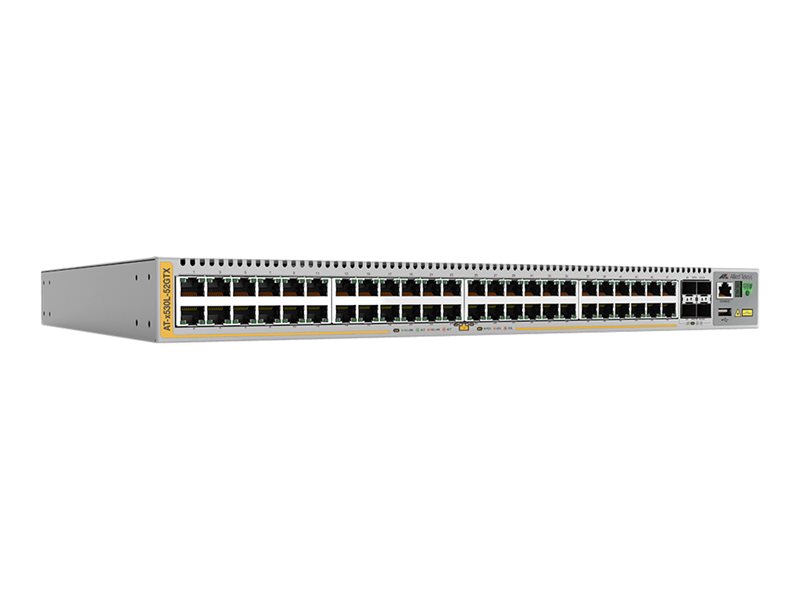

Allied Telesis AT x530L-52GTX


$3,862.00
Allied Telesis AT x530L-52GTX

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  • rack-mountable
Allied Telesis AT x530L-52GTX
  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  • rack-mountable
  Additional Details
Price: $3,862.00
Mfr Part #: AT-X530L-52GTX-10
SHI Part #: 41736132
Category: Network switches
UNSPSC: 43222612
Manufacturer: Allied Telesis
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionAllied Telesis AT x530L-52GTX - Switch - L3 - managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable
ManufacturerAllied Telesis
MSRP$3,848.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth32.3 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight5.2 kg
Dimensions & Weight / Width44.1 cm
Header / BrandAllied Telesis
Header / Country KitsUnited States
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty52
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth32.3 cm
Height4.4 cm
Weight5.2 kg
Width44.1 cm
Dimensions & Weight (Shipping)
Shipping Depth44 cm
Shipping Height12.8 cm
Shipping Weight7.1 kg
Shipping Width57.7 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 1000Base-X/10GBase-X SFP+ uplink
  • 2 x network stack device
General
Authentication MethodSecure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Virtual interfaces (VLANs): 4094
  • Packet buffer size: 3 MB
  • OpenFlow flows: up to 1250
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, X.509, IEEE 802.1ad, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, ITU-T G.8032
Device TypeSwitch - 52 ports - L3 - managed - stackable
Enclosure TypeRack-mountable 1U
Encryption AlgorithmDES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 3.0, SSL 2.0, PEAP, TTLS, SHA-2, TLS 1.2, CRL
FeaturesDHCP support, BOOTP support, ARP support, OCSP support, Syslog support, DoS attack prevention, DiffServ support, SNTP support, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), DNS relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Ethernet Ring Protection Switching (ERPS), MLD proxy, IP source guard, Ethernet Protection Switched Ring (EPSRing), Virtual Chassis Stacking (VCStack), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), black hole routing, Control Plane Prioritization (CPP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Loop Guard, VLAN mirroring, DNS client, NTP client, Connectivity Fault Management (CFM), LLDP-MED, storm protection, User Datagram Protocol (UDP), proxy ARP, Energy-Efficient Ethernet (EEE), View-based Access Control Model (VACM), router advertisement guard, Point-to-Point Protocol (PPP)
Flash Memory256 MB
Jumbo Frame Support10KB
MAC Address Table Size16K entries
Max Units In A Stack4
Performance
  • Switching capacity: 176 Gbps
  • Forwarding rate: 130.9 Mpps
  • Stacking bandwidth: 40 Gbps
  • Latency (10 Mbps): 30.98
  • Latency (100 Mbps): 8.34
  • Latency (1 Gbps): 5.27
  • Latency (10 Gbps): 1.67
Ports48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
RAM1 GB DDR3 SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SLP, SCP, SNMP 6, SSH 6, SFTP, SMTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS
Routing ProtocolOSPF, RIP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3, CIDR, MSTP, RSTP
Status IndicatorsStatus, fault
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsFCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS, EN 55032 Class A, EU RoHS
LocalizationUnited States
Power
Installed Qty2
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
