Server Technology PRO1 Switched PDU 48DCWC-10-2X300-E0NB

$11,872.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Power distribution unit (rack-mountable) DC -48 V 28.8 kW Ethernet 10/100/1000, RS-232 input: terminal block

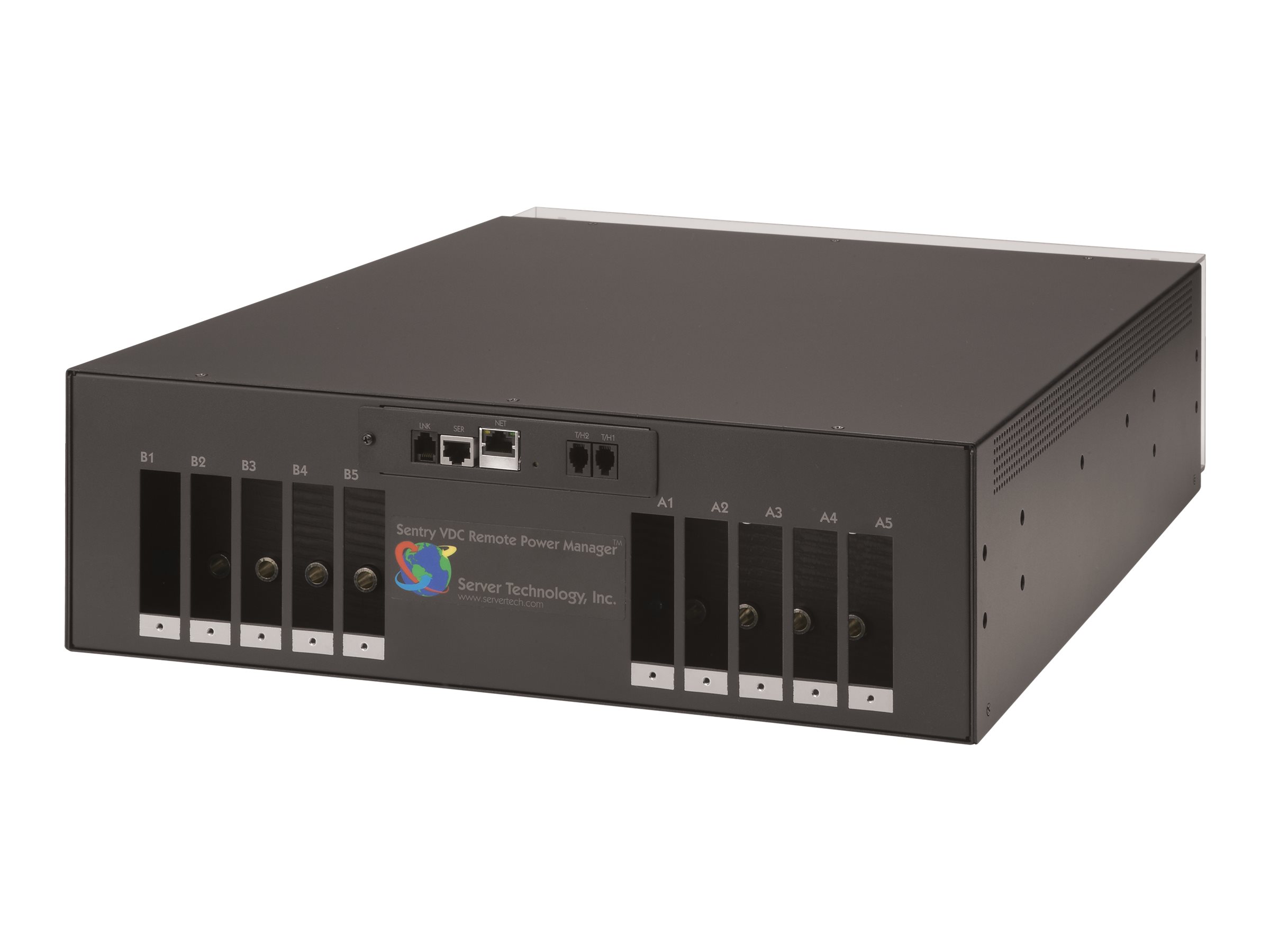

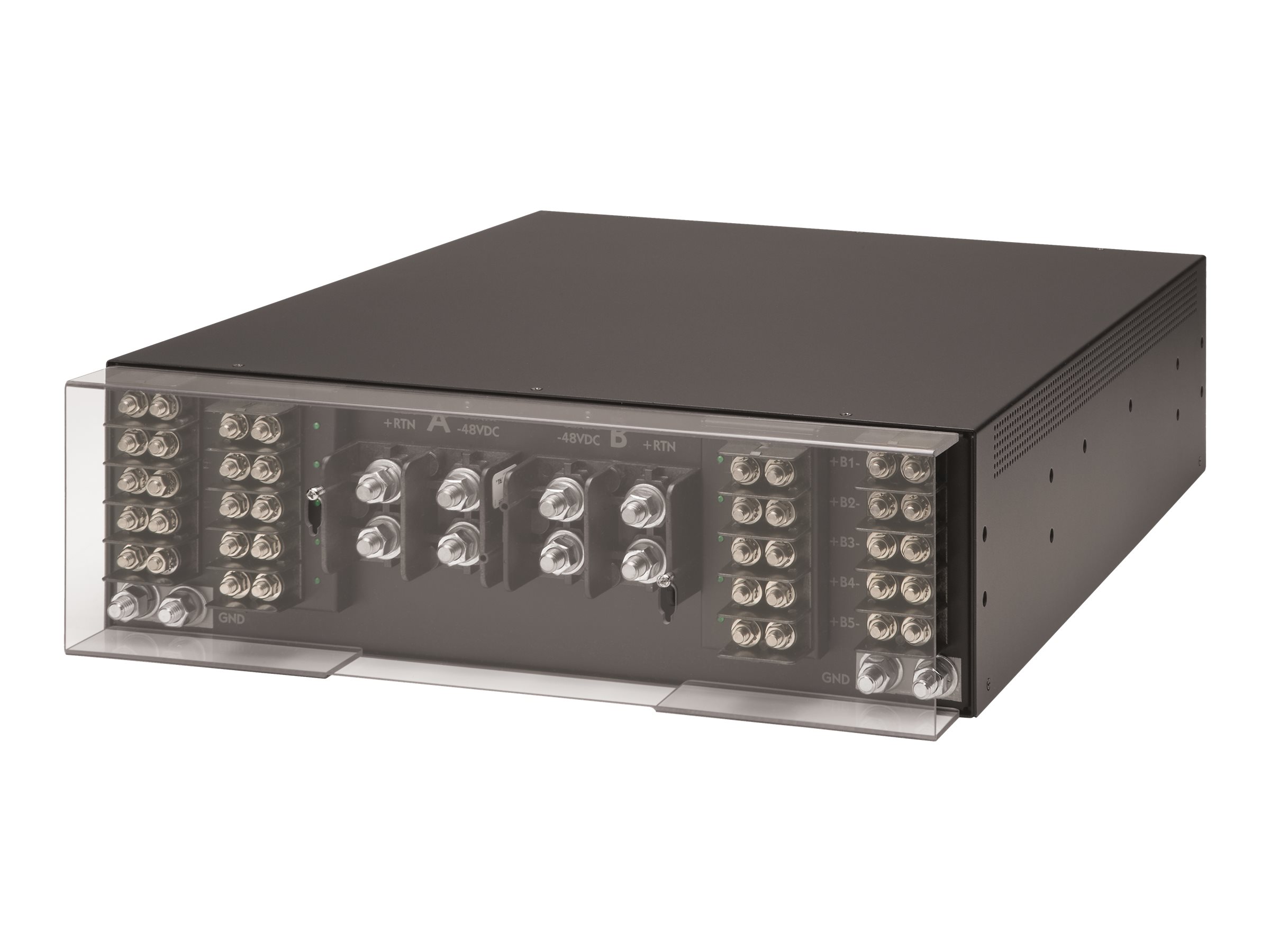

Server Technology PRO1 Switched PDU 48DCWC-10-2X300-E0NB

Power distribution unit (rack-mountable)
DC -48 V
28.8 kW
Ethernet 10/100/1000, RS-232
input: terminal block
output connectors: 10 (terminal block)
3U

Additional Details
Price:	$11,872.00
Mfr Part #:	48DCWC-10-2X300-E0NB
SHI Part #:	41492348
Category:	Rack systems for rack mount electroni...
UNSPSC:	24102001
Manufacturer:	Legrand
Product Type:	Hardware

General Information
Category	Rack systems for rack mount electroni...
Description	Server Technology PRO1 Switched PDU 48DCWC-10-2X300-E0NB - Power distribution unit (rack-mountable) - DC -48 V - 28.8 kW - Ethernet 10/100/1000, RS-232 - input: terminal block - output connectors: 10 (terminal block) - 3U
Manufacturer	Legrand
MSRP	$11,848.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	55.9 cm
Dimensions & Weight / Height	13.4 cm
Dimensions & Weight / Width	43.2 cm
General / Subcategory	Power distribution devices
Header / Brand	Server Technology
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet 10/100/1000 RS-232
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	10
Power Device / Voltage Required	DC -48 V
Product Type	Power distribution unit
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	55.9 cm
Height	13.4 cm
Width	43.2 cm
Environmental Parameters
Humidity Range Operating	8 - 90% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x management (Gigabit Ethernet) - RJ-45 1 x management (RS-232) - RJ-45 2 x sensor 1 x cascading - RJ-12
General
Device Type	Power distribution unit - rack-mountable
Height (Rack Units)	3U
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 2 years
Miscellaneous
Compliant Standards	TLS v1.2, cTUVus, UL 60950-1, UL 62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, EMC, FCC Subpart B 15.107, FCC Part 15.109, ICES-003 Class A, EN 62368-1, IEC 60950-1, IEC 62368-1, EN 55032, IEC 55032, CISPR 32, EN55024, CISPR 24, EN 55035, IEC 55035, CISPR 35, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RoHS 2011/65/EU, WEEE, NEBS level 3, GR-1089-CORE, GR-63-CORE
Features	Current monitoring, hot-swappable network card
Networking
Remote Management Interface	Ethernet 10/100/1000, RS-232
Remote Management Protocol	HTTP, HTTPS, SSH-2, Telnet, SFTP, LDAP, CLI, SNMP 2c, SNMP 3, IPv4, IPv6, TACACS+, RADIUS, SMTP
Power Device
Circuit Protection	Circuit breaker
Input Connectors	2 x terminal block
Input Voltage	DC -48 V
Max Electric Current	600 A
Power Capacity	28.8 kW
Power Output Connectors Details	10 x terminal block 125 A
