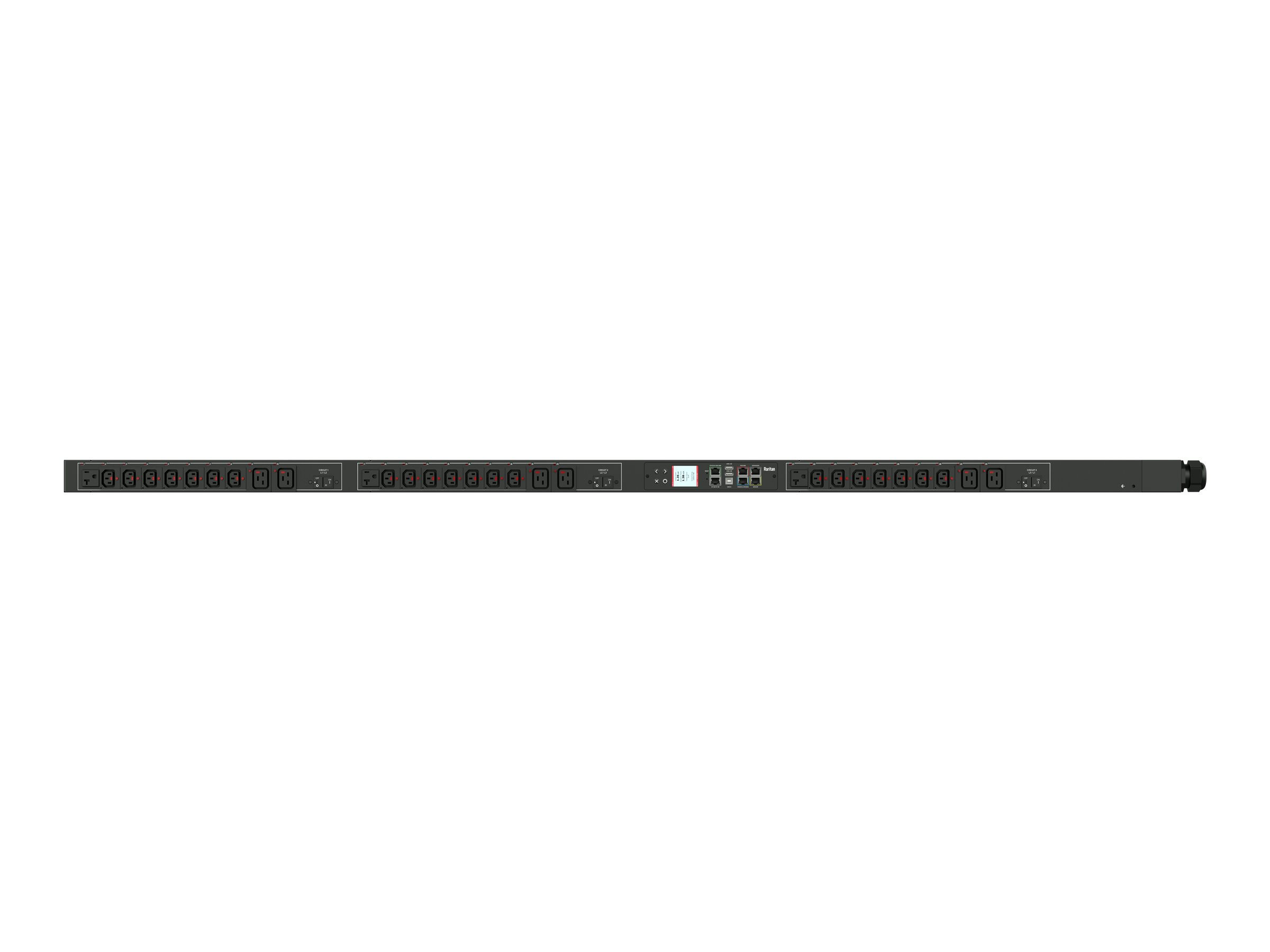

Raritan PX intelligent PX3-4660U-E2
MSRP$2,840.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX intelligent PX3-4660U-E2
- Power distribution unit (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase WYE (star)
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: NEMA L21-30P
- output connectors: 30 (6 x IEC 60320 C19, 21 x IEC 60320 C13, 3 x NEMA 5-20R)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,840.00 |
| Mfr Part #: | PX3-4660U-E2 |
| SHI Part #: | 42878400 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX intelligent PX3-4660U-E2 - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase WYE (star) - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA L21-30P - output connectors: 30 (6 x IEC 60320 C19, 21 x IEC 60320 C13, 3 x NEMA 5-20R) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,840.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.1 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 8.8 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 7.1 cm |
| Height | 178 cm |
| Weight | 8.8 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 207 cm |
| Shipping Weight | 11.1 kg |
| Shipping Width | 28 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Features | LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, locking C13 connector, locking C19 connector, power cable IP44 compliant |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8600 VA |
| Power Capacity Details | 8.6 kVA at 208 V, 7.9 kVA at 190 V |
| Power Output Connectors Details |
|
