Advantech IMC-350I series IMC-350I-SE-PS-A
MSRP$329.70
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

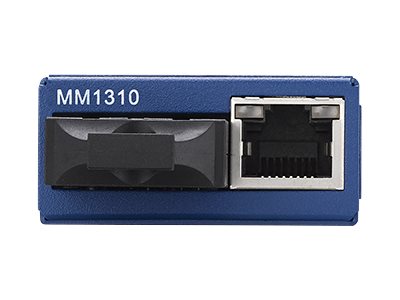

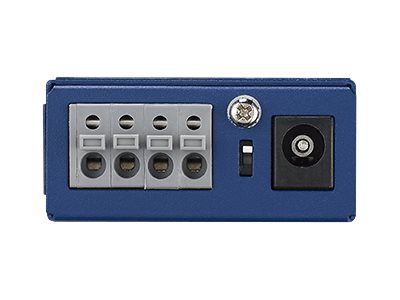

Advantech IMC-350I series IMC-350I-SE-PS-A
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-FX, 100Base-TX
- RJ-45 / SC single-mode
- up to 40 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $329.70 |
| Mfr Part #: | IMC-350I-SE-PS-A |
| SHI Part #: | 40356202 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Advantech IMC-350I series IMC-350I-SE-PS-A - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 40 km - 1310 nm |
| Manufacturer | Advantech |
| MSRP | $329.70 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.51 cm |
| Dimensions & Weight / Height | 2.11 cm |
| Dimensions & Weight / Weight | 317 g |
| Dimensions & Weight / Width | 4.57 cm |
| Header / Brand | Advantech |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 8.51 cm |
| Height | 2.11 cm |
| Weight | 317 g |
| Width | 4.57 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC Class B certified, FCC Class A certified, CSA, UL, cUL, FCC, RoHS |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-uplink (auto MDI/MDI-X), AutoCross, full duplex mode, Link Fault Pass Through function (LFP), Jumbo Frames support, metal housing |
| Max Transfer Distance | 40 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Status |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
| Voltage Required | AC 120/230 V (50/60 Hz) |
