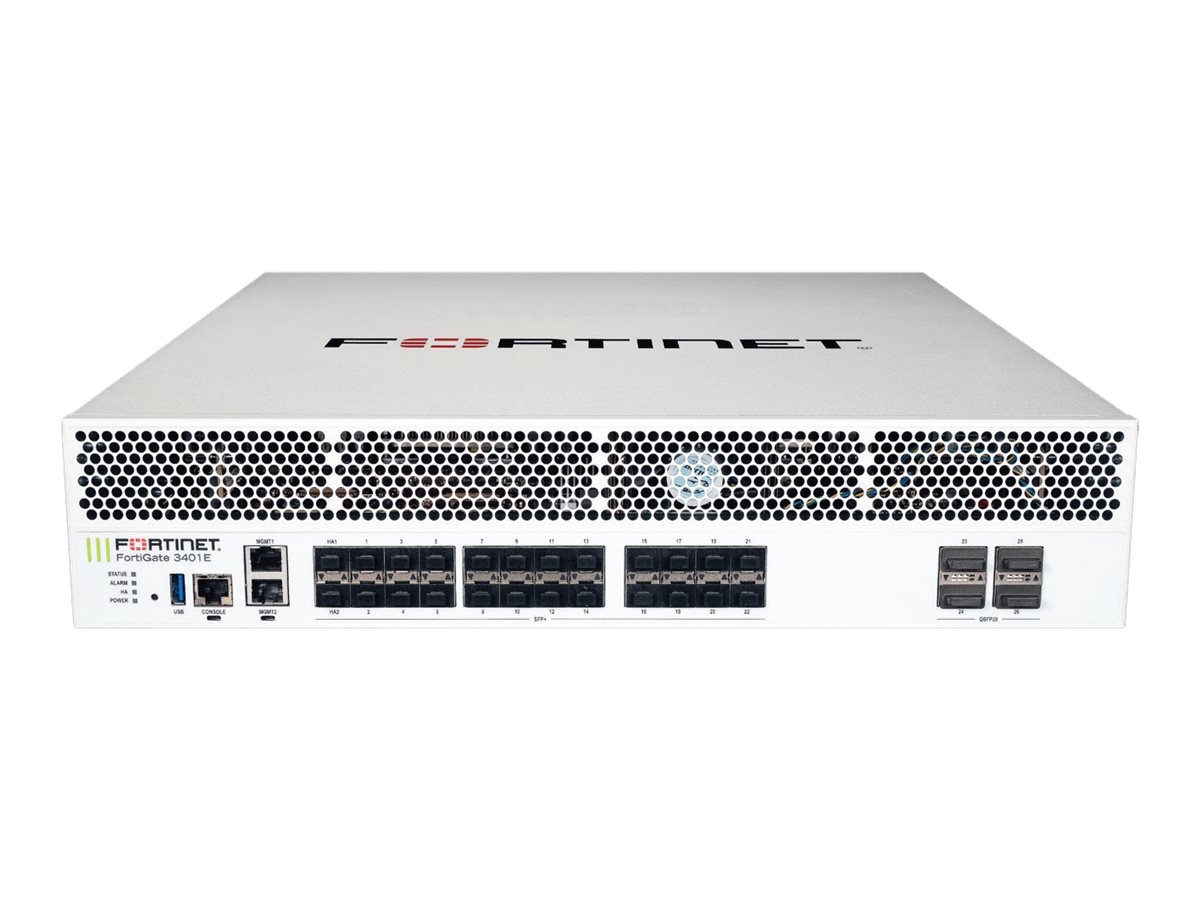

FORTIGATE-3400E-DC HW PLUS 1YR24X7 FORTICARE&FORTIGUARD UNIFIED

MSRP$119,000.00
$91,969.00
FORTIGATE-3400E-DC HW PLUS 1YR24X7 FORTICARE&FORTIGUARD UNIFIED
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
FORTIGATE-3400E-DC HW PLUS 1YR24X7 FORTICARE&FORTIGUARD UNIFIED
  Additional Details
Price: $91,969.00
MSRP: $119,000.00
Mfr Part #: FG3400EDC-BDL-950-12
SHI Part #: 39553966
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Fortinet
Product Type: Hardware
General Information
CategoryFirewall appliances
DescriptionFORTIGATE-3400E-DC HW PLUS 1YR24X7 FORTICARE&FORTIGUARD UNIFIED
ManufacturerFortinet
MSRP$119,000.00
UNSPSC43222501
Main Specifications
Height0.00
Length0.00
Width0.00
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28
  • 22 x 10Gb Ethernet - SFP+
  • 2 x 1000Base-T (management) - RJ-45
  • 1 x USB 3.0 - Type A
  • 1 x console - RJ-45
General
Bundled Services1 year FortiCare 24X7 Comprehensive Support + 1 year FortiGuard
Depth55.6 cm
Device TypeSecurity appliance
Height8.89 cm
Height (Rack Units)2U
Weight19.5 kg
Width44.3 cm
Miscellaneous
Compliant StandardsUL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, IPv6 Ready, USGv6, ICSA SSL-VPN, ICSA IPS
Included Accessories2 SX SFP transceivers
Networking
Capacity
  • Concurrent TCP sessions: 50000000
  • New TCP sessions per second: 460000
  • Firewall policies: 200000
  • Gateway to gateway IPSec VPN Tunnels: 40000
  • Client to gateway IPSec VPN tunnels: 200000
  • Concurrent SSL VPN users: 30000
  • SSL connections per second: 14000
  • Concurrent SSL connections: 4900000
  • Virtual domains: 10
  • Number of FortiSwitches: 256
  • Number of FortiAP devices: 1024
  • Number of FortiToken devices: 5000
  • Maximum number of registered endpoints: 50000
Connectivity TechnologyWired
Data Link ProtocolGigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Encryption AlgorithmSSL, 256-bit AES, 256-bit SHA
FeaturesFirewall protection, switching, routing, VPN support, traffic shaping, IPv6 support, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), anti-malware protection, IPv4 support, web threat protection, CAPWAP support, checksum offload support, IP tunnel acceleration, multicast traffic
Form FactorRack-mountable
Network / Transport ProtocolTCP/IP, UDP/IP, IPSec, SCTP
Performance
  • IPS throughput: 44 Gbps
  • NGFW throughput: 34 Gbps
  • Threat protection throughput: 23 Gbps
  • Firewall throughput (1518-byte UDP): 240 Gbps
  • Firewall throughput (512-byte UDP): 238 Gbps
  • Firewall throughput (64-byte UDP): 150 Gbps
  • Firewall latency (64-byte UDP): 4 µs
  • Firewall throughput: 225 Mpps
  • VPN throughput (SSL): 11 Gbps
  • SSL inspection throughput: 30 Gbps
  • VPN throughput (512-bit IPSec): 140 Gbps
  • Application control (AVC) throughput: 86 Gbps
  • CAPWAP throughput: 15 Gbps
Remote Management ProtocolHTTP, HTTPS
Status IndicatorsPower, status, alarm, link/activity, HA
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational728 Watt
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Voltage RequiredDC 48 - 72 V
Processor / Memory / Storage
Processors InstalledFortinet FortiASIC CP9/NP6
Software / System Requirements
OS ProvidedFortiOS
