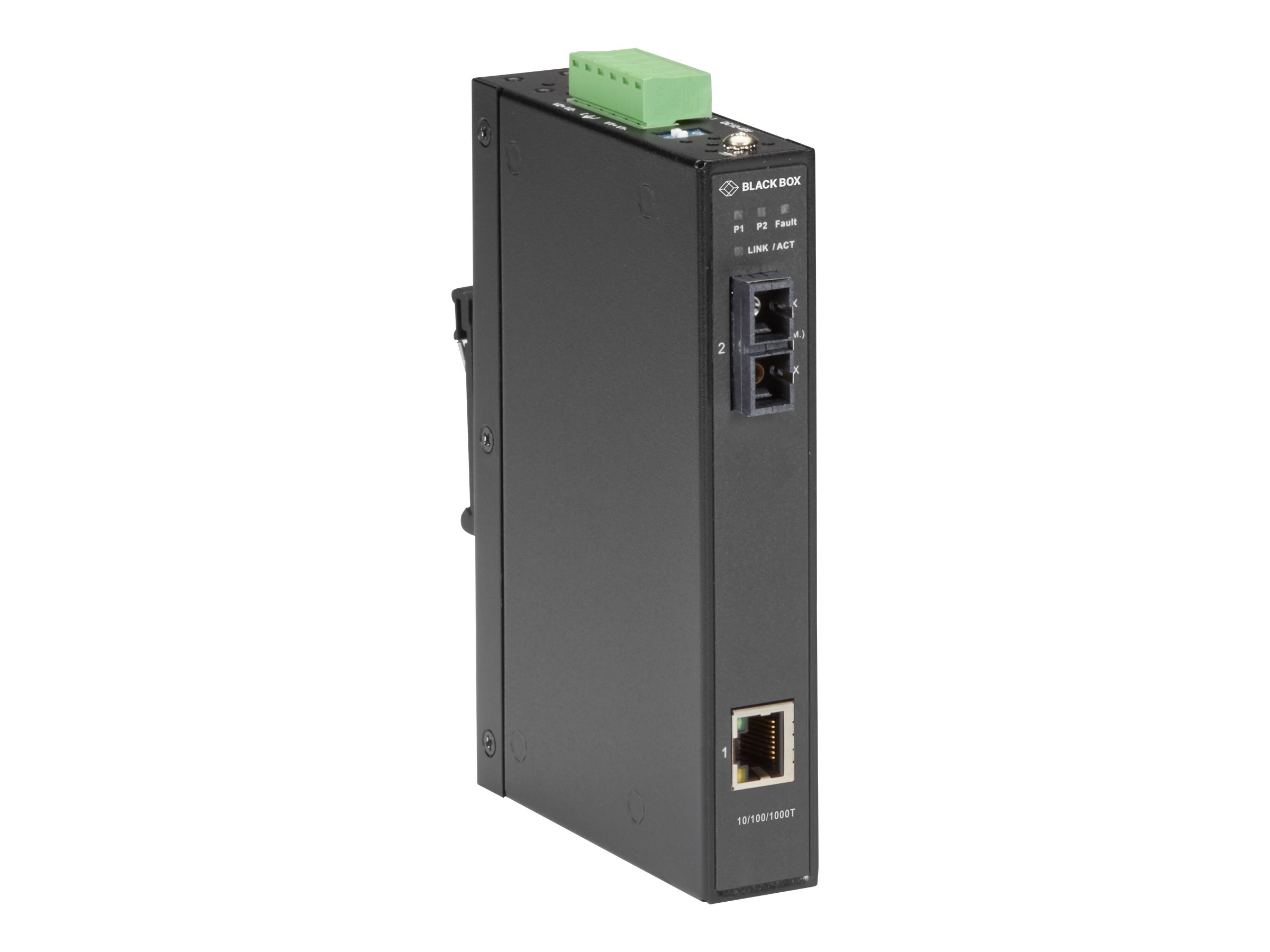

Black Box LGC280 Series LGC282A
MSRP$379.81
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box LGC280 Series LGC282A
- Fiber media converter
- 1GbE
- 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X
- RJ-45 / SC single-mode
- up to 10 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $379.81 |
| Mfr Part #: | LGC282A |
| SHI Part #: | 38139408 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box LGC280 Series LGC282A - Fiber media converter - 1GbE - 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X - RJ-45 / SC single-mode - up to 10 km - 1310 nm - TAA Compliant |
| Manufacturer | Black Box |
| MSRP | $379.81 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.49 cm |
| Dimensions & Weight / Height | 14.43 cm |
| Dimensions & Weight / Weight | 399 g |
| Dimensions & Weight / Width | 2.61 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 9.49 cm |
| Height | 14.43 cm |
| Weight | 399 g |
| Width | 2.61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, IP30, IEC 60068-2 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Store and forward, wall mountable, DIN rail mountable, reverse polarity protection, 10 KB Jumbo Frame |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, link/activity, fault |
| Power | |
| Power Consumption Operational | 3.5 Watt |
