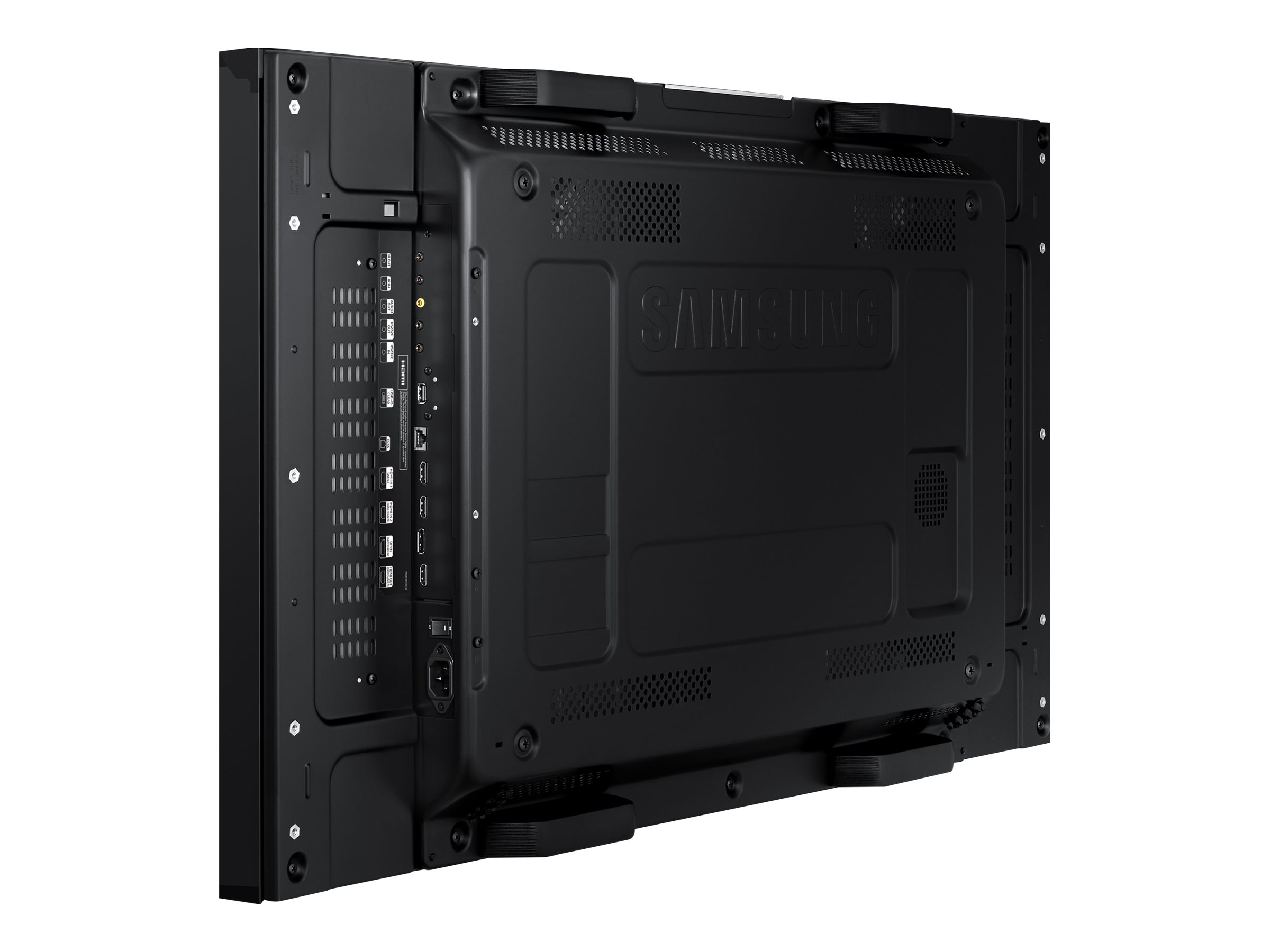

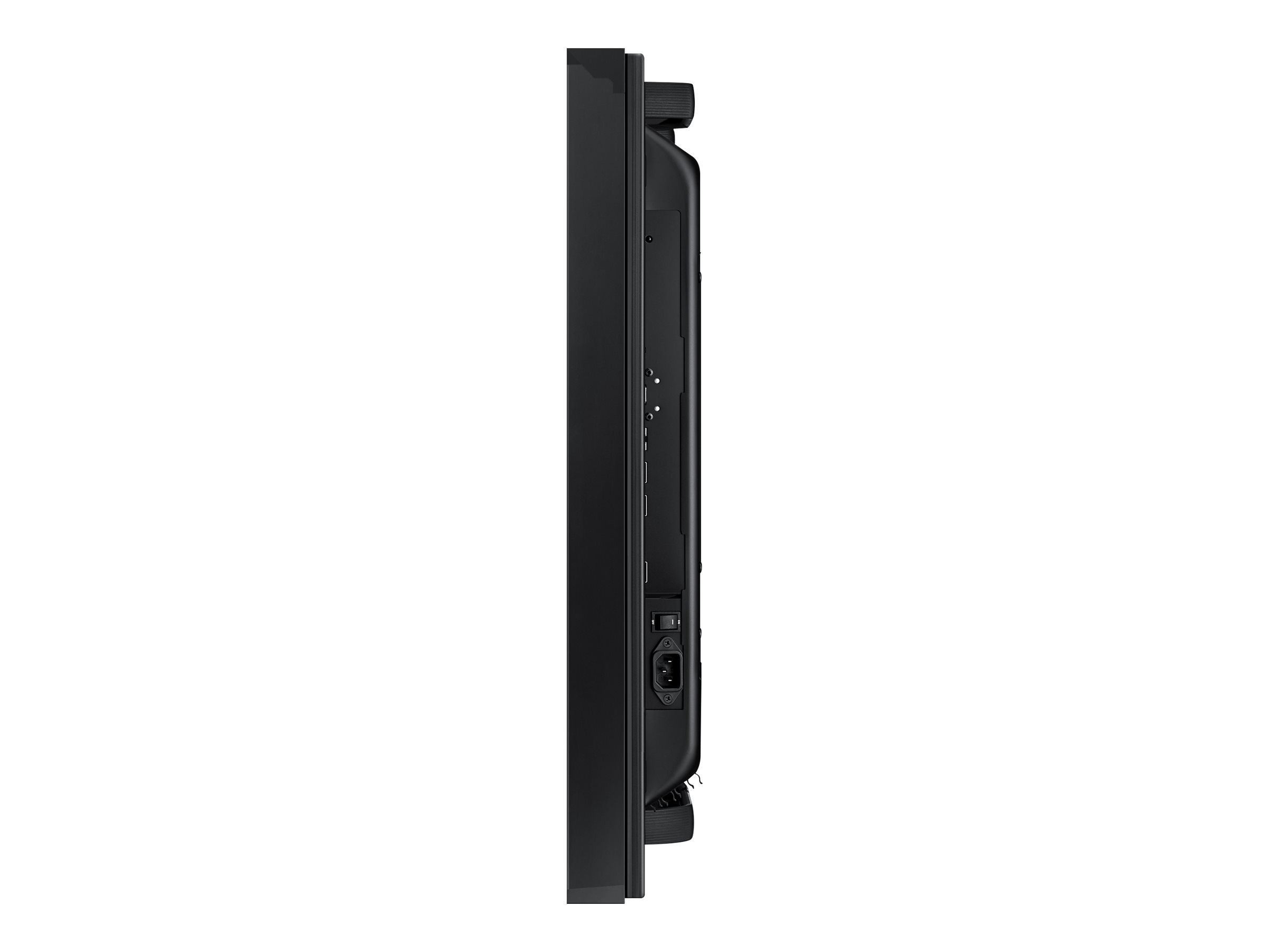

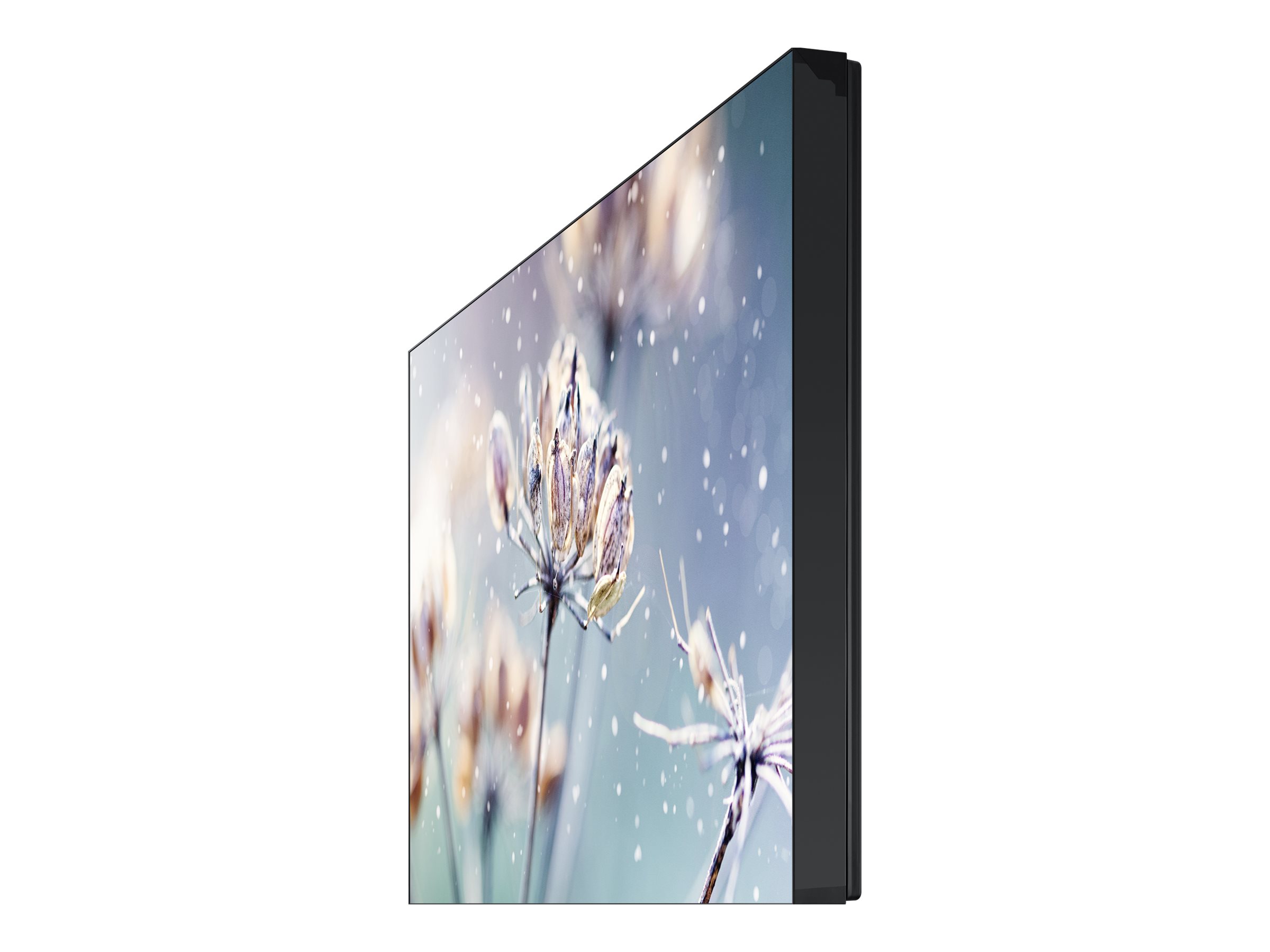

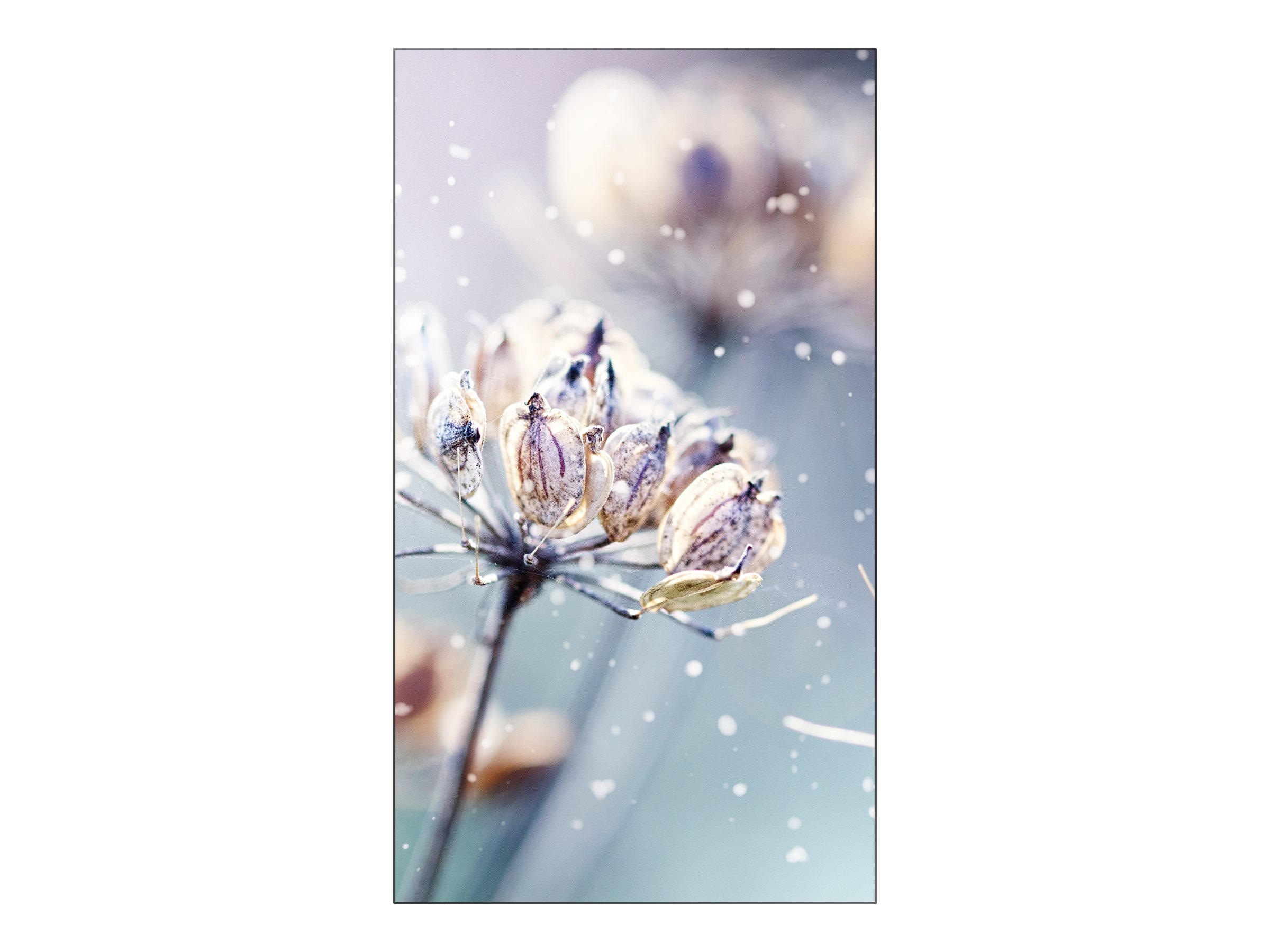

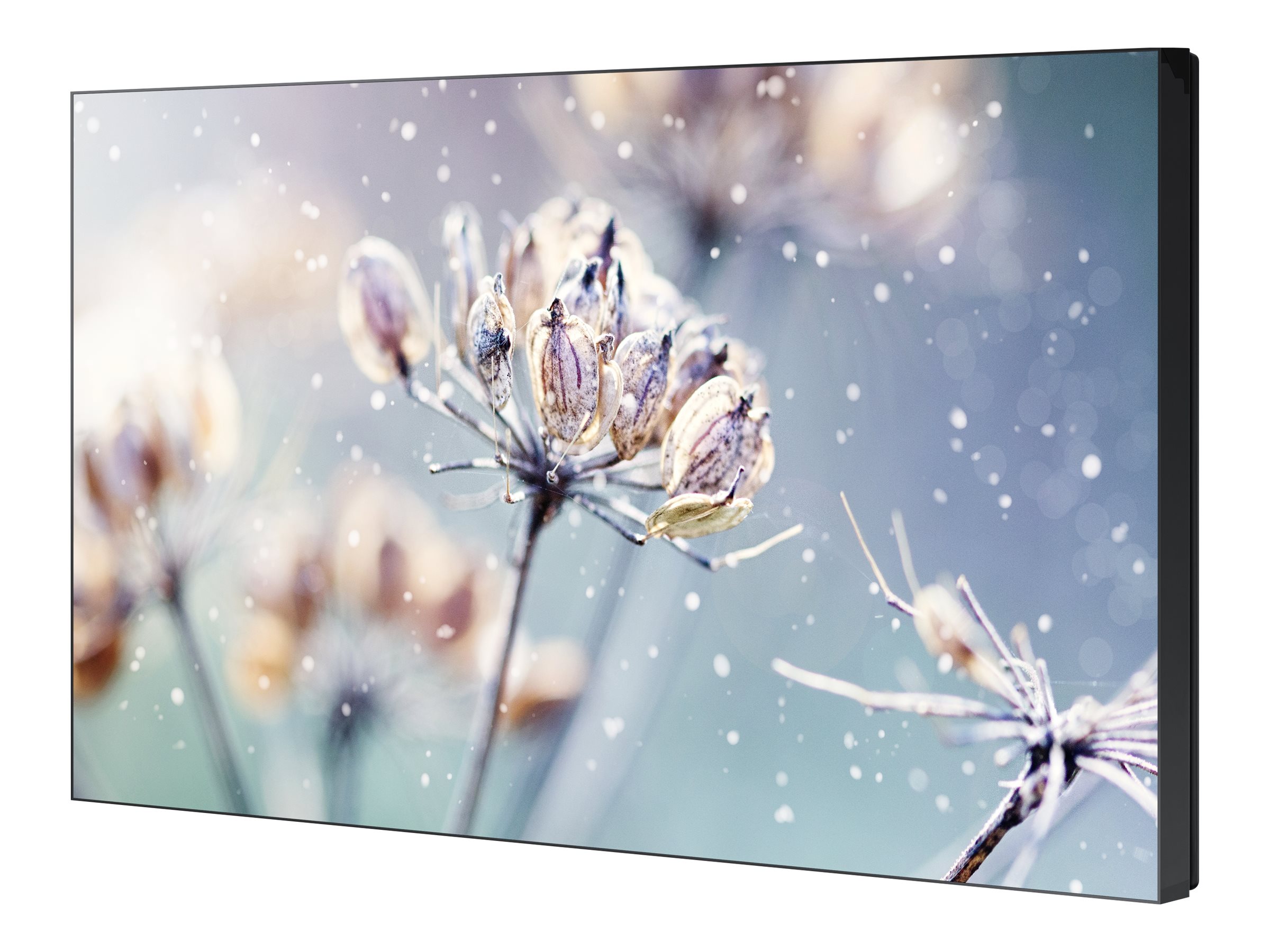

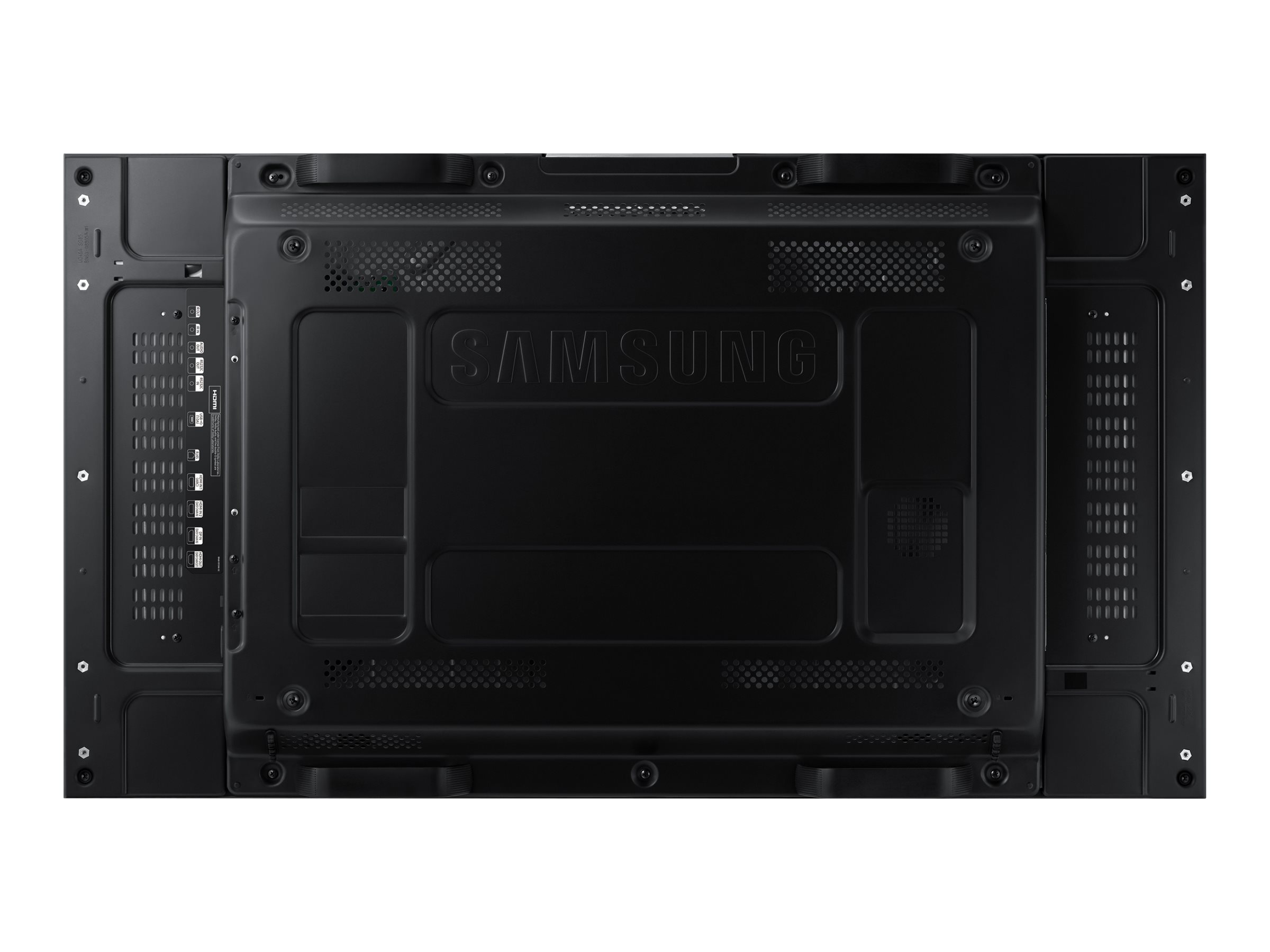

Samsung VM46R-U 46 LED display
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung VM46R-U 46 LED display
- Full HD
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VM46R-U |
| SHI Part #: | 37718615 |
| Category: | Phone and video conf equipt and h/w a... |
| UNSPSC: | 45111900 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
Warranties
- installation
- for Samsung OM75, QB13, QB65, QH43, QH49, QH55, QH65, QH75, QM32, QP98, SH37, VH55; Flip 2
MSRP $1,038.00
$897.00
- installation
- for Samsung OM75, QB13, QB65, QH43, QH49, QH55, QH65, QH75, QM32, QP98, SH37, VH55; Flip 2
MSRP $1,038.00
$897.00
| General Information | |
|---|---|
| Category | Phone and video conf equipt and h/w a... |
| Description | Samsung VM46R-U 46 LED display - Full HD |
| Manufacturer | Samsung |
| UNSPSC | 45111900 |
| Main Specifications | |
| C.P.U. | LFD |
| Dimensions & Weight / Weight | 048.00 |
| Height | 027.70 |
| Length | 054.00 |
| UPC | 0887276329499 |
| Width | 011.70 |
| Connections | |
| Connector Type |
|
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 29.5 cm |
| Height (Shipping) | 72.4 cm |
| Weight (Shipping) | 21.7 kg |
| Width (Shipping) | 115.3 cm |
| Display | |
| Additional Features | Pivot, MagicInfo, Daisy Chain |
| Brightness | 500 cd/m² |
| Coating | 25% Glass Haze |
| Commercial Features | Button lock, built-in clock, SMART Signage Platform, Advanced Color Management (ACM), Image Rotation, Auto Source Switching & Recovery |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 3500:1 |
| LCD Backlight Technology | Direct-lit LED |
| Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 9.74 cm |
| Design | Ultra Narrow Bezel |
| Diagonal Class | 46" |
| Dimensions | Without stand |
| Enclosure Color | Glossy |
| Energy Class | Class G |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/360418 |
| HDMI Ports Qty | 2 ports |
| Height | 57.66 cm |
| Operating System | Tizen OS 4.0 |
| PC Interface | DisplayPort |
| Picture Enhancements | Mega Dynamic Contrast Ratio |
| Platform | Tizen OS |
| Power Consumption (On mode) | 106 W |
| Power Consumption Operational | 143 Watt |
| Power Consumption SDR (On mode) | 106 kWh/1000h |
| Product Type | LED-backlit LCD flat panel display |
| Sensors | Temperature sensor |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 15.9 kg |
| Width | 102.21 cm |
| Media Player | |
| Configuration | ARM Cortex-A72 Quad-Core ( 1.7 GHz ) - 2.5 GB LPDDR4 - 8 GB |
| Storage Drive Capacity | 8 GB |
| Supported Audio Formats | AC3 |
| Supported Pictures Formats | PNG, JPEG |
| Supported Video Formats | MPEG-1, MPEG-2, MPEG-4, AVC, H.264, H.263, VC-1, HEVC, VP9, VP8, AVS+ |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play, CSA, UL, TUV, VCCI, C-Tick, BSMI, GOST, cUL, DDC-2B, NEMKO, NOM, SASO, CB, AS/NZS 60950-1, CCC, PSB, IRAM, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, KC, GB 9254-2008, NOM-019-SCFI-1998, KN22, KN24, K60950-1, cUL No.60950-1, EAC, RCM, IS13252, VCCI V-3/2010.04 Class A, CNS 14972, GOST 22505-97, CNS 13438 Class A ITE EMI, CNS 13439 AV EMI, CNS 14409 AV EMS, GB 17625.1-2012, GOST-R 51317, BIS, INMETRO, GB 4943.1-2011, AS/NZS CISPR 22:2009, KCC/EK, HDCP 2.2, EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007 |
| Included Accessories | Batteries, Signage Box |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.5 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Device | Power supply |
| Video Wall Power Consumption (Max) | 488 W/m² |
| Remote Control | |
| Type | Remote control |
| Stands & Mounts | |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
