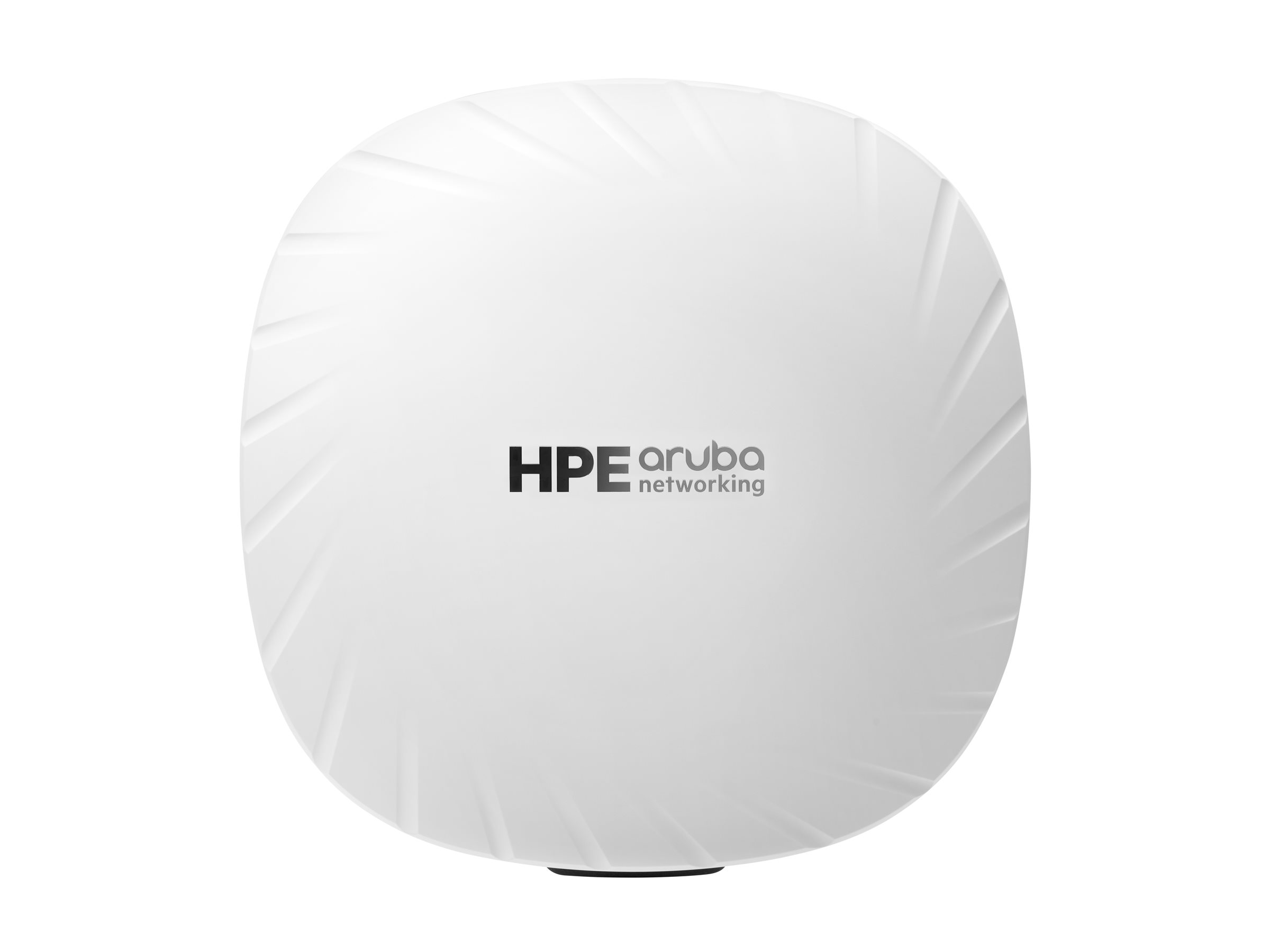

ARUBA AP-555 JP UNIFIED APPL-VL

MSRP$2,415.00
$1,824.00
ARUBA AP-555 JP UNIFIED APPL-VL
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
ARUBA AP-555 JP UNIFIED APPL-VL
  Additional Details
Price: $1,824.00
MSRP: $2,415.00
Mfr Part #: JZ355A
SHI Part #: 37373581
Category: Wireless access point
UNSPSC: 43222640
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
Product Line: HPE - Networking
General Information
CategoryWireless access point
DescriptionARUBA AP-555 JP UNIFIED APPL-VL
ManufacturerHewlett Packard Enterprise
MSRP$2,415.00
UNSPSC43222640
Main Specifications
Dimensions & Weight / Depth26 cm
Dimensions & Weight / Height5.8 cm
Dimensions & Weight / Weight1.57 kg
Dimensions & Weight / Width26 cm
Header / BrandAruba
Miscellaneous / Product ColorWhite
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • ZigBee
Networking / Data Transfer Rate4.8 Gbps
Networking / Form FactorExternal
Networking / TypeWireless access point
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Antenna
AntennaInternal
DirectivityOmni-directional
Dimensions & Weight (Shipping)
Shipping Depth30.3 cm
Shipping Height10.8 cm
Shipping Weight2.23 kg
Shipping Width32 cm
Environmental Parameters
Humidity Range Operating5 - 93% (non-condensing)
Max Operating Temperature50 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x HPE Smart Rate - RJ-45
  • 1 x 5GBase-T - RJ-45
  • 1 x USB 2.0 - Type A
  • 1 x console - micro-USB
General
Depth26 cm
Device TypeWireless access point
Height5.8 cm
Ruggedized DesignIndoor
Weight1.57 kg
Width26 cm
Internet of Things (IoT)
Communications TechnologyBluetooth, Zigbee
Internet of Things (IoT) CompatibleYes
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU
MTBF855000 hours
Networking
Capacity
  • Wireless clients per Wi-Fi radio: 1024
  • OFDMA units: 37
  • BSSIDs per radio: 16
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Data Transfer Rate4.8 Gbps
Encryption AlgorithmWPA, WPA2, WPA3
FeaturesTrusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, 8x8 MU-MIMO technology, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)
Form FactorExternal
Frequency Band2.4 GHz, 5 GHz
Line Coding FormatCCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
Performance
  • Maximum data rate (2.4 GHz): 1.150 Mbps
  • Maximum data rate (5 GHz): 4.8 Gbps
  • Aggregate bandwidth: 5.95 Gbps
Spread Spectrum MethodOFDM, DSSS
Status IndicatorsSystem, status
Power
Power Consumption Operational38.2 Watt
Power Over Ethernet (PoE) SupportedPoE
