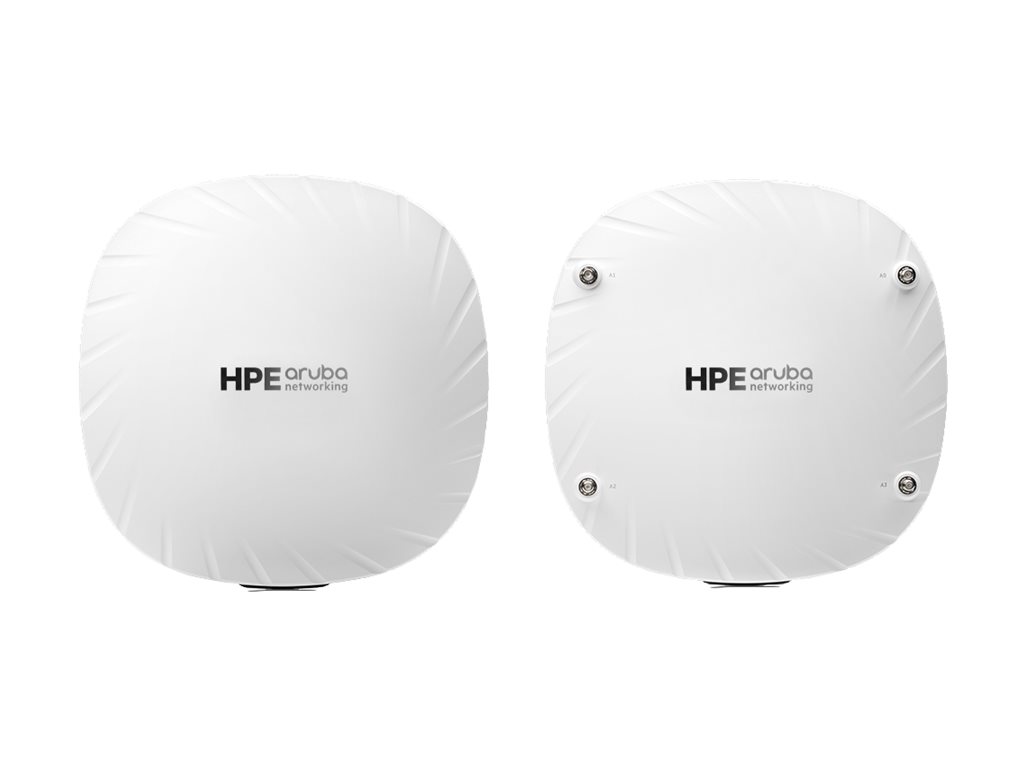

ARUBA AP-535 RW UNIFIED APINTERNATIONAL SKU PL-VL
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ARUBA AP-535 RW UNIFIED APINTERNATIONAL SKU PL-VL
| Additional Details | |
|---|---|
| Mfr Part #: | JZ336A |
| SHI Part #: | 37324785 |
| Category: | Wireless access point |
| UNSPSC: | 43222640 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
Warranties
- Extended service agreement
- replacement (for complicated network devices)
- 1 year
- shipment
- 9x5
- response time: NBD
- Extended service agreement
- replacement (for complicated network devices)
- 3 years
- shipment
- 9x5
- response time: NBD
- Extended service agreement
- replacement (for complicated network devices)
- 4 years
- shipment
- 24x7
- response time: 4 h
Audio/Visual
- Antenna
- tri-band, low-profile
- dipole
- omni-directional
- direct-mount
MSRP $33.00
$32.00
- Antenna
- tri-band, 4x4, cabled
- panel
- directional
MSRP $649.00
$551.00
- Antenna
- tri-band
- dipole
- omni-directional
- direct-mount
MSRP $44.00
$41.00
| General Information | |
|---|---|
| Category | Wireless access point |
| Description | ARUBA AP-535 RW UNIFIED APINTERNATIONAL SKU PL-VL |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222640 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24 cm |
| Dimensions & Weight / Height | 5.7 cm |
| Dimensions & Weight / Weight | 1.27 kg |
| Dimensions & Weight / Width | 24 cm |
| Header / Brand | Aruba |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wireless |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 2.4 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Wireless access point |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 4 |
| Directivity | Omni-directional |
| Gain Level | 5.4 dBi |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 30 cm |
| Shipping Height | 10.5 cm |
| Shipping Weight | 1.93 kg |
| Shipping Width | 28.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 24 cm |
| Device Type | Wireless access point |
| Height | 5.7 cm |
| Ruggedized Design | Indoor |
| Weight | 1.27 kg |
| Width | 24 cm |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth, Zigbee |
| Internet of Things (IoT) Compatible | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU |
| Included Accessories | Base bracket |
| MTBF | 114 years |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Data Transfer Rate | 2.4 Gbps |
| Encryption Algorithm | WPA, WPA2, WPA3 |
| Features | Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Performance |
|
| Spread Spectrum Method | OFDM, DSSS |
| Status Indicators | System, status |
| Power | |
| Power Consumption Operational | 26.4 watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
