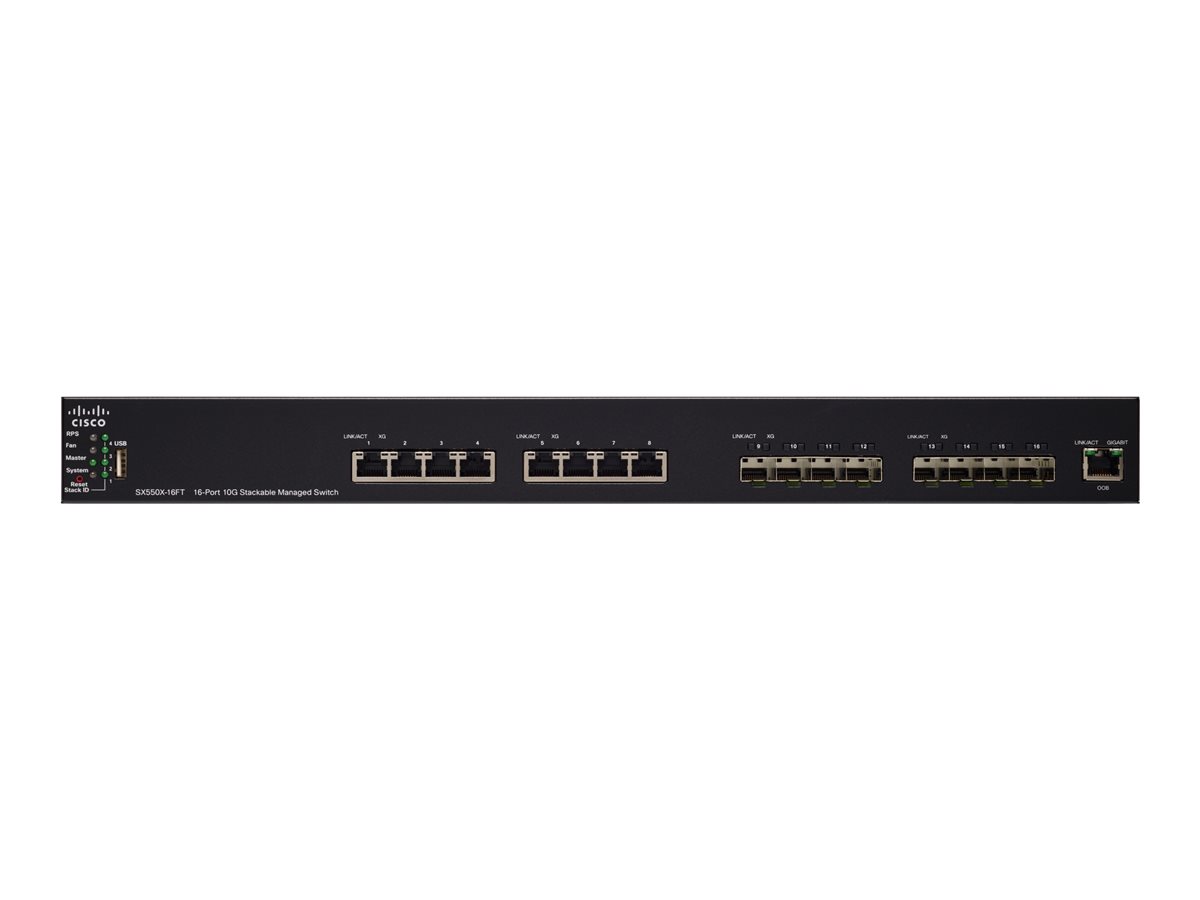

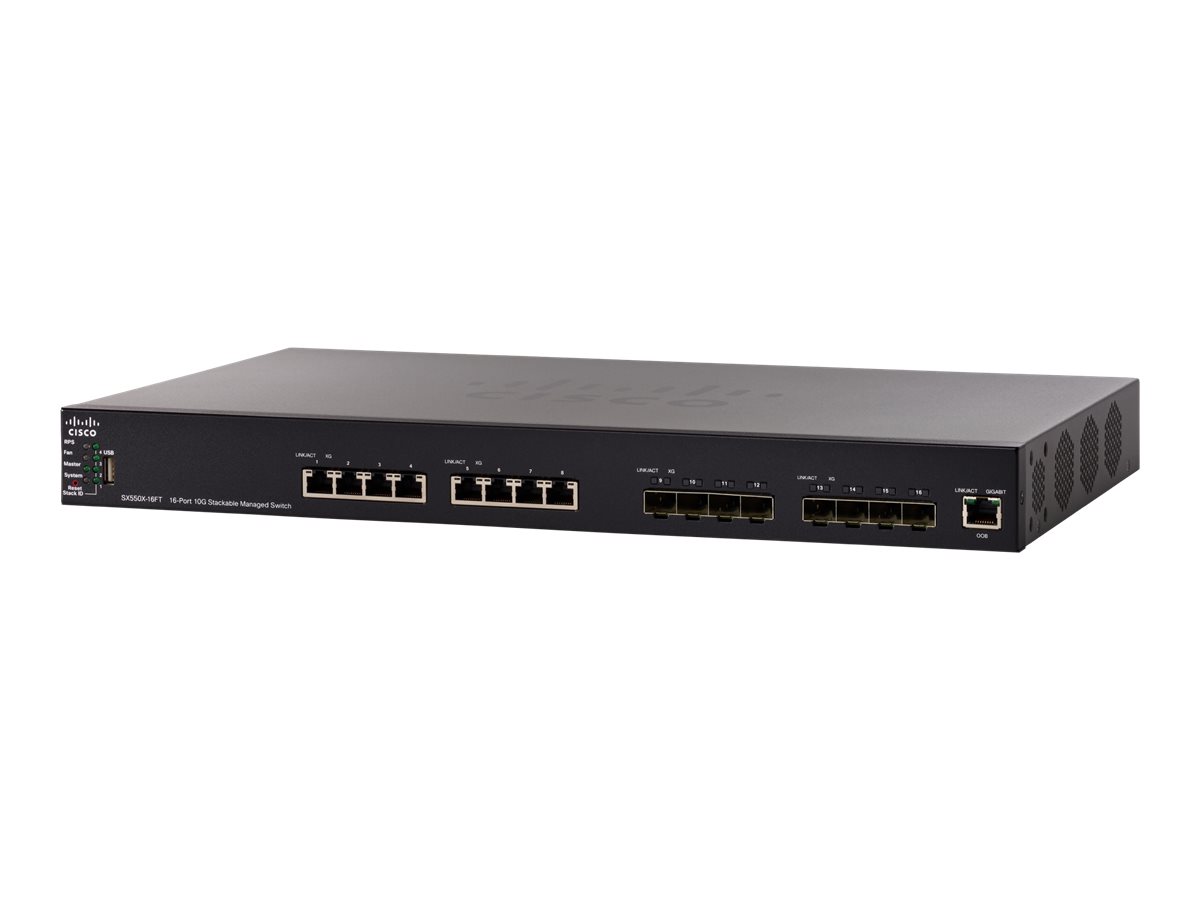

Cisco 550X Series SX550X-16FT
MSRP$5,888.62
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cisco 550X Series SX550X-16FT
- Switch
- L3
- managed
- 8 x 10GBase-T + 8 x 10 Gigabit SFP+
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $5,888.62 |
| Mfr Part #: | SX550X-16FT-K9-NA |
| SHI Part #: | 37209250 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco 550X Series SX550X-16FT - Switch - L3 - managed - 8 x 10GBase-T + 8 x 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $5,888.62 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.4 cm |
| Dimensions & Weight / Height | 25.7 cm |
| Dimensions & Weight / Weight | 3.79 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Cisco |
| Header / Country Kits |
|
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 16 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 25.7 cm |
| Weight | 3.79 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Device Type | Switch - 16 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | MD5, SSL |
| Features | Flow control, BOOTP support, ARP support, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, Port Security, RSPAN, DHCP client, Energy Efficient Ethernet, MVR, dual firmware images, NDP, GARP, GVRP, 802.1x authentication, ToS, cable test, IP source guard, SmartPort technology, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, SCT, LLDP-MED, HOL blocking, IPMB, SSD, ISATAP tunnel support, UDP, WRR, Unknown Storm Control, BPDU Guard |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 32000 entries |
| Max Units In A Stack | 8 |
| Performance |
|
| Ports | 8 x 10GBase-T + 8 x 10 Gigabit SFP+ |
| Processor | X ARM: 1.3 GHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Routing Protocol | RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR, MSTP, RSTP, STP |
| Status Indicators | System, RPS (Redundant Power Supply), fan, link/speed, stack |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x console cable |
| Compliant Standards | Plug and Play, UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6 |
| Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
| MTBF | 412,309 hours |
| Rack Mounting Kit | Included |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Power Consumption Operational | 57.7 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
