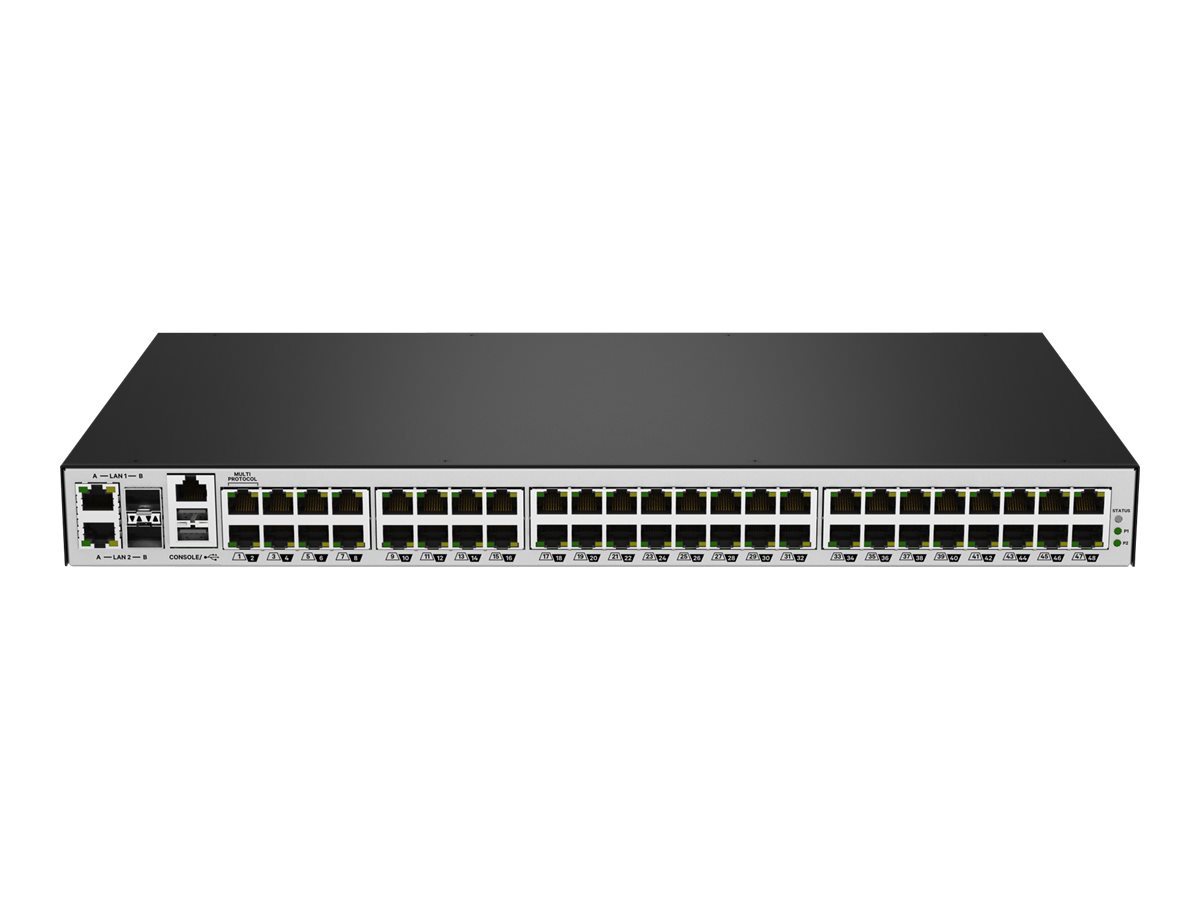

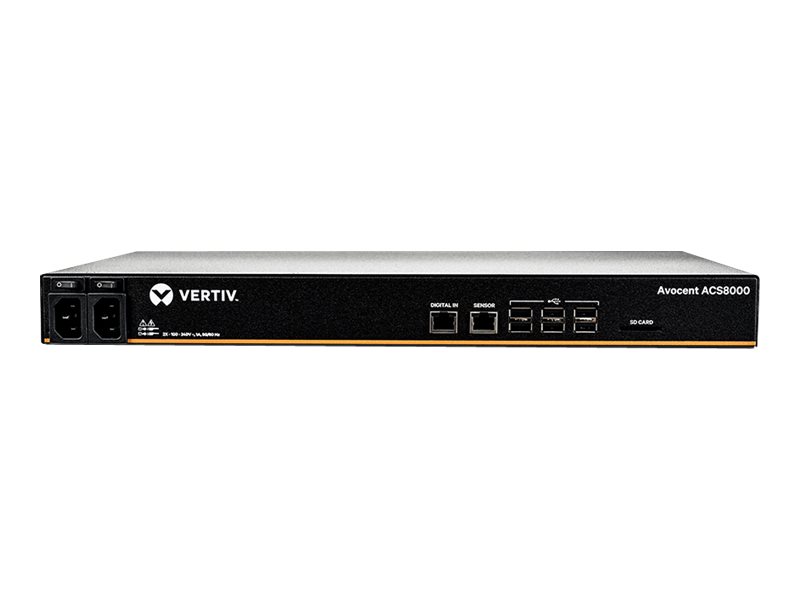

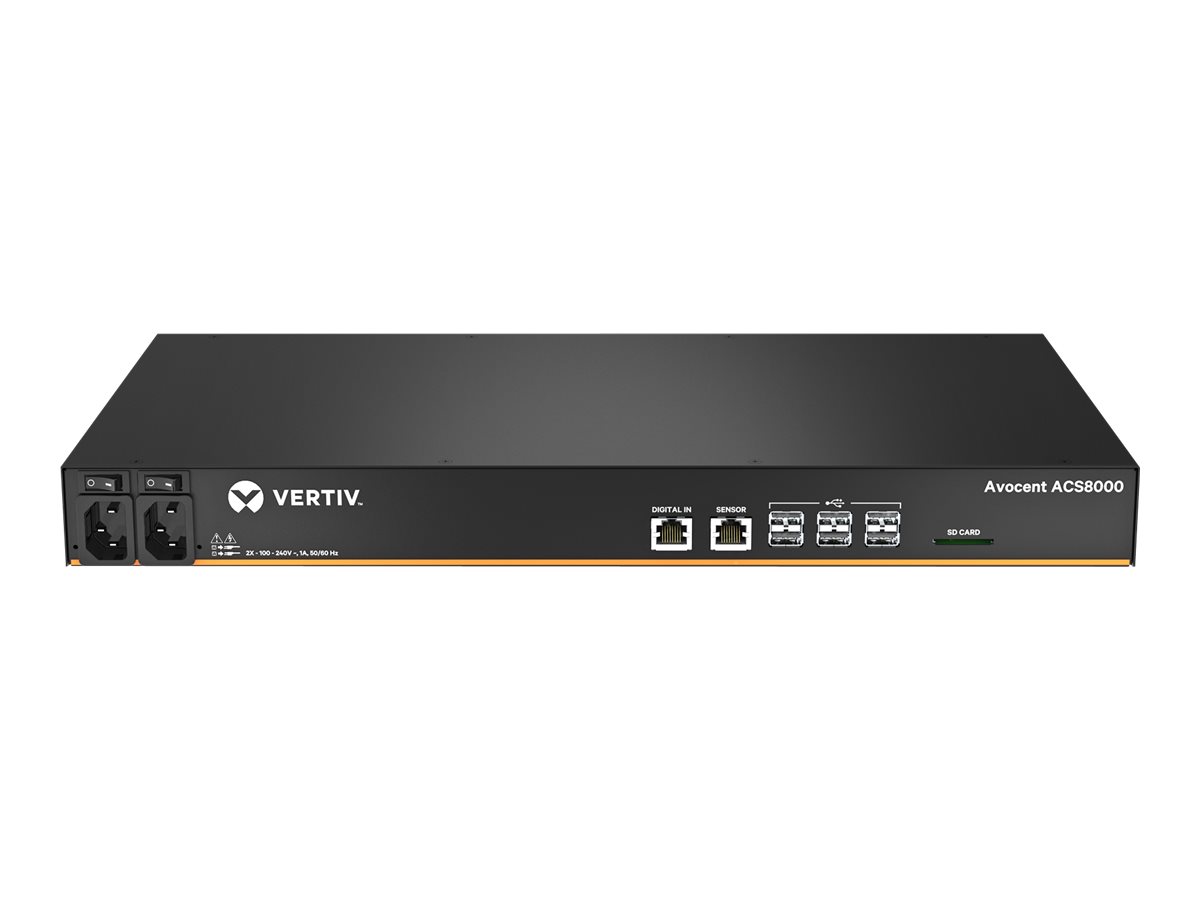

Avocent ACS 8000 48-Port Serial Console Server Dual Internal AC Power 1U
MSRP$8,492.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Avocent ACS 8000 48-Port Serial Console Server Dual Internal AC Power 1U
- Console server
- 48 ports
- GigE, RS-232
- 1U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $8,492.00 |
| Mfr Part #: | ACS8048DAC-400 |
| SHI Part #: | 37069931 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Avocent ACS 8000 48-Port Serial Console Server Dual Internal AC Power 1U - Console server - 48 ports - GigE, RS-232 - 1U |
| Manufacturer | Vertiv |
| MSRP | $8,492.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.13 cm |
| Dimensions & Weight / Height | 4.45 cm |
| Dimensions & Weight / Weight | 3.4 kg |
| Dimensions & Weight / Width | 43.82 cm |
| Header / Brand | Avocent |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Ports Qty | 48 |
| Networking / Type | Console server |
| Packaged Quantity | 1 |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 24.13 cm |
| Device Type | Console server |
| Height | 4.45 cm |
| Height (Rack Units) | 1U |
| Weight | 3.4 kg |
| Width | 43.82 cm |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, KCC, RCM, CU |
| Networking | |
| Authentication Method | Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory, Extensible Authentication Protocol (EAP), DSView |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Features | NAT support, Syslog support, packet filtering, IPv6 support, temperature sensor, SNMP trap, e-mail notification |
| Form Factor | External |
| Network / Transport Protocol | IPSec, NFS |
| Ports Qty | 48 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 28 Watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Memory / Storage | |
| Flash Memory | 16 GB |
| Max Supported Qty | 1 |
| Processors Installed | 1 x ARM Cortex-A9 MPCore |
| RAM | 1 GB DDR3L SDRAM |
| Software / System Requirements | |
| OS Provided | Linux |
