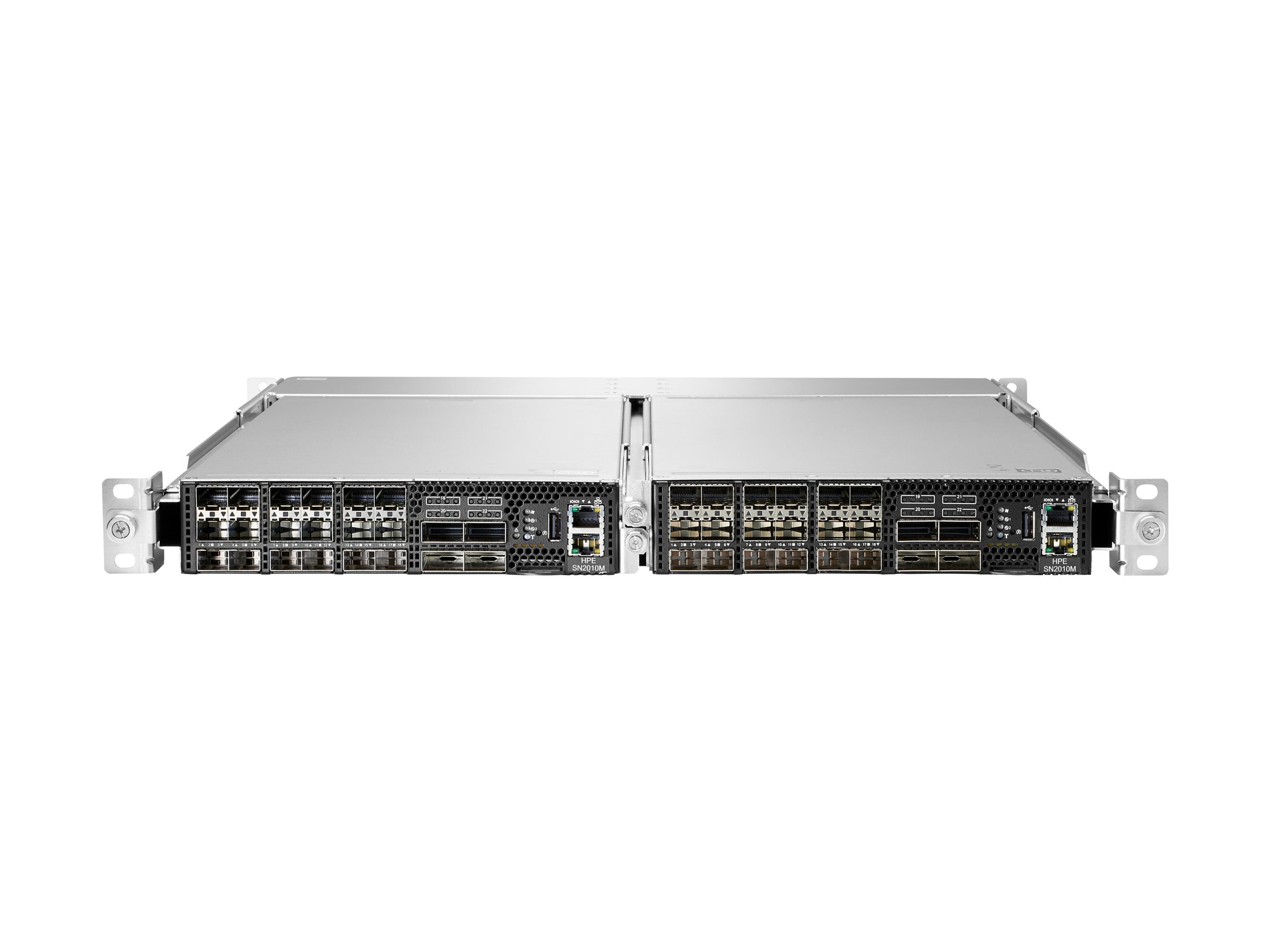

HPE StoreFabric SN2010M Half Width
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE StoreFabric SN2010M Half Width
- Switch
- L3
- managed
- 4 x 100 Gigabit QSFP28 + 18 x 10 Gigabit / 25 Gigabit SFP28
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | R0P77A |
| SHI Part #: | 37051810 |
| Category: | Hubs or concentrators |
| UNSPSC: | 43222610 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| Product Line: | HPE - Enterprise Group |
Audio/Video Cables
- InfiniBand cable
- QSFP to QSFP
- 3 m
- for HPE SN2100M 100, SN2410M 25; Apollo 4200, 4200 Gen10; FlexFabric 59XX; ProLiant e910t 2U
Hard Drives
| General Information | |
|---|---|
| Category | Hubs or concentrators |
| Description | HPE StoreFabric SN2010M Half Width - Switch - L3 - managed - 4 x 100 Gigabit QSFP28 + 18 x 10 Gigabit / 25 Gigabit SFP28 - rack-mountable - TAA Compliant |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 20 cm |
| Dimensions & Weight / Weight | 4.53 kg |
| Dimensions & Weight / Width | 43.9 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 20 cm |
| Weight | 4.53 kg |
| Width | 43.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, LDAP |
| Compliant Standards | X.509 |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | IGMP snooping, port mirroring, IPv6 support, RSTP support, VRRP support, MSTP support, DCBX support, ACL support, QoS, BFD, IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RoCE, RED, ECN, PFC, VXLAN, MLAG, OSPF, Root Guard, Loop Guard, Voice VLAN, ToR, STP BPDU Guard, BPDU Filter, PIM |
| Flash Memory | 16 MB |
| Performance |
|
| Ports | 4 x 100 Gigabit QSFP28 + 18 x 10 Gigabit / 25 Gigabit SFP28 |
| RAM | 8 GB |
| Remote Management Protocol | SNMP, Telnet, SSH, CLI |
| Status Indicators | System, status |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Cables Included | 1 x serial cable |
| Compliant Standards | EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009 |
| Included Accessories | 2 power cords (C13 to C14) |
| Rack Mounting Kit | Optional |
| TAA Compliant | Yes |
| Power | |
| Features | Power-to-port airflow |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 57 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
