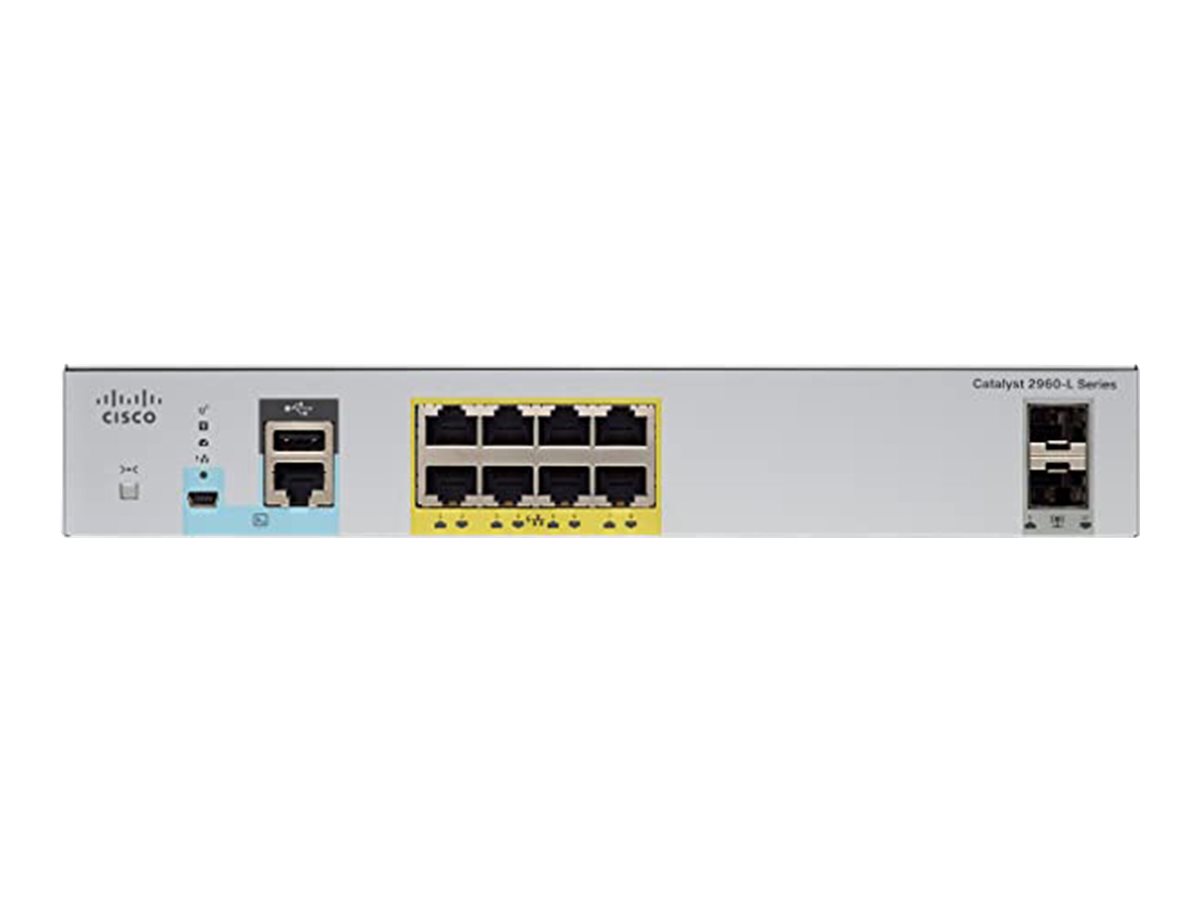

Cisco Catalyst 2960L-SM-8PS

MSRP$597.89
$434.00
Cisco Catalyst 2960L-SM-8PS
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • smart
  • 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
  • desktop, rack-mountable
Cisco Catalyst 2960L-SM-8PS
  • Switch
  • L3
  • smart
  • 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
  • desktop, rack-mountable
  • PoE+ (67 W)
  Additional Details
Price: $434.00
MSRP: $597.89
Mfr Part #: WS-C2960L-SM-8PS
SHI Part #: 36914043
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionCisco Catalyst 2960L-SM-8PS - Switch - L3 - smart - 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - desktop, rack-mountable - PoE+ (67 W)
ManufacturerCisco Systems
MSRP$597.89
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth24 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight2.04 kg
Dimensions & Weight / Width26.8 cm
Header / BrandCisco
Miscellaneous / Product ColorGray
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Ports Qty8
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth24 cm
Height4.4 cm
Weight2.04 kg
Width26.8 cm
Environmental Parameters
Humidity Range Operating5 - 90%
Humidity Range Storage5 - 95%
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T RJ-45 PoE+
  • 2 x 1000Base-X SFP uplink
  • 1 x console RJ-45
  • 1 x console (mini-USB) Type B
  • 1 x USB Type A
General
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity
  • VLANs supported: 4094
  • Active VLANs: 256
  • VLAN IDs: 4094
  • IPv4 routes (static): 16
  • IPv6 routes (static): 16
  • STP instances: 64
  • SPAN sessions: 4
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 8 ports - L3 - smart
Enclosure TypeDesktop, rack-mountable
FeaturesDHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP snooping, DTP support, PAgP support, ACL support, DAI, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, LACP, Port Security, MAC Address Notification, Energy Efficient Ethernet, MIB, GVRP, CoS, SNMP support, IGMP filtering, WTD, VTP, BPDU, ICMP, STRG, NTP
Flash Memory256 MB
Jumbo Frame Support10240 bytes
MAC Address Table Size16000 entries
Performance
  • Switching bandwidth: 20 Gbps
  • Forwarding bandwidth: 10 Gbps
  • Forwarding rate: 14.88 Mpps
PoE Budget67 W
Ports8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)PoE+
ProcessorARM7: 800 MHz
RAM512 MB
Remote Management ProtocolSNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Routing ProtocolIGMP, MLDv2, MLD
Status IndicatorsPort status, status, PoE, link/speed
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - consulting - 90 days
Miscellaneous
Compliant StandardsPlug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, Directive 2011/65/EU, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software IncludedCisco IOS LAN Lite
