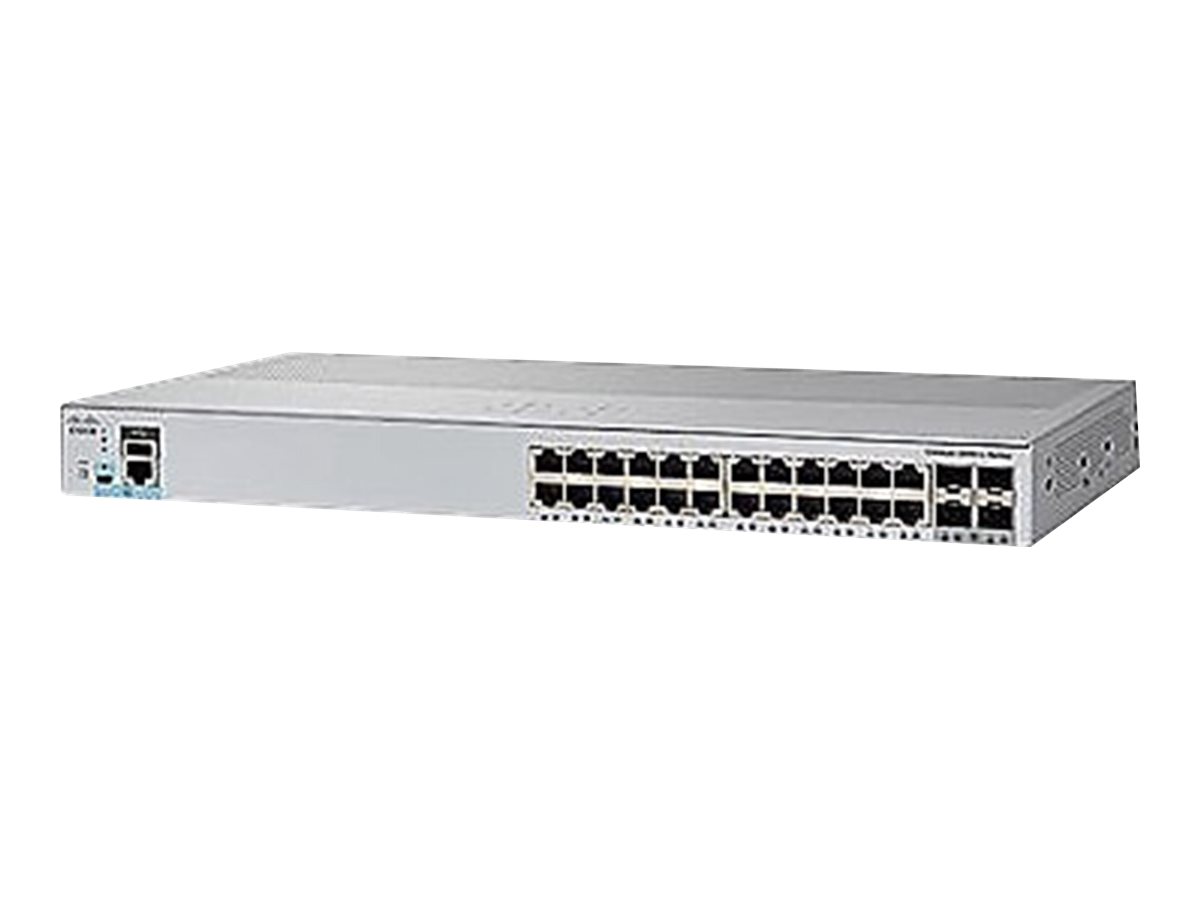

Cisco Catalyst 2960L-SM-24PS


MSRP$1,308.70
$949.00
Cisco Catalyst 2960L-SM-24PS

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • smart
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • desktop, rack-mountable
  • PoE+ (195 W)
Cisco Catalyst 2960L-SM-24PS
  • Switch
  • smart
  • 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
  • desktop, rack-mountable
  • PoE+ (195 W)
  Additional Details
Price: $949.00
MSRP: $1,308.70
Mfr Part #: WS-C2960L-SM-24PS
SHI Part #: 36914040
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware

Power Management

Cisco Jumper - Power cable
  • IEC 60320 C15 to IEC 60320 C14
  • 69 cm
  • for Catalyst 9200L; MDS 9020, 9120, 9140, 9216, 9216A, 9216i
MSRP $29.53 $27.00
Cisco - Power cable - power IEC 60320 C13 to power CEE 7/7 (M)
  • 2.5 m
  • Europe
  • for Cisco 4000, MC3810, WS-C1400; Catalyst 1200, 1700, 2000, 2822, 2960, 3560; FastHub 100
MSRP $74.50 $63.00
General Information
CategoryNetwork switches
DescriptionCisco Catalyst 2960L-SM-24PS - Switch - smart - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - desktop, rack-mountable - PoE+ (195 W)
ManufacturerCisco Systems
MSRP$1,308.70
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth26.5 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight3.36 kg
Dimensions & Weight / Width44.5 cm
Header / BrandCisco
Miscellaneous / Product ColorGray
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth26.5 cm
Height4.4 cm
Weight3.36 kg
Width44.5 cm
Environmental Parameters
Humidity Range Operating5 - 90%
Humidity Range Storage5 - 95%
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 24 x 1000Base-T RJ-45 PoE+
  • 1 x console RJ-45
  • 1 x console (mini-USB) Type B
  • 1 x USB Type A
  • 4 x 1000Base-X SFP uplink
General
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity
  • VLANs supported: 4094
  • Active VLANs: 64
  • STP instances: 64
  • SPAN sessions: 1
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 24 ports - smart
Enclosure TypeDesktop, rack-mountable
FeaturesDHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, ACL support, DAI, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, LACP, Port Security, Energy Efficient Ethernet, MIB, GVRP, CoS, IGMP filtering, WTD, VTP, BPDU, ICMP, STRG, NTP
Flash Memory256 MB
Jumbo Frame Support10240 bytes
MAC Address Table Size8K entries
Performance
  • Switching bandwidth: 56 Gbps
  • Forwarding bandwidth: 28 Gbps
  • Forwarding performance (64-byte packet size): 41.67 Mpps
PoE Budget195 W
Ports24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)PoE+
ProcessorARM7: 800 MHz
RAM512 MB
Remote Management ProtocolSNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Routing ProtocolIGMP, MLDv2, MLD
Status IndicatorsPort status, port duplex mode, system, PoE, link/speed
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - consulting - 90 days
Miscellaneous
Compliant StandardsPlug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6
MTBF909,838 hours
Power
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software IncludedCisco IOS LAN Lite
